GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

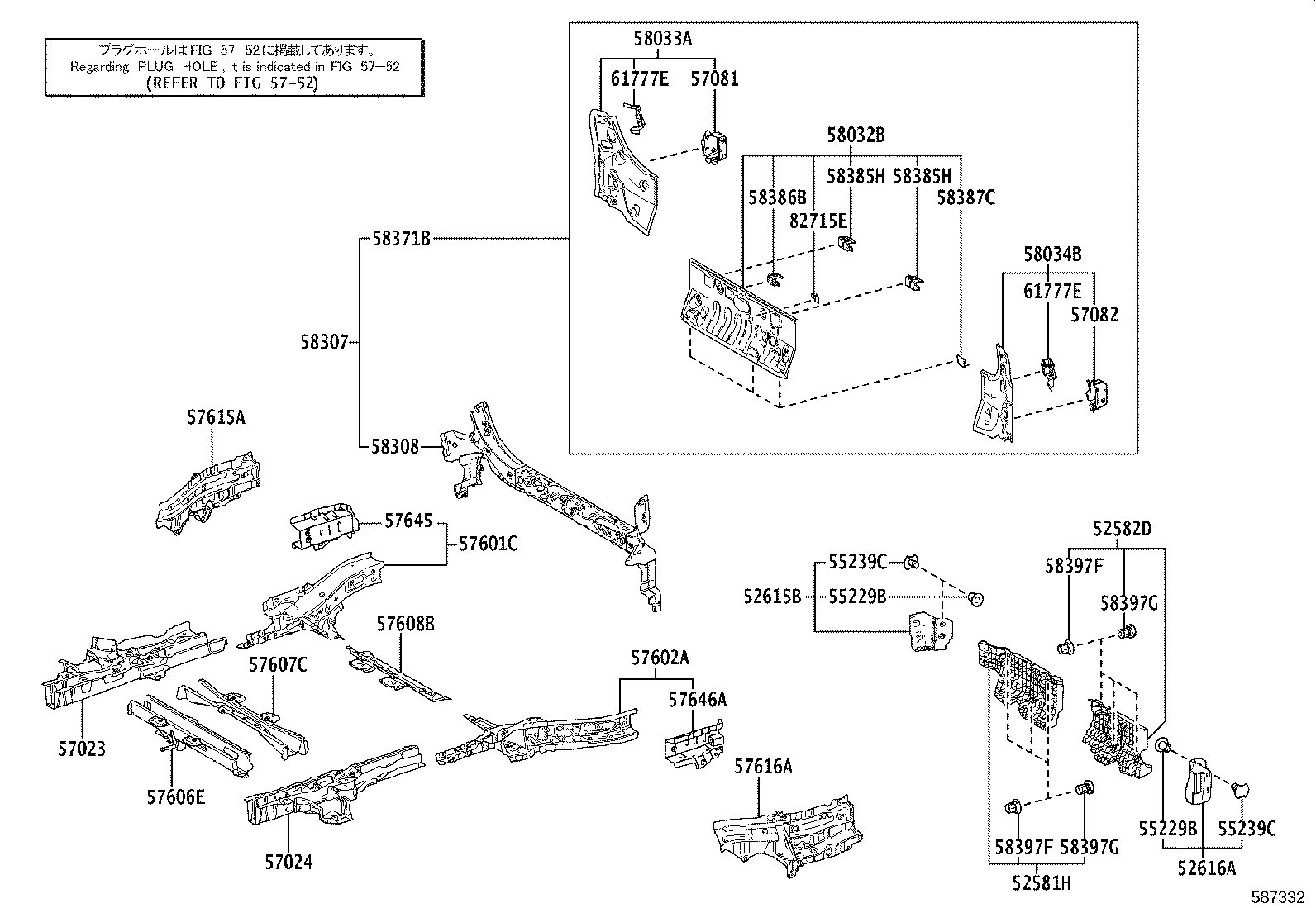

ILLUST NO. 1 OF 2(2001- )GGH31

Click highlighted areas on diagram

FLOOR MEMBER

diagram 52581H 52582D 52615B 52616A 55229B 55229B 55239C 55239C 57023 57024 57081 57082 5752 57601C 57602A 57606E 57607C 57608B 57615A 57616A 57645 57646A 58032B 58033A 58034B 58307 58308 58371B 58385H 58385H 58386B 58387C 58397F 58397F 58397G 58397G 61777E 61777E 82715E
Part # Description Qty Price
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-58050

AYH36,GGH31

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-58050

AYH36,GGH31

 1
57081 - BRACKET SUB-ASSY, REAR BUMPER MOUNTING
57081-58030

AYH36,GGH31

 1
57082 - BRACKET SUB-ASSY, REAR BUMPER ARM SUPPORT, LH
57082-58030

AYH36,GGH31

 1
57601C - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-58080

AYH36,GGH31

 1
57602A - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-58110

AYH36,GGH31

 1
57606E - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-58110

AYH36,GGH31

 1
57607C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-58100

AYH36,GGH31

 1
57608B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57608-58130

AYH36,GGH31

 1
57615A - MEMBER, REAR FLOOR SIDE, REAR RH
57061-58010

AYH36,GGH31

 1
57616A - MEMBER, REAR FLOOR SIDE, REAR LH
57062-58010

GGH31

 1
57645 - REINFORCEMENT, REAR SIDE MEMBER, RH
57645-58010

AYH36,GGH31

 1
57646A - REINFORCEMENT, REAR SIDE MEMBER, LH
57646-58030

AYH36,GGH31

 1
58032B - PANEL SUB-ASSY, REAR FLOOR, CENTER
58032-58010

AYH36,GGH31

 1
58033A - REINFORCE SUB-ASSY, BODY LOWER BACK, RH
58033-58010

AYH36,GGH31

 1
58034B - REINFORCE SUB-ASSY, BODY LOWER BACK, LH
58034-58010

AYH36,GGH31

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-58070

AYH36,GGH31

 1
58308 - PANEL SUB-ASSY, BODY LOWER BACK, INNER
58308-58010

AYH36,GGH31

 1
58371B - PANEL, BODY LOWER BACK, OUTER
58302-58020

AYH36,GGH31

 1
58385H - BRACKET, REAR BUMPER COVER, NO.1
58386-12020

AYH36,GGH31

 2
58385H - BRACKET, REAR BUMPER COVER, NO.1
58386-12020

AYH36,GGH31

 2
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-28050

AYH36,GGH31

 1
58387C - PLATE, REAR FLOOR FINISH
58348-58020

AYH36,GGH31

 3
61777E - RETAINER, LOWER BACK PANEL
61777-58030

AYH36,GGH31

 2
61777E - RETAINER, LOWER BACK PANEL
61777-58030

AYH36,GGH31

 2
82715E - BRACKET, WIRING HARNESS CLAMP
82715-28J10

AYH36,GGH31

 1
Linked diagrams
5752

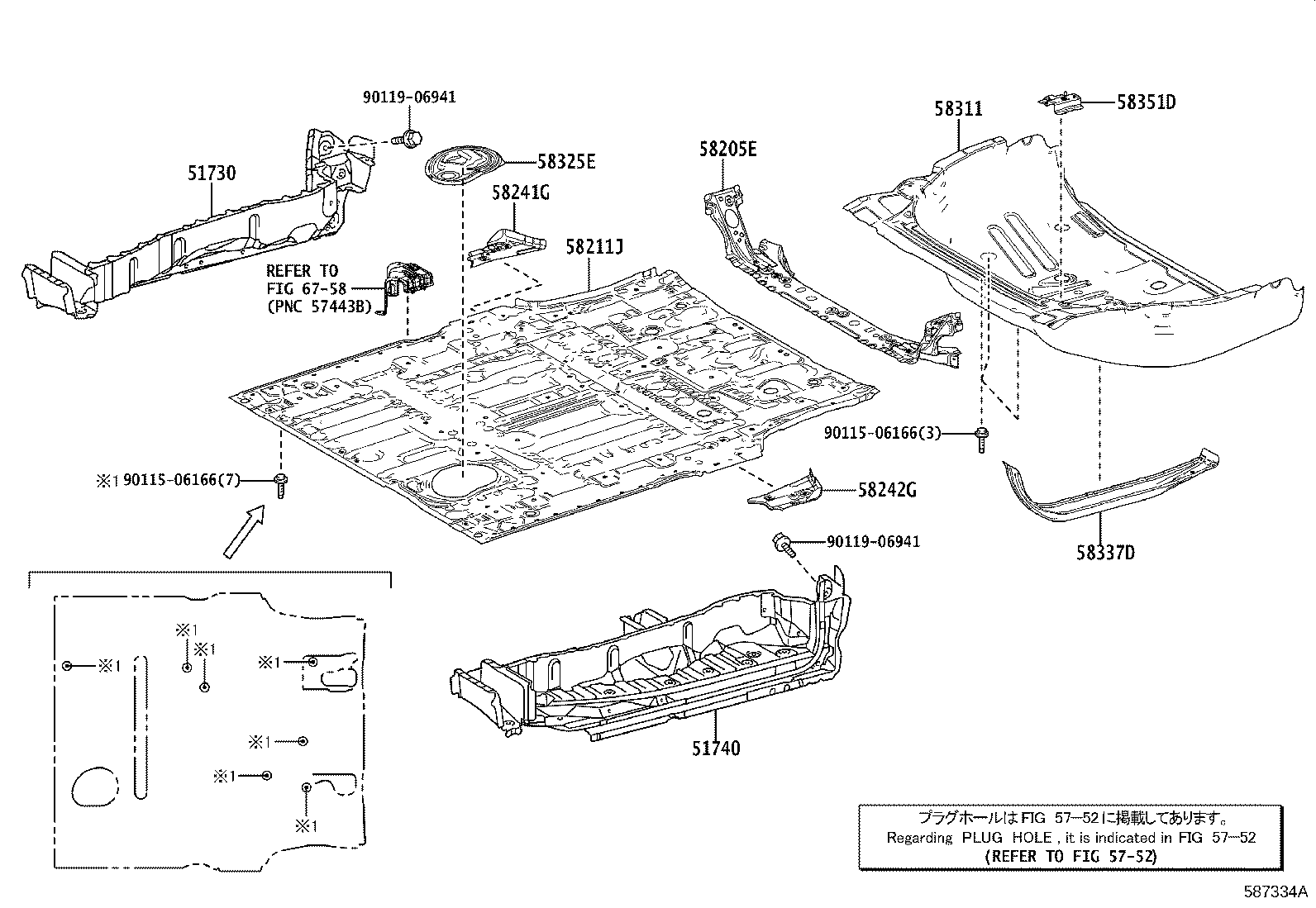

ILLUST NO. 2 OF 2(2001- )GGH31

Click highlighted areas on diagram

FLOOR PANEL

diagram 51730 51740 5752 58205E 58211J 58241G 58242G 58311 58325E 58337D 58351D 6758 9011506166 9011506166 9011906941 9011906941
Part # Description Qty Price
51730 - STEP ASSY, REAR FLOOR, RH
51730-58070

AYH36,GGH31

 1
51740 - STEP ASSY, REAR FLOOR, LH
51740-58080

AYH36,GGH31

 1
58205E - REINFORCE SUB-ASSY, REAR SEAT HINGE
58205-58010

AYH36,GGH31

 1
58211J - PAN, CENTER FLOOR
58211-58150

GGH31..LHD..V

 1
58241G - PANEL, FLOOR SIDE, RH
58241-58010

AYH36,GGH31

 1
58242G - PANEL, FLOOR SIDE, LH
58242-58010

AYH36,GGH31

 1
58311 - PAN, REAR FLOOR
58311-58100

AYH36,GGH31

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-58010

AYH36,GGH31

 1
58337D - REINFORCEMENT, REAR FLOOR PAN, LH
58337-58010

AYH36,GGH31

 1
58351D - REINFORCEMENT, REAR FLOOR PANEL
58351-58030

AYH36,GGH31

 1
Common parts
90115-06166
90119-06941
Linked diagrams
5752
