GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

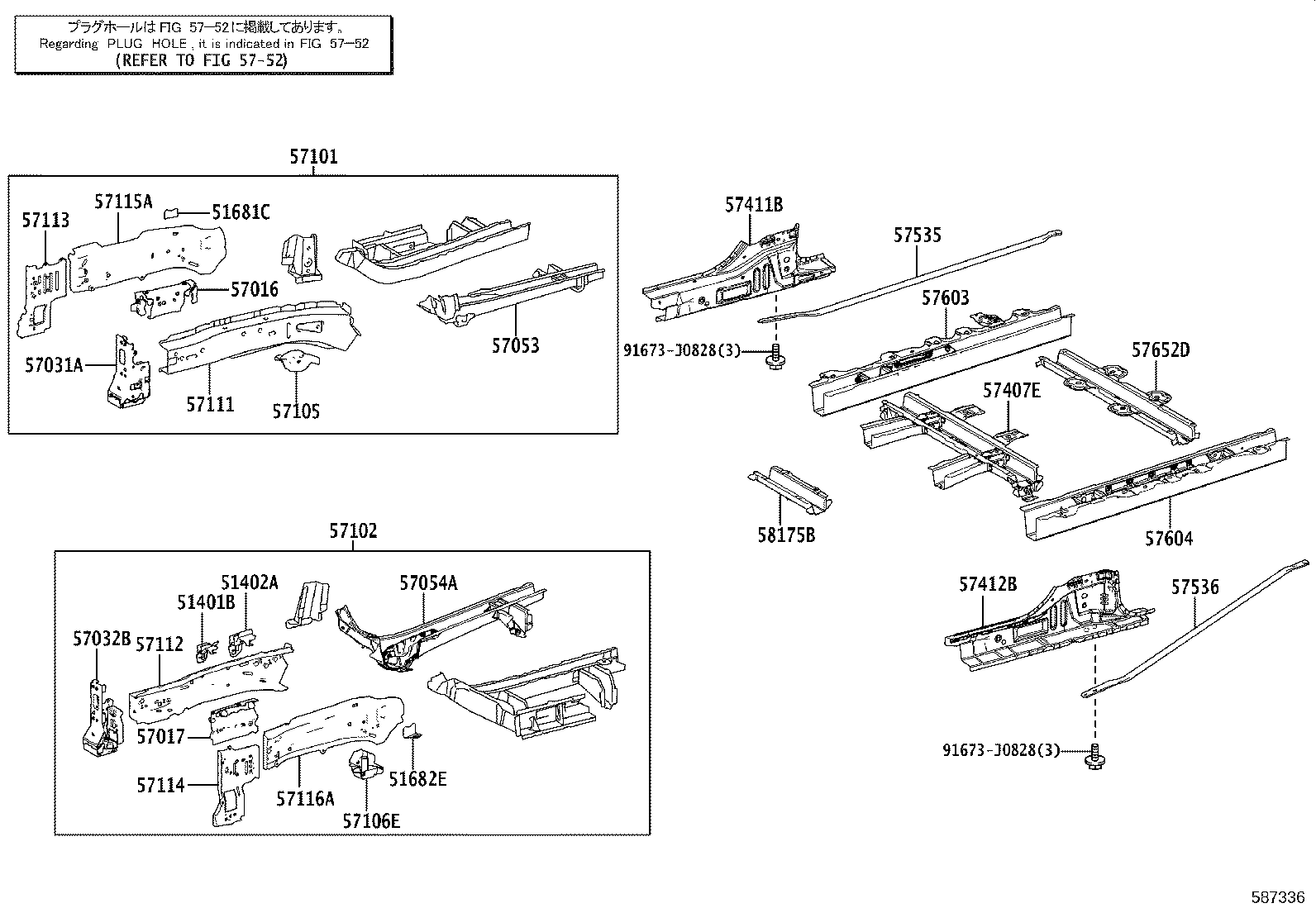

ILLUST NO. 1 OF 2(2001- )

Click highlighted areas on diagram

FLOOR MEMBER

diagram 51401B 51402A 51681C 51682E 57016 57017 57031A 57032B 57053 57054A 57101 57102 57105 57106E 57111 57112 57113 57114 57115A 57116A 57407E 57411B 57412B 5752 57535 57536 57603 57604 57652D 58175B 91673J0828 91673J0828
Part # Description Qty Price
51401B - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING
51401-28070

AYH36,GGH31

 1
51402A - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-28060

AYH36,GGH31

 1
51681C - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH
51681-12080

AYH36,GGH31

 1
51682E - PLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH
51682-12080

AYH36,GGH31

 1
57016 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH
57016-12110

AYH36,GGH31

 1
57017 - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH
57017-12070

AYH36,GGH31

 1
57031A - REINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57031-12010

AYH36,GGH31

 1
57032B - REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57032-12010

AYH36,GGH31

 1
57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57053-58010

AYH36,GGH31

 1
57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57054-58010

AYH36,GGH31

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-58040

AYH36,GGH31

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-58051

GGH31;AYH36..RHD

 1
57105 - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57105-12160

AYH36,GGH31

 1
57106E - BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRO
57106-12150

AYH36,GGH31

 1
57111 - MEMBER, FRONT SIDE, RH
57111-12230

AYH36,GGH31

 1
57112 - MEMBER, FRONT SIDE, LH
57112-58011

AYH36,GGH31

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-12220

AYH36,GGH31

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-12191

AYH36,GGH31

 1
57115A - PLATE, FRONT SIDE MEMBER, OUTER RH
57025-12010

AYH36,GGH31

 1
57116A - PLATE, FRONT SIDE MEMBER, OUTER LH
57026-12020

AYH36,GGH31

 1
57407E - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57407-58060

GGH31

 1
57411B - MEMBER, FLOOR SIDE, INNER RH
57047-58010

AYH36,GGH31

 1
57412B - MEMBER, FLOOR SIDE, INNER LH
57048-58010

AYH36,GGH31

 1
57535 - BRACE, FRONT FLOOR, RH
57535-58010

AYH36,GGH31

 1
57536 - BRACE, FRONT FLOOR, LH
57536-58010

AYH36,GGH31

 1
57603 - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57603-58020

AYH36,GGH31

 1
57604 - MEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57604-58050

AYH36,GGH31

 1
57652D - MEMBER, REAR FLOOR CROSS, NO.1
57605-58030

GGH31

 1
58175B - ANGLE SUB-ASSY, FRONT FLOOR, REAR
58175-58010

AYH36,GGH31

 1
Common parts
91673-J0828
Linked diagrams
5752

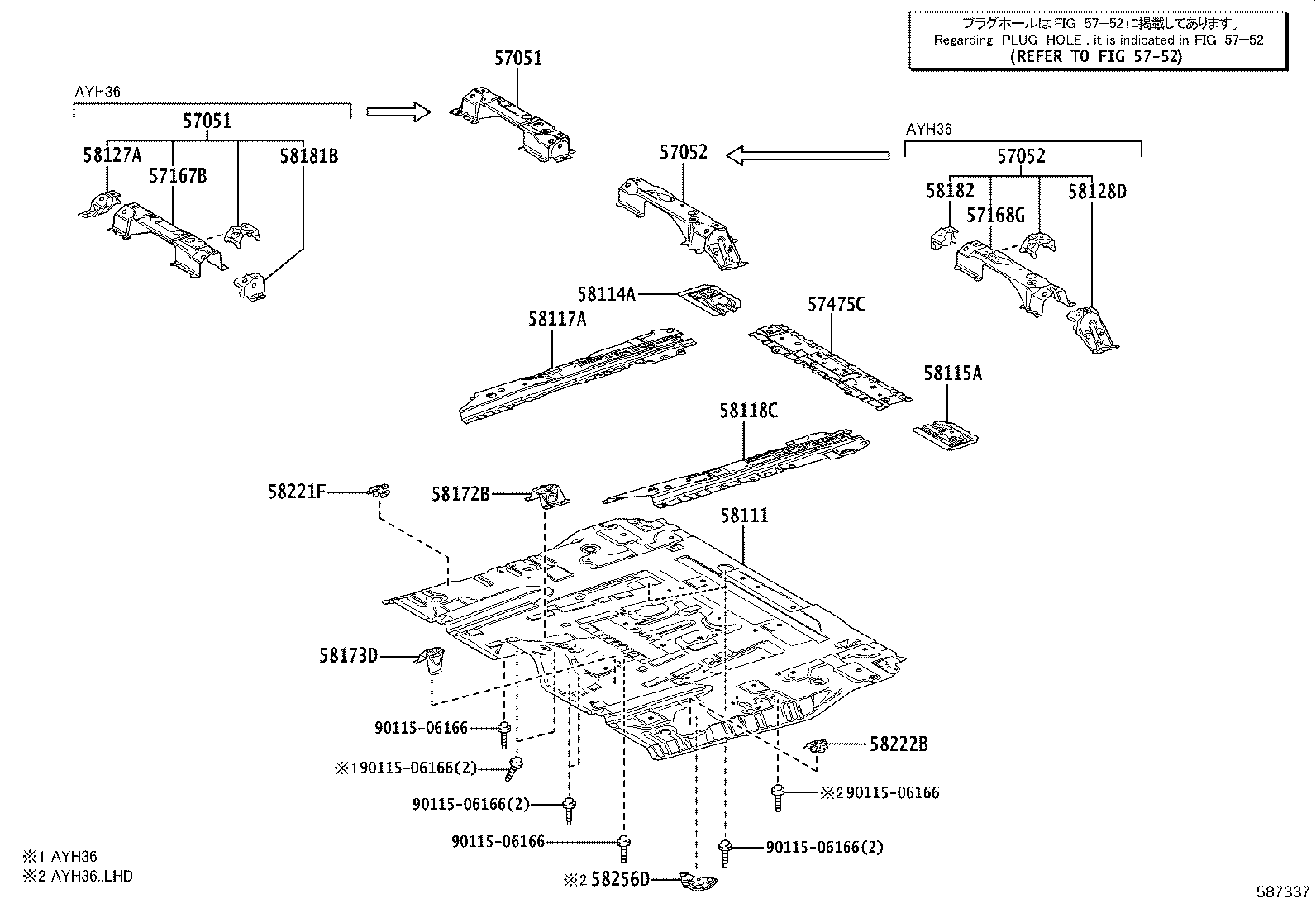

ILLUST NO. 2 OF 2(2001- )

Click highlighted areas on diagram

FLOOR PANEL

diagram 57051 57051 57052 57052 57167B 57168G 57475C 5752 58111 58114A 58115A 58117A 58118C 58127A 58128D 58172B 58173D 58181B 58182 58221F 58222B 58256D 9011506166 9011506166 9011506166 9011506166 9011506166 9011506166
Part # Description Qty Price
57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-58081

GGH31

 1
57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-58081

GGH31

 1
57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-58061

GGH31

 1
57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-58061

GGH31

 1
57475C - PLATE, FRONT FLOOR CROSSMEMBER
57475-58010

AYH36,GGH31

 1
58111 - PAN, FRONT FLOOR
58111-58180

GGH31

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58114-58010

AYH36,GGH31

 1
58115A - REINFORCEMENT, FRONT FLOOR PANEL
58115-58010

AYH36,GGH31

 1
58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH
58117-58030

AYH36,GGH31

 1
58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH
58118-58020

AYH36,GGH31

 1
58172B - BRACKET, COMPUTER MOUNTING, NO.3
58172-58010

AYH36,GGH31

 1
58173D - BRACKET, COMPUTER MOUNTING, NO.4
58173-58010

AYH36,GGH31

 1
58221F - REINFORCEMENT, FLOOR PANEL, FRONT RH
58221-58020

AYH36,GGH31

 1
58222B - REINFORCEMENT, FLOOR PANEL, FRONT LH
58221-58020

AYH36,GGH31

 1
Common parts
90115-06166
Linked diagrams
5752
