GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2001- )LHD

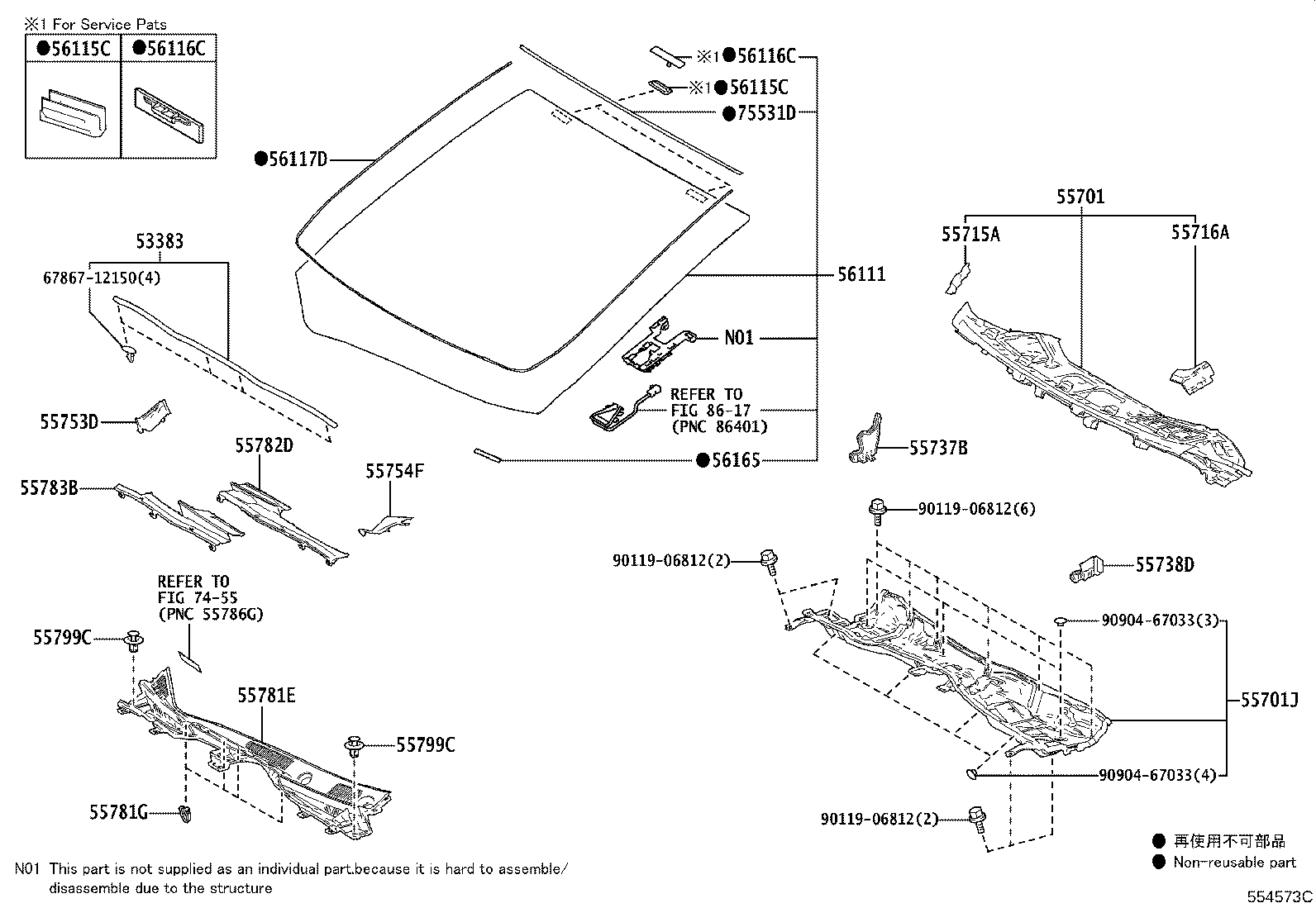

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53383 - SEAL, HOOD TO COWL TOP | ||||
| 53383-58040 |
AYH36,GGH31 |
1 | ||
| 55701 - PANEL SUB-ASSY, COWL | ||||
| 55700-58090 |
GGH31..LHD |
1 | ||
| 55701J - PANEL SUB-ASSY, COWL TOP, OUTER | ||||
| 55701-58141 |
AYH36,GGH31..LHD |
1 | ||
| 55715A - BRACE, COWL TOP TO APRON, RH | ||||
| 55715-58020 |
AYH36,GGH31 |
1 | ||
| 55716A - BRACE, COWL TOP TO APRON, LH | ||||
| 55716-58020 |
AYH36,GGH31 |
1 | ||
| 55737B - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1 | ||||
| 55738-58040 |
AYH36,GGH31..LHD |
1 | ||
| 55738D - SEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2 | ||||
| 55738-58050 |
AYH36,GGH31..LHD |
1 | ||
| 55753D - SHIELD, COWL WATER EXTRACT, RH | ||||
| 55753-58020 |
AYH36,GGH31..LHD |
1 | ||
| 55754F - SHIELD, COWL WATER EXTRACT, LH | ||||
| 55754-58020 |
AYH36,GGH31..LHD |
1 | ||
| 55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR | ||||
| 55708-58110 |
GGH31..LHD |
1 | ||
| 55781G - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-05171 |
AYH36,GGH31 |
4 | ||
| 55782D - LOUVER, COWL TOP VENTILATOR, LH | ||||
| 55782-58040 |
AYH36,GGH31..LHD |
1 | ||
| 55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1 | ||||
| 55783-58040 |
AYH36,GGH31..LHD |
1 | ||
| 55799C - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07215 |
AYH36,GGH31 |
2 | ||
| 55799C - CLIP, COWL TOP VENTILATOR LOUVER | ||||
| 90467-07215 |
AYH36,GGH31 |
2 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56101-58820 |
GGH31..LHD |
1 | ||
| 56115C - STOPPER, WINDSHIELD GLASS | ||||
| 56115-30120 |
AYH36,GGH31 |
1 | ||
| 56115C - STOPPER, WINDSHIELD GLASS | ||||
| 56115-30120 |
AYH36,GGH31 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
AYH36,GGH31 |
1 | ||
| 56116C - STOPPER, WINDSHIELD GLASS, NO.2 | ||||
| 56116-22050 |
AYH36,GGH31 |
1 | ||
| 56117D - DAM, WINDSHIELD GLASS ADHESIVE | ||||
| 56117-50130 |
AYH36,GGH31 *D,L=3559 |
1 | ||
| 56165 - COVER, FRONT WINDOW INNER MOULDING, LH | ||||
| 56165-48020 |
AYH36,GGH31..LHD |
1 | ||
| 75531D - MOULDING, WINDSHIELD, OUTSIDE UPPER | ||||
| 75531-58020 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 67867-12150 | ||||
| 90119-06812 | ||||
| 90904-67033 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8617 | ||||
