GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

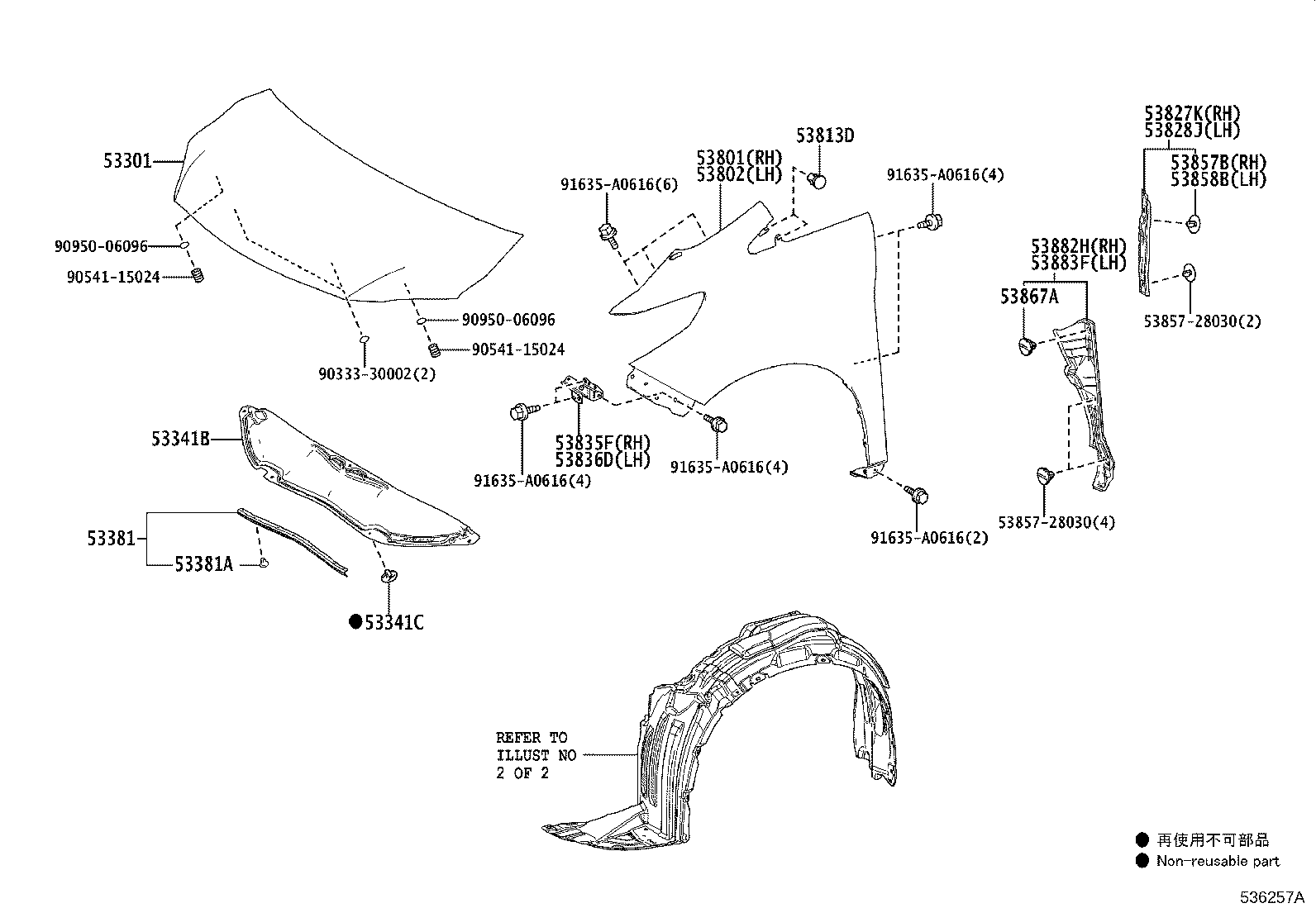

ILLUST NO. 1 OF 2(2001- )

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53801 53802 53813D 53827K 53828J 53835F 53836D 5385728030 5385728030 53857B 53858B 53867A 53882H 53883F 9033330002 9054115024 9054115024 9095006096 9095006096 91635A0616 91635A0616 91635A0616 91635A0616 91635A0616
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-58070

AYH36,GGH31

 1
53341B - INSULATOR, HOOD
53341-58070

AYH36,GGH31

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09050

AYH36,GGH31

 5
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-58040

AYH36,GGH31

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

AYH36,GGH31

 7
53801 - FENDER SUB-ASSY, FRONT RH
53801-58050

AYH36,GGH31

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-58110

AYH36,GGH31

 1
53813D - EXTENSION, FRONT FENDER
53813-58010

AYH36,GGH31

 4
53827K - PROTECTOR, FRONT FENDER SIDE PANEL, RH
53827-58040

AYH36,GGH31

 1
53828J - PROTECTOR, FRONT FENDER SIDE PANEL, LH
53828-58080

AYH36,GGH31

 1
53835F - BRACE, FRONT FENDER TO EXTENSION, RH
53835-58040

AYH36,GGH31

 1
53836D - BRACE, FRONT FENDER TO EXTENSION, LH
53836-58040

AYH36,GGH31

 1
53857B - RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857-28030

AYH36,GGH31

 1
53858B - RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53857-28030

AYH36,GGH31

 1
53867A - RETAINER, FRONT FENDER
53857-28030

AYH36,GGH31

 2
53882H - SEAL, FRONT FENDER MAIN, RH
53882-58030

AYH36,GGH31

 1
53883F - SEAL, FRONT FENDER MAIN, LH
53883-58010

AYH36,GGH31

 1
Common parts
53857-28030
90333-30002
90541-15024
90950-06096
91635-A0616

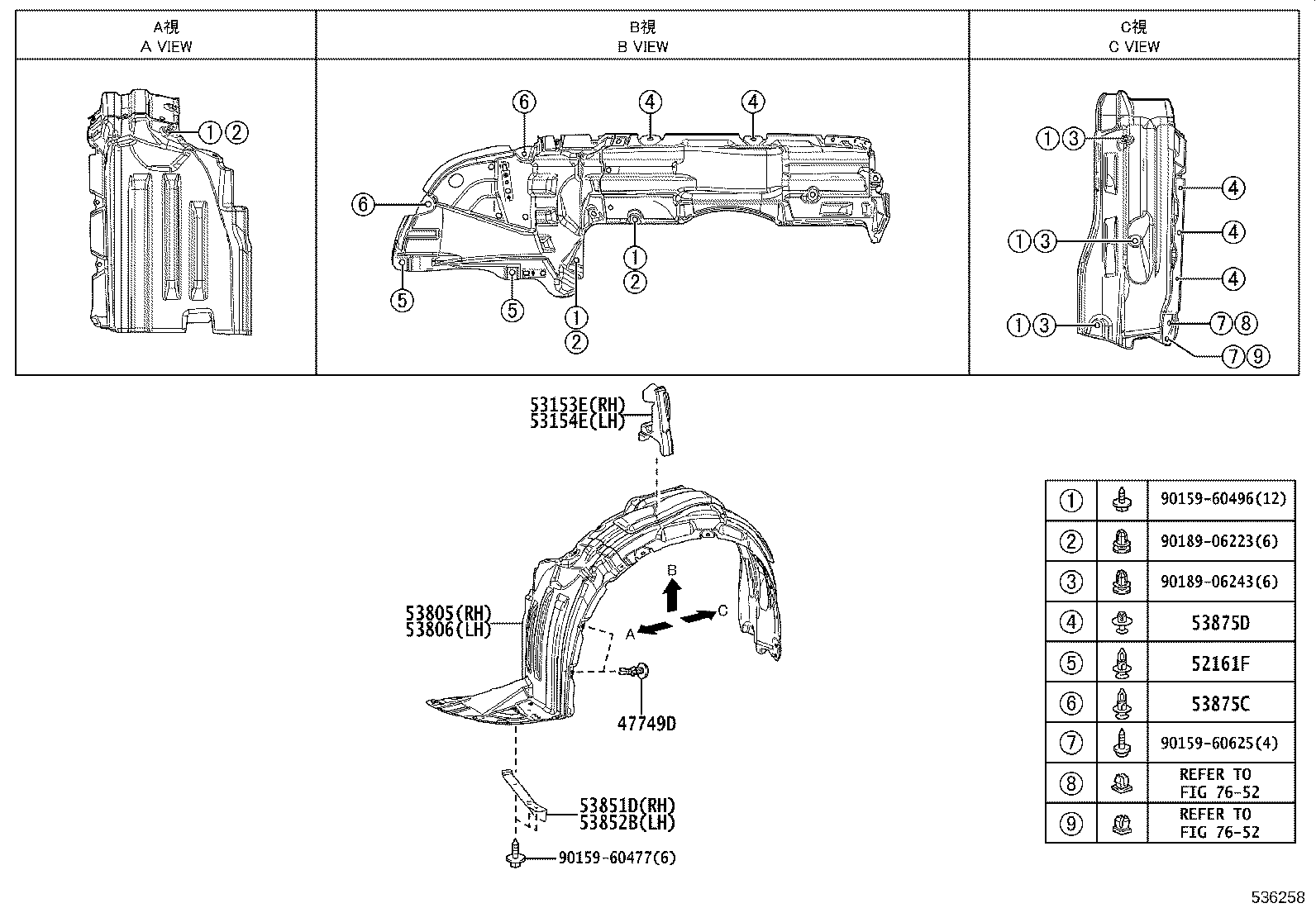

ILLUST NO. 2 OF 2(2001- )

Click highlighted areas on diagram

FENDER LINER

diagram 47749D 52161F 53153E 53154E 53805 53806 53851D 53852B 53875C 53875D 7652 7652 9015960477 9015960496 9015960625 9018906223 9018906243
Part # Description Qty Price
47749D - CLIP, PIN HOLD
47749-58020

AYH36,GGH31

 4
52161F - PIECE, FRONT BUMPER
52161-16010

AYH36,GGH31

 4
53153E - GUIDE, FRONT SIDE AIR
53153-58010

AYH36,GGH31

 1
53154E - GUIDE, FRONT SIDE AIR, NO.2
53154-58010

AYH36,GGH31

 1
53805 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, RH
53805-58110

AYH36,GGH31

 1
53806 - SHIELD SUB-ASSY, FRONT FENDER SPLASH, LH
53806-58130

AYH36,GGH31

 1
53851D - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-58050

AYH36,GGH31

 1
53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-58050

AYH36,GGH31

 1
53875C - CLIP, FRONT FENDER LINER
52161-16010

AYH36,GGH31

 4
53875D - CLIP, FRONT FENDER LINER, NO.2
90467-07214

AYH36,GGH31

 10
Common parts
90159-60477
90159-60496
90159-60625
90189-06223
90189-06243
Linked diagrams
7652
