GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )

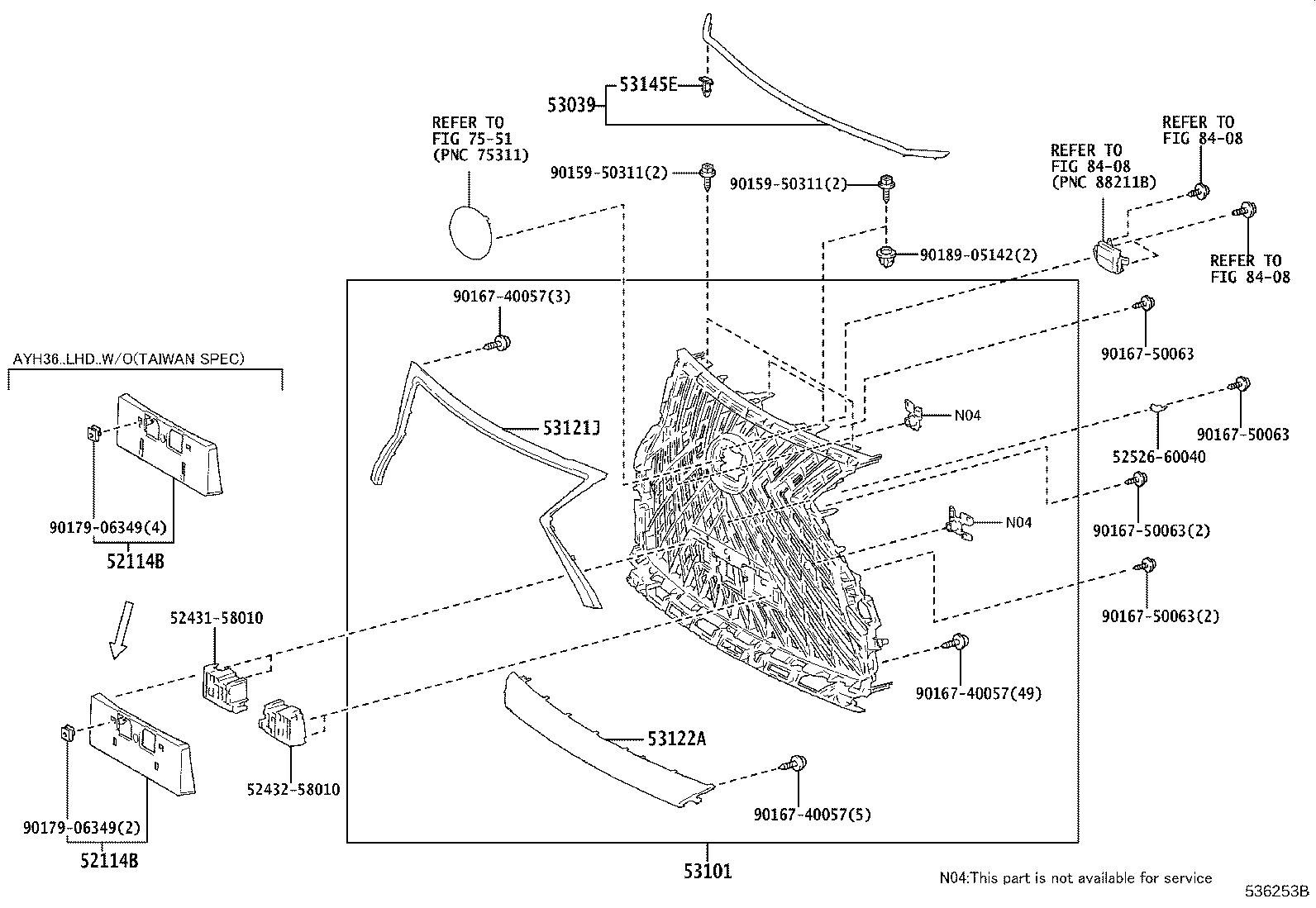

Click highlighted areas on diagram

diagram 52114B 52114B 5243158010 5243258010 5252660040 53039 53101 53121J 53122A 53145E 7551 8408 8408 8408 9015950311 9015950311 9016740057 9016740057 9016740057 9016750063 9016750063 9016750063 9016750063 9017906349 9017906349 9018905142
Part # Description Qty Price
52114B - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-58090

GGH31;AYH36..RHD

 1
52114B - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-58090

GGH31;AYH36..RHD

 1
53039 - SEAL, RADIATOR, UPPER
53039-58100

AYH36,GGH31

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-58600

AYH36,GGH31

NO PAINT REQ.

 1
53121J - MOULDING, RADIATOR GRILLE, NO.1
53121-58300

AYH36,GGH31

 1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-58320

AYH36,GGH31

 1
53145E - CLIP, RADIATOR GRILLE GARNISH
53145-60030

AYH36,GGH31

 14
Common parts
52431-58010
52432-58010
52526-60040
90159-50311
90167-40057
90167-50063
90179-06349
90189-05142
Linked diagrams
7551
8408
