GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

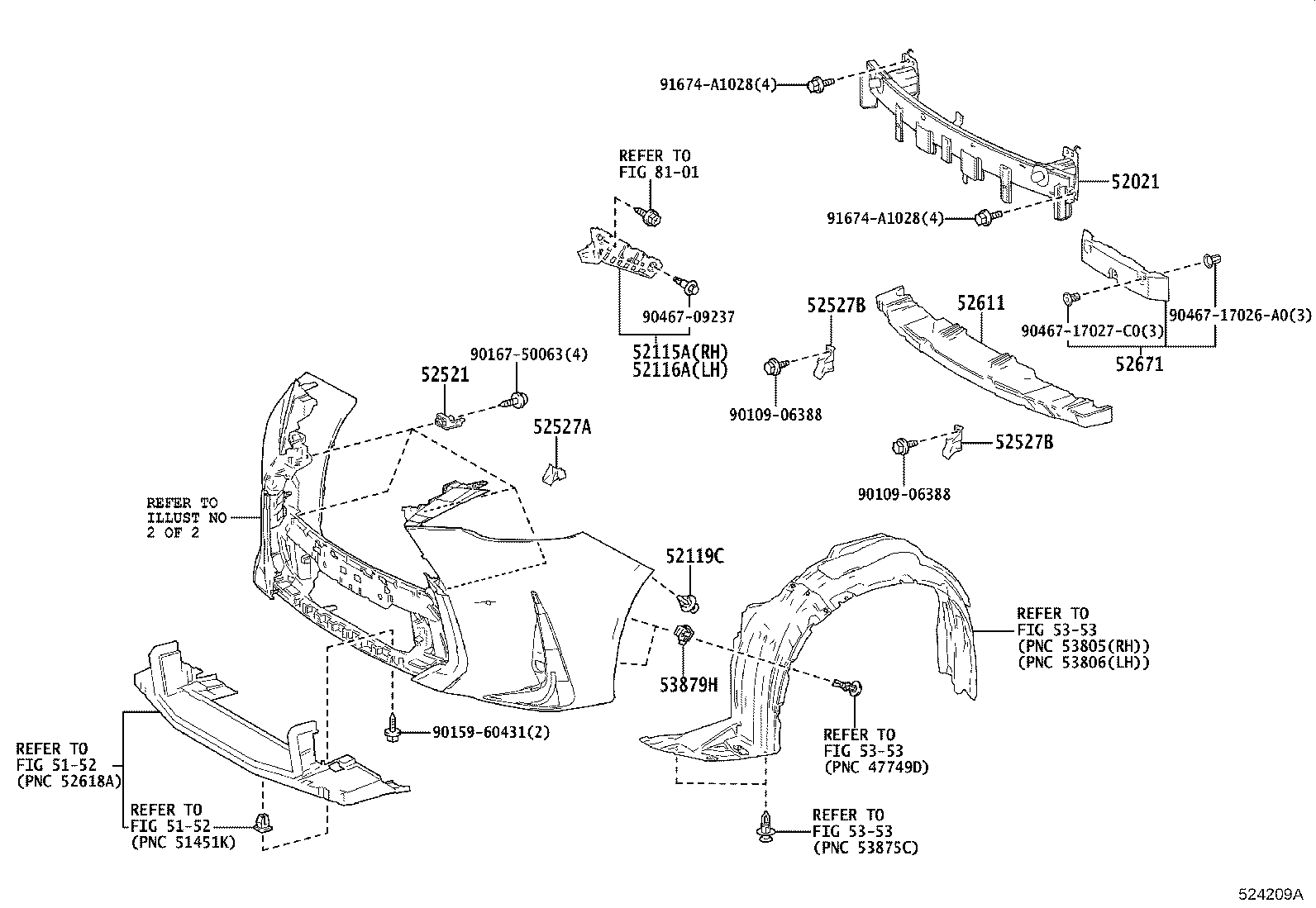

ILLUST NO. 1 OF 2(2001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-58040 |
AYH36,GGH31 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-58080 |
AYH36,GGH31 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-58080 |
AYH36,GGH31 |
1 | ||
| 52119C - CLIP, FRONT BUMPER COVER | ||||
| 90467-05170 |
AYH36,GGH31 |
2 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52526-60040 |
AYH36,GGH31 |
4 | ||
| 52527A - RETAINER, FRONT BUMPER, LOWER CENTER NO.2 | ||||
| 52527-58010 |
AYH36,GGH31 |
1 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-58020 |
AYH36,GGH31 |
2 | ||
| 52527B - RETAINER, FRONT BUMPER, LOWER NO.2 | ||||
| 52527-58020 |
AYH36,GGH31 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-58060 |
AYH36,GGH31 |
1 | ||
| 52671 - EXTENSION, FRONT BUMPER ARM | ||||
| 52671-58010 |
AYH36,GGH31 |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-30060 |
AYH36,GGH31 |
4 | ||
| Common parts | ||||
| 90109-06388 | ||||
| 90159-60431 | ||||
| 90167-50063 | ||||
| 90467-09237 | ||||
| 90467-17026A0 | ||||
| 90467-17027C0 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
| 8101 | ||||

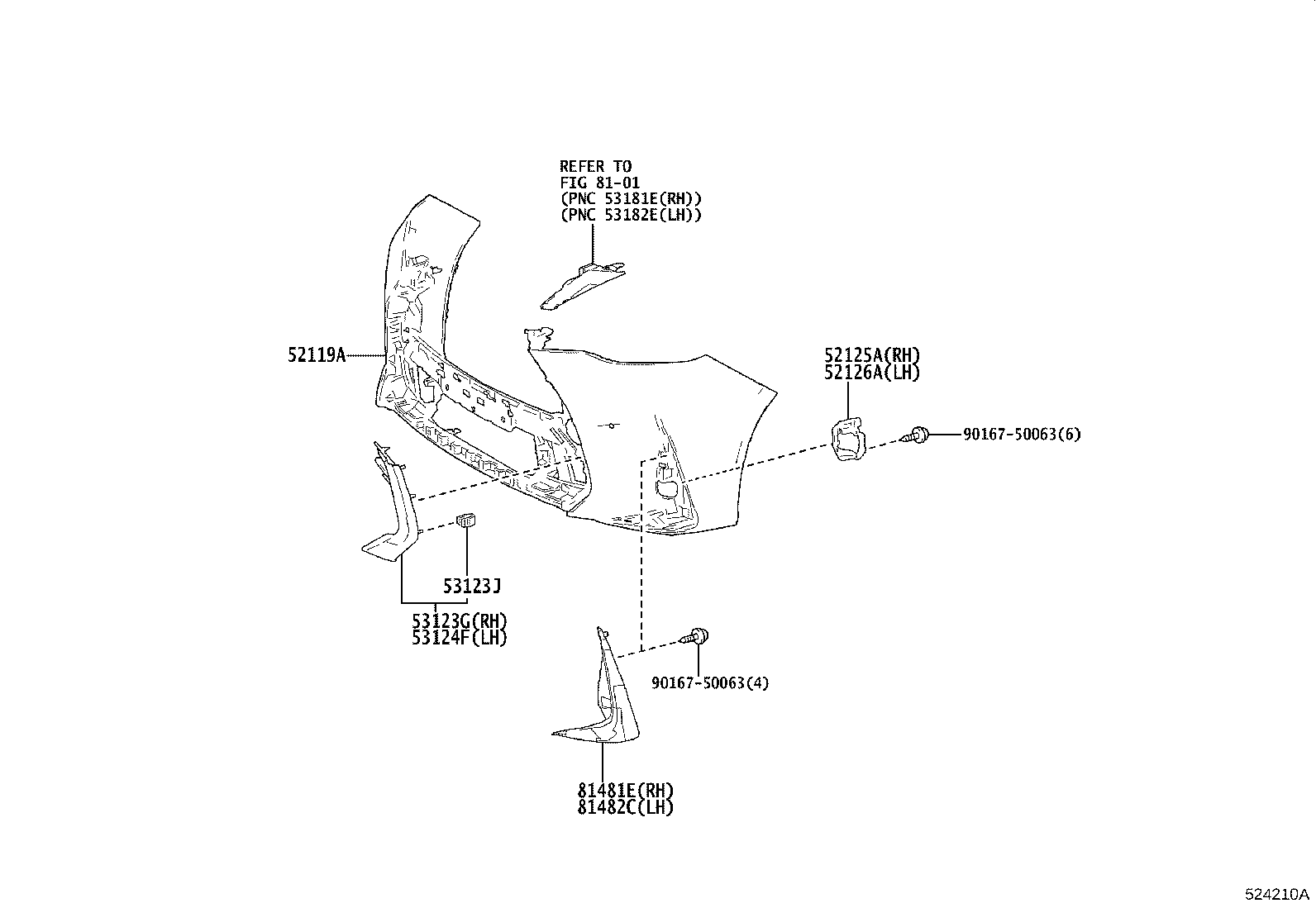

ILLUST NO. 2 OF 2(2001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-5A975 |
AYH36,GGH31 PAINT REQ. |
1 | ||
| 52125A - BRACKET, FOG LAMP MOUNTING, RH | ||||
| 52125-58150 |
AYH36,GGH31 |
1 | ||
| 52126A - BRACKET, FOG LAMP MOUNTING, LH | ||||
| 52126-58150 |
AYH36,GGH31 |
1 | ||
| 53123G - MOULDING, RADIATOR GRILLE SIDE, RH | ||||
| 52030-58310 |
AYH36,GGH31 |
1 | ||
| 53123J - CLIP, RADIATOR GRILLE SIDE MOULDING | ||||
| 90467-10203 |
AYH36,GGH31 |
18 | ||
| 53124F - MOULDING, RADIATOR GRILLE SIDE, LH | ||||
| 52040-58310 |
AYH36,GGH31 |
1 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52030-58300 |
AYH36,GGH31 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 52040-58300 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90167-50063 | ||||
| Linked diagrams | ||||
| 8101 | ||||
