GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2001- )

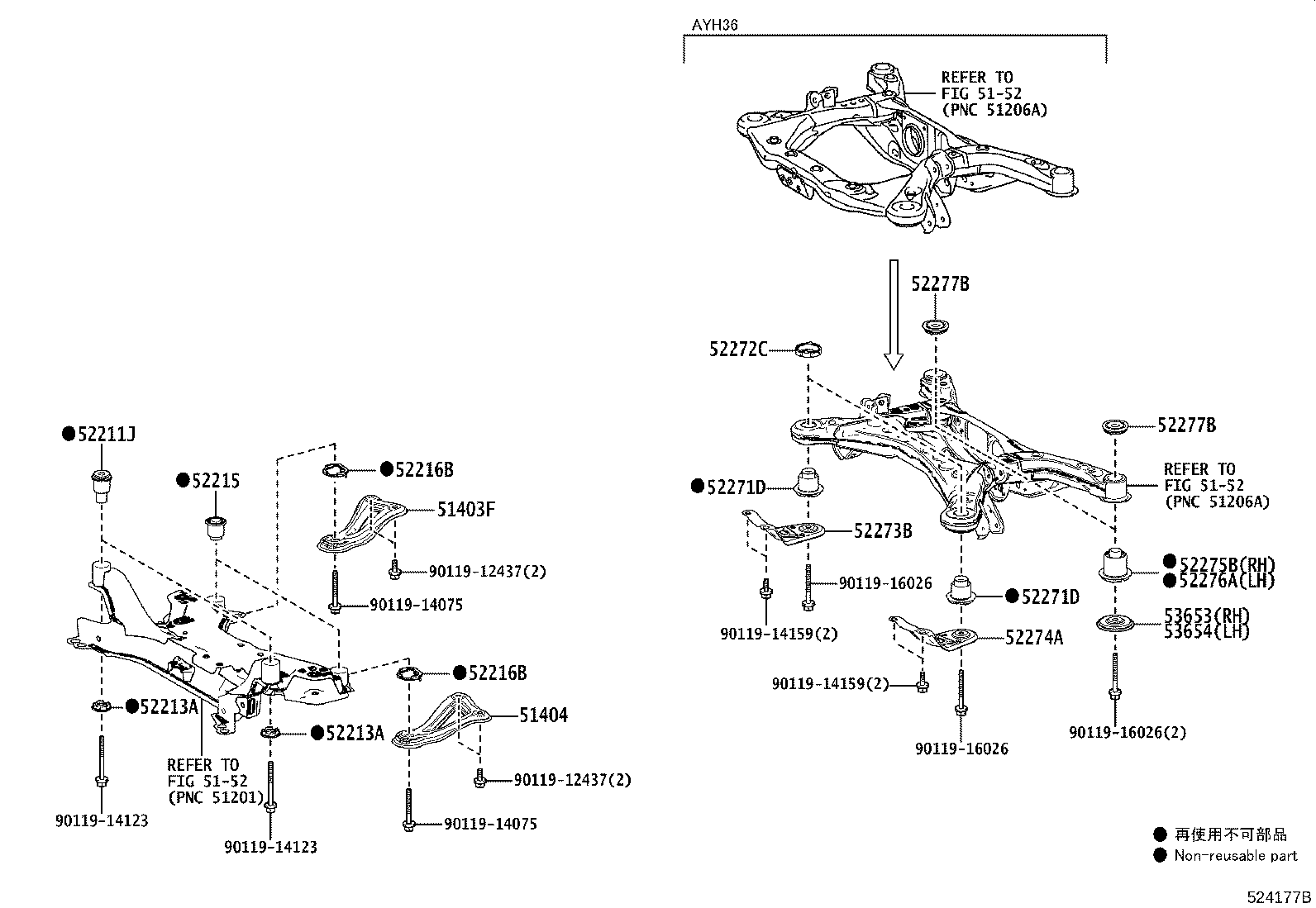

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51403F - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH | ||||
| 51403-58010 |
GGH31 |
1 | ||
| 51404 - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER, LH | ||||
| 51404-58010 |
GGH31 |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-58010 |
GGH31 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-58020 |
AYH36,GGH31 |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-58020 |
AYH36,GGH31 |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-58010 |
GGH31 |
2 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-58020 |
AYH36,GGH31 |
2 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-58020 |
AYH36,GGH31 |
2 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-58010 |
AYH36,GGH31 |
2 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-58010 |
AYH36,GGH31 |
2 | ||
| 52272C - STOPPER, REAR SUSPENSION MEMBER, UPPER | ||||
| 52272-58010 |
AYH36,GGH31 |
2 | ||
| 52273B - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52273-58010 |
AYH36,GGH31 |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52274-58010 |
AYH36,GGH31 |
1 | ||
| 52275B - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH | ||||
| 52275-58010 |
AYH36,GGH31 |
1 | ||
| 52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH | ||||
| 52276-58010 |
AYH36,GGH31 |
1 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-58010 |
AYH36,GGH31 |
2 | ||
| 52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER | ||||
| 52277-58010 |
AYH36,GGH31 |
2 | ||
| 53653 - BRACE, REAR SUSPENSION, LOWER RH | ||||
| 53653-48010 |
AYH36,GGH31 |
1 | ||
| 53654 - BRACE, REAR SUSPENSION, LOWER LH | ||||
| 53653-48010 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90119-12437 | ||||
| 90119-14075 | ||||
| 90119-14123 | ||||
| 90119-14159 | ||||
| 90119-16026 | ||||
| Linked diagrams | ||||
| 5152 | ||||
