GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

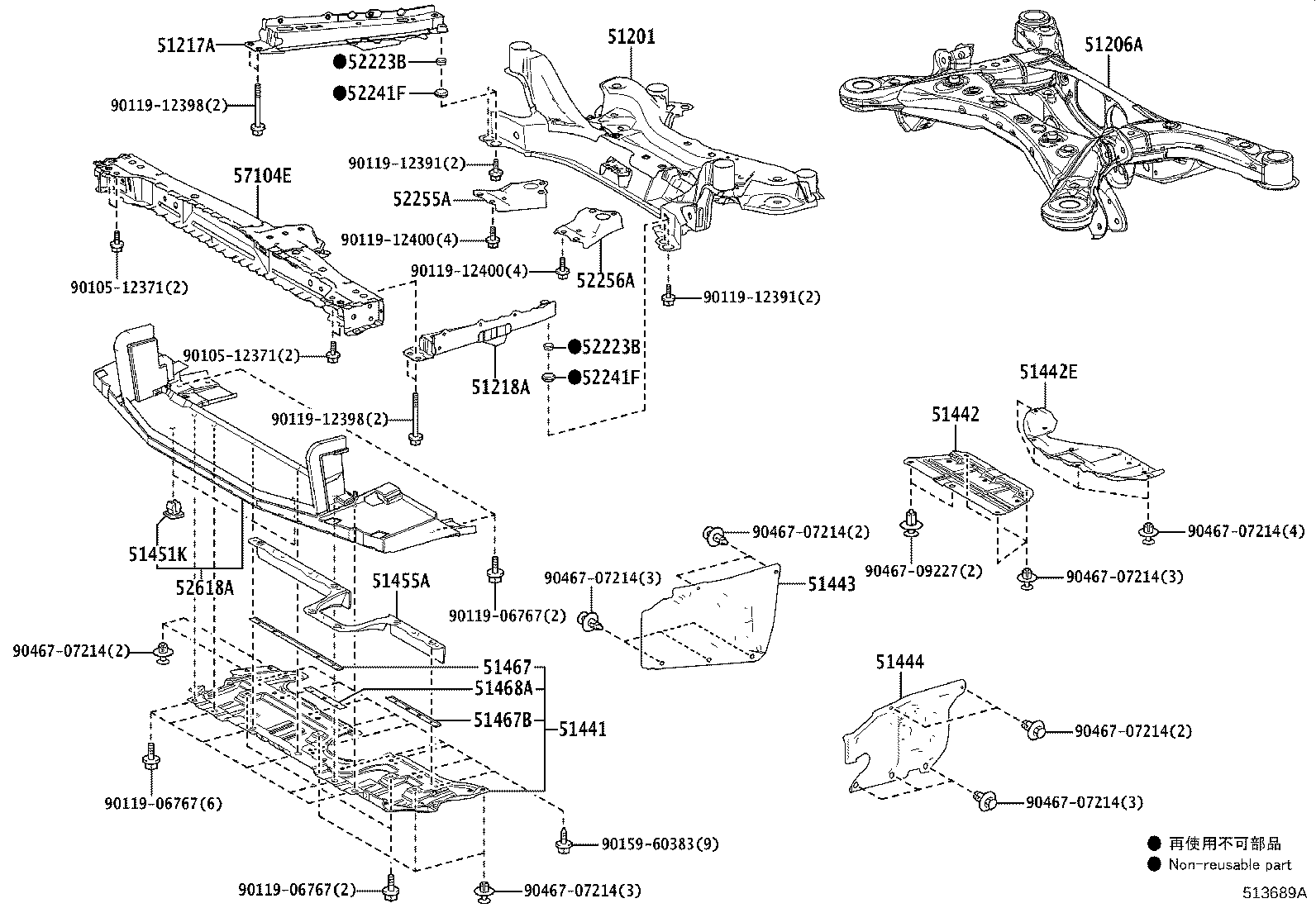

ILLUST NO. 1 OF 2(2001- )GGH31
Click highlighted areas on diagram
SUSPENSION MEMBER & UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION | ||||
| 51201-28281 |
AYH36,GGH31 |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-58020 |
GGH31 |
1 | ||
| 51217A - REINFORCEMENT, FRONT SUSPENSION MEMBER, RH | ||||
| 51107-28020 |
GGH31 |
1 | ||
| 51218A - REINFORCEMENT, FRONT SUSPENSION MEMBER, LH | ||||
| 51108-28040 |
GGH31 |
1 | ||
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51440-58030 |
AYH36,GGH31 |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-12270 |
AYH36,GGH31 |
1 | ||
| 51442E - COVER, ENGINE UNDER, NO.2 | ||||
| 51442-12210 |
AYH36,GGH31 |
1 | ||
| 51443 - COVER, ENGINE UNDER, REAR RH | ||||
| 51443-58030 |
GGH31 |
1 | ||
| 51444 - COVER, ENGINE UNDER, REAR LH | ||||
| 51444-58030 |
GGH31 |
1 | ||
| 51451K - GROMMET, SCREW, NO.1 | ||||
| 90189-06237 |
AYH36,GGH31 |
2 | ||
| 51455A - SEAL, ENGINE UNDER COVER, NO.1 | ||||
| 51455-58010 |
AYH36,GGH31 |
1 | ||
| 51467 - RETAINER, ENGINE UNDER COVER | ||||
| 51468-58010 |
AYH36,GGH31 |
1 | ||
| 51467B - RETAINER, ENGINE UNDER COVER | ||||
| 51468-58020 |
AYH36,GGH31 |
1 | ||
| 51468A - RETAINER, ENGINE UNDER COVER, NO.2 | ||||
| 51468-58030 |
AYH36,GGH31 |
1 | ||
| 52223B - SPACER, FRONT SUSPENSION MEMBER MOUNTIONG, LOWER | ||||
| 52223-28010 |
AYH36,GGH31 |
4 | ||
| 52223B - SPACER, FRONT SUSPENSION MEMBER MOUNTIONG, LOWER | ||||
| 52223-28010 |
AYH36,GGH31 |
4 | ||
| 52241F - CUSHION, FRONT SUSPENSION MEMBER MOUNTING, LWR | ||||
| 52241-28010 |
AYH36,GGH31 |
4 | ||
| 52241F - CUSHION, FRONT SUSPENSION MEMBER MOUNTING, LWR | ||||
| 52241-28010 |
AYH36,GGH31 |
4 | ||
| 52255A - BRACE, FRONT SUSPENSION MEMBER, FRONT RH | ||||
| 52255-28030 |
AYH36,GGH31 |
1 | ||
| 52256A - BRACE, FRONT SUSPENSION MEMBER, FRONT LH | ||||
| 52256-28030 |
AYH36,GGH31 |
1 | ||
| 52618A - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-58050 |
AYH36,GGH31 |
1 | ||
| 57104E - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-12270 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90105-12371 | ||||
| 90119-06767 | ||||
| 90119-12391 | ||||
| 90119-12398 | ||||
| 90119-12400 | ||||
| 90159-60383 | ||||
| 90467-07214 | ||||
| 90467-09227 | ||||

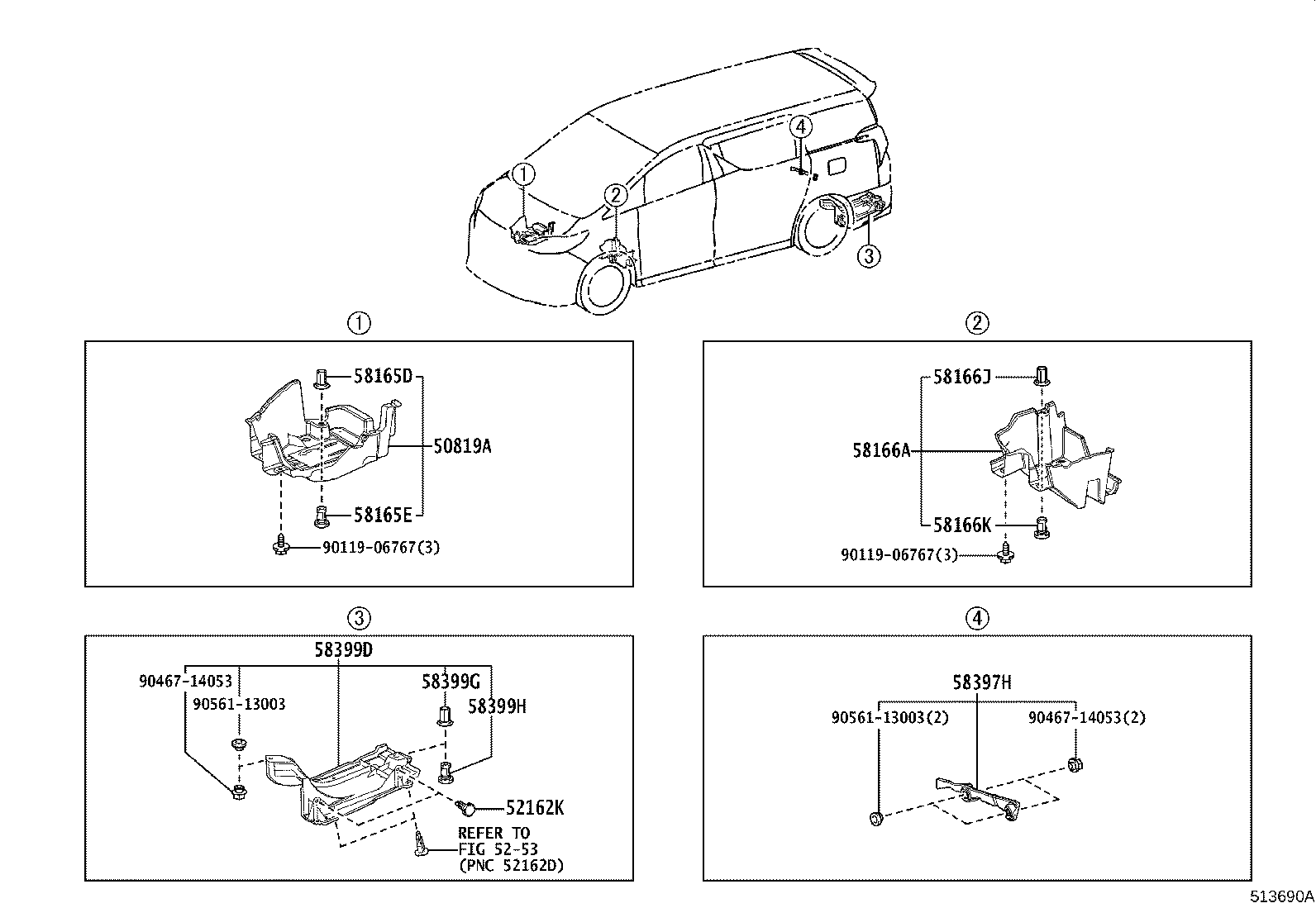

ILLUST NO. 2 OF 2(2001- )
Click highlighted areas on diagram
FLOOR COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50819A - COVER SUB-ASSY, FRONT FLOOR SIDE, FRONT | ||||
| 50819-58050 |
AYH36,GGH31 |
1 | ||
| 52162K - PIECE, REAR BUMPER | ||||
| 52161-16010 |
AYH36,GGH31 |
2 | ||
| 58165D - CLIP, FLOOR COVER | ||||
| 90467-17026A0 |
AYH36,GGH31 SUPER WHITE 2 |
1 | ||
| 58165E - CLIP, FLOOR COVER | ||||
| 90467-17027C0 |
AYH36,GGH31 BLACK |
1 | ||
| 58166A - COVER, FRONT FLOOR, LH | ||||
| 58166-58020 |
GGH31;AYH36..RHD |
1 | ||
| 58166J - CLIP, FLOOR COVER | ||||
| 90467-17026A0 |
AYH36,GGH31 SUPER WHITE 2 |
1 | ||
| 58166K - CLIP, FLOOR COVER | ||||
| 90467-17027C0 |
AYH36,GGH31 BLACK |
1 | ||
| 58397H - COVER, BODY LOWER BACK, RH | ||||
| 58397-58040 |
AYH36,GGH31 |
1 | ||
| 58399D - COVER, FLOOR UNDER, NO.2 | ||||
| 58399-58040 |
AYH36,GGH31 |
1 | ||
| 58399G - CLIP, NO.1(FOR REAR UNDER COVER) | ||||
| 90467-17026A0 |
AYH36,GGH31 SUPER WHITE 2 |
1 | ||
| 58399H - CLIP, NO.2(FOR REAR UNDER COVER) | ||||
| 90467-17027C0 |
AYH36,GGH31 BLACK |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90467-14053 | ||||
| 90561-13003 | ||||
| Linked diagrams | ||||
| 5253 | ||||
