GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )

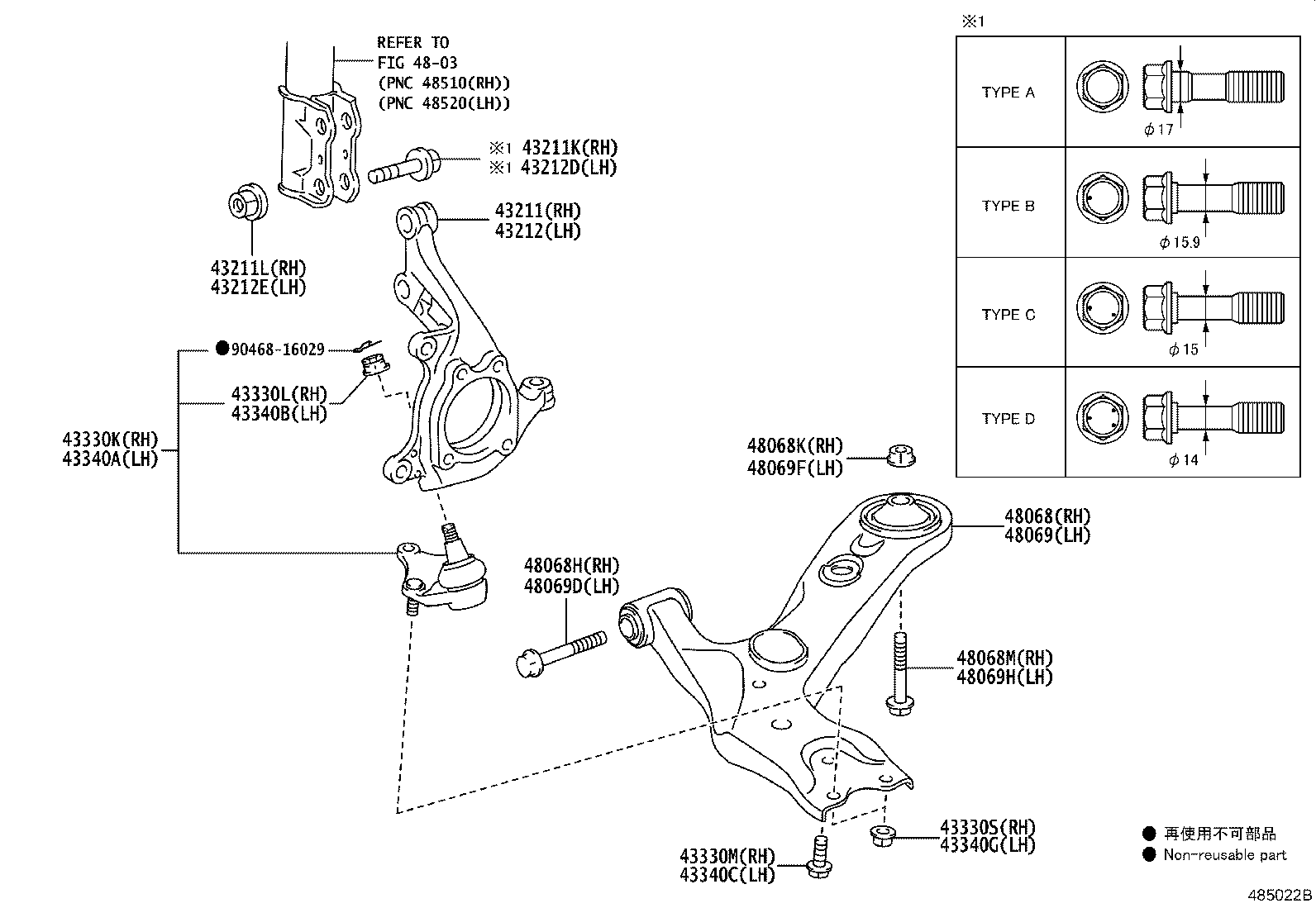

Click highlighted areas on diagram

diagram 43211 43211K 43211L 43212 43212D 43212E 43330K 43330L 43330M 43330S 43340A 43340B 43340C 43340G 4803 48068 48068H 48068K 48068M 48069 48069D 48069F 48069H 9046816029
Part # Description Qty Price
43211 - KNUCKLE, STEERING, RH
43211-78010

AYH36,GGH31

 1
43211K - BOLT (FOR STEERING KNUCKLE RH)
90105-17015

AYH36,GGH31

OD=14,TYPE D:REFER ILLUST.

 1
90105-17013

AYH36,GGH31

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17014

AYH36,GGH31

OD=15,TYPE C:REFER ILLUST.

 1
90105-17012

AYH36,GGH31

OD=17,TYPE A:REFER ILLUST.

 2
43211L - NUT (FOR STEERING KNUCKLE RH)
90178-17002

AYH36,GGH31

 2
43212 - KNUCKLE, STEERING, LH
43212-78010

AYH36,GGH31

 1
43212D - BOLT (FOR STEERING KNUCKLE LH)
90105-17013

AYH36,GGH31

OD=15.9,TYPE B:REFER ILLUST.

 1
90105-17012

AYH36,GGH31

OD=17,TYPE A:REFER ILLUST.

 2
90105-17014

AYH36,GGH31

OD=15,TYPE C:REFER ILLUST.

 1
90105-17015

AYH36,GGH31

OD=14,TYPE D:REFER ILLUST.

 1
43212E - NUT (FOR STEERING KNUCKLE LH)
90178-17002

AYH36,GGH31

 2
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-59155

AYH36,GGH31

 1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14011

AYH36,GGH31

 1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12346

AYH36,GGH31

 1
43330S - NUT (FOR FRONT LOWER BALL JOINT RH)
90178-12019

AYH36,GGH31

 2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-59155

AYH36,GGH31

 1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14011

AYH36,GGH31

 1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12346

AYH36,GGH31

 1
43340G - NUT (FOR FRONT LOWER BALL JOINT LH)
90178-12019

AYH36,GGH31

 2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-28140

AYH36,GGH31

 1
48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90105-16090

AYH36,GGH31

 1
48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90178-16006

AYH36,GGH31

 1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90105-16090

AYH36,GGH31

 1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-28140

AYH36,GGH31

 1
48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90105-16090

AYH36,GGH31

 1
48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90178-16006

AYH36,GGH31

 1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90105-16090

AYH36,GGH31

 1
Common parts
90468-16029
Linked diagrams
4803
