GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(2001- )8FC

Click highlighted areas on diagram

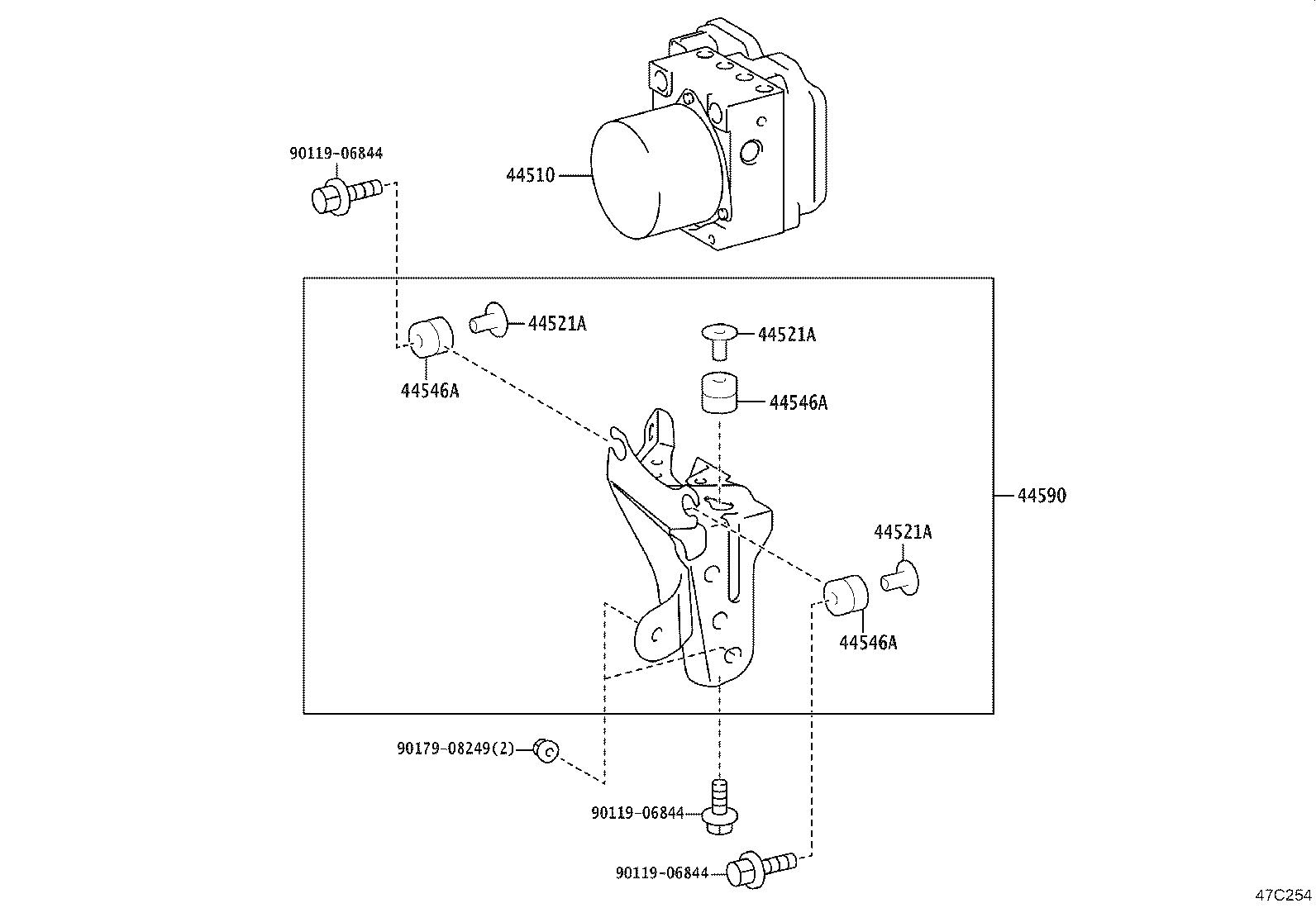

BRAKE ACTUATOR

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 9017908249
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-58410

GGH31..6FC;GGH31..LHD

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

GGH31

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

GGH31

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-12050

GGH31

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

GGH31

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

GGH31

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

GGH31

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-58040

GGH31..8FC

 1
Common parts
90119-06844
90179-08249

ILLUST NO. 1 OF 2(2001- )GGH31..LHD

Click highlighted areas on diagram

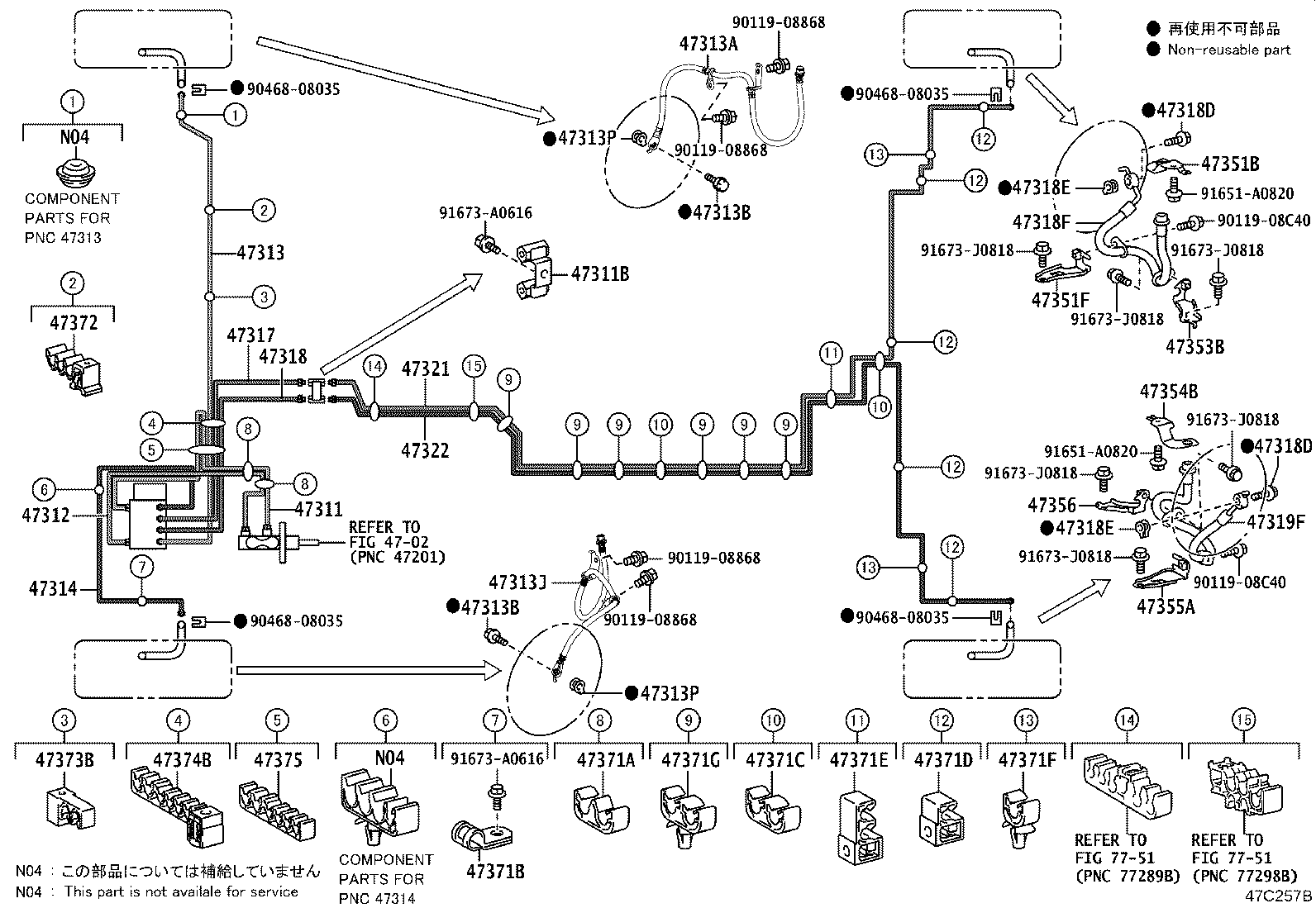

BRAKE TUBE

diagram 4702 47311 47311B 47312 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47317 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47322 47351B 47351F 47353B 47354B 47355A 47356 47371A 47371B 47371C 47371D 47371E 47371F 47371G 47372 47373B 47374B 47375 7751 7751 9011908868 9011908868 9011908868 9011908868 9011908C40 9011908C40 9046808035 9046808035 9046808035 9046808035 91651A0820 91651A0820 91673A0616 91673A0616 91673J0818 91673J0818 91673J0818 91673J0818 91673J0818 91673J0818
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-58090

GGH31..LHD

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10293

AYH36,GGH31

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-58100

GGH31..LHD

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-58041

GGH31..8FC

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02H86

GGH31..8FC

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AYH36,GGH31

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

AYH36,GGH31

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
90947-02H87

GGH31..8FC

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

AYH36,GGH31

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50021

AYH36,GGH31

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-58060

GGH31..8FC

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-58040

GGH31

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-58010

GGH31

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

AYH36,GGH31

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

AYH36,GGH31

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

AYH36,GGH31

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50021

AYH36,GGH31

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02H44

AYH36,GGH31

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02H45

AYH36,GGH31

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-58050

GGH31..8FC

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-58040

GGH31..8FC

 1
47351B - BRACKET, FLEXIBLE HOSE, NO.1
47351-58010

AYH36,GGH31

 1
47351F - BRACKET, FLEXIBLE HOSE, NO.2
47351-58020

AYH36,GGH31

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47351-58030

AYH36,GGH31

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47352-58010

AYH36,GGH31

 1
47355A - BRACKET, FLEXIBLE HOSE, NO.5
47352-58020

AYH36,GGH31

 1
47356 - BRACKET, FLEXIBLE HOSE, NO.6
47352-58030

AYH36,GGH31

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00899

GGH31..LHD

 2
47371B - CLAMP, BRAKE TUBE, NO.6
90461-08730

AYH36,GGH31

 1
47371C - CLAMP, BRAKE TUBE, NO.7
90464-00903

AYH36,GGH31

 2
47371D - CLAMP, BRAKE TUBE, NO.8
90949-01E19

AYH36,GGH31

 5
47371E - CLAMP, BRAKE TUBE, NO.9
90949-01D60

AYH36,GGH31

 1
47371F - CLAMP, BRAKE TUBE, NO.10
90949-01E01

AYH36,GGH31

 2
47371G - CLAMP, BRAKE TUBE, NO.11
90949-01E02

AYH36,GGH31

 6
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01C95

AYH36,GGH31

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D60

GGH31..LHD

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90949-01E04

GGH31

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90464-00958

GGH31

 1
Common parts
90119-08868
90119-08C40
90468-08035
91651-A0820
91673-A0616
91673-J0818
Linked diagrams
4702
7751
