GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )8FC ; (2001- )AYH36..LHD

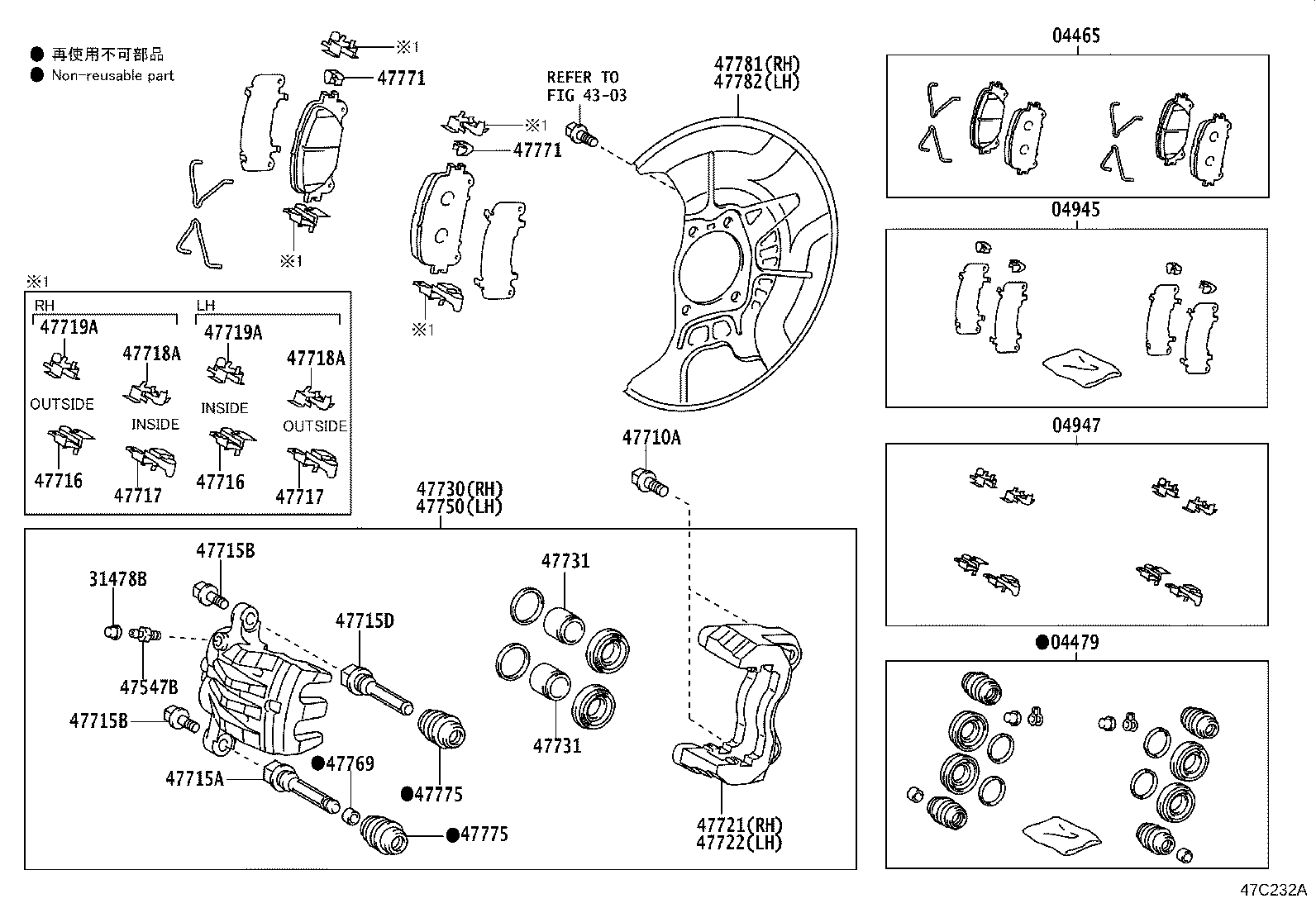

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 4303 47547B 47710A 47715A 47715B 47715B 47715D 47716 47716 47717 47717 47718A 47718A 47719A 47719A 47721 47722 47730 47731 47731 47750 47769 47771 47771 47775 47775 47781 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-48150

AYH36..LHD;GGH31..8FC

MARK ADVICS PV565H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-48200

AYH36..LHD;GGH31..8FC

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-48150

AYH36..LHD;GGH31..8FC

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-48080

AYH36..LHD;GGH31..8FC

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

AYH36,GGH31

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12130

AYH36..LHD;GGH31..8FC

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

AYH36,GGH31

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47714-48150

AYH36..LHD;GGH31..8FC

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90015-AA602

AYH36..LHD;GGH31..8FC

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90015-AA602

AYH36..LHD;GGH31..8FC

 4
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-48150

AYH36..LHD;GGH31..8FC

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-48150

AYH36..LHD;GGH31..8FC

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-48150

AYH36..LHD;GGH31..8FC

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-48150

AYH36..LHD;GGH31..8FC

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-48150

AYH36..LHD;GGH31..8FC

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47718-48150

AYH36..LHD;GGH31..8FC

 2
47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47718-48150

AYH36..LHD;GGH31..8FC

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47719-48150

AYH36..LHD;GGH31..8FC

 2
47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47719-48150

AYH36..LHD;GGH31..8FC

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-48150

AYH36..LHD;GGH31..8FC

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-48140

AYH36..LHD;GGH31..8FC

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-48150

AYH36..LHD;GGH31..8FC

 1
47731 - PISTON, FRONT DISC BRAKE
47731-48150

AYH36..LHD;GGH31..8FC

 4
47731 - PISTON, FRONT DISC BRAKE
47731-48150

AYH36..LHD;GGH31..8FC

 4
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-48110

AYH36..LHD;GGH31..8FC

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-48150

AYH36..LHD;GGH31..8FC

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-48150

AYH36..LHD;GGH31..8FC

 4
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-48150

AYH36..LHD;GGH31..8FC

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-48150

AYH36..LHD;GGH31..8FC

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-48150

AYH36..LHD;GGH31..8FC

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-42050

AYH36..LHD;GGH31..8FC

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-42050

AYH36..LHD;GGH31..8FC

 1
Linked diagrams
4303
