GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2001- )GGH31..LHD

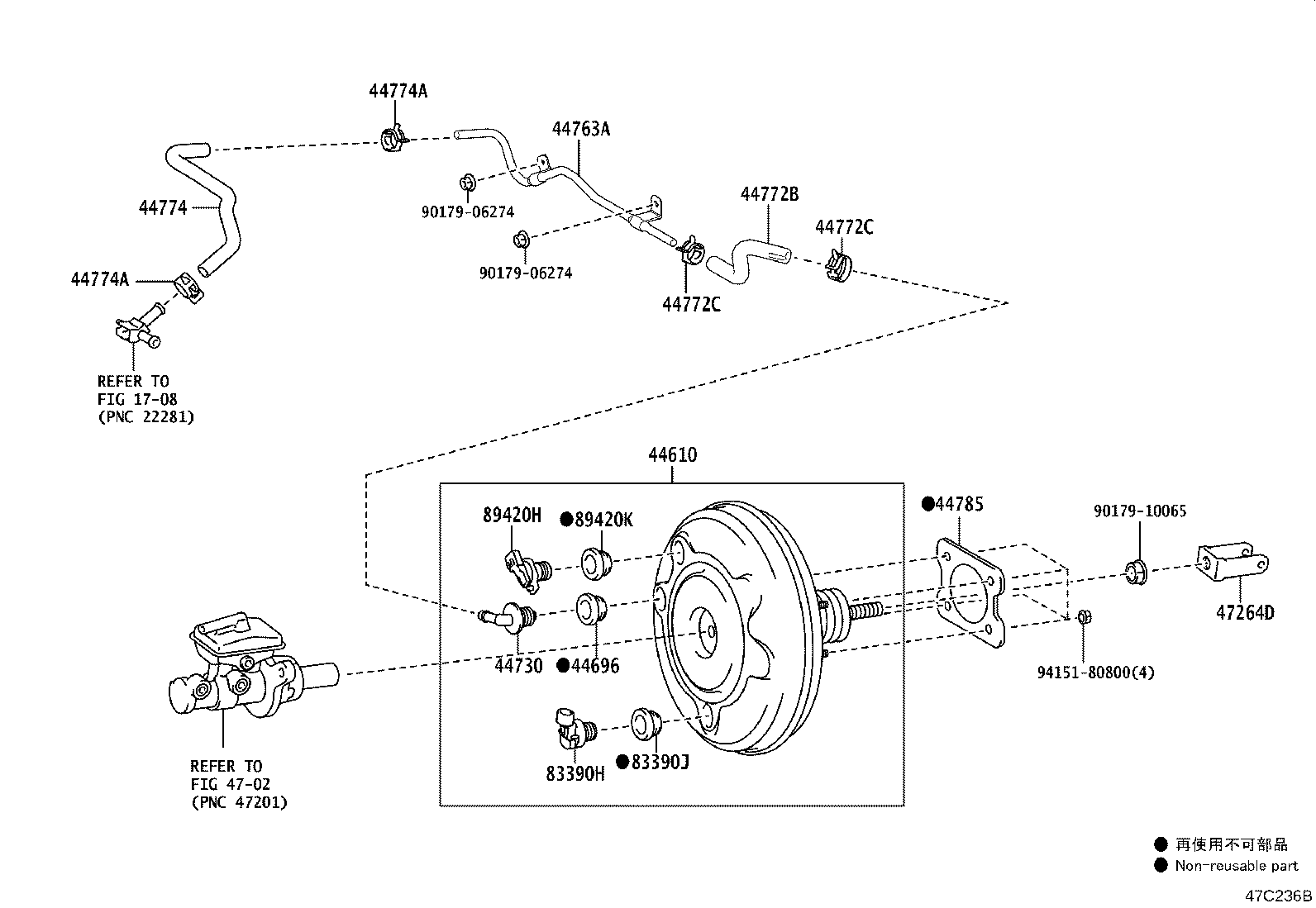

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-58130 |
GGH31..LHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24015 |
GGH31 |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10020 |
GGH31 |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-58040 |
GGH31..LHD |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-58040 |
GGH31..LHD |
1 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16014 |
GGH31 |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16014 |
GGH31 |
2 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-58040 |
GGH31..LHD |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
GGH31 |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
GGH31 |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-12040 |
GGH31 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-30060 |
GGH31 |
1 | ||
| 83390H - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-28120 |
GGH31..8FC |
1 | ||
| 83390J - GROMMET, VACUUM WARNING SWITCH | ||||
| 90480-24015 |
GGH31..8FC |
1 | ||
| 89420H - SENSOR ASSY, VACUUM | ||||
| 89421-52020 |
GGH31..8FC |
1 | ||
| 89420K - GROMMET, VACUUM SENSOR | ||||
| 90480-24015 |
GGH31..8FC |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90179-10065 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 4702 | ||||
