GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )GGH31..LHD

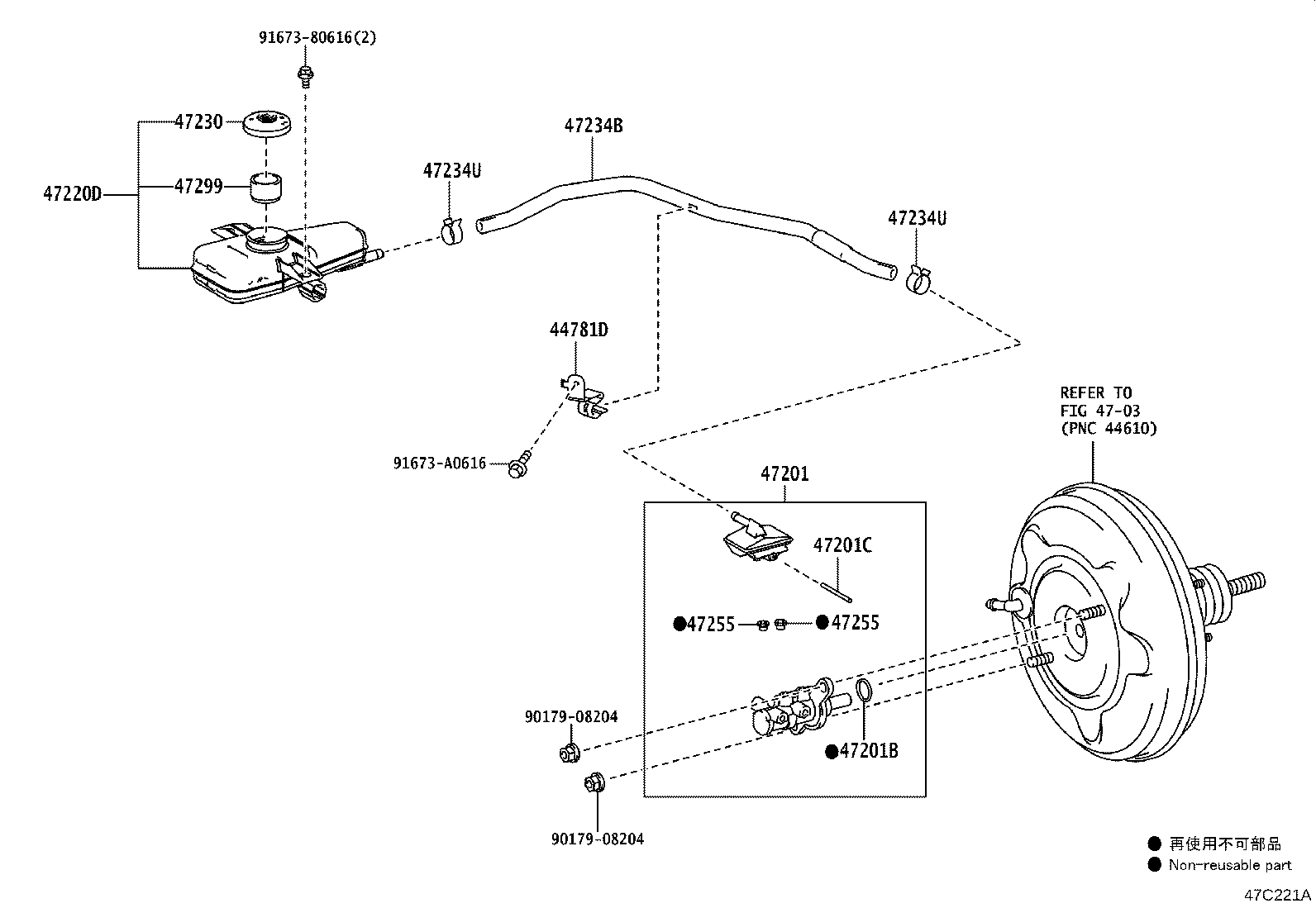

Click highlighted areas on diagram

diagram 44781D 4703 47201 47201B 47201C 47220D 47230 47234B 47234U 47234U 47255 47255 47299 9017908204 9017908204 9167380616 91673A0616
Part # Description Qty Price
44781D - BRACKET, RESERVOIR HOSE
44781-58030

GGH31

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-58081

GGH31..LHD

 1
47201B - RING, O(FOR BRAKE MASTER CYLINDER)
90015-AH001

GGH31

 1
47201C - RING PIN, BRAKE MASTER CYLINDER
90015-AE401

GGH31

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-58050

GGH31

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-58021

GGH31

 1
47234B - TUBE, RESERVOIR, NO.1
47234-58100

GGH31..LHD

 1
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96136-51801

GGH31

 2
47234U - CLIP(FOR RESERVOIR HOSE NO.1)
96136-51801

GGH31

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90015-AT001

GGH31

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
90015-AT001

GGH31

 2
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-58021

GGH31

 1
Common parts
90179-08204
91673-80616
91673-A0616
Linked diagrams
4703
