GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )GGH31

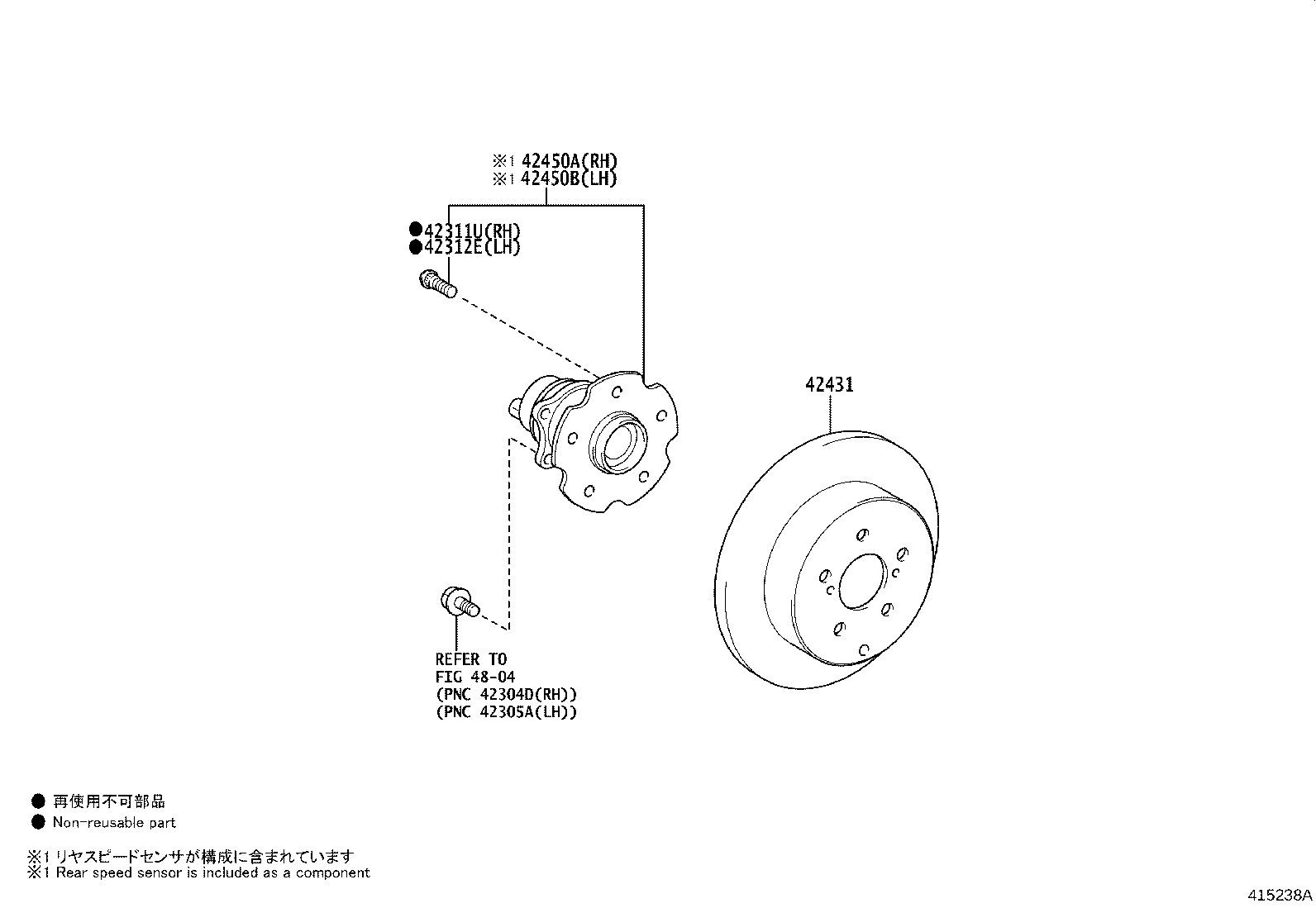

Click highlighted areas on diagram

diagram 42311U 42312E 42431 42450A 42450B 4804
Part # Description Qty Price
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02049

AYH36,GGH31

 5
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02049

AYH36,GGH31

 5
42431 - DISC, REAR
42431-58030

AYH36,GGH31

 2
42450A - HUB & BEARING ASSY, REAR AXLE, RH
42450-28030

GGH31

 1
42450B - HUB & BEARING ASSY, REAR AXLE, LH
42450-28030

GGH31

 1
Linked diagrams
4804
