GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )8FC

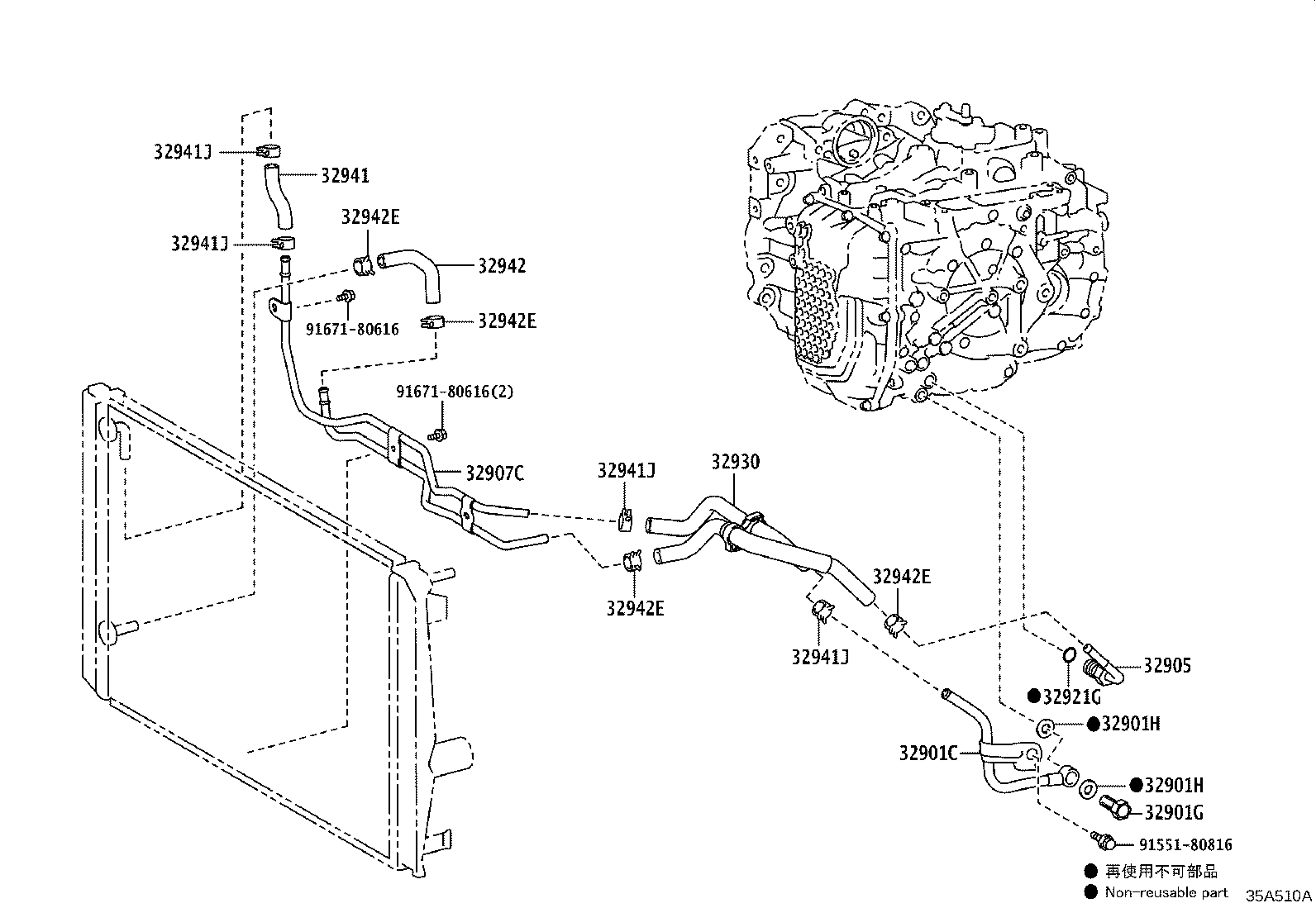

Click highlighted areas on diagram

UA80E

diagram 32901C 32901G 32901H 32901H 32905 32907C 32921G 32930 32941 32941J 32941J 32941J 32941J 32942 32942E 32942E 32942E 32942E 9155180816 9167180616 9167180616
Part # Description Qty Price
32901C - UNION SUB-ASSY, OIL COOLER
32901-48020

GGH31..8FC

TOYOTA:REFER 35-01

 1
32901-48020

GGH31..8FC

AISIN AW:REFER 35-01

 1
32901G - BOLT, UNION(FOR OIL COOLER)
90401-14003

GGH31..8FC

AISIN AW:REFER 35-01

 1
90401-14003

GGH31..8FC

TOYOTA:REFER 35-01

 1
32901H - GASKET(FOR OIL COOLER UNION)
90430-14016

GGH31..8FC

AISIN AW:REFER 35-01

 2
90430-14016

GGH31..8FC

TOYOTA:REFER 35-01

 2
32901H - GASKET(FOR OIL COOLER UNION)
90430-14016

GGH31..8FC

AISIN AW:REFER 35-01

 2
90430-14016

GGH31..8FC

TOYOTA:REFER 35-01

 2
32905 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1
90404-14031

GGH31..8FC

AISIN AW:REFER 35-01

 1
90404-14031

GGH31..8FC

TOYOTA:REFER 35-01

 1
32907C - TUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1
32907-58080

GGH31..8FC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11031

GGH31..8FC

AISIN AW:REFER 35-01

 1
90301-11031

GGH31..8FC

TOYOTA:REFER 35-01

 1
32930 - ACCESSORY ASSY, OIL COOLER
32930-58030

GGH31..8FC

 1
32941 - HOSE, OIL COOLER INLET, NO.1
32941-58070

GGH31..8FC

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GGH31..8FC

 6
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GGH31..8FC

 6
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GGH31..8FC

 6
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

GGH31..8FC

 6
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-58070

GGH31..8FC

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GGH31..8FC

 4
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GGH31..8FC

 4
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GGH31..8FC

 4
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90466-16004

GGH31..8FC

 4
Common parts
91551-80816
91671-80616
