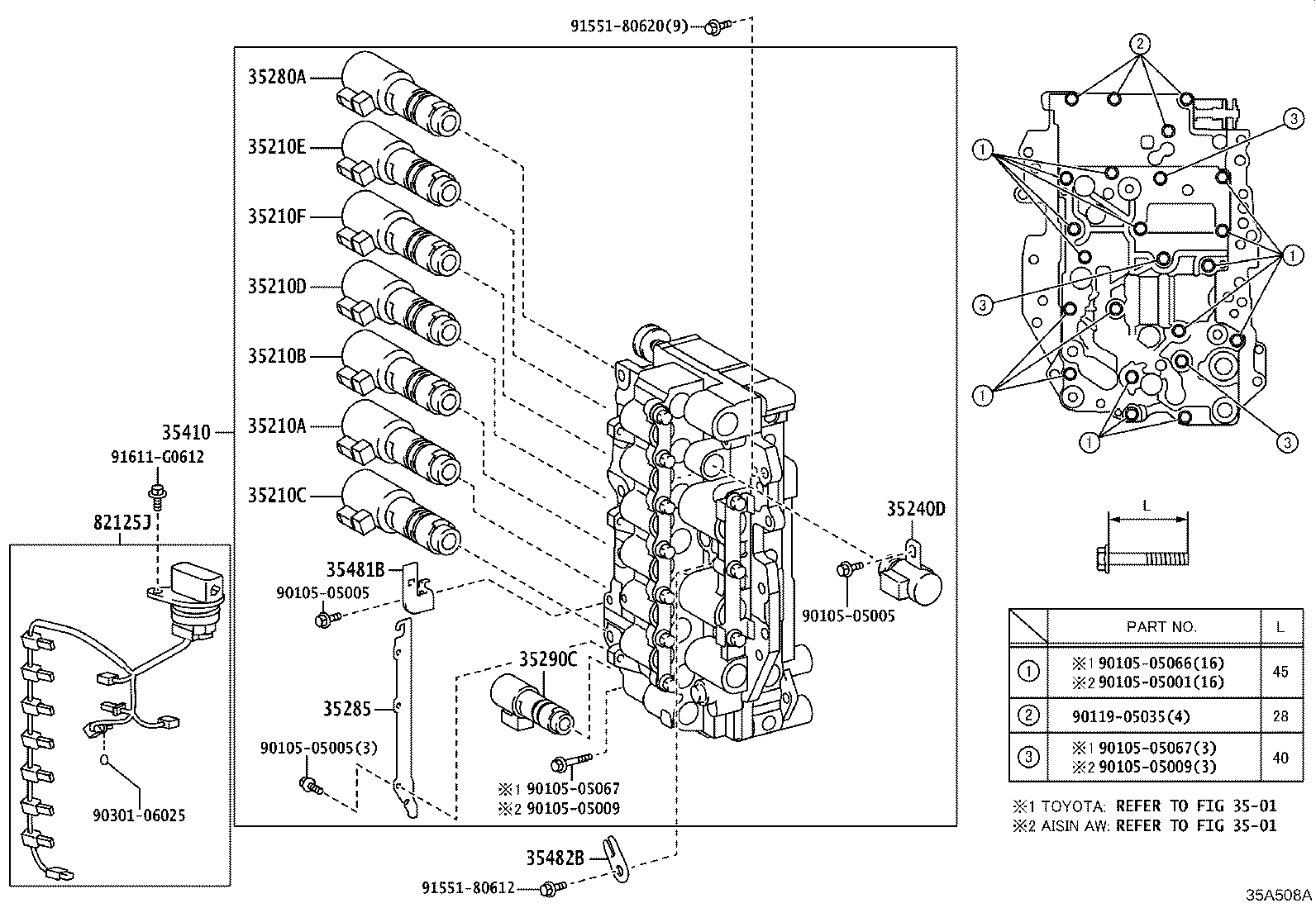

GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
(2001- )8FC
UA80E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210A - VALVE, SOLENOID(SL1) | ||||
| 35210-48020 |
GGH31..8FC AISIN AW:REFER 35-01 |
1 | ||
| 35210-48020 |
GGH31..8FC TOYOTA:REFER 35-01 |
1 | ||
| 35210B - VALVE, SOLENOID(SL3) | ||||
| 35210-48020 |
GGH31..8FC TOYOTA:REFER 35-01 |
1 | ||
| 35210-48020 |
GGH31..8FC AISIN AW:REFER 35-01 |
1 | ||
| 35210C - VALVE, SOLENOID(SL2) | ||||
| 35210-48020 |
GGH31..8FC TOYOTA:REFER 35-01 |
1 | ||
| 35210-48020 |
GGH31..8FC AISIN AW:REFER 35-01 |
1 | ||
| 35210D - VALVE, SOLENOID(SL4) | ||||
| 35210-48020 |
GGH31..8FC AISIN AW:REFER 35-01 |
1 | ||
| 35210-48020 |
GGH31..8FC TOYOTA:REFER 35-01 |
1 | ||
| 35210E - VALVE, SOLENOID(SL5) | ||||
| 35210-48020 |
GGH31..8FC TOYOTA:REFER 35-01 |
1 | ||
| 35210-48020 |
GGH31..8FC AISIN AW:REFER 35-01 |
1 | ||
| 35210F - VALVE, SOLENOID(SL6) | ||||
| 35210-48020 |
GGH31..8FC AISIN AW:REFER 35-01 |
1 | ||
| 35210-48020 |
GGH31..8FC TOYOTA:REFER 35-01 |
1 | ||
| 35240D - VALVE, SOLENOID(SL) | ||||
| 35240-48020 |
GGH31..8FC TOYOTA:REFER 35-01 |
1 | ||
| 35240-48020 |
GGH31..8FC AISIN AW:REFER 35-01 |
1 | ||
| 35280A - VALVE, SOLENOID(SLU) | ||||
| 35280-48030 |
GGH31..8FC AISIN AW:REFER 35-01 |
1 | ||
| 35280-48030 |
GGH31..8FC TOYOTA:REFER 35-01 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-48030 |
GGH31..8FC TOYOTA:REFER 35-01 |
1 | ||
| 35285-48030 |
GGH31..8FC AISIN AW:REFER 35-01 |
1 | ||
| 35290C - VALVE, SOLENOID(SLT) | ||||
| 35290-48030 |
GGH31..8FC AISIN AW:REFER 35-01 |
1 | ||
| 35290-48030 |
GGH31..8FC TOYOTA:REFER 35-01 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-48100 |
GGH31..8FC AISIN AW:REFER 35-01 |
1 | ||
| 35410-48080 |
GGH31..8FC TOYOTA:REFER 35-01 |
1 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-48040 |
GGH31..8FC AISIN AW:REFER 35-01 |
1 | ||
| 35481-48020 |
GGH31..8FC TOYOTA:REFER 35-01 |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-73010 |
GGH31..8FC TOYOTA:REFER 35-01 |
1 | ||
| 35482-73010 |
GGH31..8FC AISIN AW:REFER 35-01 |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-33211 |
GGH31..8FC |
1 | ||
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05005 | ||||
| 90105-05009 | ||||
| 90105-05066 | ||||
| 90105-05067 | ||||
| 90119-05035 | ||||
| 90301-06025 | ||||
| 91551-80612 | ||||
| 91551-80620 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 3501 | ||||
