GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )8FC

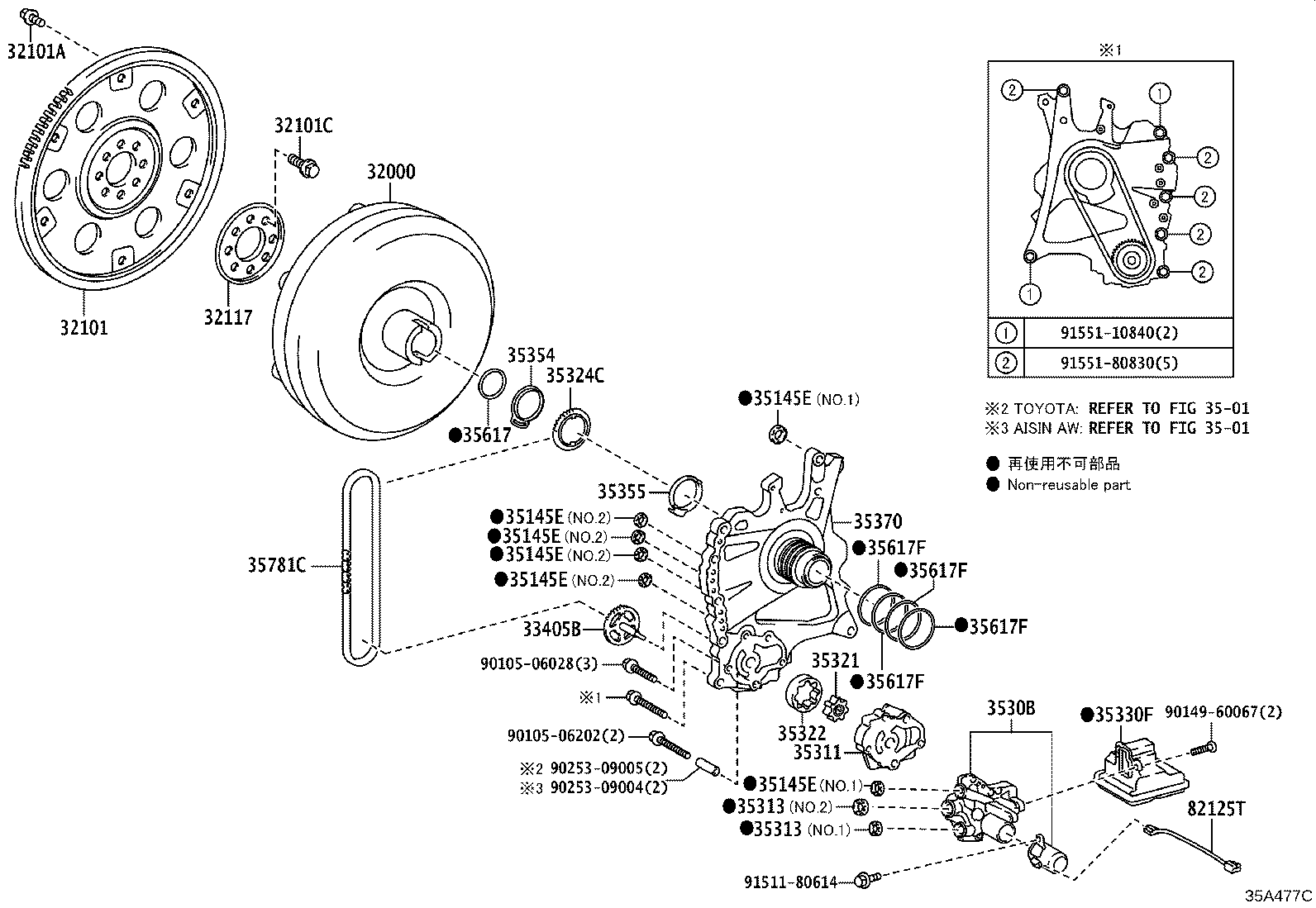

Click highlighted areas on diagram

UA80E

diagram 32000 32101 32101A 32101C 32117 33405B 3501 3501 35145E 35145E 35145E 35145E 35145E 35145E 3530B 35311 35313 35313 35321 35322 35324C 35330F 35354 35355 35370 35617 35617F 35617F 35617F 35617F 35781C 82125T 9010506028 9010506202 9014960067 9025309004 9025309005 9151180614 9155110840 9155180830
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-48060

GGH31..8FC

TOYOTA:REFER 35-01

 1
32000-48060

GGH31..8FC

AISIN AW:REFER 35-01

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-58020

GGH31..8FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90109-09001

GGH31

*9-1.25PX12.4-7.3,BLACK

 1
90119-09025

GGH31

*9-1.25PX12.4-8.4,SILVER WHITE

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

GGH31

*10-1.25PX18-13

 8
32117 - SPACER, DRIVE PLATE, REAR
32117-32020

GGH31

 1
33405B - SHAFT SUB-ASSY, OIL PUMP DRIVE
33405-48010

GGH31..8FC

TOYOTA:REFER 35-01

 1
33405-48010

GGH31..8FC

AISIN AW:REFER 35-01

 1
35145E - GASKET, TRANSAXLE CASE
35145-48030

GGH31..8FC

*229,NO.2:REF.ILLUST

 4
35145-33020

GGH31..8FC

NO.1,AISIN:SEE 35-01

 2
35145-33010

GGH31..8FC

NO.1,AISIN:SEE 35-01

 2
35145-33010

GGH31..8FC

*229,NO.1:REF.ILLUST

 2
35145-48030

GGH31..8FC

NO.2,AISIN:SEE 35-01

 4
35145-33040

GGH31..8FC

NO.2,AISIN:SEE 35-01

 4
35145E - GASKET, TRANSAXLE CASE
35145-48030

GGH31..8FC

*229,NO.2:REF.ILLUST

 4
35145-33020

GGH31..8FC

NO.1,AISIN:SEE 35-01

 2
35145-33010

GGH31..8FC

NO.1,AISIN:SEE 35-01

 2
35145-33010

GGH31..8FC

*229,NO.1:REF.ILLUST

 2
35145-48030

GGH31..8FC

NO.2,AISIN:SEE 35-01

 4
35145-33040

GGH31..8FC

NO.2,AISIN:SEE 35-01

 4
35145E - GASKET, TRANSAXLE CASE
35145-48030

GGH31..8FC

*229,NO.2:REF.ILLUST

 4
35145-33020

GGH31..8FC

NO.1,AISIN:SEE 35-01

 2
35145-33010

GGH31..8FC

NO.1,AISIN:SEE 35-01

 2
35145-33010

GGH31..8FC

*229,NO.1:REF.ILLUST

 2
35145-48030

GGH31..8FC

NO.2,AISIN:SEE 35-01

 4
35145-33040

GGH31..8FC

NO.2,AISIN:SEE 35-01

 4
35145E - GASKET, TRANSAXLE CASE
35145-48030

GGH31..8FC

*229,NO.2:REF.ILLUST

 4
35145-33020

GGH31..8FC

NO.1,AISIN:SEE 35-01

 2
35145-33010

GGH31..8FC

NO.1,AISIN:SEE 35-01

 2
35145-33010

GGH31..8FC

*229,NO.1:REF.ILLUST

 2
35145-48030

GGH31..8FC

NO.2,AISIN:SEE 35-01

 4
35145-33040

GGH31..8FC

NO.2,AISIN:SEE 35-01

 4
35145E - GASKET, TRANSAXLE CASE
35145-48030

GGH31..8FC

*229,NO.2:REF.ILLUST

 4
35145-33020

GGH31..8FC

NO.1,AISIN:SEE 35-01

 2
35145-33010

GGH31..8FC

NO.1,AISIN:SEE 35-01

 2
35145-33010

GGH31..8FC

*229,NO.1:REF.ILLUST

 2
35145-48030

GGH31..8FC

NO.2,AISIN:SEE 35-01

 4
35145-33040

GGH31..8FC

NO.2,AISIN:SEE 35-01

 4
35145E - GASKET, TRANSAXLE CASE
35145-48030

GGH31..8FC

*229,NO.2:REF.ILLUST

 4
35145-33020

GGH31..8FC

NO.1,AISIN:SEE 35-01

 2
35145-33010

GGH31..8FC

NO.1,AISIN:SEE 35-01

 2
35145-33010

GGH31..8FC

*229,NO.1:REF.ILLUST

 2
35145-48030

GGH31..8FC

NO.2,AISIN:SEE 35-01

 4
35145-33040

GGH31..8FC

NO.2,AISIN:SEE 35-01

 4
3530B - COVER SUB-ASSY, FRONT OIL PUMP & SOLENOID
3530B-48040

GGH31..8FC

AISIN AW:REFER 35-01

 1
3530B-48030

GGH31..8FC

TOYOTA:REFER 35-01

 1
35311 - BODY, FRONT OIL PUMP
35311-48040

GGH31..8FC

AISIN AW:REFER 35-01

 1
35311-48030

GGH31..8FC

TOYOTA:REFER 35-01

 1
35313 - GASKET, FRONT OIL PUMP COVER
35313-48030

GGH31..8FC

*229,NO.2:REF.ILLUST

 1
35313-48020

GGH31..8FC

*229,NO.1:REF.ILLUST

 1
35313-48030

GGH31..8FC

NO.2,AISIN:SEE 35-01

 1
35313-48020

GGH31..8FC

NO.1,AISIN:SEE 35-01

 1
35313 - GASKET, FRONT OIL PUMP COVER
35313-48030

GGH31..8FC

*229,NO.2:REF.ILLUST

 1
35313-48020

GGH31..8FC

*229,NO.1:REF.ILLUST

 1
35313-48030

GGH31..8FC

NO.2,AISIN:SEE 35-01

 1
35313-48020

GGH31..8FC

NO.1,AISIN:SEE 35-01

 1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-48110

GGH31..8FC

T=16.66,TOYOTA:REFER 35-01

 1
35321-48110

GGH31..8FC

T=16.66,AISIN AW:REFER 35-01

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-48110

GGH31..8FC

T=16.66,AISIN AW:REFER 35-01

 1
35322-48110

GGH31..8FC

T=16.66,TOYOTA:REFER 35-01

 1
35324C - SPROCKET, TRANSMISSION OIL PUMP DRIVE
35324-48030

GGH31..8FC

TOYOTA:REFER 35-01

 1
35324-48040

GGH31..8FC

AISIN AW:REFER 35-01

 1
35330F - STRAINER ASSY, OIL
35330-48040

GGH31..8FC

AISIN AW:REFER 35-01

 1
35330-48040

GGH31..8FC

TOYOTA:REFER 35-01

 1
35354 - WASHER, OIL PUMP SPROCKET THRUST, FRONT
35354-48010

GGH31..8FC

AISIN AW:REFER 35-01

 1
35354-48010

GGH31..8FC

TOYOTA:REFER 35-01

 1
35355 - WASHER, OIL PUMP SPROCKET THRUST, REAR
35355-48010

GGH31..8FC

AISIN AW:REFER 35-01

 1
35355-48011

GGH31..8FC

AISIN AW:REFER 35-01

 1
35355-48010

GGH31..8FC

TOYOTA:REFER 35-01

 1
35370 - SHAFT ASSY, STATOR
35370-48030

GGH31..8FC

TOYOTA:REFER 35-01

 1
35370-48040

GGH31..8FC

AISIN AW:REFER 35-01

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-48050

GGH31..8FC

AISIN AW:REFER 35-01

 1
35617-48050

GGH31..8FC

TOYOTA:REFER 35-01

 1
35617F - RING, CLUTCH DRUM OIL SEAL
35617-48060

GGH31..8FC

TOYOTA:REFER 35-01

 4
35617-48060

GGH31..8FC

AISIN AW:REFER 35-01

 4
35617F - RING, CLUTCH DRUM OIL SEAL
35617-48060

GGH31..8FC

TOYOTA:REFER 35-01

 4
35617-48060

GGH31..8FC

AISIN AW:REFER 35-01

 4
35617F - RING, CLUTCH DRUM OIL SEAL
35617-48060

GGH31..8FC

TOYOTA:REFER 35-01

 4
35617-48060

GGH31..8FC

AISIN AW:REFER 35-01

 4
35617F - RING, CLUTCH DRUM OIL SEAL
35617-48060

GGH31..8FC

TOYOTA:REFER 35-01

 4
35617-48060

GGH31..8FC

AISIN AW:REFER 35-01

 4
35781C - CHAIN, TRANSMISSION DRIVE
35781-48020

GGH31..8FC

AISIN AW:REFER 35-01

 1
35781-48020

GGH31..8FC

TOYOTA:REFER 35-01

 1
82125T - WIRE, TRANSMISSION
82125-48050

GGH31..8FC

 1
