GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )GGH31..LHD

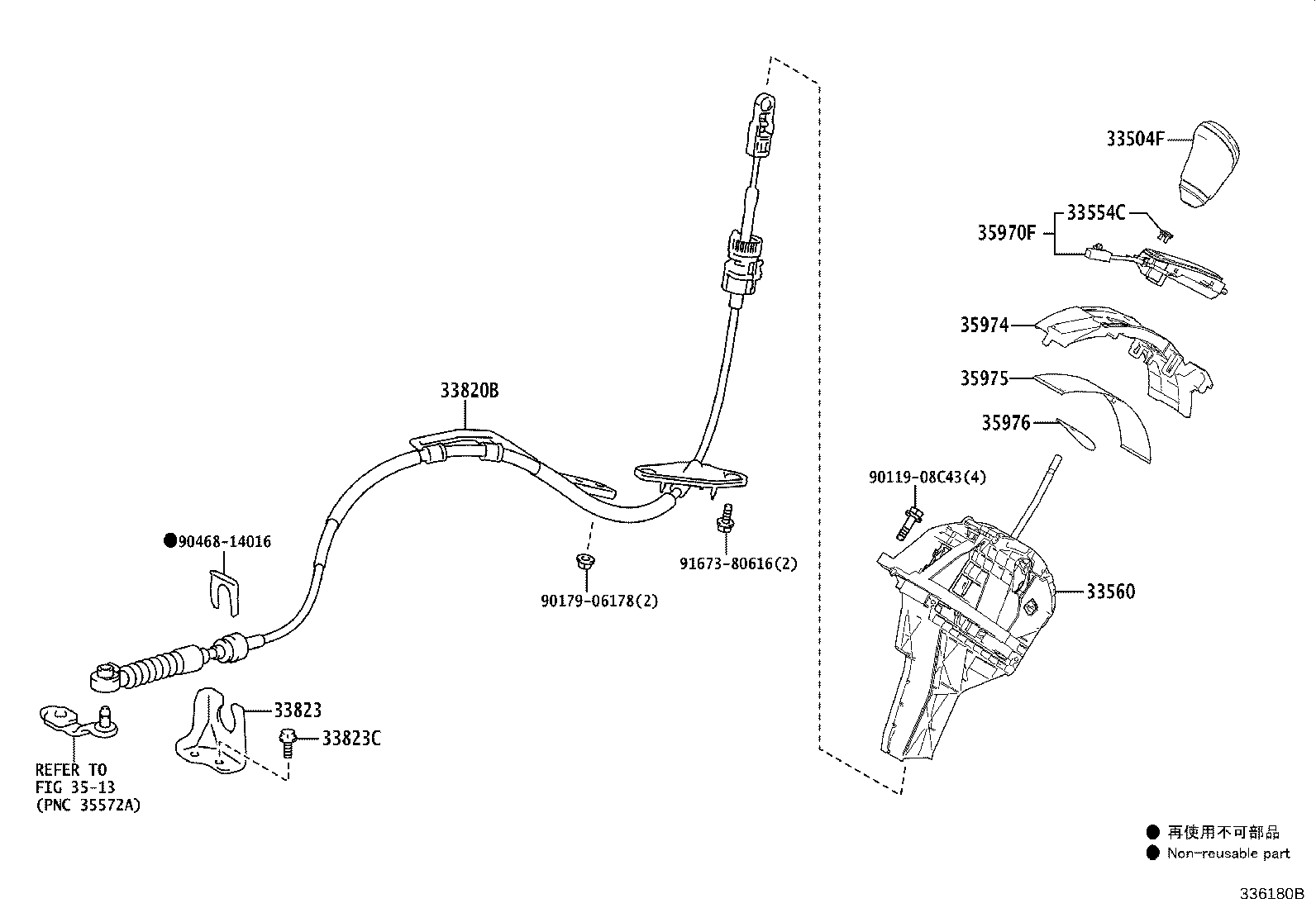

Click highlighted areas on diagram

diagram 33504F 33554C 33560 33820B 33823 33823C 3513 35970F 35974 35975 35976 9011908C43 9017906178 9046814016 9167380616
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-58100

AYH36,GGH31..LHD

 1
33554C - COVER, SHIFT LOCK RELEASE BUTTON
33554-58010

GGH31;AYH36..LHD

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-58100

GGH31..LHD

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-58120

GGH31..8FC

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-58010

GGH31..8FC

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
90119-08079

AYH36,GGH31

 2
35970F - HOUSING ASSY, POSITION INDICATOR
35970-58090

GGH31..LHD

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-58040

AYH36,GGH31..LHD

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-52120

AYH36,GGH31

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-48050

AYH36,GGH31

 1
Common parts
90119-08C43
90179-06178
90468-14016
91673-80616
Linked diagrams
3513
