GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )2GR#

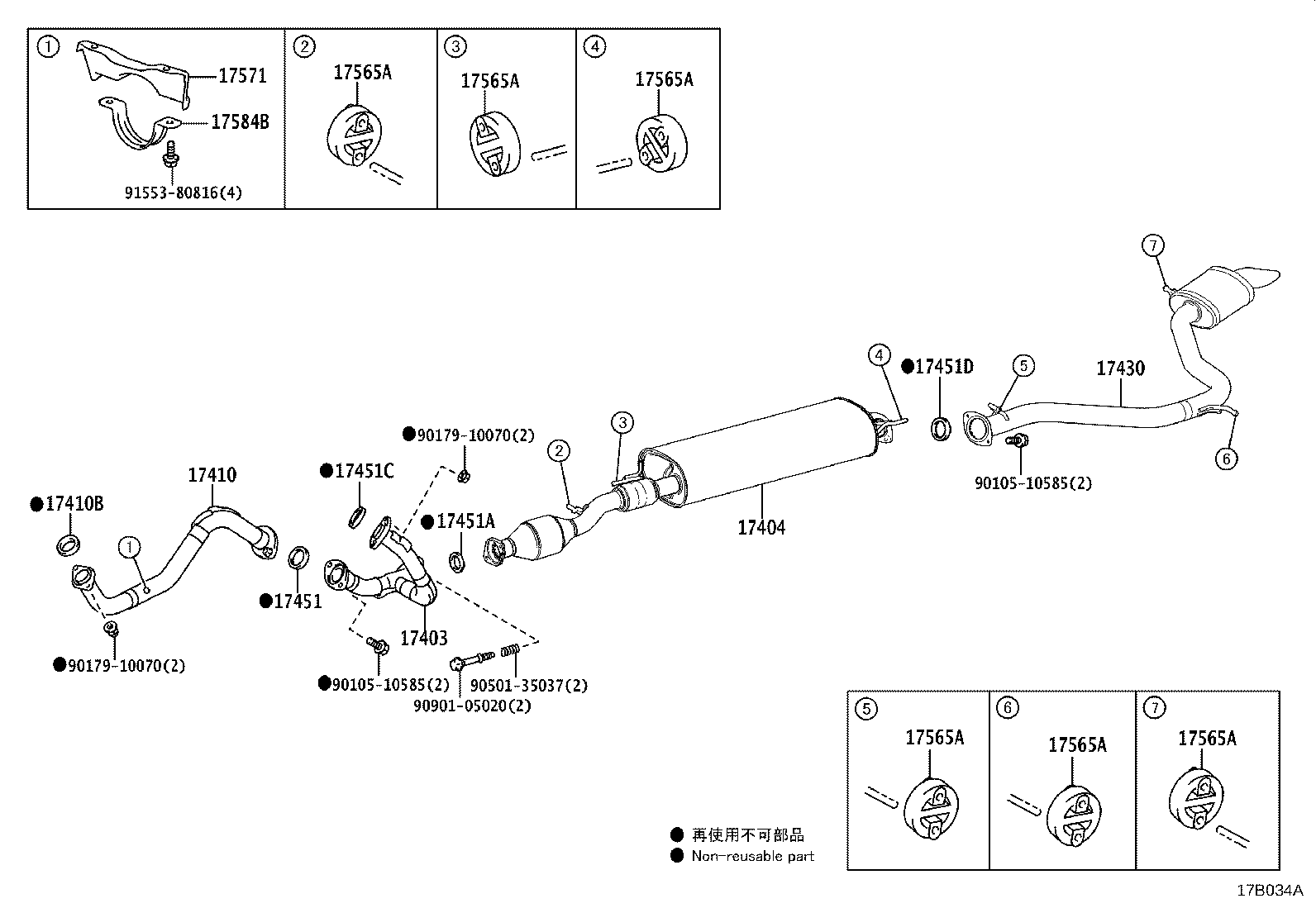

Click highlighted areas on diagram

diagram 17403 17404 17410 17410B 17430 17451 17451A 17451C 17451D 17565A 17565A 17565A 17565A 17565A 17565A 17571 17584B 9010510585 9010510585 9017910070 9017910070 9050135037 9090105020 9155380816
Part # Description Qty Price
17403 - PIPE SUB-ASSY, EXHAUST, FRONT NO.3
17403-31230

2GRFKS..GGH31

 1
17404 - PIPE SUB-ASSY, EXHAUST FORKED
17404-31291

2GRFKS..GGH31

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31L90

2GRFKS..GGH31

 1
17410B - GASKET, EXHAUST PIPE
90917-06089

2GR#..GGH31

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31D71

2GR#..GGH31

 1
17451 - GASKET, EXHAUST PIPE
90917-06078

2ARFXE,2GR#..AYH36,GGH31

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-28040

2GR#..GGH31

 1
17451C - GASKET, EXHAUST PIPE, NO.3
90917-06089

2GR#..GGH31

 1
17451D - GASKET, EXHAUST PIPE, NO.4
90917-06090

2GR#..GGH31

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2ARFXE,2GR#..AYH36,GGH31

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2ARFXE,2GR#..AYH36,GGH31

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2ARFXE,2GR#..AYH36,GGH31

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2ARFXE,2GR#..AYH36,GGH31

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2ARFXE,2GR#..AYH36,GGH31

 6
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

2ARFXE,2GR#..AYH36,GGH31

 6
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-31300

2GRFKS..GGH31

 1
17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17584-31040

2GR#..GGH31

 1
Common parts
90105-10585
90179-10070
90501-35037
90901-05020
91553-80816
