GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )2GRFKS

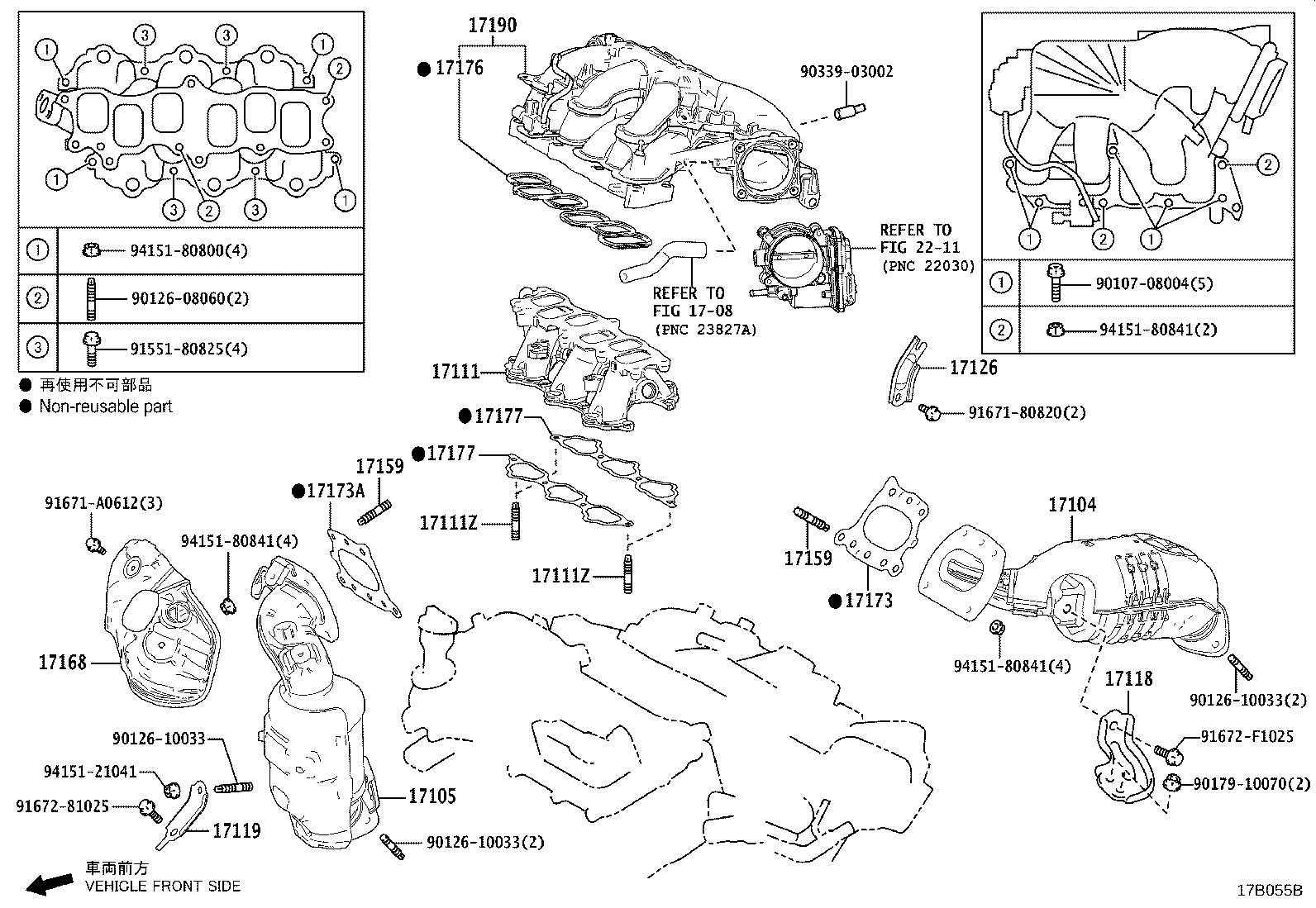

Click highlighted areas on diagram

diagram 1708 17104 17105 17111 17111Z 17111Z 17118 17119 17126 17159 17159 17168 17173 17173A 17176 17177 17177 17190 2211 9010708004 9012608060 9012610033 9012610033 9012610033 9017910070 9033903002 9155180825 9167180820 91671A0612 9167281025 91672F1025 9415121041 9415180800 9415180841 9415180841 9415180841
Part # Description Qty Price
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-31C70

2GRFKS..GGH31

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-31C70

2GRFKS..GGH31

 1
17111 - MANIFOLD, INTAKE
17111-31230

2GRFKS..GGH31

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08052

2GRFKS..GGH31

 4
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08052

2GRFKS..GGH31

 4
17118 - STAY, MANIFOLD
17118-31190

2GRFKS..GGH31

 1
17119 - STAY, MANIFOLD, NO.2
17119-31150

2GRFKS..GGH31

 1
17126 - STAY, SURGE TANK, NO.2
17126-31090

2GRFKS..GGH31

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

2GRFKS..GGH31

 8
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

2GRFKS..GGH31

 8
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-31090

2GRFKS..GGH31

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-31070

2GRFKS..GGH31

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-31070

2GRFKS..GGH31

 1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31130

2GRFKS..GGH31

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31070

2GRFKS..GGH31

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31070

2GRFKS..GGH31

 2
17190 - TANK ASSY, INTAKE AIR SURGE
17190-31270

2GRFKS..GGH31

 1
Common parts
90107-08004
90126-08060
90126-10033
90179-10070
90339-03002
91551-80825
91671-80820
91671-A0612
91672-81025
91672-F1025
94151-21041
94151-80800
94151-80841
Linked diagrams
1708
2211
