GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )2GRFKS

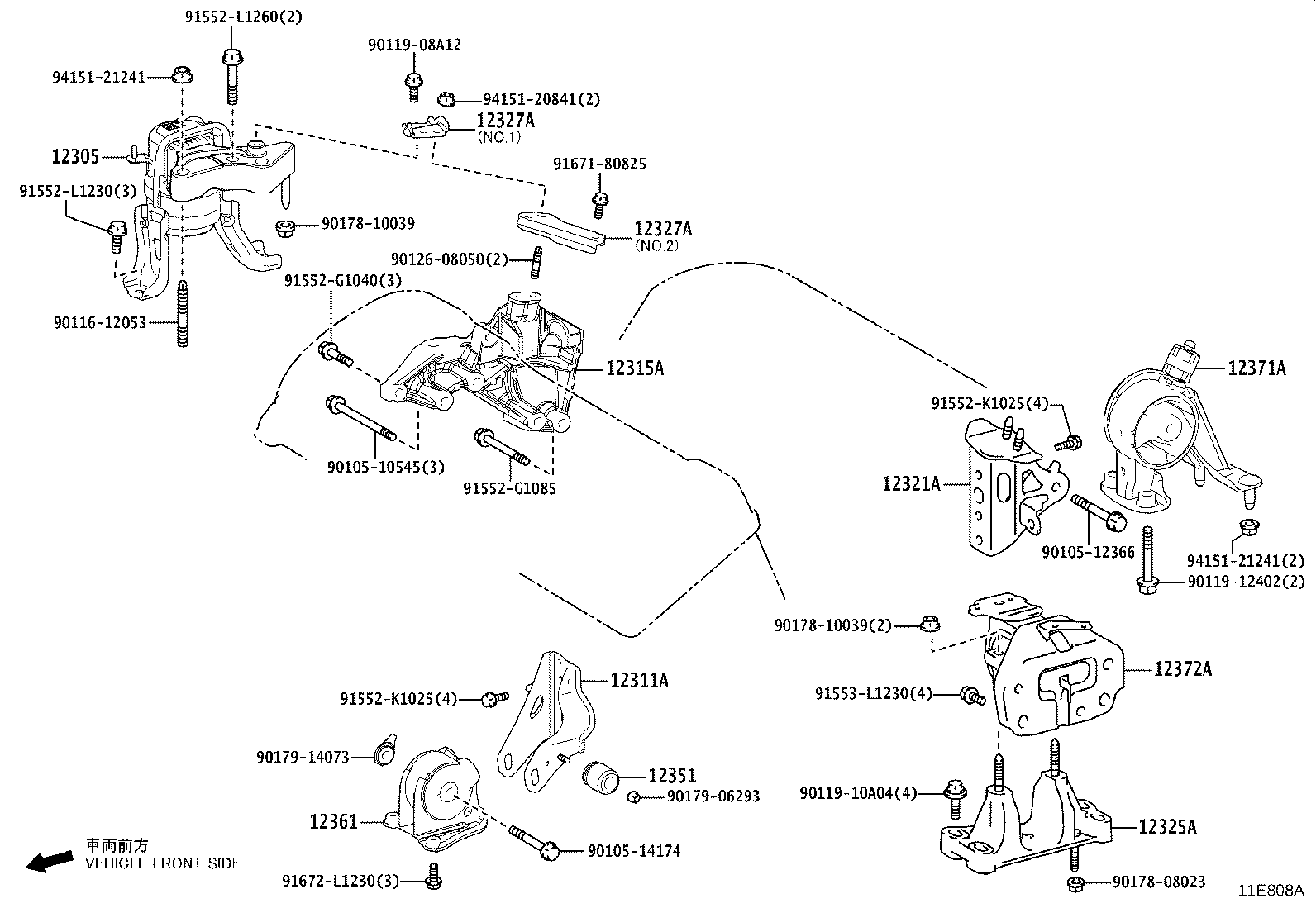

Click highlighted areas on diagram

diagram 12305 12311A 12315A 12321A 12325A 12327A 12327A 12351 12361 12371A 12372A 9010510545 9010512366 9010514174 9011612053 9011908A12 9011910A04 9011912402 9012608050 9017808023 9017810039 9017810039 9017906293 9017914073 91552G1040 91552G1085 91552K1025 91552K1025 91552L1230 91552L1260 91553L1230 9167180825 91672L1230 9415120841 9415121241 9415121241
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-31110

2GRFKS..GGH31

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-31260

2GRFKS..GGH31

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-31160

2GRFKS..GGH31

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-31231

2GRFKS..GGH31

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-31090

2GRFKS..GGH31

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31050

2GR#..GGH31

NO.1

 1
12327-31120

2GR#..GGH31

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31050

2GR#..GGH31

NO.1

 1
12327-31120

2GR#..GGH31

 1
12351 - DAMPER, ENGINE MOUNTING
12351-74120

2GR#..GGH31

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31530

2GRFKS..GGH31

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-31450

2GRFKS..GGH31

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-31130

2GRFKS..GGH31

 1
Common parts
90105-10545
90105-12366
90105-14174
90116-12053
90119-08A12
90119-10A04
90119-12402
90126-08050
90178-08023
90178-10039
90179-06293
90179-14073
91552-G1040
91552-G1085
91552-K1025
91552-L1230
91552-L1260
91553-L1230
91671-80825
91672-L1230
94151-20841
94151-21241
