AYH36R-LNXXB (2020)

Toyota Lexus Lm350/Lm300h

Production Feb 2020 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )X

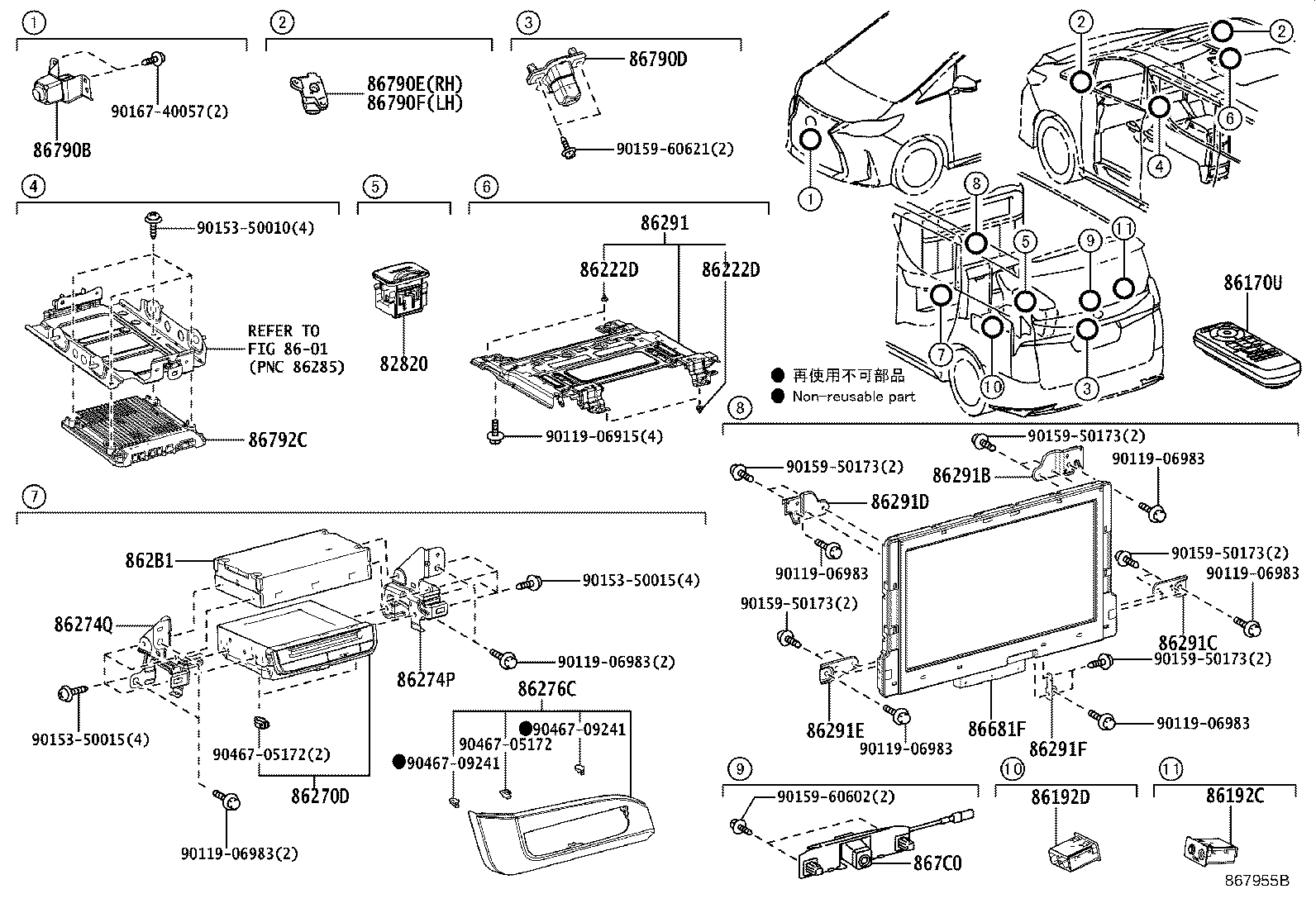

Click highlighted areas on diagram

diagram 82820 8601 86170U 86192C 86192D 86222D 86222D 86270D 86274P 86274Q 86276C 86291 86291B 86291C 86291D 86291E 86291F 862B1 86681F 86790B 86790D 86790E 86790F 86792C 867C0 9011906915 9011906983 9011906983 9011906983 9011906983 9011906983 9011906983 9011906983 9015350010 9015350015 9015350015 9015950173 9015950173 9015950173 9015950173 9015950173 9015960602 9015960621 9016740057 9046705172 9046705172 9046709241 9046709241
Part # Description Qty Price
82820 - COVER, CONNECTOR
82821-58050C2

AYH36,GGH31

BLACK,TRIM0#,2#

 1
86170U - SWITCH & VOLUME ASSY, REAR
86170-50480

GGH31..X;AYH36..RHD..X

 1
86170-58150

GGH31..V;AYH36..RHD..V

 1
86192C - TERMINAL, HEADPHONE, RH
86192-50040

AYH36,GGH31..X

 1
86192D - TERMINAL, HEADPHONE, LH
86192-50030

AYH36,GGH31..X

 1
86222D - CLIP, TELEVISION BRACKET
86222-60020

AYH36,GGH31

 4
86222D - CLIP, TELEVISION BRACKET
86222-60020

AYH36,GGH31

 4
86270D - DISC PLAYER ASSY
86270-50E70

GGH31..X;AYH36..RHD..X

 1
86274P - BRACKET, DISC PLAYER, NO.1
86274-58040

AYH36,GGH31..X

 1
86274Q - BRACKET, DISC PLAYER, NO.2
86274-58050

AYH36,GGH31..X

 1
86276C - COVER, DISC PLAYER
86276-58010C0

AYH36,GGH31..X

BLACK,TRIM0#,2#

 1
86291 - BRACKET, TELEVISION
86291-58052

AYH36,GGH31

 1
86291B - BRACKET, TELEVISION, NO.1
86291-58190

AYH36,GGH31..X

 1
86291C - BRACKET, TELEVISION, NO.2
86291-58200

AYH36,GGH31..X

 1
86291D - BRACKET, TELEVISION, NO.3
86291-58210

AYH36,GGH31..X

 1
86291E - BRACKET, TELEVISION, NO.4
86291-58220

AYH36,GGH31..X

 1
86291F - BRACKET, TELEVISION, NO.5
86291-58230

AYH36,GGH31..X

 1
862B1 - CONTROLLER, MULTI-DISPLAY
862B1-58010

AYH36,GGH31..X

 1
86681F - DISPLAY, MULTI-INFORMATION
86681-58290C0

AYH36..RHD..X;GGH31..8FC..X

BLACK,TRIM0#,2#

 1
86790B - CAMERA ASSY, TELEVISION, FR
86790-58250

AYH36,GGH31

 1
86790D - CAMERA ASSY, TELEVISION, RR
86790-58240

AYH36,GGH31

 1
86790E - CAMERA ASSY, TELEVISION, SIDE RH
86790-58270

AYH36,GGH31

 1
86790F - CAMERA ASSY, TELEVISION, SIDE LH
86790-58260

AYH36,GGH31

 1
86792C - COMPUTER, PARKING ASSIST
86792-58260

AYH36,GGH31..RHD

 1
867C0 - CAMERA ASSY, INNER MIRROR
867C0-58050

AYH36;GGH31..LHD

 1
Common parts
90119-06915
90119-06983
90153-50010
90153-50015
90159-50173
90159-60602
90159-60621
90167-40057
90467-05172
90467-09241
Linked diagrams
8601
