AYH36R-LNXXB (2020)
Toyota Lexus Lm350/Lm300h
Production
Feb 2020
-
Sep 9999
Engine
2ARFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

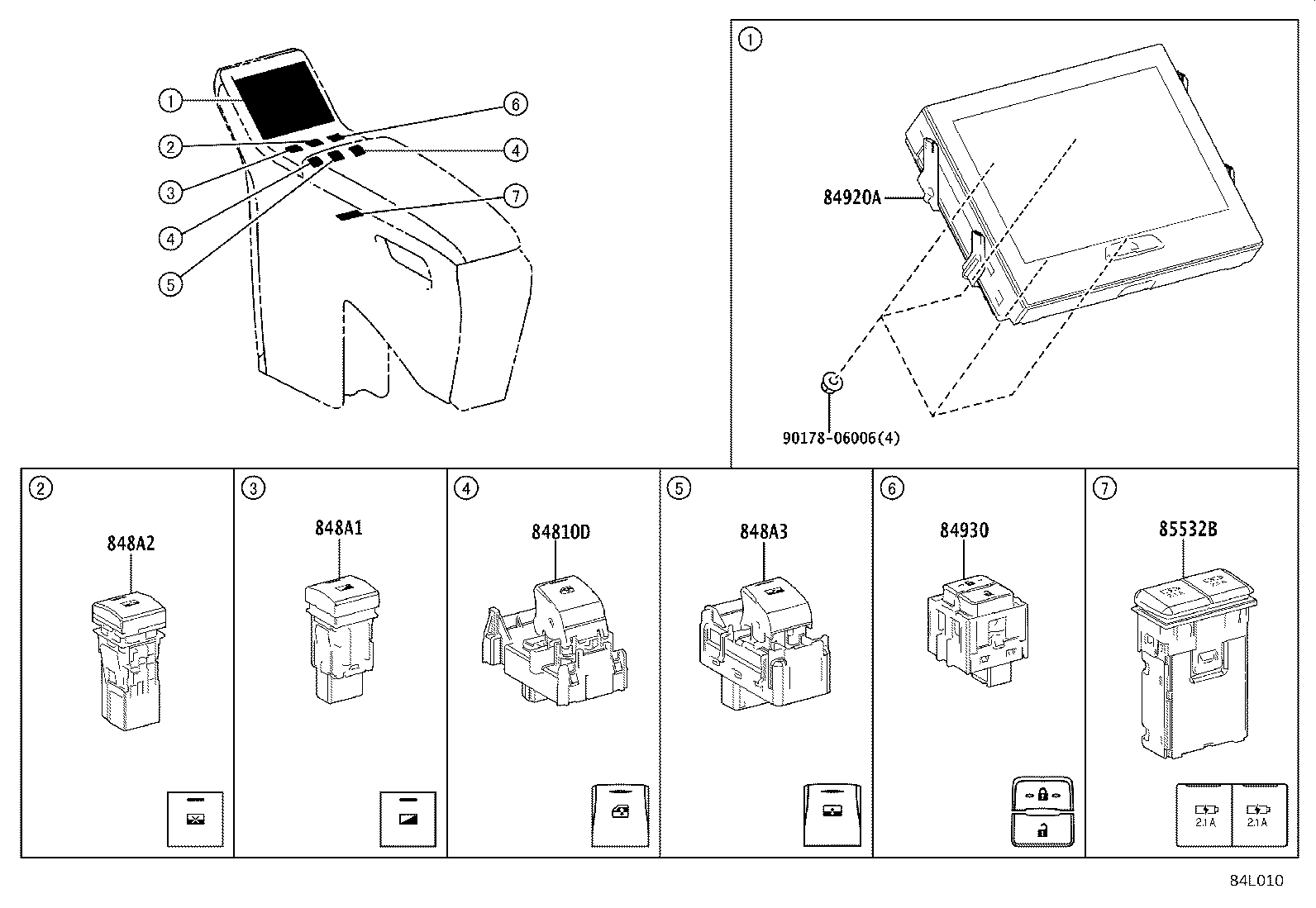

ILLUST NO. 7 OF11(2002- )X
Click highlighted areas on diagram
REAR CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33140 |
AYH36,GGH31..V |
2 | ||
| 84810-58010 |
AYH36,GGH31..X |
2 | ||
| 848A1 - SWITCH, PARTITION LIGHT DIMMER | ||||
| 848A1-58010 |
AYH36,GGH31..X |
2 | ||
| 848A2 - SWITCH, PARTITION LIFT LOCK | ||||
| 848A2-58010 |
AYH36,GGH31..X |
1 | ||
| 848A3 - SWITCH, PARTITION LIFT CONTROL | ||||
| 848A3-58020 |
AYH36,GGH31..X |
2 | ||
| 84920A - SWITCH ASSY, MULTI-OPERATION PANEL | ||||
| 84920-58050 |
AYH36,GGH31..X |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-33140 |
AYH36,GGH31..X |
1 | ||
| 85532B - SOCKET, USB CHARGER | ||||
| 85532-76010 |
AYH36,GGH31..X |
1 | ||
| Common parts | ||||
| 90178-06006 | ||||

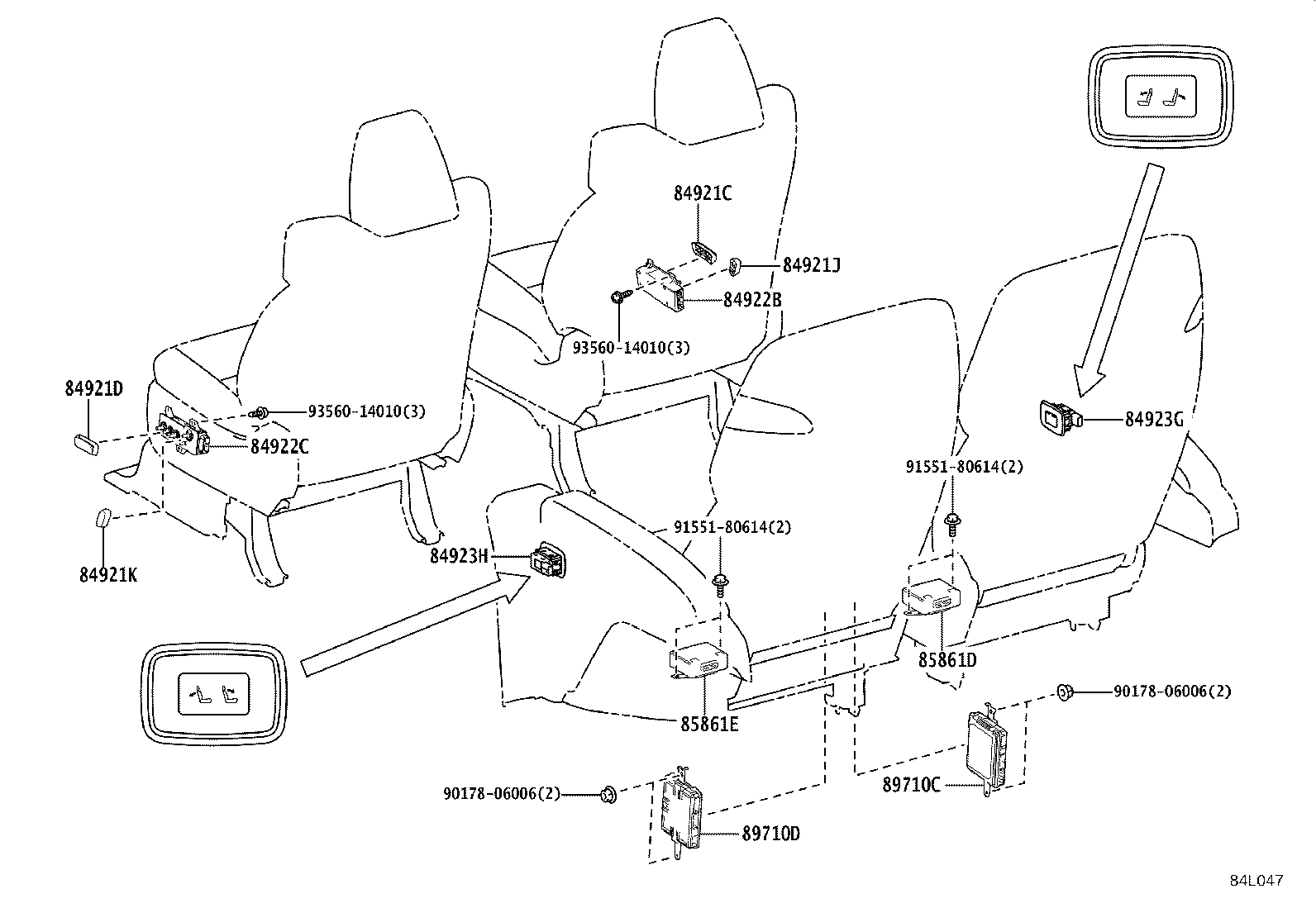

ILLUST NO.10 OF11(2002- )X
Click highlighted areas on diagram
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-22070C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-22100C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 84921J - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-22080C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-22090C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84070-58070 |
AYH36,GGH31..RHD..X |
1 | ||
| 84070-58051 |
AYH36,GGH31..RHD..V |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-58080 |
AYH36,GGH31..RHD..X |
1 | ||
| 84922-60170 |
AYH36,GGH31..RHD..V |
1 | ||
| 84923G - SWITCH, REAR POWER SEAT, NO.1, RH | ||||
| 84923-58240C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 84923-58180 |
AYH36,GGH31..V |
1 | ||
| 84923H - SWITCH, REAR POWER SEAT, NO.1, LH | ||||
| 84923-58250C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 84923-58190 |
AYH36,GGH31..V |
1 | ||
| 85861D - COMPUTER, SEAT CLIMATE CONTROL, REAR RH | ||||
| 85861-58040 |
AYH36,GGH31..X |
1 | ||
| 85861-58020 |
AYH36,GGH31..V |
1 | ||
| 85861E - COMPUTER, SEAT CLIMATE CONTROL, REAR LH | ||||
| 85861-58050 |
AYH36,GGH31..X |
1 | ||
| 85861-58020 |
AYH36,GGH31..V |
1 | ||
| 89710C - COMPUTER ASSY, POSITION CONTROL, RH | ||||
| 89710-58020 |
AYH36,GGH31..V |
1 | ||
| 89710-58040 |
AYH36,GGH31..X |
1 | ||
| 89710D - COMPUTER ASSY, POSITION CONTROL, LH | ||||
| 89710-58020 |
AYH36,GGH31..V |
1 | ||
| 89710-58050 |
AYH36,GGH31..X |
1 | ||
| Common parts | ||||
| 90178-06006 | ||||
| 91551-80614 | ||||
| 93560-14010 | ||||
