AYH36R-LNXXB (2020)
Toyota Lexus Lm350/Lm300h
Production
Feb 2020
-
Sep 9999
Engine
2ARFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

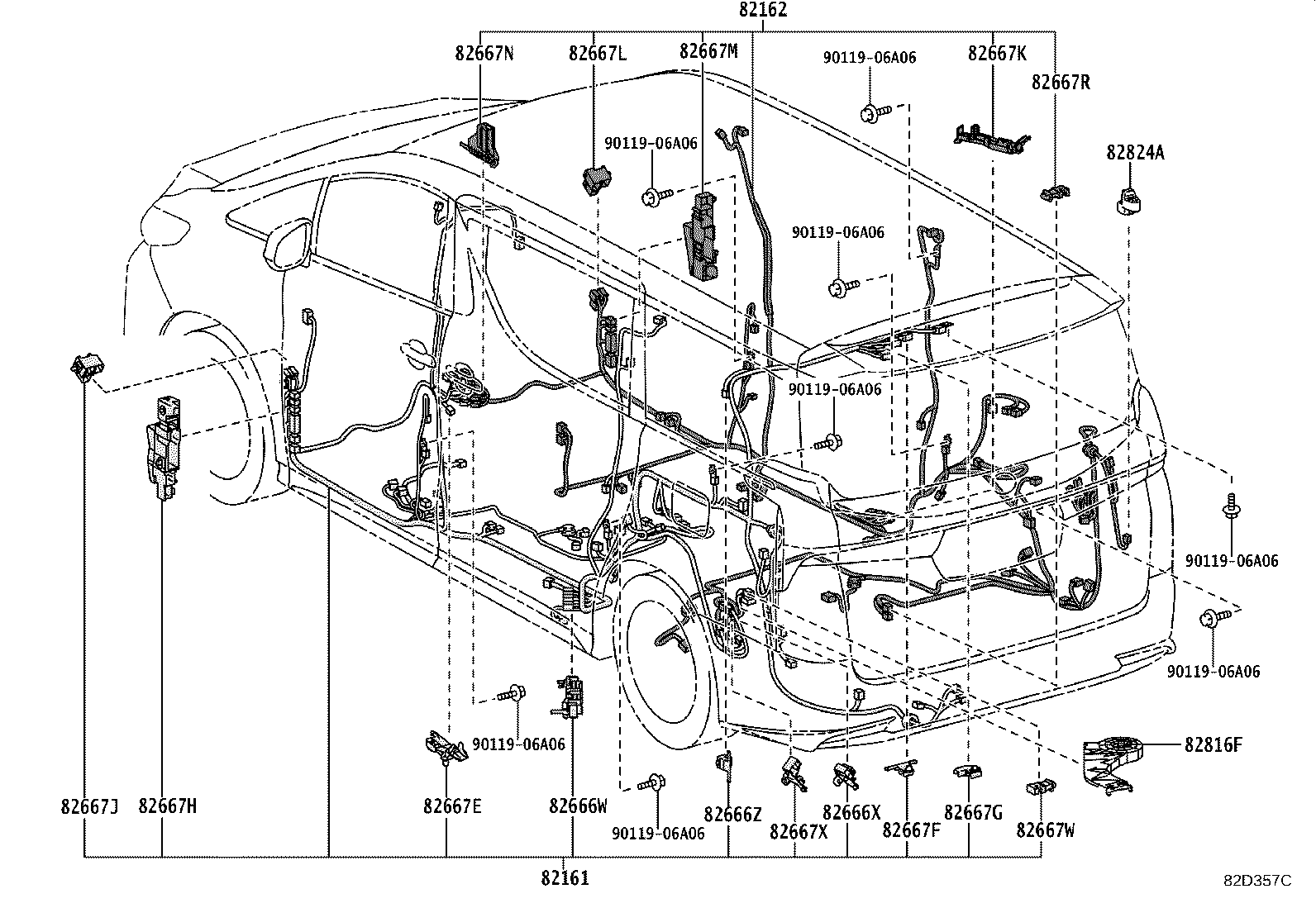

ILLUST NO. 5 OF14(2002- )X
Click highlighted areas on diagram
FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-58B80 |
AYH36..RHD..V |
1 | ||
| 82161-58830 |
AYH36..RHD..X |
1 | ||
| 82161-V2210 |
AYH36..RHD..V |
1 | ||
| 82161-V2270 |
AYH36..RHD..X |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-58A00 |
AYH36..RHD..V |
1 | ||
| 82162-58820 |
AYH36..RHD..X |
1 | ||
| 82162-V2340 |
AYH36..RHD..V |
1 | ||
| 82162-V2300 |
AYH36..RHD..X |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-58340 |
AYH36,GGH31 |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-58360 |
AYH36,GGH31 |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-58560 |
AYH36,GGH31 |
2 | ||
| 82667E - HOLDER, CONNECTOR, NO.20 | ||||
| 82666-58590 |
AYH36,GGH31 |
1 | ||
| 82667F - HOLDER, CONNECTOR, NO.21 | ||||
| 82666-58530 |
AYH36,GGH31 |
1 | ||
| 82667G - HOLDER, CONNECTOR, NO.22 | ||||
| 82666-58670 |
AYH36,GGH31 |
1 | ||
| 82667H - HOLDER, CONNECTOR, NO.23 | ||||
| 82666-58730 |
AYH36,GGH31 |
1 | ||
| 82667J - HOLDER, CONNECTOR, NO.24 | ||||
| 82666-58740 |
AYH36,GGH31 |
1 | ||
| 82667K - HOLDER, CONNECTOR, NO.25 | ||||
| 82666-58330 |
AYH36,GGH31 |
1 | ||
| 82667L - HOLDER, CONNECTOR, NO.26 | ||||
| 82666-58500 |
AYH36,GGH31 |
1 | ||
| 82667M - HOLDER, CONNECTOR, NO.27 | ||||
| 82666-58580 |
AYH36,GGH31 |
1 | ||
| 82667N - HOLDER, CONNECTOR, NO.28 | ||||
| 82666-58600 |
AYH36,GGH31 |
1 | ||
| 82667R - HOLDER, CONNECTOR, NO.29 | ||||
| 82666-53240 |
AYH36,GGH31..X |
1 | ||
| 82667W - HOLDER, CONNECTOR, NO.34 | ||||
| 82666-53240 |
AYH36,GGH31..X |
1 | ||
| 82667X - HOLDER, CONNECTOR, NO.35 | ||||
| 82666-58750 |
AYH36,GGH31..X |
1 | ||
| 82816F - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-58810 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||

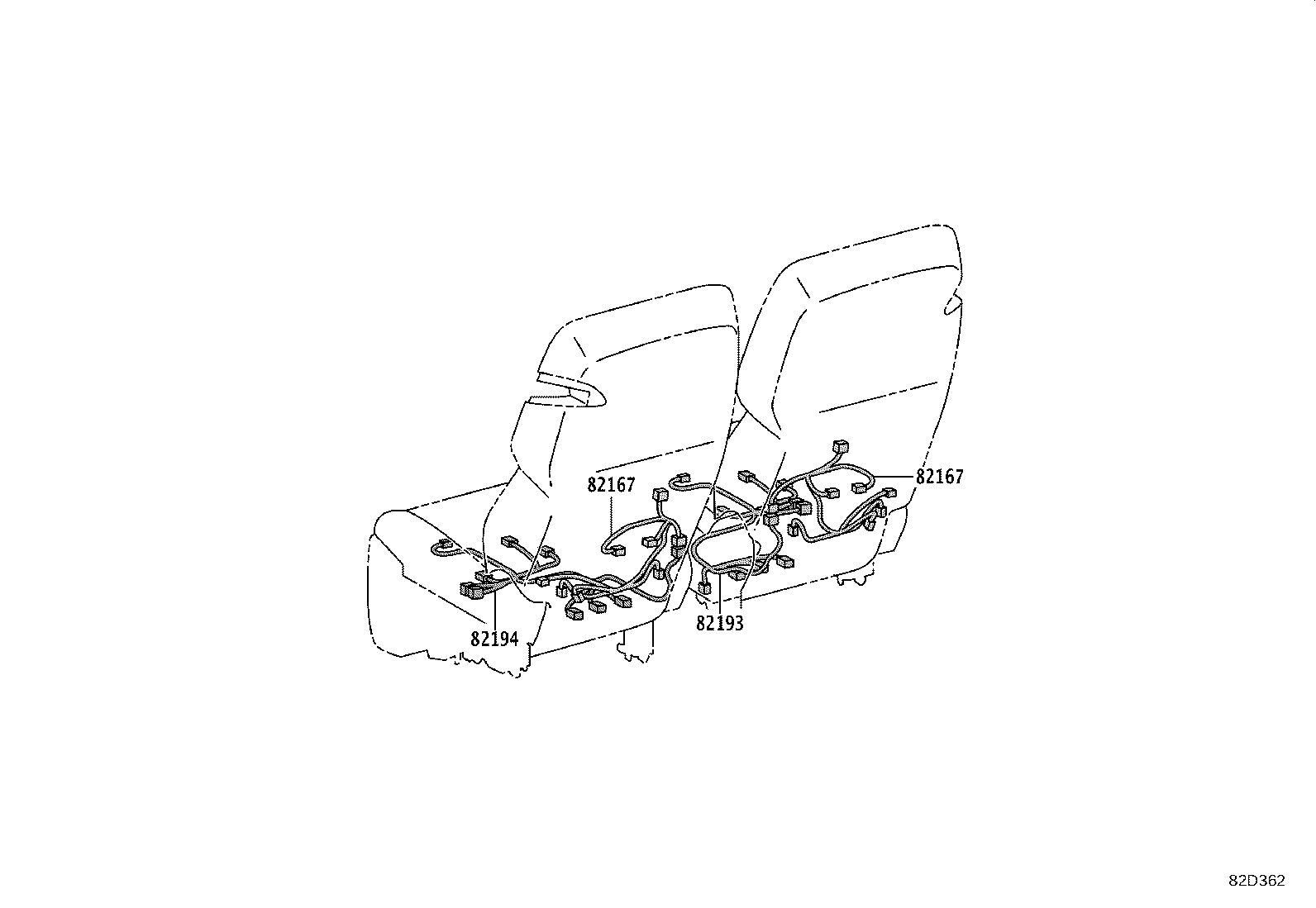

ILLUST NO. 9 OF14(2002- )X
Click highlighted areas on diagram
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-58100 |
AYH36,GGH31..X |
2 | ||
| 82167-58060 |
AYH36,GGH31..V |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-58100 |
AYH36,GGH31..X |
2 | ||
| 82167-58060 |
AYH36,GGH31..V |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-V2010 |
AYH36,GGH31..V |
1 | ||
| 82193-58120 |
AYH36,GGH31..X |
1 | ||
| 82193-58130 |
AYH36,GGH31..V |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-V2010 |
AYH36,GGH31..V |
1 | ||
| 82193-58120 |
AYH36,GGH31..X |
1 | ||
| 82194-58060 |
AYH36,GGH31..V |
1 | ||
