AYH36R-LNXXB (2020)
Toyota Lexus Lm350/Lm300h

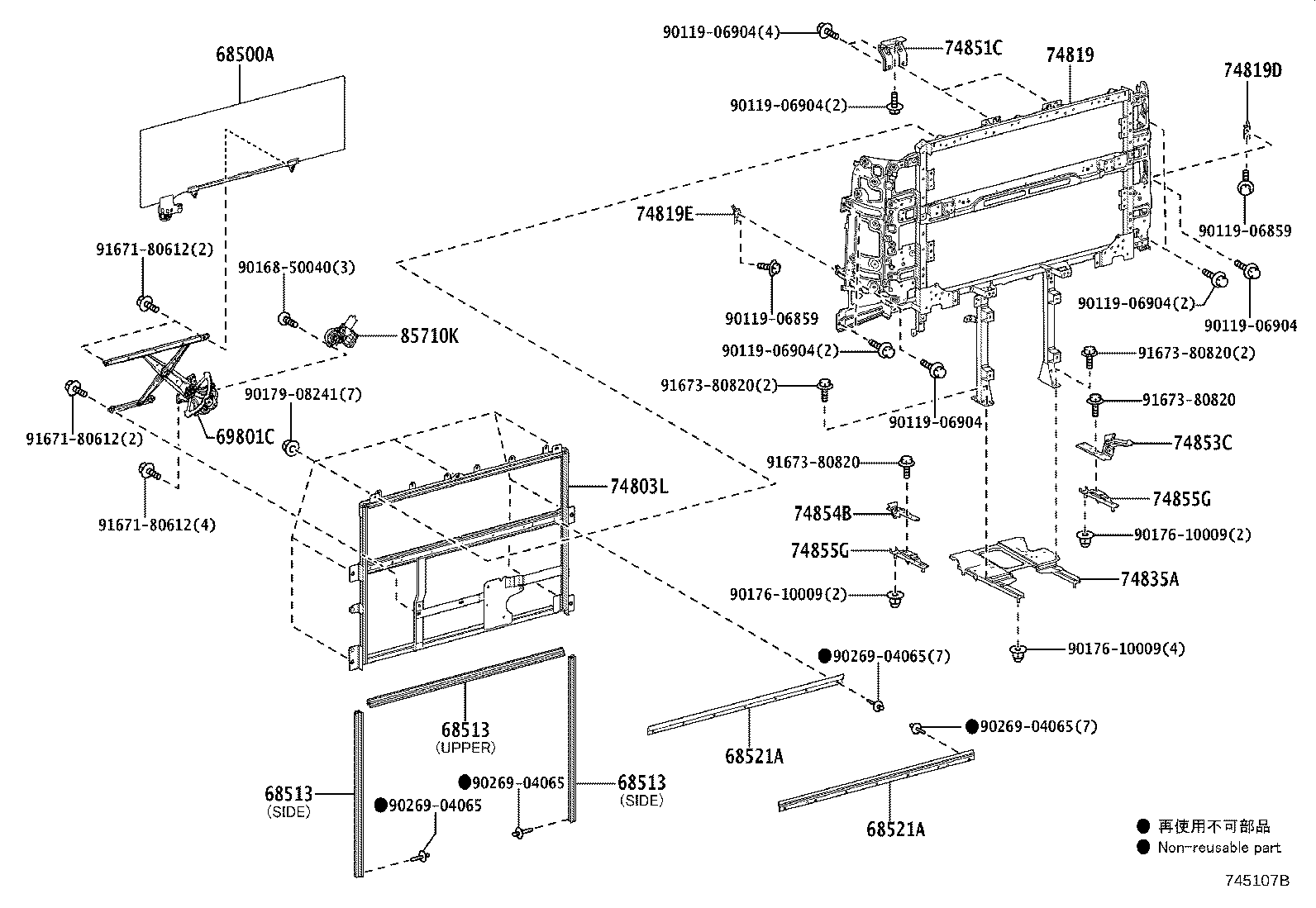

ILLUST NO. 1 OF 2(2002- )X
FRAME & GLASS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68500A - WINDOW ASSY, SEPARATION | ||||
| 68500-58010 |
AYH36,GGH31..X |
1 | ||
| 68513 - RUN, SEPARATION WINDOW | ||||
| 68513-58010 |
AYH36,GGH31..X UPPER |
1 | ||
| 68513-58020 |
AYH36,GGH31..X SIDE |
2 | ||
| 68513 - RUN, SEPARATION WINDOW | ||||
| 68513-58010 |
AYH36,GGH31..X UPPER |
1 | ||
| 68513-58020 |
AYH36,GGH31..X SIDE |
2 | ||
| 68513 - RUN, SEPARATION WINDOW | ||||
| 68513-58010 |
AYH36,GGH31..X UPPER |
1 | ||
| 68513-58020 |
AYH36,GGH31..X SIDE |
2 | ||
| 68521A - WEATHERSTRIP, SEPARATION DOOR WINDOW | ||||
| 68521-58010 |
AYH36,GGH31..X |
2 | ||
| 68521A - WEATHERSTRIP, SEPARATION DOOR WINDOW | ||||
| 68521-58010 |
AYH36,GGH31..X |
2 | ||
| 69801C - REGULATOR SUB-ASSY, SEPARATOR WINDOW | ||||
| 69801-52140 |
AYH36,GGH31..X |
1 | ||
| 74803L - GUARD SUB-ASSY, SEPARATOR WINDOW | ||||
| 74803-58010 |
AYH36,GGH31..X |
1 | ||
| 74819 - BRACKET, SEPARATOR FRAME | ||||
| 74819-58010 |
AYH36,GGH31..X |
1 | ||
| 74819D - BRACKET, SEPARATOR BOARD, RH | ||||
| 74819-58020 |
AYH36,GGH31..X |
1 | ||
| 74819E - BRACKET, SEPARATOR BOARD, LH | ||||
| 74819-58030 |
AYH36,GGH31..X |
1 | ||
| 74835A - BRACKET, SEPARATOR | ||||
| 74835-58010 |
AYH36,GGH31..X |
1 | ||
| 74851C - BRACKET, SEPARATOR, UPPER RH | ||||
| 74851-58030 |
AYH36,GGH31..X |
2 | ||
| 74853C - BRACKET, SEPARATOR, LOWER RH | ||||
| 74853-58010 |
AYH36,GGH31..X |
1 | ||
| 74854B - BRACKET, SEPARATOR, LOWER LH | ||||
| 74854-58010 |
AYH36,GGH31..X |
1 | ||
| 74855G - BAR, REAR SEPARATOR, NO.1 | ||||
| 74855-58010 |
AYH36,GGH31..X |
2 | ||
| 74855G - BAR, REAR SEPARATOR, NO.1 | ||||
| 74855-58010 |
AYH36,GGH31..X |
2 | ||
| 85710K - MOTOR ASSY, POWER WINDOW REGULATOR | ||||
| 85710-58070 |
AYH36,GGH31..X |
1 | ||
| Common parts | ||||
| 90119-06859 | ||||
| 90119-06904 | ||||
| 90168-50040 | ||||
| 90176-10009 | ||||
| 90179-08241 | ||||
| 90269-04065 | ||||
| 91671-80612 | ||||
| 91673-80820 | ||||

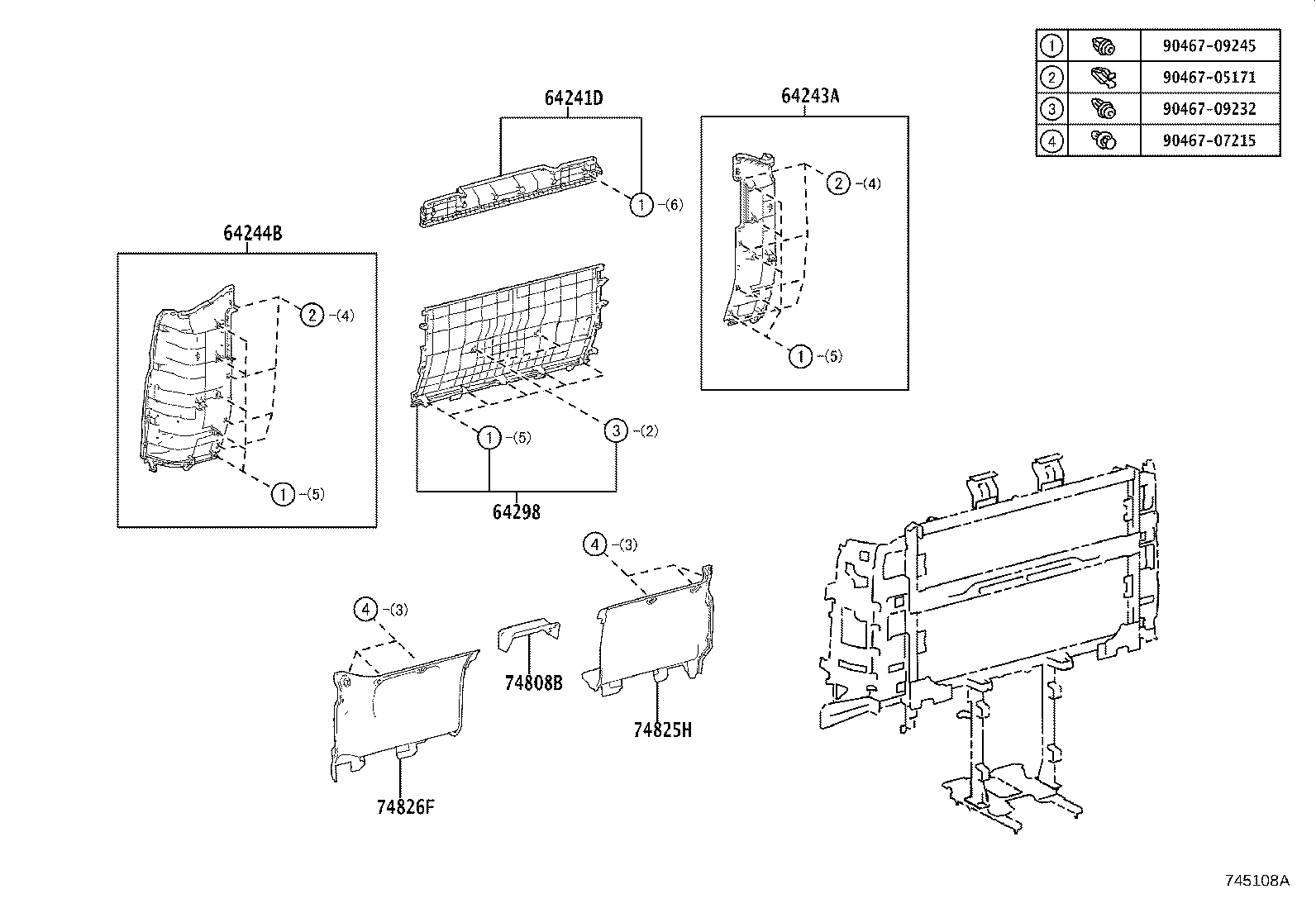

ILLUST NO. 2 OF 2(2002- )X
TRIM BOARD(FRONT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64241D - PANEL, ROOM PARTITION | ||||
| 64241-58010C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 64243A - PANEL, ROOM PARTITION, NO.2 RH | ||||
| 64243-58010C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 64244B - PANEL, ROOM PARTITION, NO.2 LH | ||||
| 64244-58010C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 64298 - PANEL, ROOM PARTITION CENTER | ||||
| 64298-58010C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 74808B - BOARD SUB-ASSY, SEPARATOR | ||||
| 74808-58020 |
AYH36,GGH31..X |
1 | ||
| 74825H - BOARD, SEPARATOR TRIM, LWR FR NO.1 | ||||
| 74825-58010 |
AYH36,GGH31..X |
1 | ||
| 74826F - BOARD, SEPARATOR TRIM, LWR FR NO.2 | ||||
| 74826-58020 |
AYH36,GGH31..X |
1 | ||
| Common parts | ||||
| 90467-05171 | ||||
| 90467-07215 | ||||
| 90467-09232 | ||||
| 90467-09245 | ||||

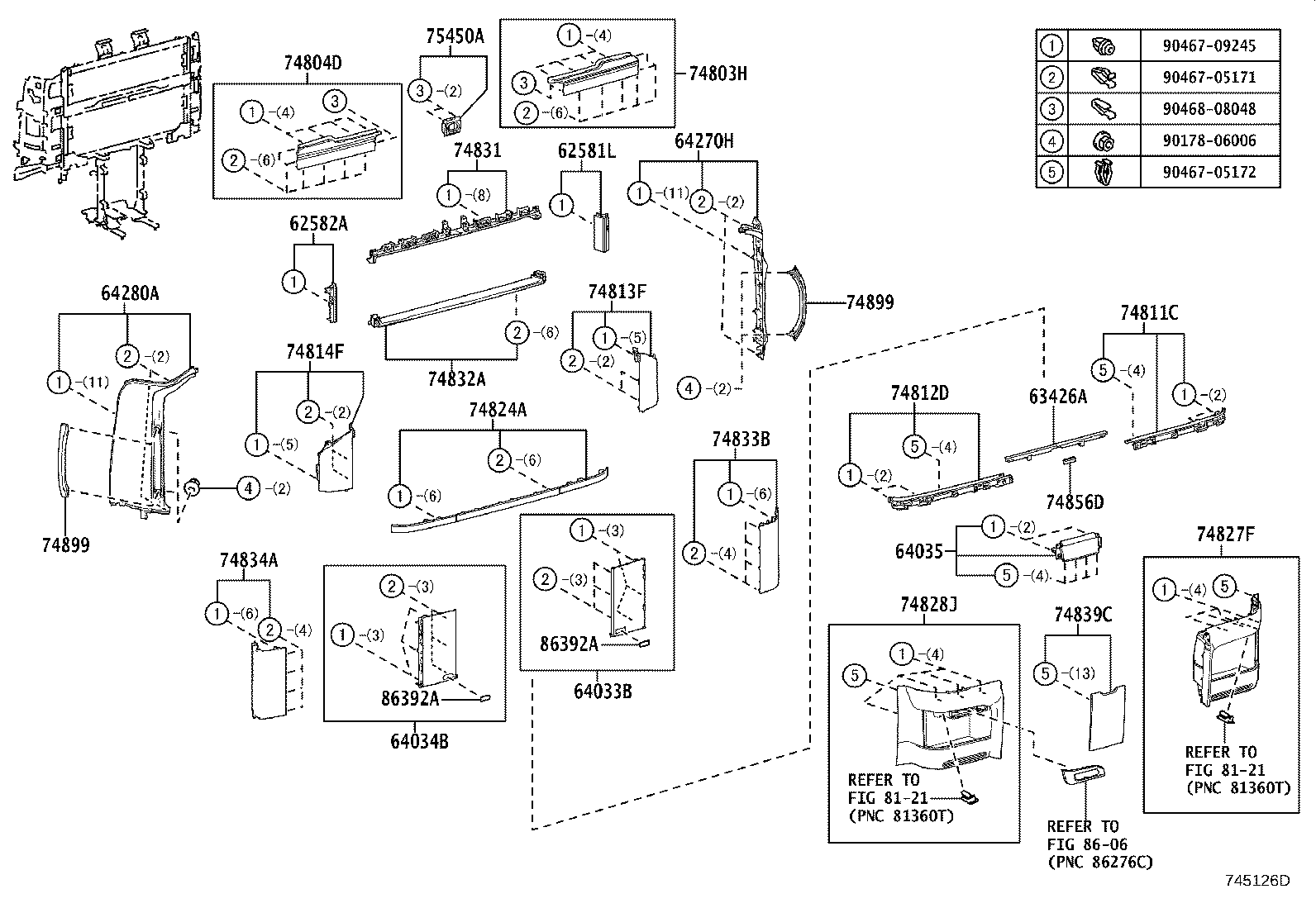

ILLUST NO. 2 OF 2(2002- )X
TRIM BOARD(REAR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62581L - GARNISH, REAR WINDOW SIDE, RH | ||||
| 62581-58040 |
AYH36,GGH31..X |
1 | ||
| 62582A - GARNISH, REAR WINDOW SIDE, LH | ||||
| 62582-58050 |
AYH36,GGH31..X |
1 | ||
| 63426A - COVER, TELEVISION GARNISH | ||||
| 63426-58010 |
AYH36,GGH31..X |
1 | ||
| 64033B - GRILLE SUB-ASSY, REAR SPEAKER, RH | ||||
| 64033-58010 |
AYH36,GGH31..X |
1 | ||
| 64034B - GRILLE SUB-ASSY, REAR SPEAKER, LH | ||||
| 64034-58010 |
AYH36,GGH31..X |
1 | ||
| 64035 - GRILLE SUB-ASSY, CENTER SPEAKER, NO.1 | ||||
| 64035-58010C0 |
AYH36,GGH31..X BLACK,TRIM2# |
1 | ||
| 64035-58010A0 |
AYH36,GGH31..X WHITE,TRIM0# |
1 | ||
| 64270H - BOARD ASSY, ROOM PARTITION, RH | ||||
| 64270-58010C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 64280A - BOARD ASSY, ROOM PARTITION, LH | ||||
| 64280-58010C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 74803H - PANEL SUB-ASSY, SEPARATOR BOARD, RH | ||||
| 74803-58020C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 74804D - PANEL SUB-ASSY, SEPARATOR BOARD, LH | ||||
| 74804-58010C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 74811C - BAR, SEPARATOR, NO.1 | ||||
| 74854-58030 |
AYH36,GGH31..X |
1 | ||
| 74812D - BAR, SEPARATOR, NO.2 | ||||
| 74855-58030 |
AYH36,GGH31..X |
1 | ||
| 74813F - PANEL, SEPARATOR BOARD SIDE, RH | ||||
| 74813-58040 |
AYH36,GGH31..X |
1 | ||
| 74814F - PANEL, SEPARATOR BOARD SIDE, LH | ||||
| 74814-58040 |
AYH36,GGH31..X |
1 | ||
| 74824A - PLATE, SEPARATOR BOARD | ||||
| 74824-58020 |
AYH36,GGH31..X |
1 | ||
| 74827F - BOARD, SEPARATOR TRIM, LWR RR NO.1 | ||||
| 74827-58010C1 |
AYH36,GGH31..X BLACK,TRIM0# |
1 | ||
| 74827-58010C2 |
AYH36,GGH31..X BLACK,TRIM2# |
1 | ||
| 74828J - BOARD, SEPARATOR TRIM, LWR RR NO.2 | ||||
| 74828-58010C1 |
AYH36,GGH31..X BLACK,TRIM0# |
1 | ||
| 74828-58010C2 |
AYH36,GGH31..X BLACK,TRIM2# |
1 | ||
| 74831 - FRAME, SEPARATOR WINDOW GUARD, UPPER | ||||
| 74831-58020 |
AYH36,GGH31..X |
1 | ||
| 74832A - FRAME, SEPARATOR WINDOW GUARD, LOWER | ||||
| 74832-58010 |
AYH36,GGH31..X |
1 | ||
| 74833B - PANEL, SEPARATOR BOARD SIDE, LOWER RH | ||||
| 74833-58020 |
AYH36,GGH31..X |
1 | ||
| 74834A - PANEL, SEPARATOR BOARD SIDE, LOWER LH | ||||
| 74834-58020 |
AYH36,GGH31..X |
1 | ||
| 74839C - BOARD, SEPARATOR, CTR NO.2 | ||||
| 74839-58010C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 74856D - BAR, SEPARATOR, LWR | ||||
| 74856-58010 |
AYH36,GGH31..X |
1 | ||
| 74899 - HANDLE, SEPARATOR | ||||
| 74899-58010C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
2 | ||
| 74899 - HANDLE, SEPARATOR | ||||
| 74899-58010C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
2 | ||
| 75450A - ORNAMENT ASSY, REAR | ||||
| 75450-58010 |
AYH36,GGH31..X |
1 | ||
| 86392A - ORNAMENT, ANTENNA | ||||
| 86392-58030 |
AYH36,GGH31..X |
2 | ||
| 86392A - ORNAMENT, ANTENNA | ||||
| 86392-58030 |
AYH36,GGH31..X |
2 | ||
| Common parts | ||||
| 90178-06006 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-09245 | ||||
| 90468-08048 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8606 | ||||
