AYH36R-LNXXB (2020)

Toyota Lexus Lm350/Lm300h

Production Feb 2020 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2002- )X

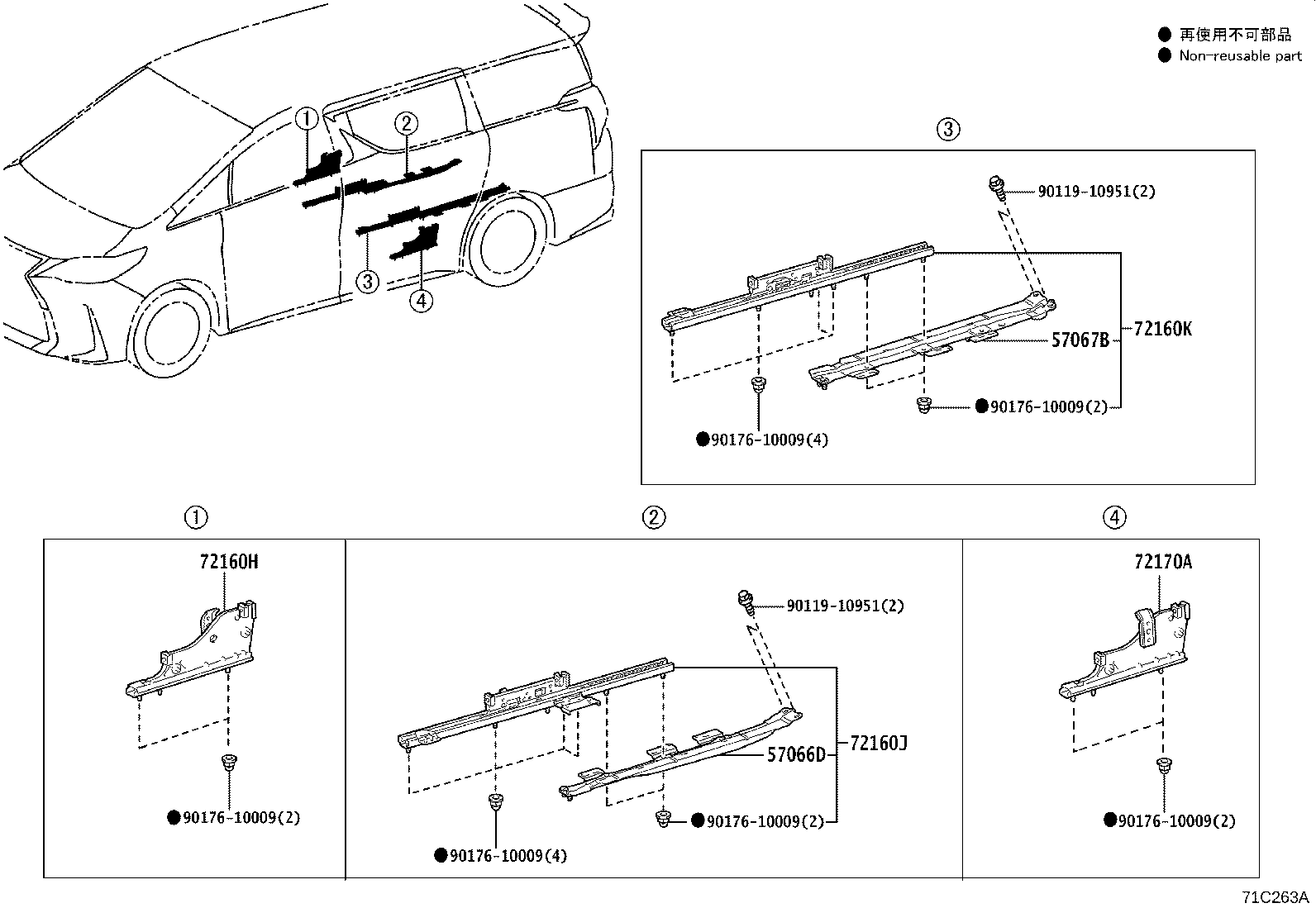

Click highlighted areas on diagram

diagram 57066D 57067B 72160H 72160J 72160K 72170A 9011910951 9011910951 9017610009 9017610009 9017610009 9017610009 9017610009 9017610009
Part # Description Qty Price
57066D - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57066-58010

AYH36,GGH31

 1
57067B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57067-58010

AYH36,GGH31

 1
72160H - TRACK ASSY, REAR SEAT, OUTER RH
72160-V2010

AYH36,GGH31..V

 1
72160-58320

AYH36,GGH31..X

 1
72160-58280

AYH36,GGH31..V

 1
72160J - TRACK ASSY, REAR RH SEAT, INNER NO.1
72160-58310

AYH36,GGH31..V

 1
72160-58240

AYH36,GGH31..X

 1
72160K - TRACK ASSY, REAR LH SEAT, INNER NO.1
72160-58270

AYH36,GGH31..X

 1
72160-58220

AYH36,GGH31..V

 1
72170A - TRACK ASSY, REAR SEAT, OUTER LH
72160-58330

AYH36,GGH31..V

 1
72170-58220

AYH36,GGH31..X

 1
72160-V2020

AYH36,GGH31..V

 1
Common parts
90119-10951
90176-10009
