AYH36R-LNXXB (2020)

Toyota Lexus Lm350/Lm300h

Production Feb 2020 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

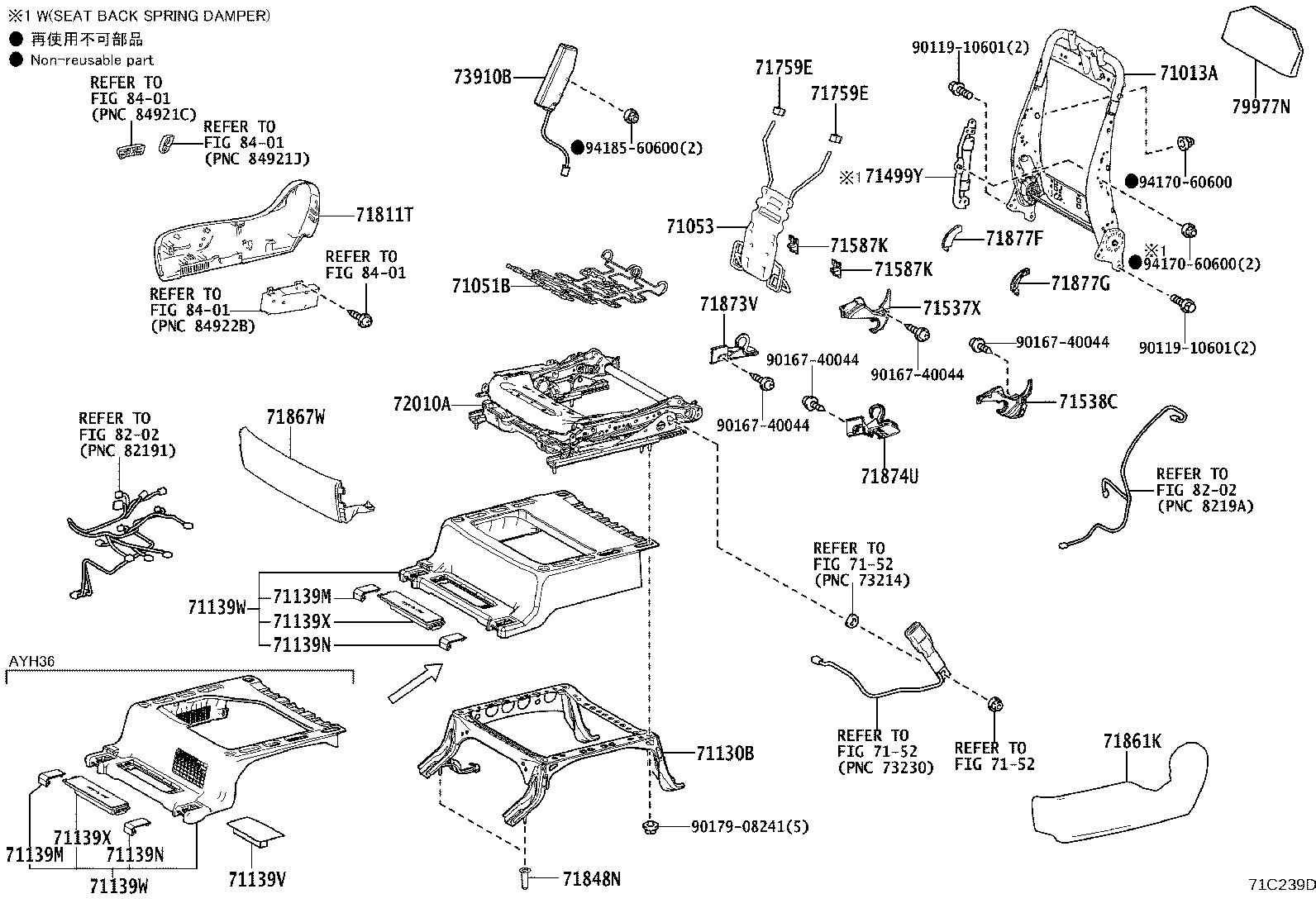

ILLUST NO. 1 OF 3(2002- )X

Click highlighted areas on diagram

RH SIDE

diagram 71013A 71051B 71053 71130B 71139M 71139M 71139N 71139N 71139V 71139W 71139W 71139X 71139X 71499Y 7152 7152 71537X 71538C 71587K 71587K 71759E 71759E 71811T 71848N 71861K 71867W 71873V 71874U 71877F 71877G 72010A 73910B 79977N 8202 8202 8401 8401 8401 8401 9011910601 9011910601 9016740044 9016740044 9016740044 9016740044 9017908241 9417060600 9417060600 9418560600
Part # Description Qty Price
71013A - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-58090

AYH36,GGH31..RHD..V

 1
71013-58130

AYH36,GGH31..X

 1
71051B - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-78020

AYH36,GGH31..X

 1
71051-58030

AYH36,GGH31..V

 1
71053 - SPRING SUB-ASSY, FRONT SEAT BACK, RH
71053-52050

AYH36,GGH31..X

 1
71053-58020

AYH36,GGH31..V

 1
71130B - LEG ASSY, FRONT SEAT, RH
71130-58090

AYH36,GGH31

 1
71139M - COVER, FRONT SEAT LEG, RH OUTER
71139-58340C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
71139M - COVER, FRONT SEAT LEG, RH OUTER
71139-58340C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
71139N - COVER, FRONT SEAT LEG, RH INNER
71139-58340C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
71139N - COVER, FRONT SEAT LEG, RH INNER
71139-58340C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
71139V - COVER, FRONT SEAT LEG NO.1
71139-58250C0

AYH36

BLACK,TRIM0#,2#

 1
71139W - COVER, FRONT SEAT LEG(FOR RH SEAT)
71139-58400C0

AYH36

BLACK,TRIM0#,2#

 1
71139W - COVER, FRONT SEAT LEG(FOR RH SEAT)
71139-58400C0

AYH36

BLACK,TRIM0#,2#

 1
71139X - COVER, FRONT SEAT LEG NO.2
71139-58350C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
71139X - COVER, FRONT SEAT LEG NO.2
71139-58350C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-47010C0

AYH36,GGH31..RHD..V

BLACK,TRIM0#,2#

 1
71537-47010C0

AYH36,GGH31..X

BLACK,TRIM0#,2#

 2
71538C - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-47010C0

AYH36,GGH31..X

BLACK,TRIM0#,2#

 2
71538-47010C0

GGH31..V;AYH36..RHD..V

BLACK,TRIM0#,2#

 1
71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH
71587-52030

AYH36,GGH31

 2
71587K - PROTECTOR, FRONT SEAT BACK EDGE, RH
71587-52030

AYH36,GGH31

 2
71759E - HOOK, FRONT SEAT BACK, RH
71759-47011

AYH36,GGH31

 2
71759E - HOOK, FRONT SEAT BACK, RH
71759-47011

AYH36,GGH31

 2
71811T - SHIELD, FRONT SEAT CUSHION, RH
71811-58090C0

AYH36,GGH31..RHD;AYH36,GGH31..LHD..X

BLACK,TRIM0#,2#

 1
71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1
71848-52040

AYH36,GGH31

 2
71861K - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-58090C0

AYH36,GGH31..RHD;AYH36,GGH31..LHD..X

BLACK,TRIM0#,2#

 1
71867W - SHIELD, FRONT SEAT CUSHION, FRONT RH
71867-58060C0

AYH36,GGH31..X

BLACK,TRIM0#,2#

 2
71867-58060C0

AYH36,GGH31..RHD..V

BLACK,TRIM0#,2#

 1
71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-60030

AYH36,GGH31..X

 2
71873-60030

AYH36,GGH31..V

 1
71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-60110

AYH36,GGH31..V

 1
71874-60110

AYH36,GGH31..X

 2
71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT)
71875-60210C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
71877G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT)
71876-60210C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
72010A - ADJUSTER ASSY, FRONT SEAT, RH
72010-58140

AYH36,GGH31..X

 1
72010-58060

AYH36,GGH31..RHD..V

 1
73910B - AIR BAG ASSY, FRONT SEAT, RH
73910-58040

AYH36,GGH31

 1
79977N - FELT, SEAT BACK
79977-58030

AYH36,GGH31

 2
Common parts
90119-10601
90167-40044
90179-08241
94170-60600
94185-60600
Linked diagrams
7152
8202
8401

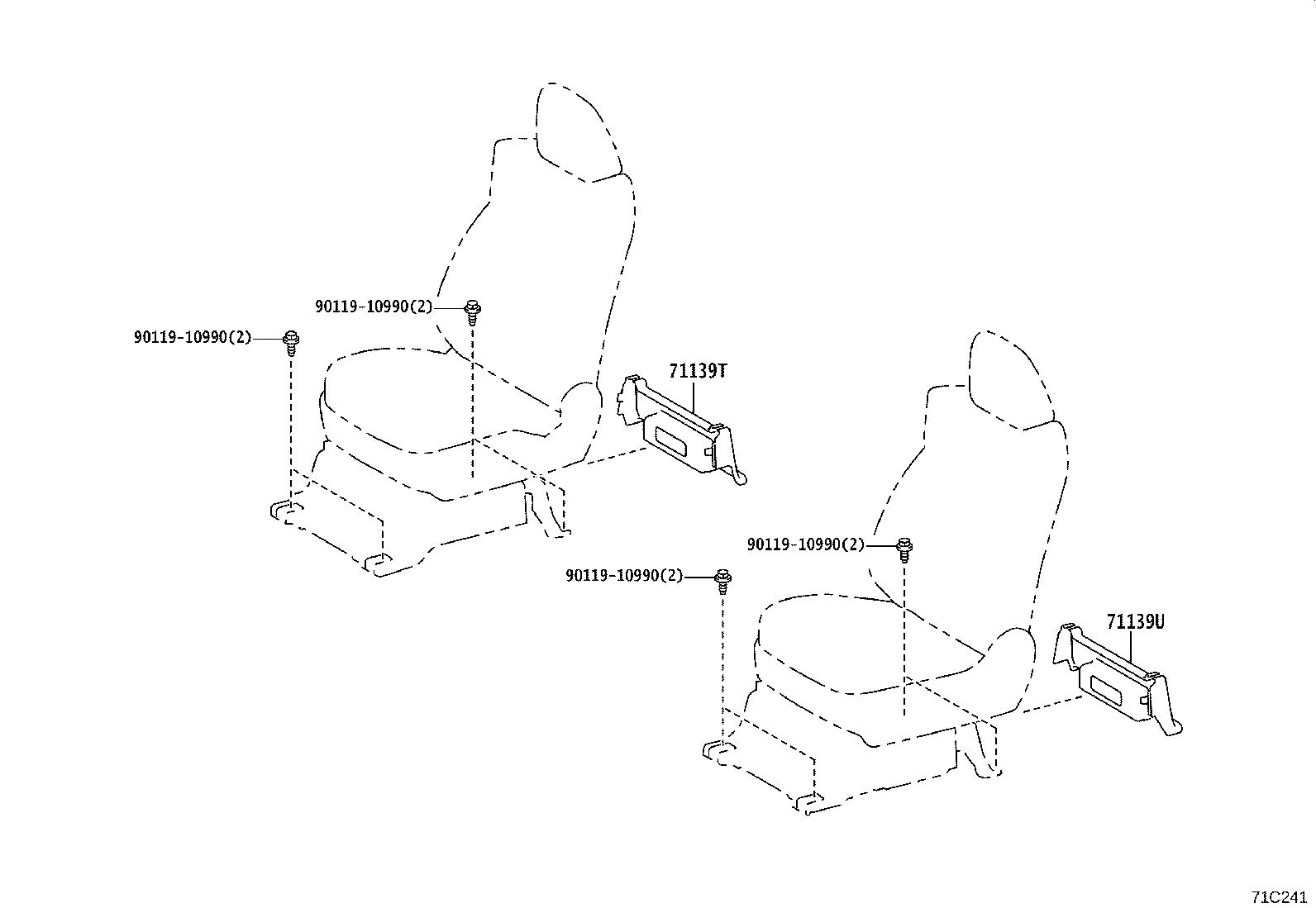

ILLUST NO. 3 OF 3(2002- )X

Click highlighted areas on diagram

SEAT LEG COVER

diagram 71139T 71139U 9011910990 9011910990 9011910990 9011910990
Part # Description Qty Price
71139T - COVER, FRONT SEAT LEG, REAR RH
71139-58380C0

AYH36..V

BLACK,TRIM0#,2#

 1
71139-58360C0

AYH36..X

BLACK,TRIM0#,2#

 1
71139U - COVER, FRONT SEAT LEG, REAR LH
71149-58290C0

AYH36..X

BLACK,TRIM0#,2#

 1
71149-58250C0

AYH36..V

BLACK,TRIM0#,2#

 1
Common parts
90119-10990
