AYH36R-LNXXB (2020)
Toyota Lexus Lm350/Lm300h

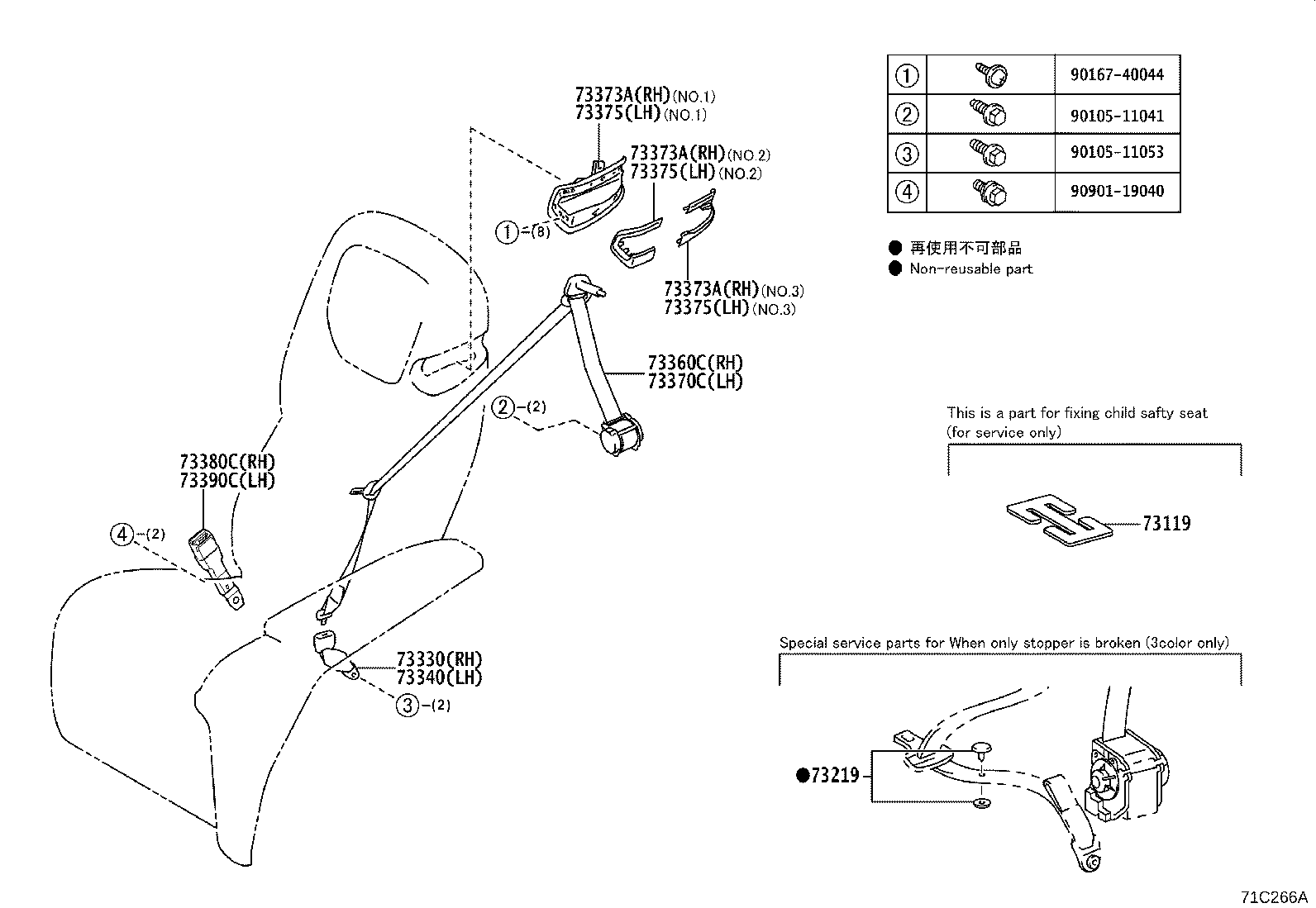

ILLUST NO. 2 OF 3(2002- )X
REAR NO.1 SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
AYH36,GGH31 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
AYH36,GGH31 BLACK |
1 | ||
| 73219-33020 |
AYH36,GGH31 GRAY |
1 | ||
| 73219-33030 |
AYH36,GGH31 BEIGE |
1 | ||
| 73330 - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73330-58010C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 73340 - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73330-58010C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-58040C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-58060C0 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 73373A - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-58050 |
AYH36,GGH31..X NO.1:REFER ILLUST. |
1 | ||
| 73373-58040 |
AYH36,GGH31..V |
1 | ||
| 73373-58100 |
AYH36,GGH31..X NO.2:REFER ILLUST. |
1 | ||
| 73373-58110 |
AYH36,GGH31..X NO.3:REFER ILLUST. |
1 | ||
| 73373A - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-58050 |
AYH36,GGH31..X NO.1:REFER ILLUST. |
1 | ||
| 73373-58040 |
AYH36,GGH31..V |
1 | ||
| 73373-58100 |
AYH36,GGH31..X NO.2:REFER ILLUST. |
1 | ||
| 73373-58110 |
AYH36,GGH31..X NO.3:REFER ILLUST. |
1 | ||
| 73373A - COVER, REAR SEAT SHOULDER BELT, RH | ||||
| 73373-58050 |
AYH36,GGH31..X NO.1:REFER ILLUST. |
1 | ||
| 73373-58040 |
AYH36,GGH31..V |
1 | ||
| 73373-58100 |
AYH36,GGH31..X NO.2:REFER ILLUST. |
1 | ||
| 73373-58110 |
AYH36,GGH31..X NO.3:REFER ILLUST. |
1 | ||
| 73375 - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-58050 |
AYH36,GGH31..X NO.2:REFER ILLUST. |
1 | ||
| 73375-58040 |
AYH36,GGH31..X NO.1:REFER ILLUST. |
1 | ||
| 73375-58060 |
AYH36,GGH31..X NO.3:REFER ILLUST. |
1 | ||
| 73375-58030 |
AYH36,GGH31..V |
1 | ||
| 73375 - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-58050 |
AYH36,GGH31..X NO.2:REFER ILLUST. |
1 | ||
| 73375-58040 |
AYH36,GGH31..X NO.1:REFER ILLUST. |
1 | ||
| 73375-58060 |
AYH36,GGH31..X NO.3:REFER ILLUST. |
1 | ||
| 73375-58030 |
AYH36,GGH31..V |
1 | ||
| 73375 - COVER, REAR SEAT SHOULDER BELT, LH | ||||
| 73375-58050 |
AYH36,GGH31..X NO.2:REFER ILLUST. |
1 | ||
| 73375-58040 |
AYH36,GGH31..X NO.1:REFER ILLUST. |
1 | ||
| 73375-58060 |
AYH36,GGH31..X NO.3:REFER ILLUST. |
1 | ||
| 73375-58030 |
AYH36,GGH31..V |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-V2010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 73380-58060C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-V2010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 73380-58060C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90105-11041 | ||||
| 90105-11053 | ||||
| 90167-40044 | ||||
| 90901-19040 | ||||
