AYH36R-LNXXB (2020)
Toyota Lexus Lm350/Lm300h

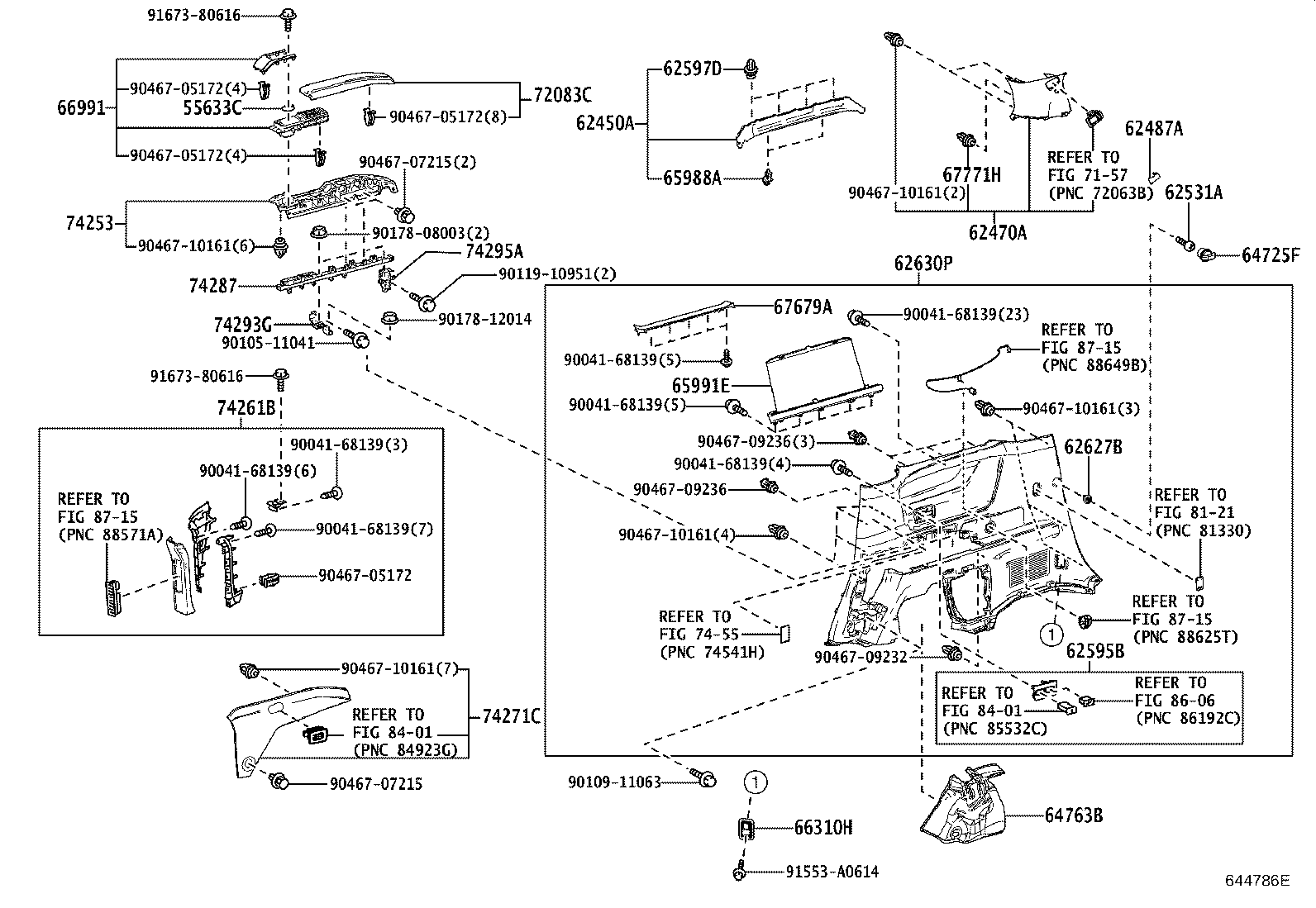

ILLUST NO. 2 OF 2(2002- )X
RH SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55633C - SUPPORT, CUP HOLDER, NO.1 | ||||
| 55633-50030 |
AYH36,GGH31..X |
1 | ||
| 62450A - GARNISH ASSY, ROOF SIDE RAIL, REAR RH | ||||
| 62450-58040C2 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-58081C1 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 62470-58090C1 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 62487A - COVER, ROOF SIDE INNER GARNISH, RH | ||||
| 62487-58010C1 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 62531A - SPACER, QUARTER TRIM, RH | ||||
| 62531-60010 |
AYH36,GGH31 |
1 | ||
| 62595B - BEZEL, QUARTER TRIM POCKET, RH | ||||
| 62668-58010 |
AYH36,GGH31..X |
1 | ||
| 62597D - CLIP | ||||
| 90467-10161 |
AYH36,GGH31 |
8 | ||
| 62627B - COVER, QUARTER TRIM | ||||
| 62627-60010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-58D20C2 |
AYH36,GGH31..V BLACK,TRIM0# |
1 | ||
| 62630-58D20C3 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 62630-58D30C3 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-60020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 64763B - SILENCER, DECK SIDE TRIM, RH | ||||
| 64763-58010 |
AYH36,GGH31..X |
1 | ||
| 65988A - HOOK, SUNSHADE | ||||
| 65988-58010C1 |
AYH36,GGH31 BLACK,TRIM0#,2# |
4 | ||
| 65991E - CURTAIN, REAR WINDOW, RH | ||||
| 65991-58010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C1 |
AYH36,GGH31 BLACK |
2 | ||
| 66991 - HOLDER, QUARTER TRIM CUP, RH | ||||
| 66990-58090 |
AYH36,GGH31..X |
1 | ||
| 67679A - BEZEL, SUNSHADE, RH | ||||
| 67679-58010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 67771H - RETAINER, DOOR TRIM | ||||
| 67771-28150 |
AYH36,GGH31 |
2 | ||
| 72083C - PAD SUB-ASSY, REAR SEAT ARMREST, RH | ||||
| 72083-58050A1 |
AYH36,GGH31..X WHITE,TRIM0# |
1 | ||
| 72083-58050C1 |
AYH36,GGH31..X BLACK,TRIM2# |
1 | ||
| 74253 - BASE, QUARTER ARMREST, RH | ||||
| 74253-58020C1 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 74261B - COVER, QUARTER ARMREST, RH | ||||
| 74261-58010C2 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 74271C - PANEL, QUARTER ARMREST BASE, RH | ||||
| 74271-58030C2 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 74287 - REINFORCEMENT, QUARTER ARMREST, RH | ||||
| 74287-58010 |
AYH36,GGH31..X |
1 | ||
| 74293G - BRACKET, QUARTER ARMREST, NO.1 RH | ||||
| 74293-58010 |
AYH36,GGH31..X |
1 | ||
| 74295A - BRACKET, QUARTER ARMREST, NO.2 RH | ||||
| 74295-58010 |
AYH36,GGH31..X |
1 | ||
| Common parts | ||||
| 90041-68139 | ||||
| 90105-11041 | ||||
| 90109-11063 | ||||
| 90119-10951 | ||||
| 90178-08003 | ||||
| 90178-12014 | ||||
| 90467-05172 | ||||
| 90467-07215 | ||||
| 90467-09232 | ||||
| 90467-09236 | ||||
| 90467-10161 | ||||
| 91553-A0614 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7157 | ||||
| 7455 | ||||
| 8121 | ||||
| 8401 | ||||
| 8606 | ||||
| 8715 | ||||

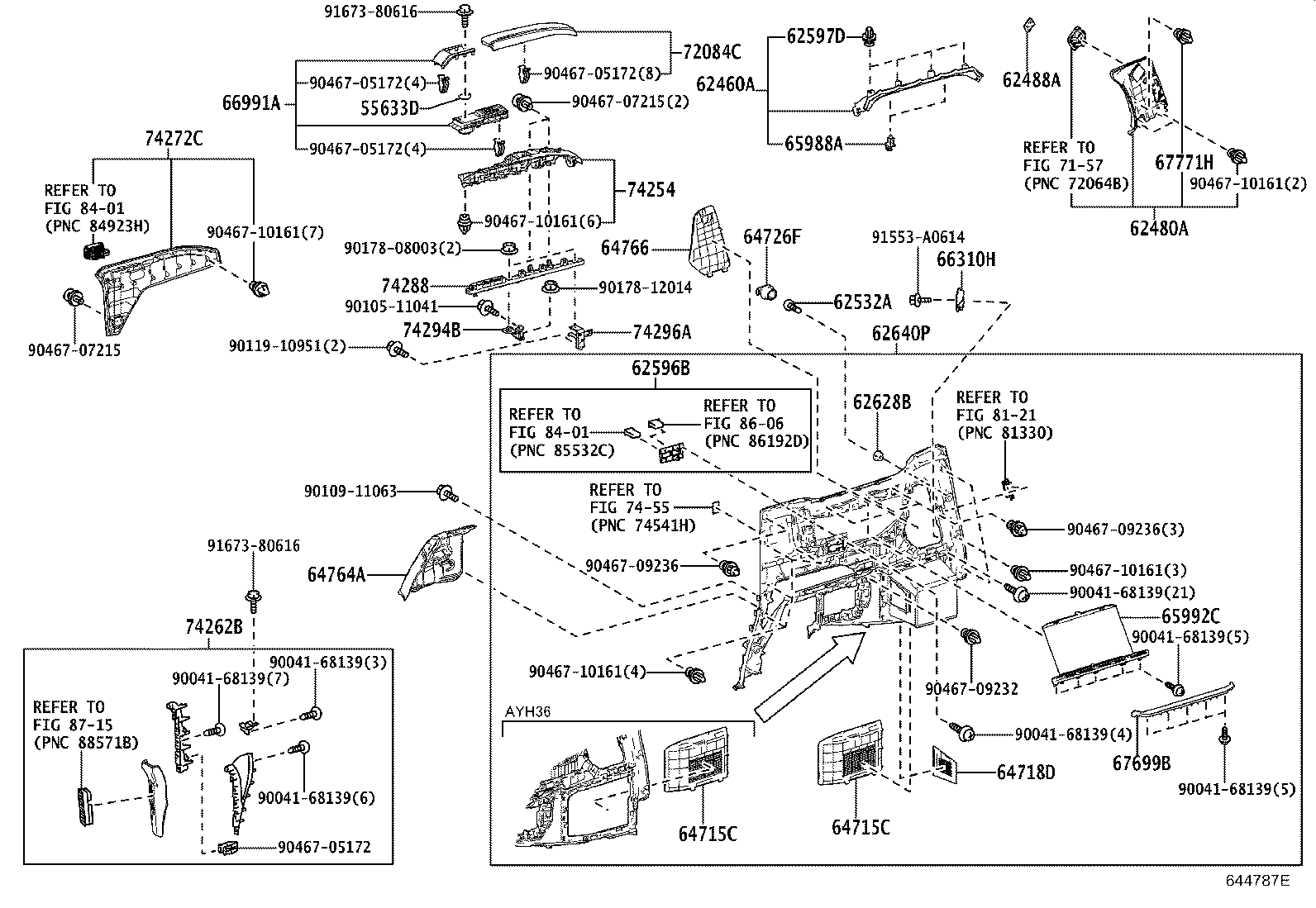

ILLUST NO. 2 OF 2(2002- )X
LH SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55633D - SUPPORT, CUP HOLDER, NO.2 | ||||
| 55633-50030 |
AYH36,GGH31..X |
1 | ||
| 62460A - GARNISH ASSY, ROOF SIDE RAIL, REAR LH | ||||
| 62460-58040C2 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-58180C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 62480-58200C1 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 62488A - COVER, ROOF SIDE INNER GARNISH, LH | ||||
| 62488-58010C1 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 62532A - SPACER, QUARTER TRIM, LH | ||||
| 62531-60010 |
AYH36,GGH31 |
1 | ||
| 62596B - BEZEL, QUARTER TRIM POCKET, LH | ||||
| 62669-58010 |
AYH36,GGH31..X |
1 | ||
| 62597D - CLIP | ||||
| 90467-10161 |
AYH36,GGH31 |
8 | ||
| 62628B - COVER, QUARTER TRIM, LH | ||||
| 62627-60010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-58J00C2 |
AYH36..V BLACK,TRIM0# |
1 | ||
| 62640-58J20C3 |
AYH36..X BLACK,TRIM0#,2# |
1 | ||
| 62640-58J00C3 |
AYH36..V BLACK,TRIM2# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-58060C0 |
AYH36 BLACK,TRIM0#,2# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-58060C0 |
AYH36 BLACK,TRIM0#,2# |
1 | ||
| 64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64725-60020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 64764A - SILENCER, DECK SIDE TRIM, LH | ||||
| 64764-58010 |
AYH36,GGH31..X |
1 | ||
| 64766 - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64766-58050C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 65988A - HOOK, SUNSHADE | ||||
| 65988-58010C1 |
AYH36,GGH31 BLACK,TRIM0#,2# |
4 | ||
| 65992C - CURTAIN, REAR WINDOW, LH | ||||
| 65992-58010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C1 |
AYH36,GGH31 BLACK |
2 | ||
| 66991A - HOLDER, QUARTER TRIM CUP, LH | ||||
| 66990-58140 |
AYH36,GGH31..X |
1 | ||
| 67699B - BEZEL, SUNSHADE, LH | ||||
| 67699-58010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 67771H - RETAINER, DOOR TRIM | ||||
| 67771-28150 |
AYH36,GGH31 |
2 | ||
| 72084C - PAD SUB-ASSY, REAR SEAT ARMREST, LH | ||||
| 72084-58040A1 |
AYH36,GGH31..X WHITE,TRIM0# |
1 | ||
| 72084-58040C1 |
AYH36,GGH31..X BLACK,TRIM2# |
1 | ||
| 74254 - BASE, QUARTER ARMREST, LH | ||||
| 74254-58020C1 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 74262B - COVER, QUARTER ARMREST, LH | ||||
| 74262-58010C2 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 74272C - PANEL, QUARTER ARMREST BASE, LH | ||||
| 74272-58020C2 |
AYH36,GGH31..X BLACK,TRIM0#,2# |
1 | ||
| 74288 - REINFORCEMENT, QUARTER ARMREST, LH | ||||
| 74288-58010 |
AYH36,GGH31..X |
1 | ||
| 74294B - BRACKET, QUARTER ARMREST, NO.1 LH | ||||
| 74294-58010 |
AYH36,GGH31..X |
1 | ||
| 74296A - BRACKET, QUARTER ARMREST, NO.2 LH | ||||
| 74296-58010 |
AYH36,GGH31..X |
1 | ||
| Common parts | ||||
| 90041-68139 | ||||
| 90105-11041 | ||||
| 90109-11063 | ||||
| 90119-10951 | ||||
| 90178-08003 | ||||
| 90178-12014 | ||||
| 90467-05172 | ||||
| 90467-07215 | ||||
| 90467-09232 | ||||
| 90467-09236 | ||||
| 90467-10161 | ||||
| 91553-A0614 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 7157 | ||||
| 7455 | ||||
| 8121 | ||||
| 8401 | ||||
| 8606 | ||||
| 8715 | ||||
