AYH36R-LNXXB (2020)

Toyota Lexus Lm350/Lm300h

Production Feb 2020 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(2002- )X

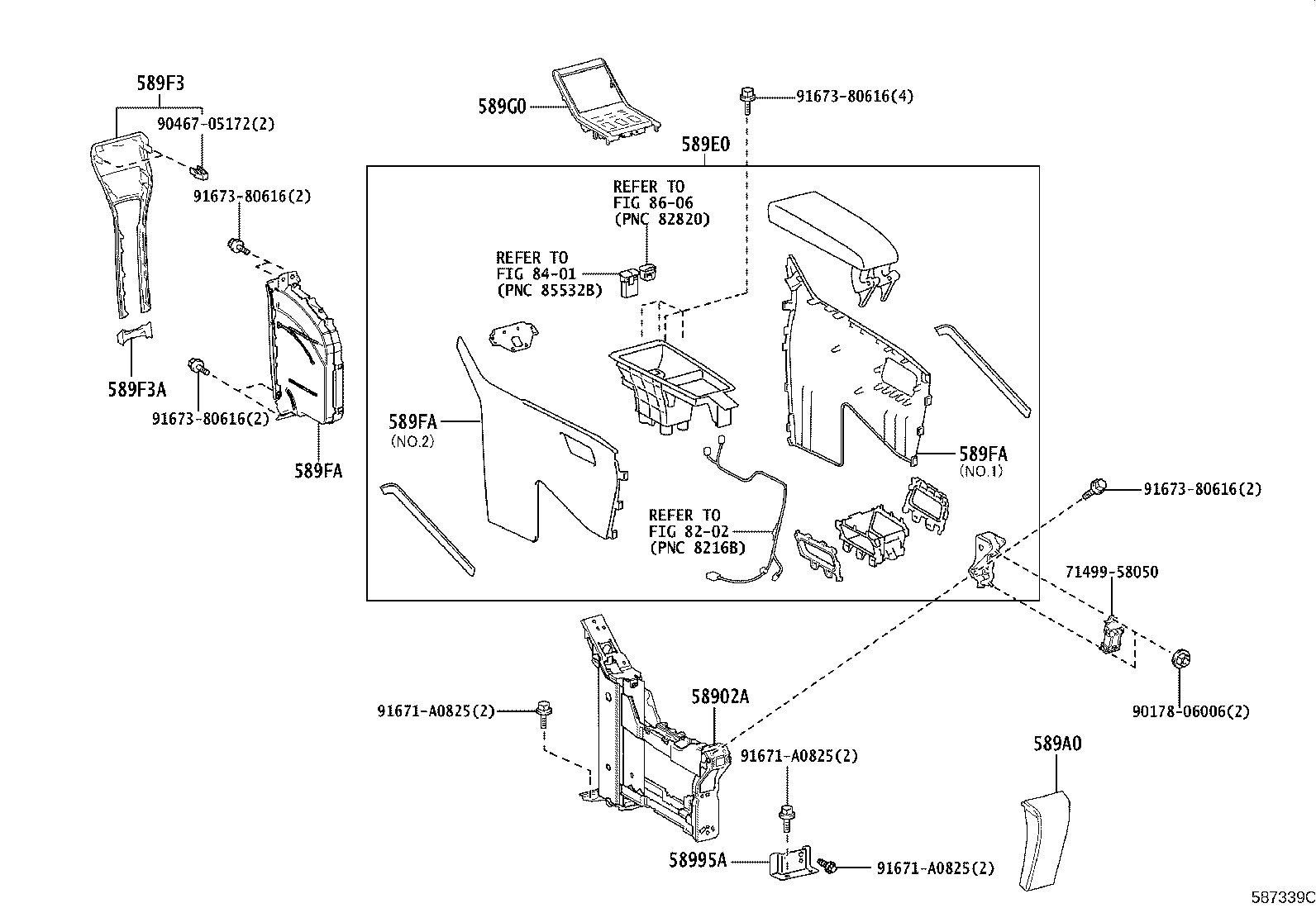

Click highlighted areas on diagram

REAR

diagram 58902A 58995A 589A0 589E0 589F3 589F3A 589FA 589FA 589FA 589G0 7149958050 8202 8401 8606 9017806006 9046705172 91671A0825 91671A0825 91671A0825 9167380616 9167380616 9167380616 9167380616
Part # Description Qty Price
58902A - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING, NO.1
58902-58090

AYH36,GGH31..X

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-58080

AYH36,GGH31..X

 1
589A0 - TABLE ASSY, REAR SEAT CONSOLE
589A0-58010C0

AYH36,GGH31..X

BLACK,TRIM0#,2#

 1
589E0 - ARMREST ASSY, REAR SEAT CONSOLE
589E0-58010C3

AYH36,GGH31..X

BLACK,TRIM2#

 1
589E0-58010A3

AYH36,GGH31..X

WHITE,TRIM0#

 1
589F3 - PANEL, REAR SEAT CONSOLE BOX, FRONT NO.1
589F3-58010C1

AYH36,GGH31..X

BLACK,TRIM0#,2#

 1
589F3A - PANEL, REAR SEAT CONSOLE BOX, FRONT NO.2
589F3-58020C0

AYH36,GGH31..X

BLACK,TRIM0#,2#

 1
589FA - BOX, REAR SEAT CONSOLE
589FA-58010C1

AYH36,GGH31..X

BLACK,TRIM0#,2#,NO.3:REFER ILLUST.

 1
589FB-58010C1

AYH36,GGH31..X

BLACK,TRIM0#,2#,NO.2:REFER ILLUST.

 1
589FA-58020C1

AYH36,GGH31..X

BLACK,TRIM0#,2#,NO.1:REFER ILLUST.

 1
589FA - BOX, REAR SEAT CONSOLE
589FA-58010C1

AYH36,GGH31..X

BLACK,TRIM0#,2#,NO.3:REFER ILLUST.

 1
589FB-58010C1

AYH36,GGH31..X

BLACK,TRIM0#,2#,NO.2:REFER ILLUST.

 1
589FA-58020C1

AYH36,GGH31..X

BLACK,TRIM0#,2#,NO.1:REFER ILLUST.

 1
589FA - BOX, REAR SEAT CONSOLE
589FA-58010C1

AYH36,GGH31..X

BLACK,TRIM0#,2#,NO.3:REFER ILLUST.

 1
589FB-58010C1

AYH36,GGH31..X

BLACK,TRIM0#,2#,NO.2:REFER ILLUST.

 1
589FA-58020C1

AYH36,GGH31..X

BLACK,TRIM0#,2#,NO.1:REFER ILLUST.

 1
589G0 - PANEL ASSY, REAR SEAT CONSOLE
589G0-58010

AYH36,GGH31..X

 1
Common parts
71499-58050
90178-06006
90467-05172
91671-A0825
91673-80616
Linked diagrams
8202
8401
8606
