AYH36R-LNXXB (2020)

Toyota Lexus Lm350/Lm300h

Production Feb 2020 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2001-2008)2ARFXE..RHD ; (2105- )2ARFXE..RHD

Click highlighted areas on diagram

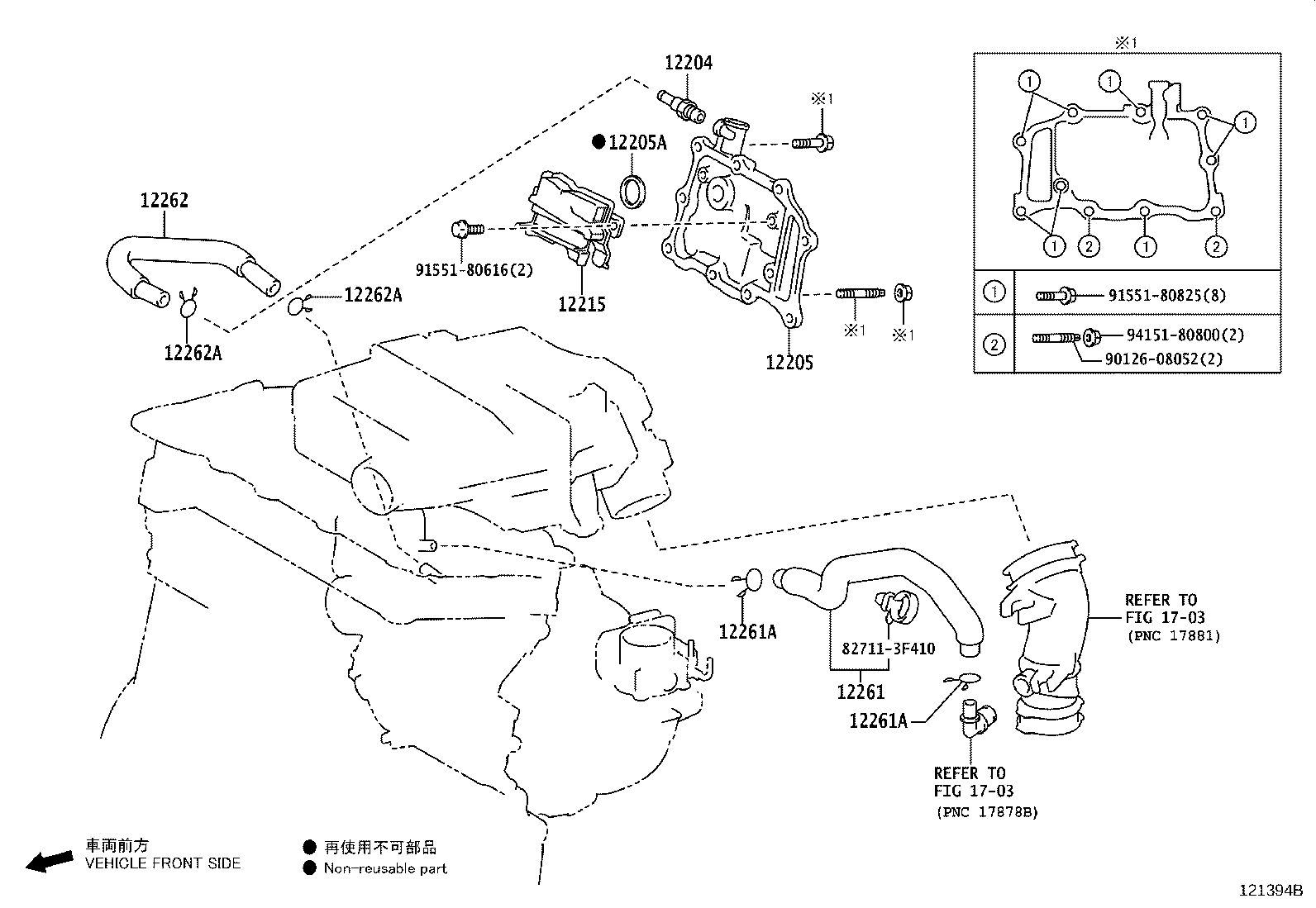

diagram 12204 12205 12205A 12215 12261 12261A 12261A 12262 12262A 12262A 1703 1703 1703 827113F410 9012608052 9155180616 9155180825 9415180800
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-36020

2ARFXE..AYH36..RHD

 1
12205 - CASE SUB-ASSY, VENTILATION
12205-36010

2ARFXE..AYH36

 1
12205A - RING, O(FOR VENTILATION CASE)
12273-36010

2ARFXE..AYH36

 1
12215 - SEPARATOR, CASE
12215-36010

2ARFXE..AYH36

 1
12261 - HOSE, VENTILATION
12261-36160

2ARFXE..AYH36..RHD

 1
12261-36110

2ARFXE..AYH36..RHD

 1
12261-36110

2ARFXE..AYH36..RHD

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-19003

2ARFXE..AYH36

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-19003

2ARFXE..AYH36

 2
12262 - HOSE, VENTILATION, NO.2
12262-36080

2ARFXE..AYH36

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

2ARFXE..AYH36

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

2ARFXE..AYH36

 2
Common parts
82711-3F410
90126-08052
91551-80616
91551-80825
94151-80800
Linked diagrams
1703

(2001- )2ARFXE..LHD ; (2008-2105)2ARFXE..RHD

Click highlighted areas on diagram

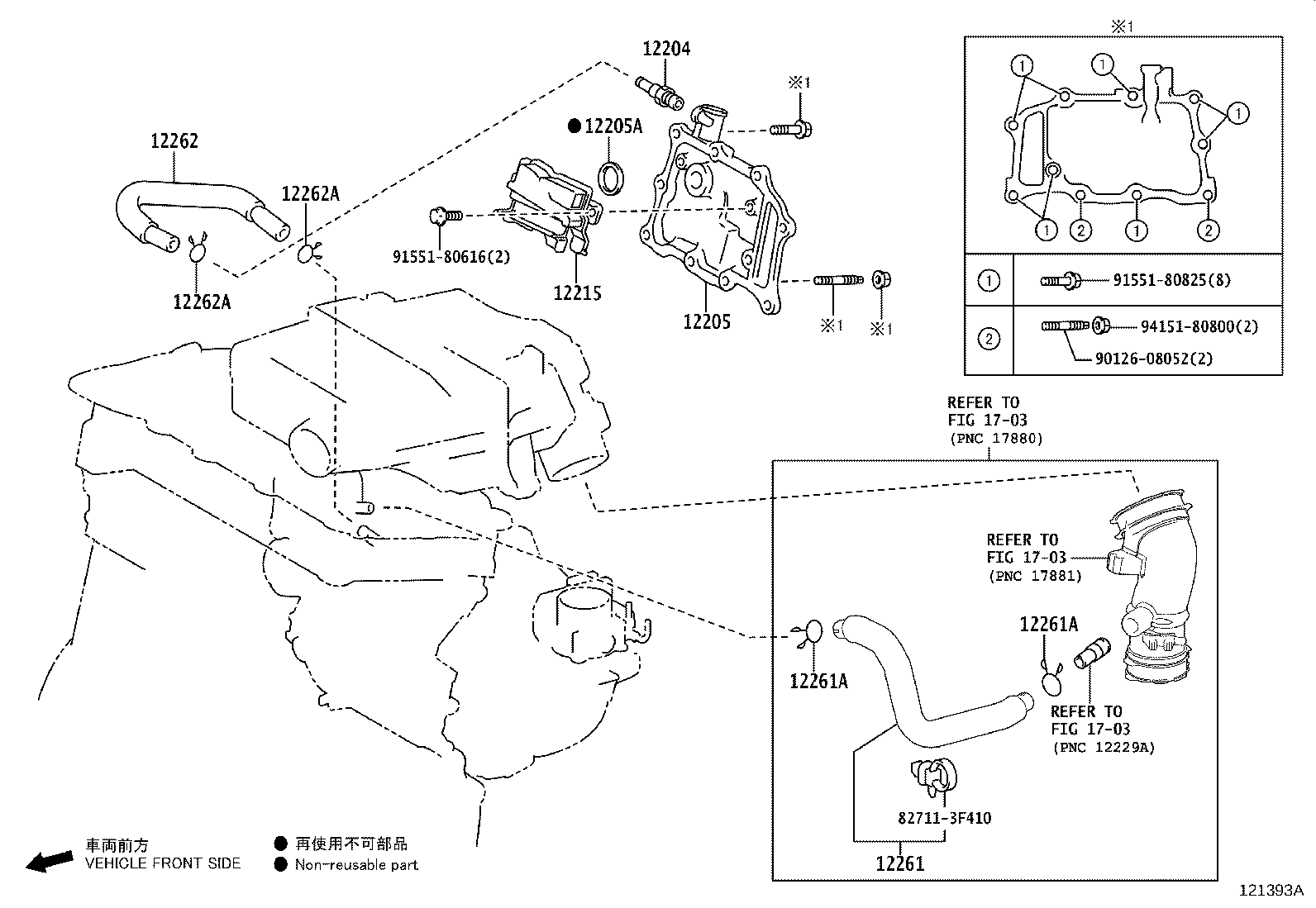

diagram 12204 12205 12205A 12215 12261 12261A 12261A 12262 12262A 12262A 1703 1703 827113F410 9012608052 9155180616 9155180825 9415180800
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-36020

2ARFXE..AYH36..RHD

 1
12205 - CASE SUB-ASSY, VENTILATION
12205-36010

2ARFXE..AYH36

 1
12205A - RING, O(FOR VENTILATION CASE)
12273-36010

2ARFXE..AYH36

 1
12215 - SEPARATOR, CASE
12215-36010

2ARFXE..AYH36

 1
12261 - HOSE, VENTILATION
12261-36160

2ARFXE..AYH36..RHD

 1
12261-36110

2ARFXE..AYH36..RHD

 1
12261-36110

2ARFXE..AYH36..RHD

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-19003

2ARFXE..AYH36

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-19003

2ARFXE..AYH36

 2
12262 - HOSE, VENTILATION, NO.2
12262-36080

2ARFXE..AYH36

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

2ARFXE..AYH36

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

2ARFXE..AYH36

 2
Common parts
82711-3F410
90126-08052
91551-80616
91551-80825
94151-80800
Linked diagrams
1703
