AYH36R-LFXVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

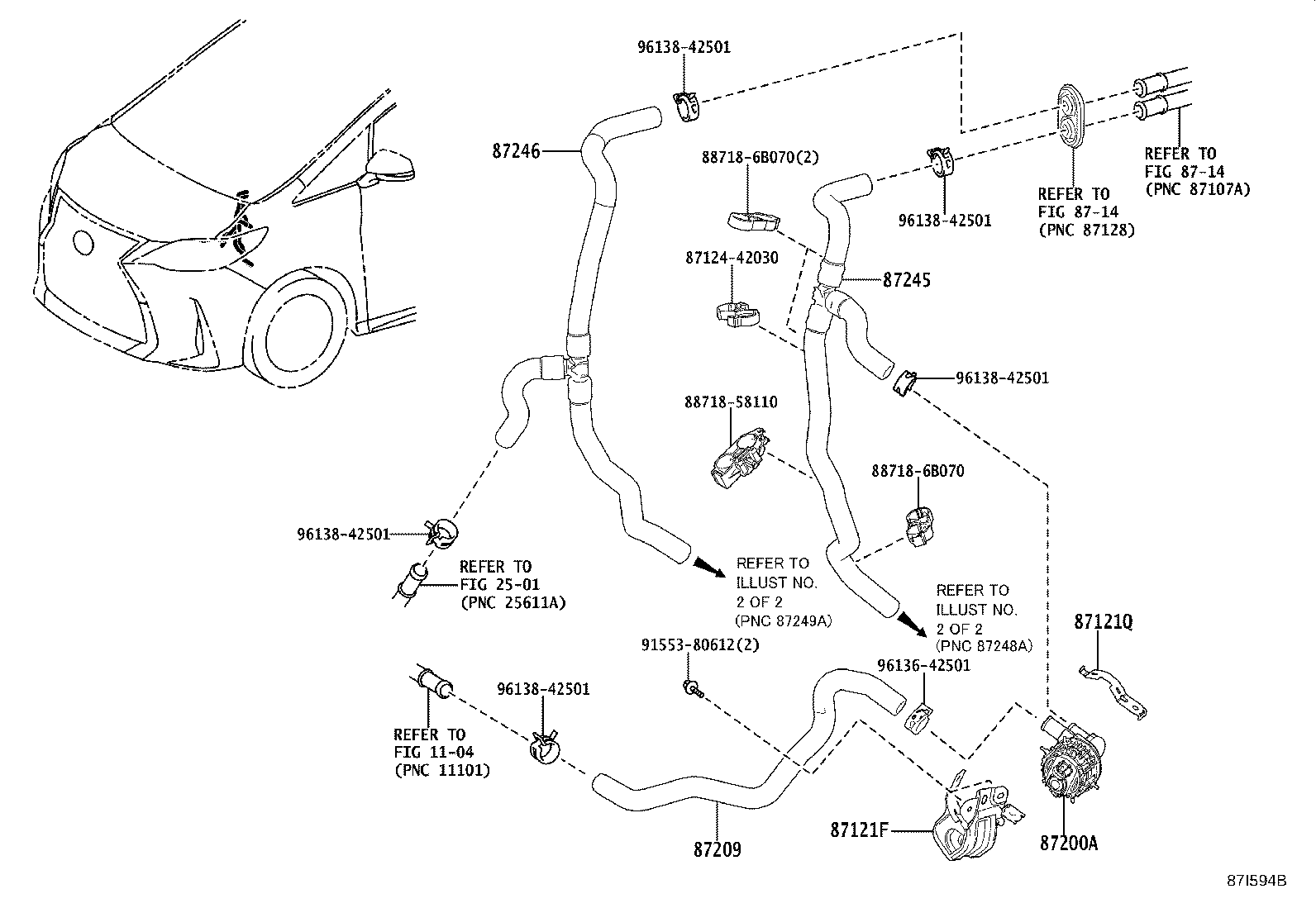

ILLUST NO. 1 OF 2(2001- )AYH36..RHD

Click highlighted areas on diagram

FRONT

diagram 1104 2501 87121F 87121Q 8712442030 8714 8714 87200A 87209 87245 87246 8871858110 887186B070 887186B070 9155380612 9613642501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87121F - BRACKET, HEATER
87121-58050

AYH36

 1
87121Q - BRACKET, HEATER NO.2
87121-58060

AYH36

 1
87200A - PUMP ASSY, WATER(FOR HEATER)
87200-58030

AYH36

 1
87209 - HOSE SUB-ASSY, WATER
87245-58210

AYH36

 1
87245 - HOSE, HEATER WATER, INLET
87209-58500

AYH36..RHD

 1
87246 - HOSE, HEATER WATER, OUTLET
87209-58510

AYH36..RHD

 1
Common parts
87124-42030
88718-58110
88718-6B070
91553-80612
96136-42501
96138-42501
Linked diagrams
1104
2501
8714

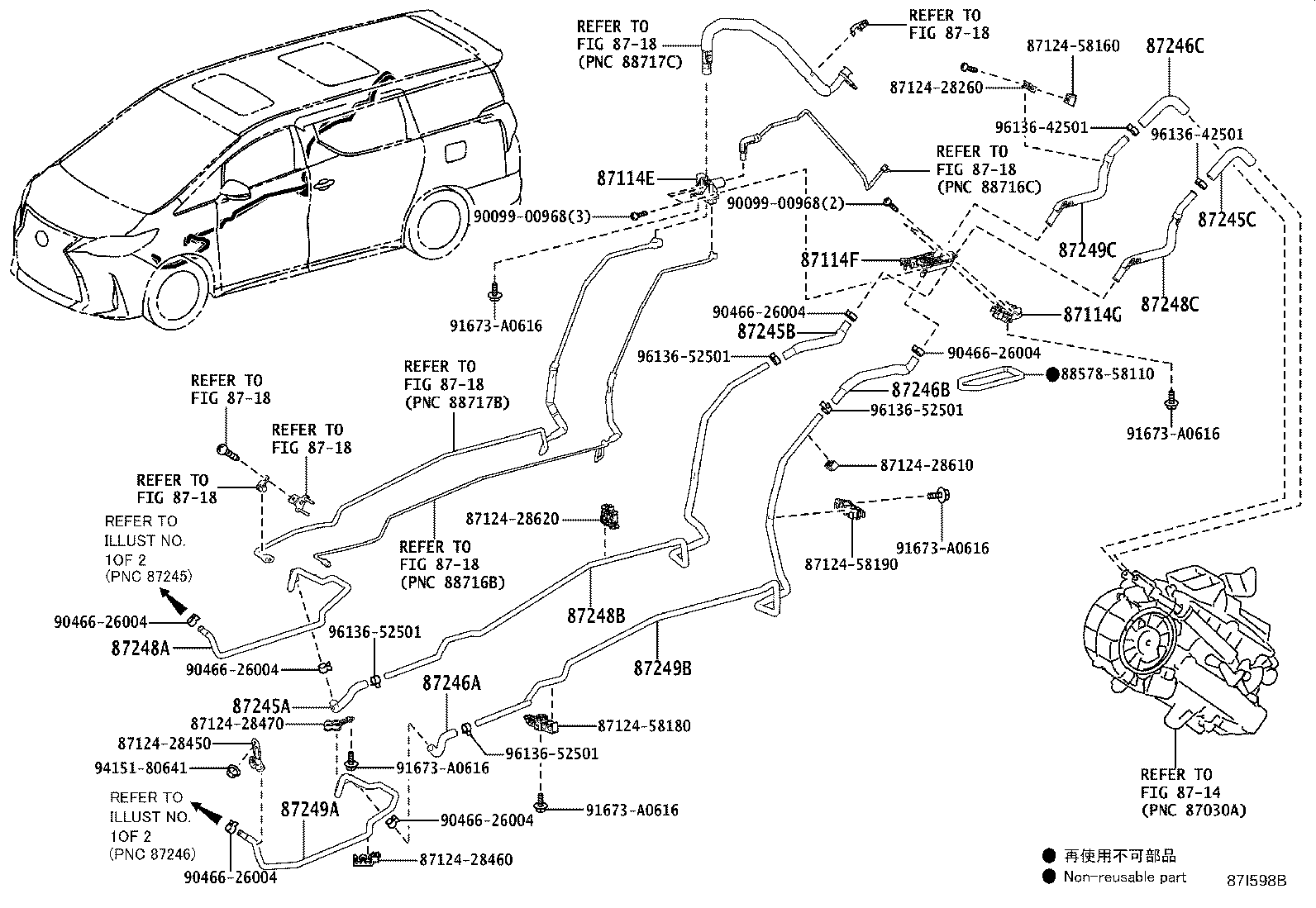

ILLUST NO. 2 OF 2(2001- )AYH36

Click highlighted areas on diagram

REAR

diagram 87114E 87114F 87114G 8712428260 8712428450 8712428460 8712428470 8712428610 8712428620 8712458160 8712458180 8712458190 8714 8718 8718 8718 8718 8718 8718 8718 8718 87245A 87245B 87245C 87246A 87246B 87246C 87248A 87248B 87248C 87249A 87249B 87249C 8857858110 9009900968 9009900968 9046626004 9046626004 9046626004 9046626004 9046626004 9046626004 91673A0616 91673A0616 91673A0616 91673A0616 91673A0616 9415180641 9613642501 9613642501 9613652501 9613652501 9613652501 9613652501
Part # Description Qty Price
87114E - COVER, HEATER, NO.1
87114-58040

AYH36,GGH31

 1
87114F - COVER, HEATER, NO.2
87114-58020

AYH36,GGH31

 1
87114G - COVER, HEATER, NO.3
87114-58030

AYH36,GGH31

 1
87245A - HOSE, HEATER WATER, INLET A
87245-58220

AYH36,GGH31

 1
87245B - HOSE, HEATER WATER, INLET B
87245-58230

AYH36,GGH31

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-58180

AYH36,GGH31

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-58240

AYH36,GGH31

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-58250

AYH36,GGH31

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-58180

AYH36,GGH31

 1
87248A - PIPE, HEATER WATER INLET, A
87248-58190

AYH36

 1
87248B - PIPE, HEATER WATER INLET, B
87248-58210

AYH36,GGH31

 1
87248C - PIPE, HEATER WATER INLET, C
87248-58150

AYH36,GGH31

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-58200

AYH36

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-58220

AYH36,GGH31

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-58160

AYH36,GGH31

 1
Common parts
87124-28260
87124-28450
87124-28460
87124-28470
87124-28610
87124-28620
87124-58160
87124-58180
87124-58190
88578-58110
90099-00968
90466-26004
91673-A0616
94151-80641
96136-42501
96136-52501
Linked diagrams
8714
8718
