AYH36R-LFXVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )AYH36

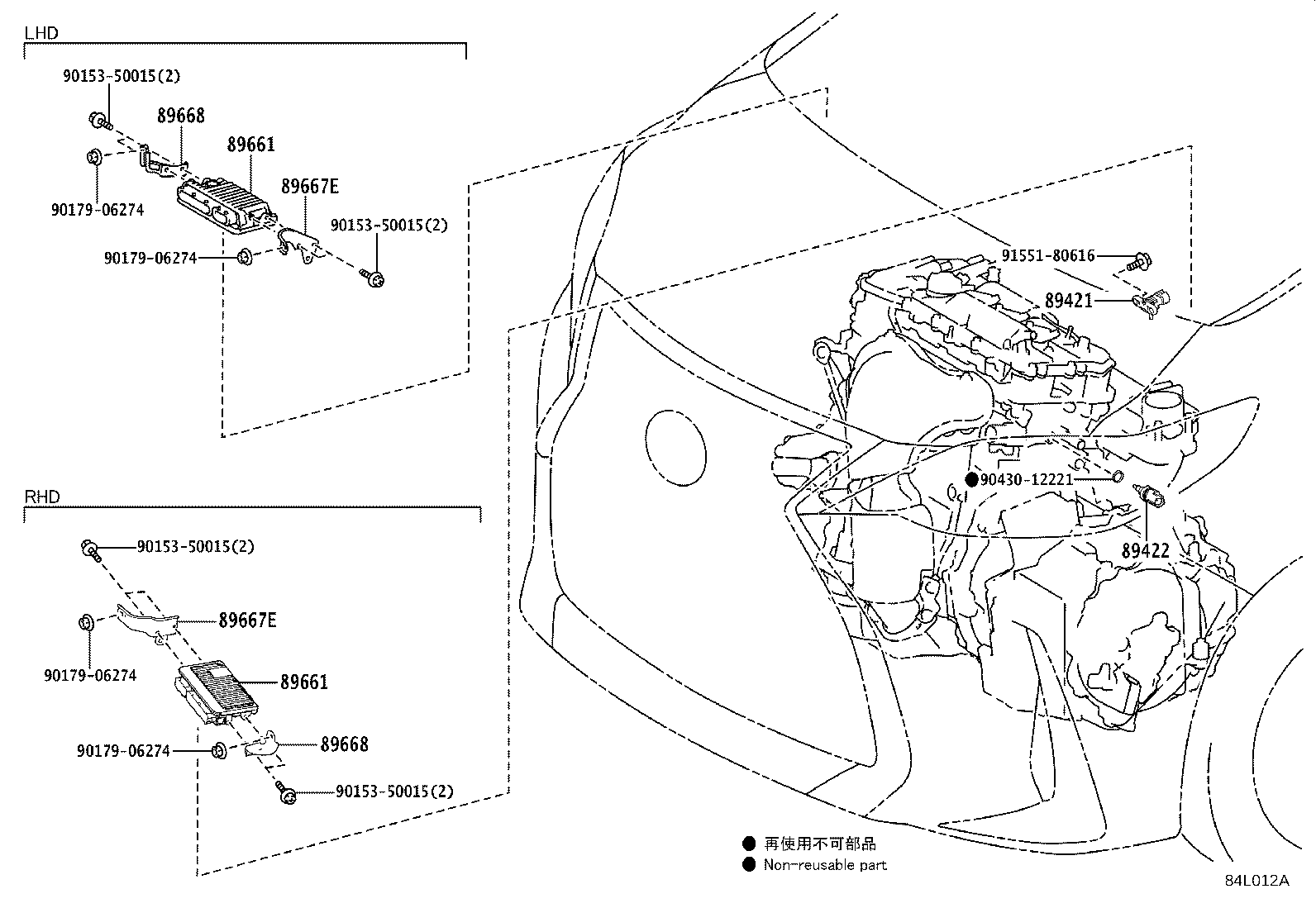

Click highlighted areas on diagram

diagram 89421 89422 89661 89661 89667E 89667E 89668 89668 9015350015 9015350015 9015350015 9015350015 9017906274 9017906274 9017906274 9017906274 9043012221 9155180616
Part # Description Qty Price
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

AYH36

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

AYH36;GGH31..6FC

 1
89661 - COMPUTER, ENGINE CONTROL
89661-58580

AYH36..RHD

DENSO

 1
89661 - COMPUTER, ENGINE CONTROL
89661-58580

AYH36..RHD

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-58050

AYH36..RHD

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-58050

AYH36..RHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-58050

AYH36..RHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-58050

AYH36..RHD

 1
Common parts
90153-50015
90179-06274
90430-12221
91551-80616
