AYH36R-LFXVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )6FC ; (2001- )AYH36..RHD

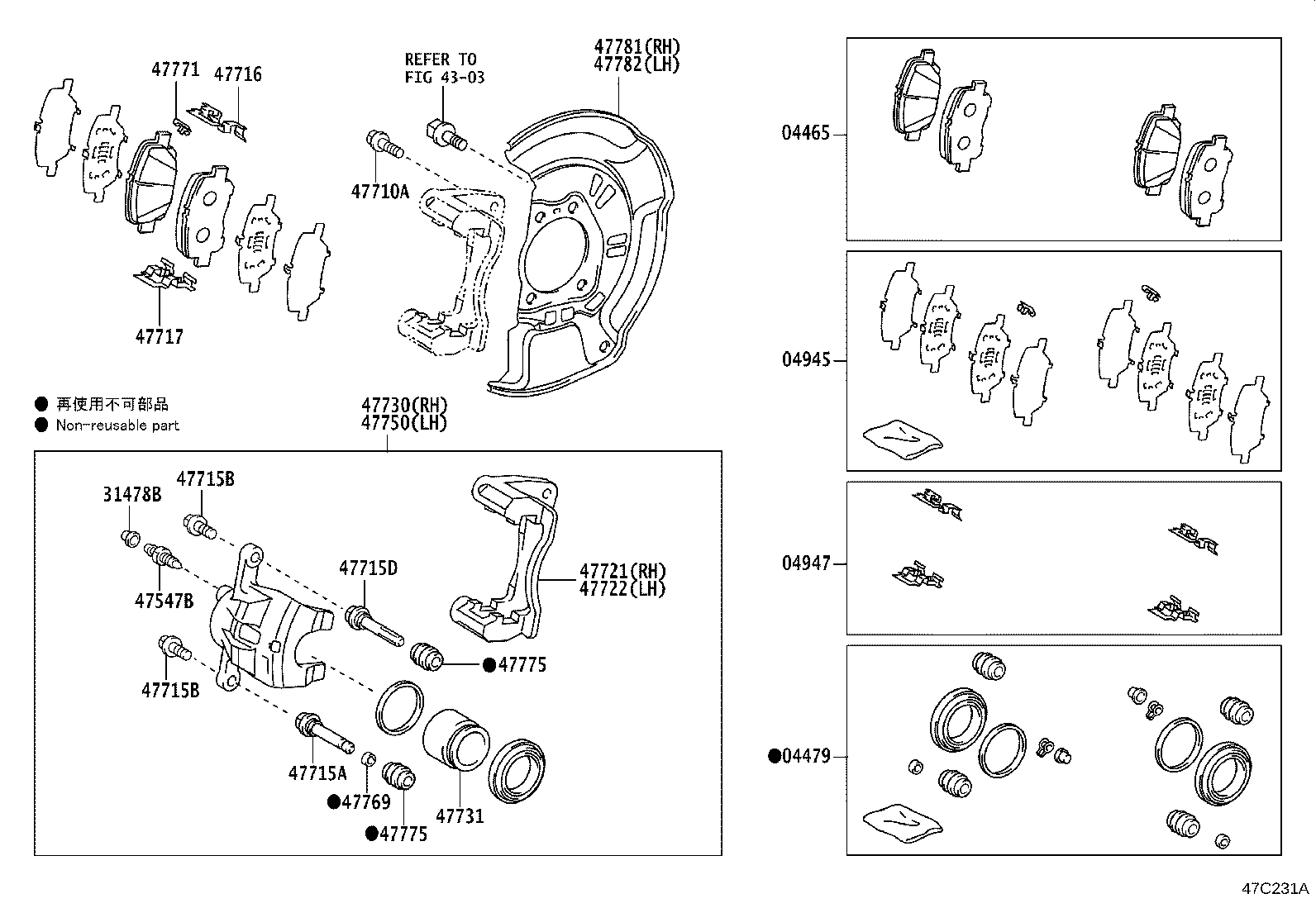

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 4303 47547B 47710A 47715A 47715B 47715B 47715D 47716 47717 47721 47722 47730 47731 47750 47769 47771 47775 47775 47781 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-28520

AYH36..RHD;GGH31..6FC

MARK ADVICS PV565H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-28060

AYH36..RHD;GGH31..6FC

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-28200

AYH36..RHD;GGH31..6FC

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-28070

AYH36..RHD;GGH31..6FC

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

AYH36,GGH31

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

AYH36..RHD;GGH31..6FC

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12208

AYH36,GGH31

*12-1.25PX29.5-23

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47714-48050

AYH36..RHD;GGH31..6FC

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08346

AYH36..RHD;GGH31..6FC

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
90105-08346

AYH36..RHD;GGH31..6FC

 4
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-48050

AYH36..RHD;GGH31..6FC

 2
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-28570

AYH36..RHD;GGH31..6FC

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-28570

AYH36..RHD;GGH31..6FC

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-28570

AYH36..RHD;GGH31..6FC

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-28570

AYH36..RHD;GGH31..6FC

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-28570

AYH36..RHD;GGH31..6FC

 1
47731 - PISTON, FRONT DISC BRAKE
47731-48030

AYH36..RHD;GGH31..6FC

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-28570

AYH36..RHD;GGH31..6FC

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-28570

AYH36..RHD;GGH31..6FC

 2
47771 - PLATE, PAD WEAR INDICATOR, NO.1
47771-48010

AYH36..RHD;GGH31..6FC

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-28570

AYH36..RHD;GGH31..6FC

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-28570

AYH36..RHD;GGH31..6FC

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-28210

AYH36..RHD;GGH31..6FC

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-28210

AYH36..RHD;GGH31..6FC

 1
