AYH36R-LFXVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )AYH36..RHD

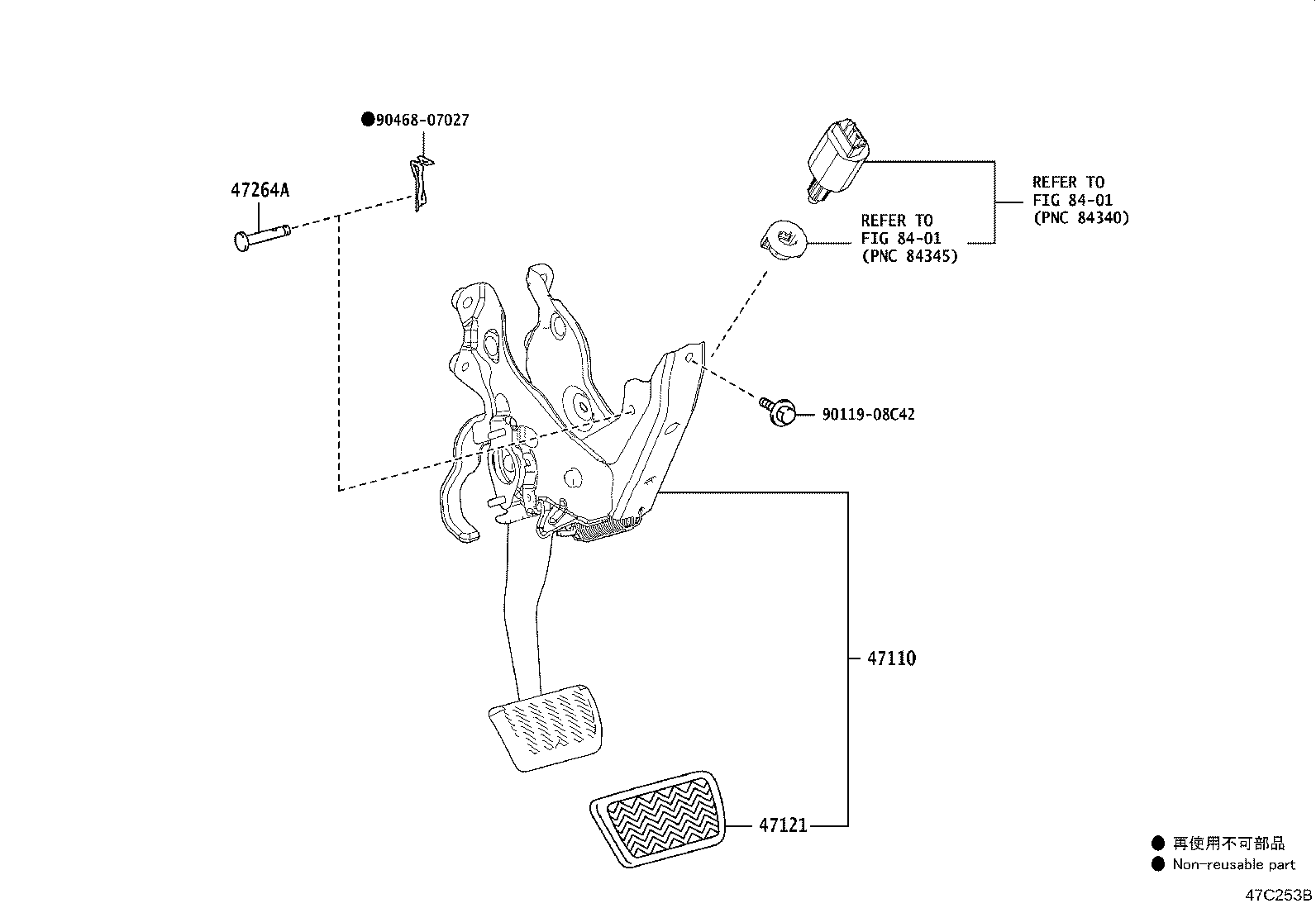

Click highlighted areas on diagram

diagram 47110 47121 47264A 8401 8401 9011908C42 9046807027
Part # Description Qty Price
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-58100

AYH36..RHD

 1
47121 - PAD, BRAKE PEDAL
47121-42020

AYH36,GGH31

 1
47264A - PIN(FOR PUSH ROD)
90240-08082

AYH36

 1
Common parts
90119-08C42
90468-07027
Linked diagrams
8401
