AYH36L-LFXVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )LHD

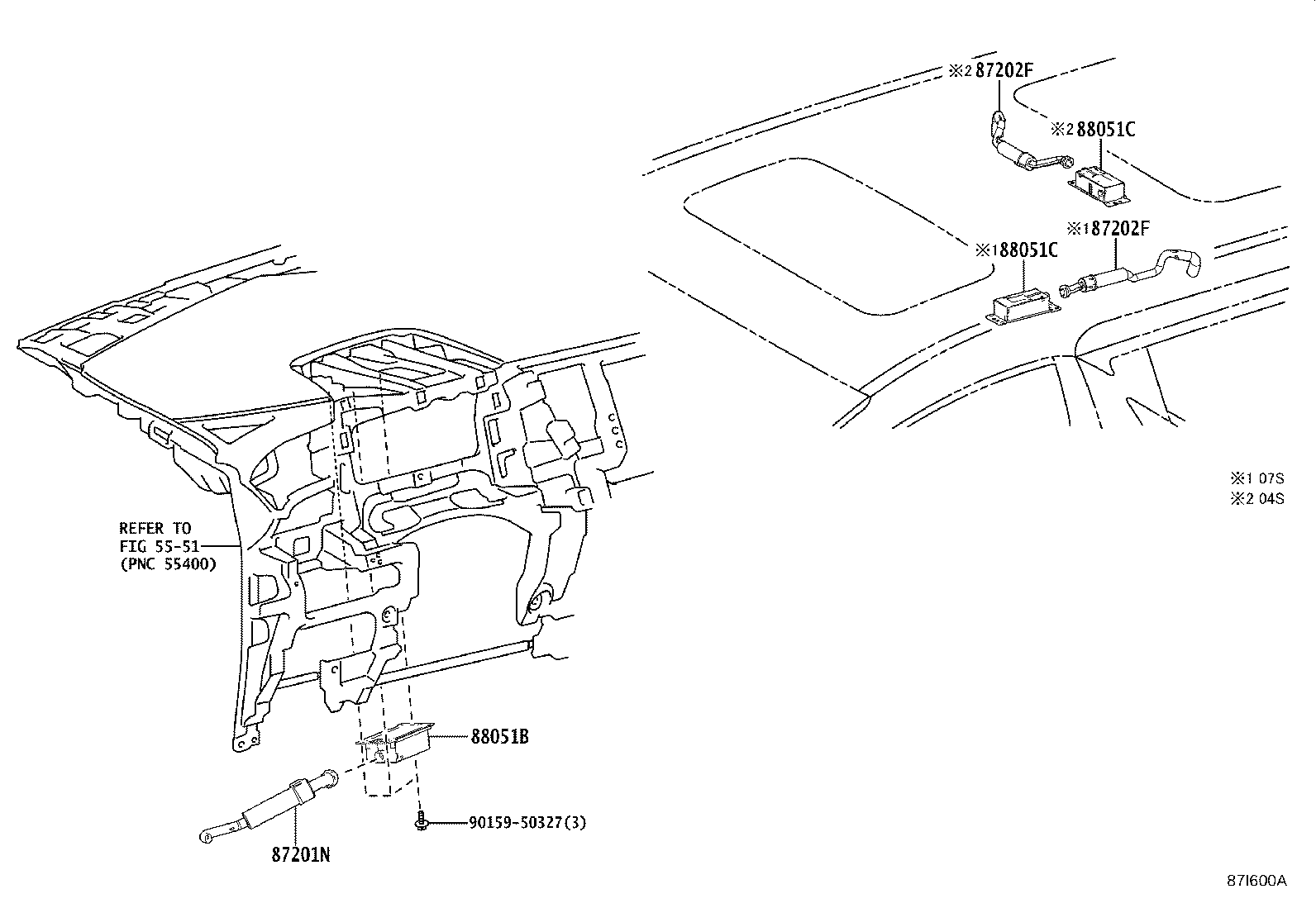

Click highlighted areas on diagram

diagram 5551 87201N 87202F 87202F 88051B 88051C 88051C 9015950327
Part # Description Qty Price
87201N - DUCT SUB-ASSY, AIR
87201-58130

AYH36,GGH31..LHD

 1
87202F - DUCT SUB-ASSY, AIR, REAR
87202-58040

AYH36,GGH31..V

 1
87202-58050

AYH36,GGH31..X

 1
87202F - DUCT SUB-ASSY, AIR, REAR
87202-58040

AYH36,GGH31..V

 1
87202-58050

AYH36,GGH31..X

 1
88051B - GENERATOR SUB-ASSY, ION, NO.1
88051-28060

AYH36,GGH31

 1
88051C - GENERATOR SUB-ASSY, ION, NO.2
88051-28060

AYH36,GGH31

 1
88051C - GENERATOR SUB-ASSY, ION, NO.2
88051-28060

AYH36,GGH31

 1
Common parts
90159-50327
Linked diagrams
5551
