AYH36L-LFXVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )

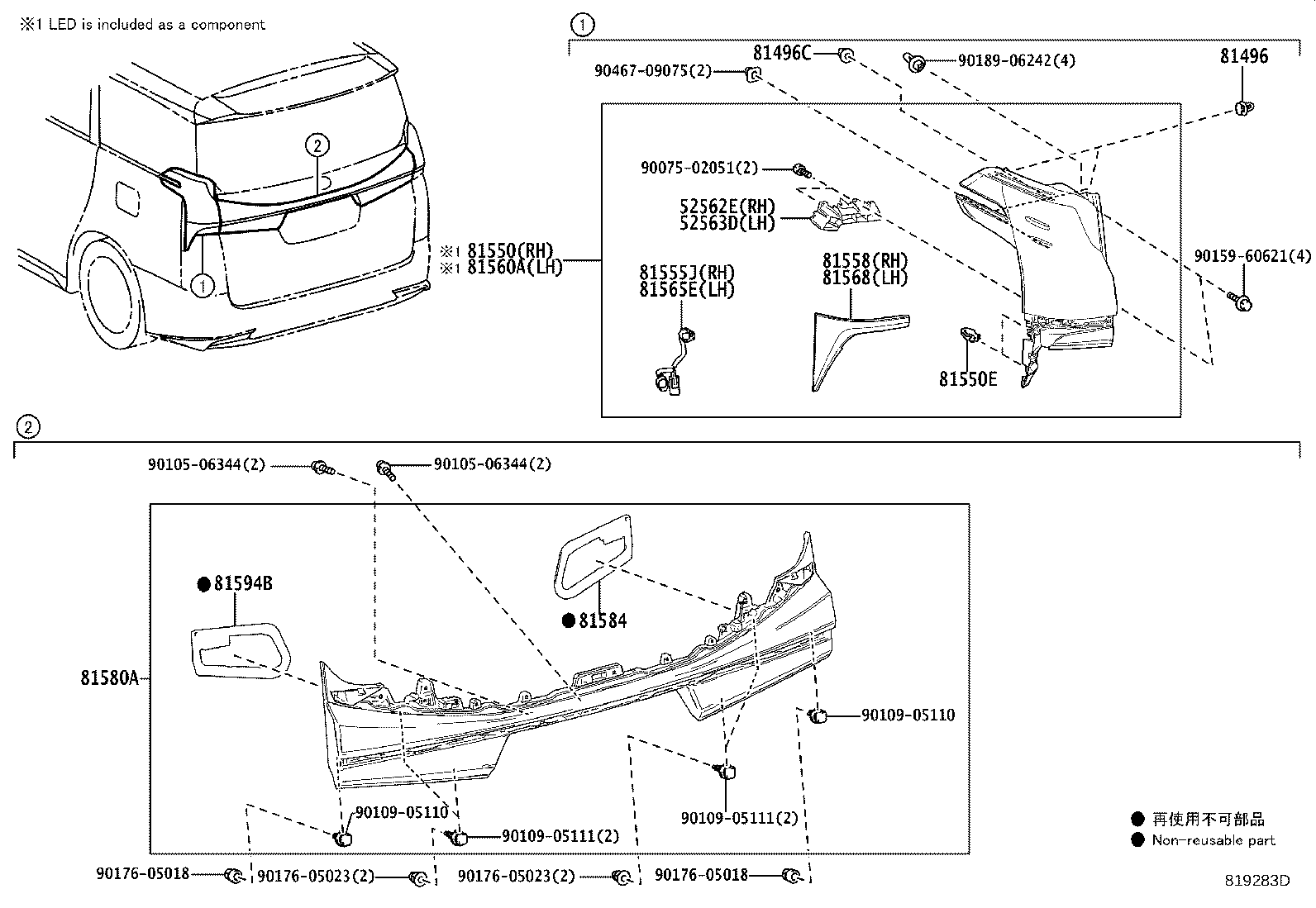

Click highlighted areas on diagram

diagram 52562E 52563D 81496 81496C 81550 81550E 81555J 81558 81560A 81565E 81568 81580A 81584 81594B 9007502051 9010506344 9010506344 9010905110 9010905110 9010905111 9010905111 9015960621 9017605018 9017605018 9017605023 9017605023 9018906242 9046709075
Part # Description Qty Price
52562E - RETAINER, REAR BUMPER, UPPER RH
52562-58030

AYH36,GGH31

 1
52563D - RETAINER, REAR BUMPER, UPPER LH
52563-58030

AYH36,GGH31

 1
81496 - GUIDE, REAR COMBINATION LAMP
81496-50010

AYH36,GGH31

 4
81496C - GUIDE, REAR COMBINATION LAMP, NO.2
81496-58010

AYH36,GGH31

 2
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-V2010

AYH36,GGH31

 1
81550-58250

AYH36,GGH31

 1
81550E - CLIP(FOR REAR COMBINATION LAMP)
90467-05172

AYH36,GGH31

 4
81555J - SOCKET & WIRE, REAR COMBINATION LAMP, RH
81555-V2010

AYH36,GGH31

 1
81558 - SHADE, REAR COMBINATION LAMP, NO.1 RH
81558-58250

AYH36,GGH31

 1
81560A - LAMP ASSY, REAR COMBINATION, LH
81560-58250

AYH36,GGH31

 1
81560-V2010

AYH36,GGH31

 1
81565E - SOCKET & WIRE, REAR COMBINATION LAMP, LH
81555-V2010

AYH36,GGH31

 1
81568 - SHADE, REAR COMBINATION LAMP, NO.1 LH
81568-58250

AYH36,GGH31

 1
81580A - LAMP ASSY, REAR
81580-58450

AYH36..LHD

TAIWAN SPEC

 1
81580-58440

AYH36..LHD;GGH31..8FC

 1
81584 - PACKING, REAR LAMP RH
81582-58440

AYH36,GGH31

 1
81594B - PACKING, REAR LAMP LH
81582-58450

AYH36,GGH31

 1
Common parts
90075-02051
90105-06344
90109-05110
90109-05111
90159-60621
90176-05018
90176-05023
90189-06242
90467-09075
