AYH36L-LFXVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

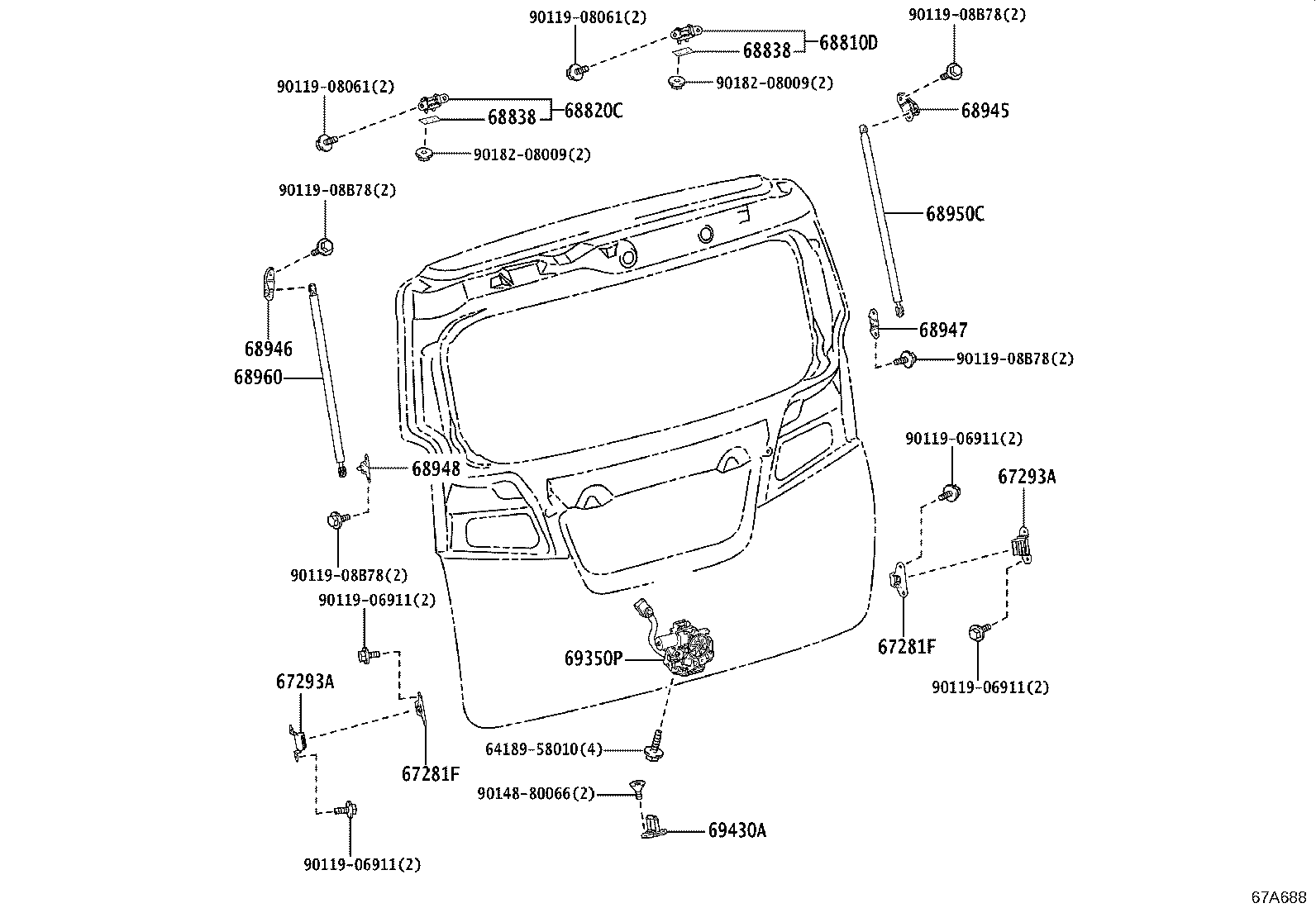

ILLUST NO. 1 OF 2(2001- )

Click highlighted areas on diagram

diagram 6418958010 67281F 67281F 67293A 67293A 68810D 68820C 68838 68838 68945 68946 68947 68948 68950C 68960 69350P 69430A 9011906911 9011906911 9011906911 9011906911 9011908061 9011908061 9011908B78 9011908B78 9011908B78 9011908B78 9014880066 9018208009 9018208009
Part # Description Qty Price
67281F - STOPPER, BACK DOOR, LOWER
67281-58020

AYH36,GGH31

 2
67281F - STOPPER, BACK DOOR, LOWER
67281-58020

AYH36,GGH31

 2
67293A - CUSHION, BACK DOOR STOPPER
67293-58020

AYH36,GGH31

 2
67293A - CUSHION, BACK DOOR STOPPER
67293-58020

AYH36,GGH31

 2
68810D - HINGE ASSY, BACK DOOR, RH
68810-26030

AYH36,GGH31

 1
68810-26011

AYH36,GGH31

 1
68820C - HINGE ASSY, BACK DOOR, LH
68820-26011

AYH36,GGH31

 1
68820-26030

AYH36,GGH31

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-26030

AYH36,GGH31

T=1.1

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-26030

AYH36,GGH31

T=1.1

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-58010

AYH36,GGH31

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-58010

AYH36,GGH31

 1
68947 - BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68947-58010

AYH36,GGH31

 1
68948 - BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68948-58010

AYH36,GGH31

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-58400

AYH36,GGH31

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-58400

AYH36,GGH31

 1
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-58031

AYH36,GGH31

 1
69430A - STRIKER ASSY, BACK DOOR LOWER LOCK
69430-48030

AYH36,GGH31

 1
Common parts
64189-58010
90119-06911
90119-08061
90119-08B78
90148-80066
90182-08009

ILLUST NO. 2 OF 2(2001- )

Click highlighted areas on diagram

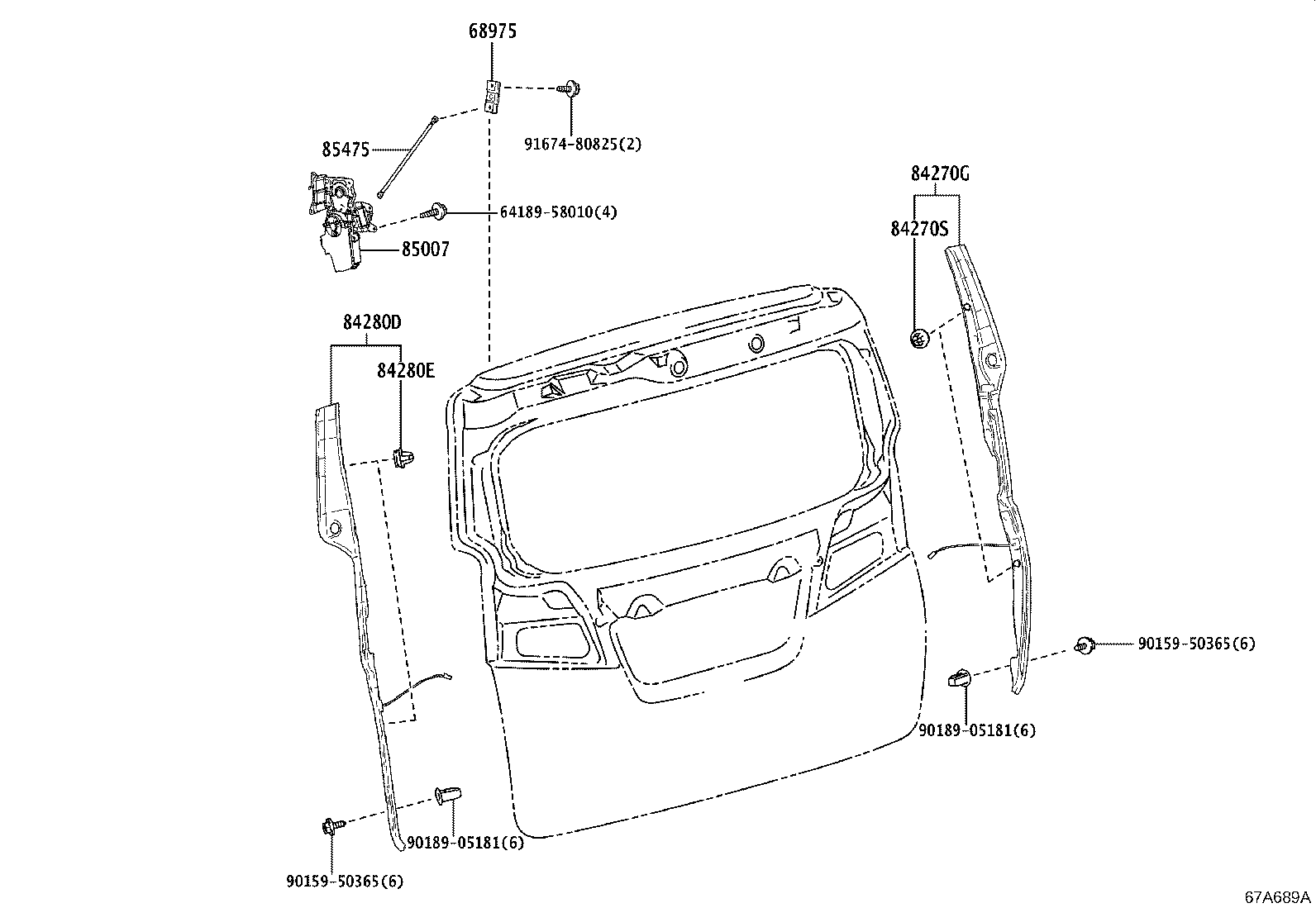

POWER BACK DOOR PARTS

diagram 6418958010 68975 84270G 84270S 84280D 84280E 85007 85475 9015950365 9015950365 9018905181 9018905181 9167480825
Part # Description Qty Price
68975 - PLATE, BACK DOOR STAY
68975-58020

AYH36,GGH31

 1
84270G - SENSOR ASSY, POWER BACK DOOR, RH
84270-58060

AYH36,GGH31

 1
84270S - CLIP(POWER BACK DOOR SENSOR, RH)
61617-42040

AYH36,GGH31

 2
84280D - SENSOR ASSY, POWER BACK DOOR, LH
84280-58060

AYH36,GGH31

 1
84280E - CLIP (FOR POWER BACK DOOR SENSOR, LH)
61617-42040

AYH36,GGH31

 2
85007 - MOTOR UNIT, BACK DOOR
85007-58060

AYH36,GGH31

 1
85475 - ROD, POWER BACK DOOR
85475-58030

AYH36,GGH31

 1
Common parts
64189-58010
90159-50365
90189-05181
91674-80825
