URZ100R-AKUBHW (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2007- )

Click highlighted areas on diagram

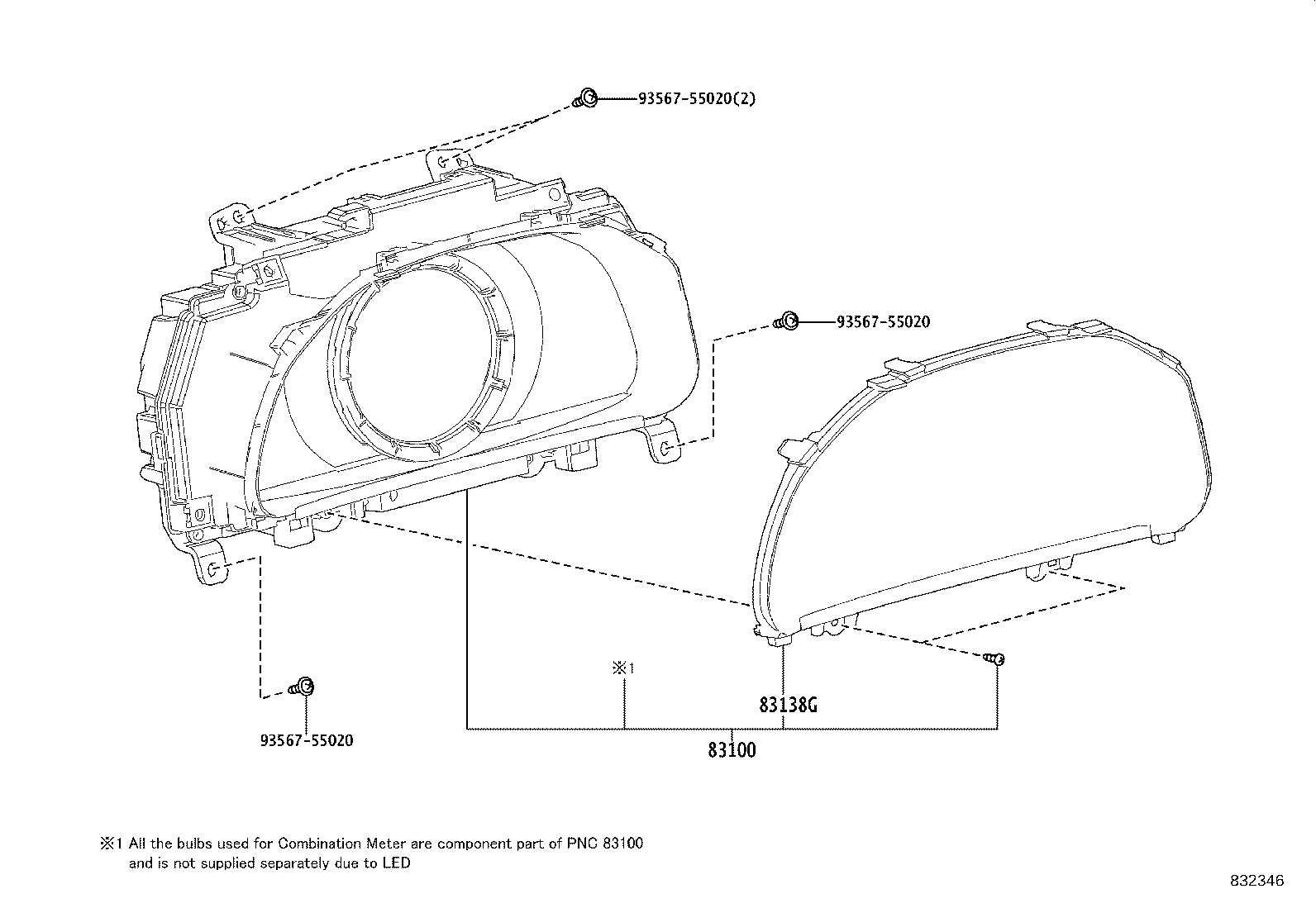

COMBINATION METER

diagram 83100 83138G 9356755020 9356755020 9356755020
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-11150

URZ100

YAZAKI

 1
83138G - GLASS, COMBINATION METER
83852-11010

URZ100

 1
Common parts
93567-55020

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

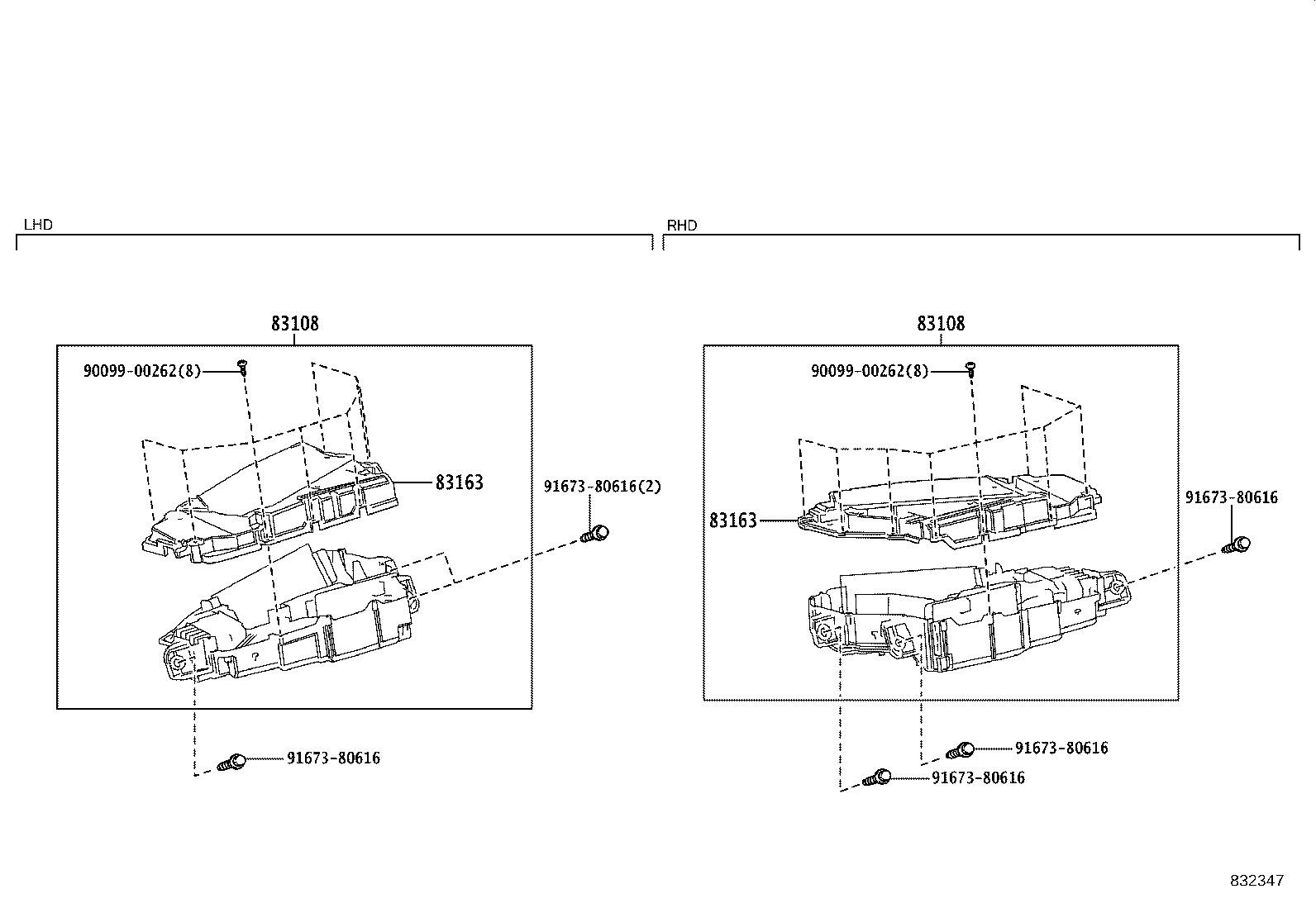

HEAD UP DISPLAY

diagram 83108 83108 83163 83163 9009900262 9009900262 9167380616 9167380616 9167380616 9167380616 9167380616
Part # Description Qty Price
83108 - MIRROR SUB-ASSY, METER
83108-11340

URZ100..RHD

HEAD UP DISPLAY-WITH

 1
83108 - MIRROR SUB-ASSY, METER
83108-11340

URZ100..RHD

HEAD UP DISPLAY-WITH

 1
83163 - PLATE, COMBINATION METER MIRROR, NO.1
83163-11310

URZ100..RHD

HEAD UP DISPLAY-WITH

 1
83163 - PLATE, COMBINATION METER MIRROR, NO.1
83163-11310

URZ100..RHD

HEAD UP DISPLAY-WITH

 1
Common parts
90099-00262
91673-80616
