URZ100R-AKUBHW (2020)
Toyota Lexus Lc500 (Cv)
Production
Jul 2020
-
Sep 9999
Engine
2URGSE
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

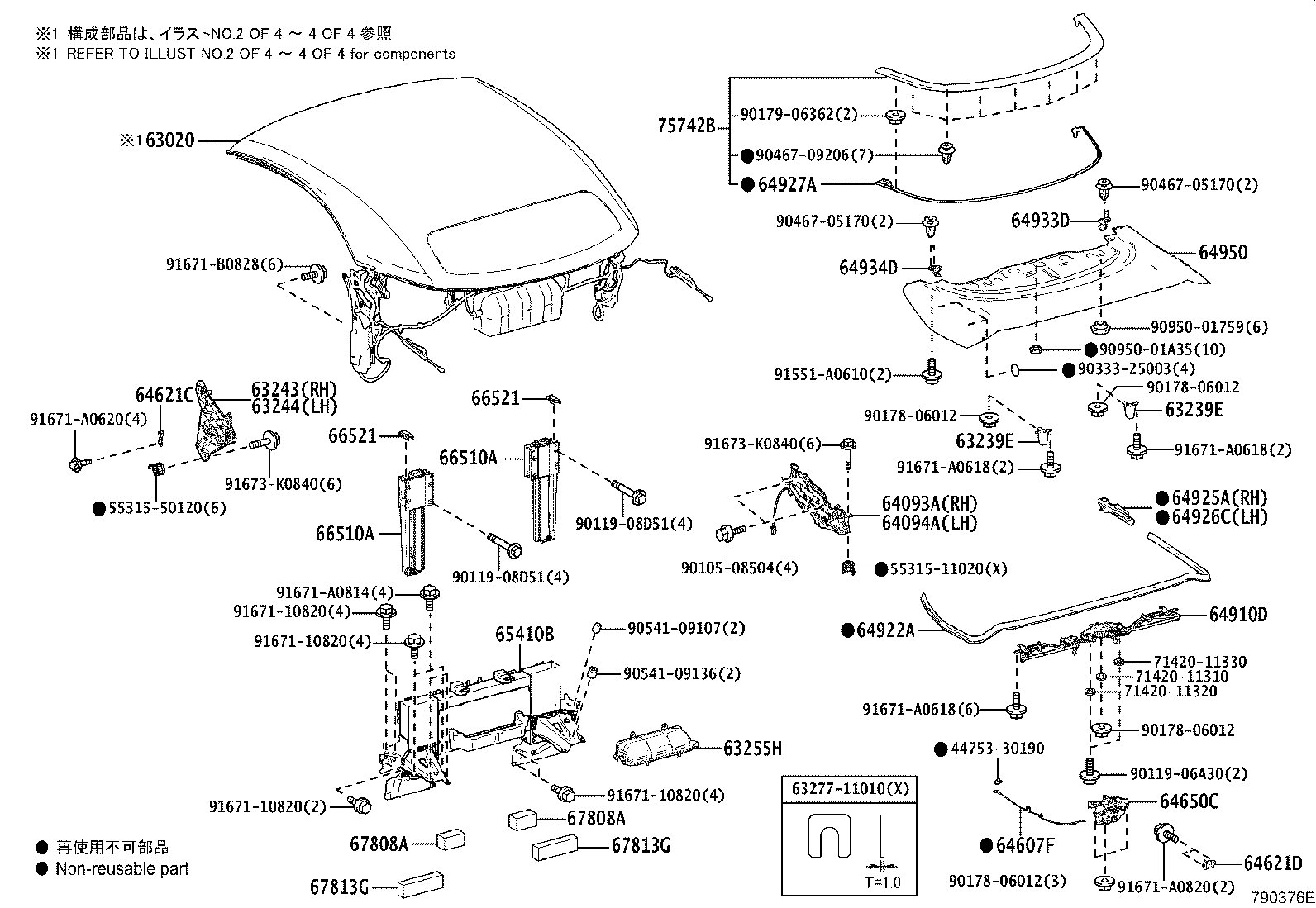

ILLUST NO. 1 OF 4(2007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63020 - UNIT ASSY, REMOVABLE ROOF | ||||
| 63020-1101020 |
URZ100 BLACK / CREAM,TRIM01 |
1 | ||
| 63020-1101021 |
URZ100 BLACK / BLACK,TRIM2#,3# |
1 | ||
| 63020-11010J4 |
URZ100 BLUE / CREAM,TRIM00 |
1 | ||
| 63020-11010E4 |
URZ100 BEIGE / CARAMEL,TRIM40 |
1 | ||
| 63020-1101022 |
URZ100 BLACK / CARAMEL,TRIM41 |
1 | ||
| 63239E - STOPPER, REMOVABLE ROOF PANEL | ||||
| 63239-11010 |
URZ100 |
2 | ||
| 63239E - STOPPER, REMOVABLE ROOF PANEL | ||||
| 63239-11010 |
URZ100 |
2 | ||
| 63243 - BRACKET, REMOVABLE ROOF HOUSING, NO.2 RH | ||||
| 63243-11010 |
URZ100 |
1 | ||
| 63244 - BRACKET, REMOVABLE ROOF HOUSING, NO.2 LH | ||||
| 63244-11010 |
URZ100 |
1 | ||
| 63255H - COVER, CONVERTIBLE ROOF MOTOR | ||||
| 63255-11010 |
URZ100 |
1 | ||
| 64093A - HINGE SUB-ASSY, TONNEAU COVER, NO.1 | ||||
| 64093-11020 |
URZ100 |
1 | ||
| 64094A - HINGE SUB-ASSY, TONNEAU COVER, NO.2 | ||||
| 64094-11020 |
URZ100 |
1 | ||
| 64607F - CABLE SUB-ASSY, TONNEAU COVER LOCK CONTROL | ||||
| 64607-11050 |
URZ100 |
1 | ||
| 64621C - STRIKER, TONNEAU COVER HINGE LOCK | ||||
| 64621-11030 |
URZ100 |
2 | ||
| 64621D - STRIKER, TONNEAU COVER LOCK | ||||
| 64621-11020 |
URZ100 |
1 | ||
| 64650C - CLOSER ASSY, TONNEAU COVER | ||||
| 64650-11010 |
URZ100 |
1 | ||
| 64910D - CLOSER ASSY, ACCESS FLAP | ||||
| 64910-11010 |
URZ100 |
1 | ||
| 64922A - WEATHERSTRIP, TONNEAU COVER, FRONT | ||||
| 64922-11010 |
URZ100 |
1 | ||
| 64925A - WEATHERSTRIP, TONNEAU COVER, REAR RH | ||||
| 64925-11010 |
URZ100 |
1 | ||
| 64926C - WEATHERSTRIP, TONNEAU COVER, REAR LH | ||||
| 64926-11010 |
URZ100 |
1 | ||
| 64927A - WEATHERSTRIP, TONNEAU COVER TAIL GATE | ||||
| 64927-11010 |
URZ100 |
1 | ||
| 64933D - BRACKET, TONNEAU COVER HOLDER, RH | ||||
| 64933-11010 |
URZ100 |
1 | ||
| 64934D - BRACKET, TONNEAU COVER HOLDER, LH | ||||
| 64934-11010 |
URZ100 |
1 | ||
| 64950 - PANEL ASSY, TONNEAU COVER | ||||
| 64950-11020 |
URZ100 |
1 | ||
| 65410B - FRAME ASSY, REAR BODY | ||||
| 65410-11010 |
URZ100 |
1 | ||
| 66510A - BAR ASSY, ROLL OVER | ||||
| 66510-11010 |
URZ100 |
2 | ||
| 66510A - BAR ASSY, ROLL OVER | ||||
| 66510-11010 |
URZ100 |
2 | ||
| 66521 - COVER, ROLL OVER BAR | ||||
| 66521-11010 |
URZ100 |
2 | ||
| 66521 - COVER, ROLL OVER BAR | ||||
| 66521-11010 |
URZ100 |
2 | ||
| 67808A - COVER SUB-ASSY, REAR BODY SERVICE HOLE | ||||
| 67808-11010 |
URZ100 |
2 | ||
| 67808A - COVER SUB-ASSY, REAR BODY SERVICE HOLE | ||||
| 67808-11010 |
URZ100 |
2 | ||
| 67813G - SHEET, REAR BODY SILENCER | ||||
| 67813-11010 |
URZ100 |
2 | ||
| 67813G - SHEET, REAR BODY SILENCER | ||||
| 67813-11010 |
URZ100 |
2 | ||
| 75742B - MOULDING, TONNEAU COVER | ||||
| 75742-11010 |
URZ100 |
1 | ||
| Common parts | ||||
| 44753-30190 | ||||
| 55315-11020 | ||||
| 55315-50120 | ||||
| 63277-11010 | ||||
| 71420-11310 | ||||
| 71420-11320 | ||||
| 71420-11330 | ||||
| 90105-08504 | ||||
| 90119-06A30 | ||||
| 90119-08D51 | ||||
| 90178-06012 | ||||
| 90179-06362 | ||||
| 90333-25003 | ||||
| 90467-05170 | ||||
| 90467-09206 | ||||
| 90541-09107 | ||||
| 90541-09136 | ||||
| 90950-01759 | ||||
| 90950-01A35 | ||||
| 91551-A0610 | ||||
| 91671-10820 | ||||
| 91671-A0618 | ||||
| 91671-A0620 | ||||
| 91671-A0814 | ||||
| 91671-A0820 | ||||
| 91671-B0828 | ||||
| 91673-K0840 | ||||

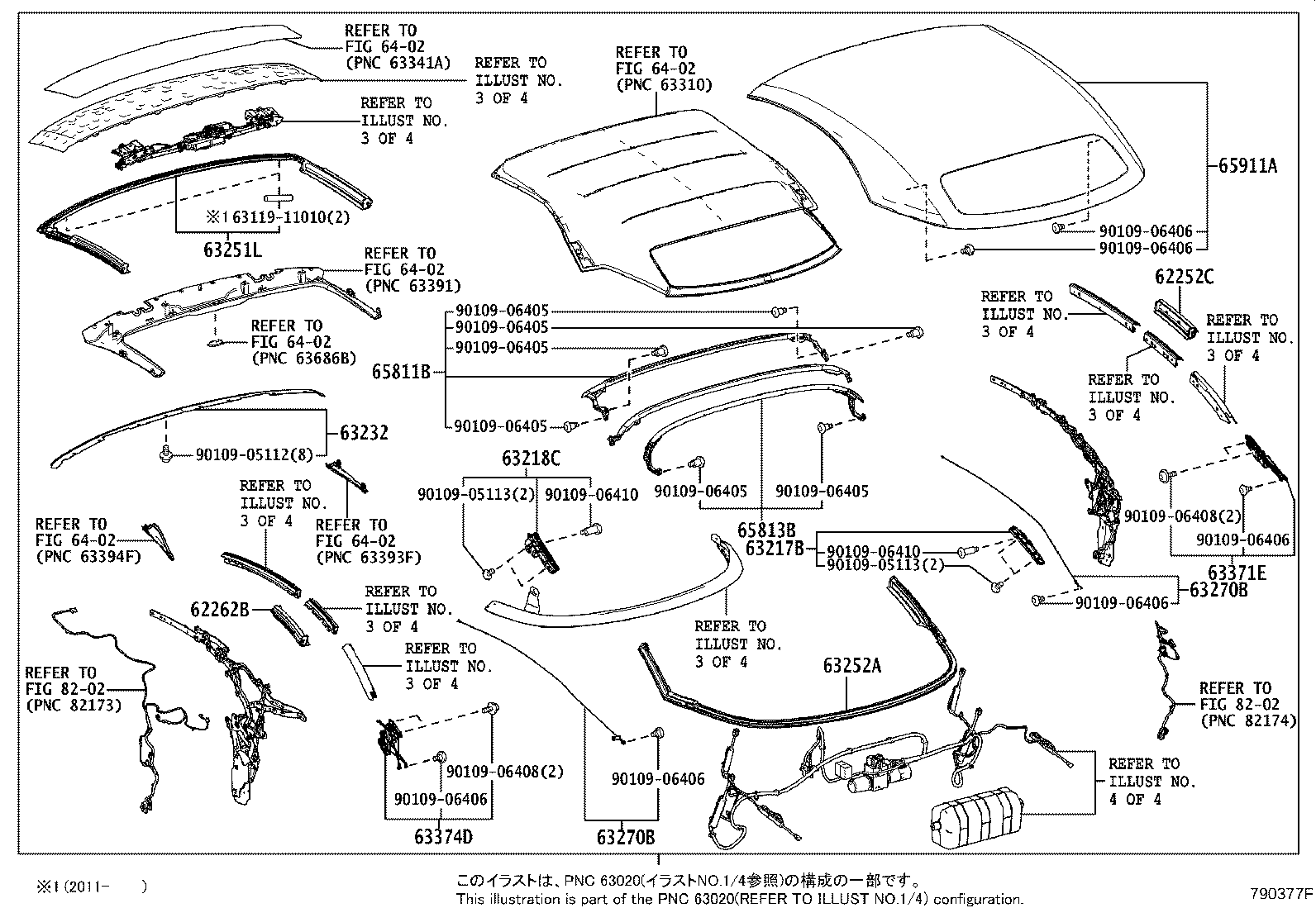

ILLUST NO. 2 OF 4(2007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62252C - WEATHERSTRIP, SIDE WINDOW, RH | ||||
| 62252-11010 |
URZ100 |
1 | ||
| 62262B - WEATHERSTRIP, SIDE WINDOW, LH | ||||
| 62262-11010 |
URZ100 |
1 | ||
| 63217B - GARNISH, REMOVABLE ROOF SIDE, RH | ||||
| 63217-11010 |
URZ100 |
1 | ||
| 63218C - GARNISH, REMOVABLE ROOF SIDE, LH | ||||
| 63218-11010 |
URZ100 |
1 | ||
| 63232 - RETAINER, REMOVABLE ROOF | ||||
| 63232-11010 |
URZ100 |
1 | ||
| 63251L - WEATHERSTRIP, CONVERTIBLE ROOF, FRONT | ||||
| 63251-11010 |
URZ100 |
1 | ||
| 63252A - WEATHERSTRIP, REMOVABLE ROOF, REAR | ||||
| 63252-11010 |
URZ100 |
1 | ||
| 63270B - CABLE ASSY, REMOVABLE ROOF | ||||
| 63270-11010 |
URZ100 |
2 | ||
| 63270B - CABLE ASSY, REMOVABLE ROOF | ||||
| 63270-11010 |
URZ100 |
2 | ||
| 63371E - RETAINER, REMOVABLE ROOF SUPPORT, RH | ||||
| 63371-11010 |
URZ100 |
1 | ||
| 63374D - RETAINER, REMOVABLE ROOF SUPPORT, LH | ||||
| 63374-11010 |
URZ100 |
1 | ||
| 65811B - BOW, TOP, NO.1 | ||||
| 65811-11020 |
URZ100 |
1 | ||
| 65813B - BOW, TOP, NO.3 | ||||
| 65813-11010 |
URZ100 |
1 | ||
| 65911A - COVER, TARPAULIN | ||||
| 63211-11030J0 |
URZ100 BLUE,TRIM00 |
1 | ||
| 63211-11030E0 |
URZ100 BEIGE,TRIM40 |
1 | ||
| 63211-11030C0 |
URZ100 BLACK,TRIM01,2#,3#,41 |
1 | ||
| Common parts | ||||
| 63119-11010 | ||||
| 90109-05112 | ||||
| 90109-05113 | ||||
| 90109-06405 | ||||
| 90109-06406 | ||||
| 90109-06408 | ||||
| 90109-06410 | ||||
| Linked diagrams | ||||
| 6402 | ||||
| 8202 | ||||

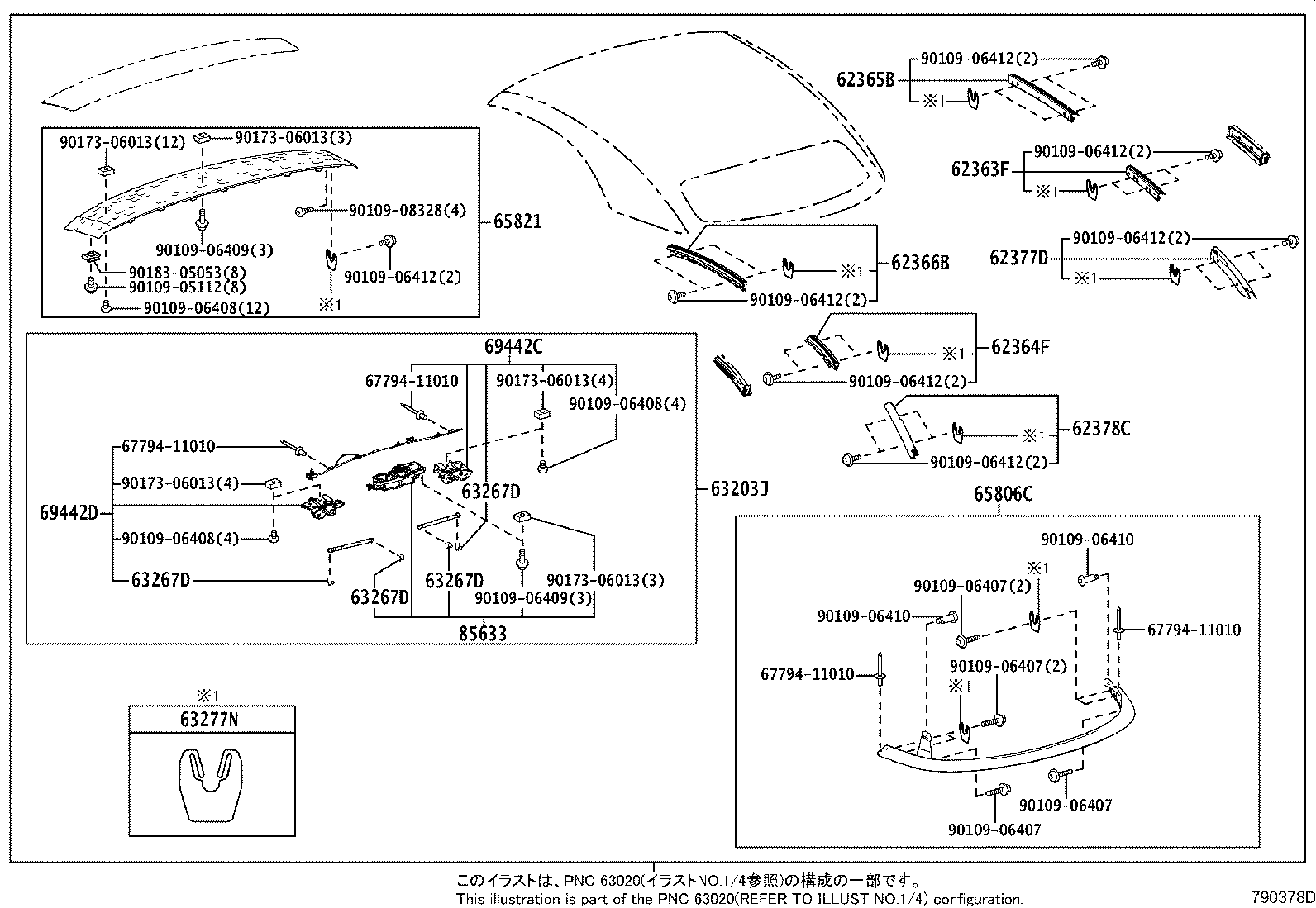

ILLUST NO. 3 OF 4(2007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62363F - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER RH | ||||
| 62363-11010 |
URZ100 |
1 | ||
| 62364F - RETAINER, ROOF SIDE RAIL WEATHERSTRIP, CENTER LH | ||||
| 62364-11010 |
URZ100 |
1 | ||
| 62365B - RETAINER, CONVERTIBLE ROOF WEATHERSTRIP | ||||
| 62365-11010 |
URZ100 |
1 | ||
| 62366B - RETAINER, REMOVABLE ROOF WEATHERSTRIP, FRONT LH | ||||
| 62366-11010 |
URZ100 |
1 | ||
| 62377D - RETAINER, REMOVABLE ROOF WEATHERSTRIP, REAR RH | ||||
| 62377-11010 |
URZ100 |
1 | ||
| 62378C - RETAINER, REMOVABLE ROOF WEATHERSTRIP, REAR LH | ||||
| 62378-11010 |
URZ100 |
1 | ||
| 63203J - LOCK SUB-ASSY, REMOVABLE ROOF | ||||
| 63203-11010 |
URZ100 |
1 | ||
| 63267D - PIN, REMOVABLE ROOF LOCK LINK | ||||
| 63267-11010 |
URZ100 |
8 | ||
| 63267D - PIN, REMOVABLE ROOF LOCK LINK | ||||
| 63267-11010 |
URZ100 |
8 | ||
| 63267D - PIN, REMOVABLE ROOF LOCK LINK | ||||
| 63267-11010 |
URZ100 |
8 | ||
| 63267D - PIN, REMOVABLE ROOF LOCK LINK | ||||
| 63267-11010 |
URZ100 |
8 | ||
| 63277N - SHIM, REMOVABLE ROOF PANEL | ||||
| 63277-11030 |
URZ100 T=0.5 |
1 | ||
| 63277-11040 |
URZ100 T=1.0 |
1 | ||
| 63277-11050 |
URZ100 T=2.0 |
1 | ||
| 65806C - BOW SUB-ASSY, TOP COVER TARPAULIN, REAR | ||||
| 65806-11020 |
URZ100 |
1 | ||
| 65821 - BOW, FRONT TOP COVER TARPAULIN | ||||
| 65821-11020 |
URZ100 |
1 | ||
| 69442C - STRIKER, TARPAULIN LOCK | ||||
| 69442-11010 |
URZ100 |
1 | ||
| 69442D - STRIKER, TARPAULIN LOCK, LH | ||||
| 69442-11020 |
URZ100 |
1 | ||
| 85633 - BASE, MOTOR | ||||
| 85633-11010 |
URZ100 |
1 | ||
| Common parts | ||||
| 67794-11010 | ||||
| 90109-05112 | ||||
| 90109-06407 | ||||
| 90109-06408 | ||||
| 90109-06409 | ||||
| 90109-06410 | ||||
| 90109-06412 | ||||
| 90109-08328 | ||||
| 90173-06013 | ||||
| 90183-05053 | ||||

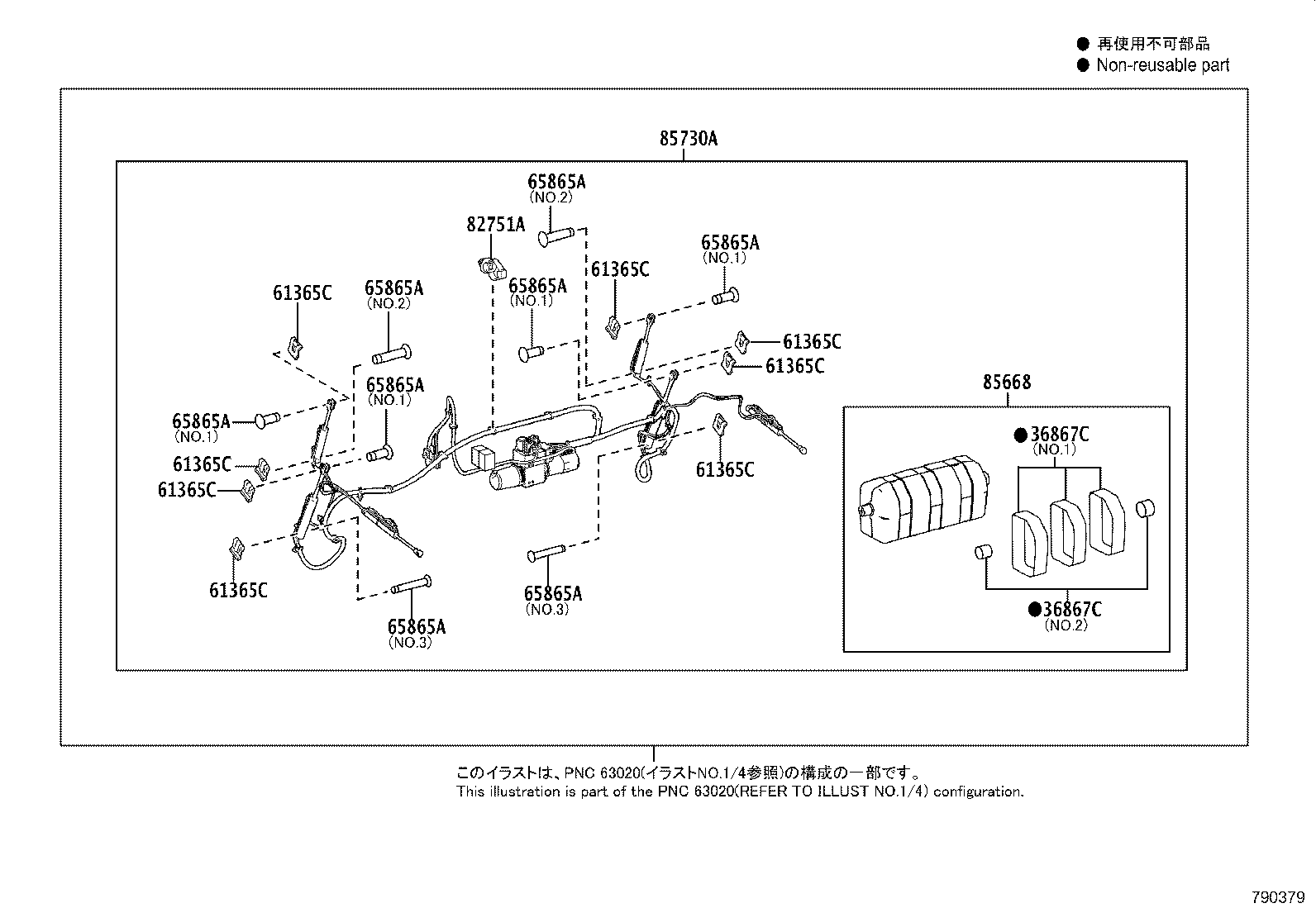

ILLUST NO. 4 OF 4(2007- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36867C - SEAL, PACKING | ||||
| 36867-11010 |
URZ100 NO.1 |
1 | ||
| 36867-11020 |
URZ100 NO.2 |
1 | ||
| 36867C - SEAL, PACKING | ||||
| 36867-11010 |
URZ100 NO.1 |
1 | ||
| 36867-11020 |
URZ100 NO.2 |
1 | ||
| 61365C - RETAINER, FRONT TOP COVER TARPAULIN BOW SET | ||||
| 61365-11030 |
URZ100 |
8 | ||
| 61365C - RETAINER, FRONT TOP COVER TARPAULIN BOW SET | ||||
| 61365-11030 |
URZ100 |
8 | ||
| 61365C - RETAINER, FRONT TOP COVER TARPAULIN BOW SET | ||||
| 61365-11030 |
URZ100 |
8 | ||
| 61365C - RETAINER, FRONT TOP COVER TARPAULIN BOW SET | ||||
| 61365-11030 |
URZ100 |
8 | ||
| 61365C - RETAINER, FRONT TOP COVER TARPAULIN BOW SET | ||||
| 61365-11030 |
URZ100 |
8 | ||
| 61365C - RETAINER, FRONT TOP COVER TARPAULIN BOW SET | ||||
| 61365-11030 |
URZ100 |
8 | ||
| 61365C - RETAINER, FRONT TOP COVER TARPAULIN BOW SET | ||||
| 61365-11030 |
URZ100 |
8 | ||
| 61365C - RETAINER, FRONT TOP COVER TARPAULIN BOW SET | ||||
| 61365-11030 |
URZ100 |
8 | ||
| 65865A - PIN, COVER TOP GUIDE | ||||
| 65865-11020 |
URZ100 NO.1 |
4 | ||
| 65865-11030 |
URZ100 NO.2 |
2 | ||
| 65865-11040 |
URZ100 NO.3 |
2 | ||
| 65865A - PIN, COVER TOP GUIDE | ||||
| 65865-11020 |
URZ100 NO.1 |
4 | ||
| 65865-11030 |
URZ100 NO.2 |
2 | ||
| 65865-11040 |
URZ100 NO.3 |
2 | ||
| 65865A - PIN, COVER TOP GUIDE | ||||
| 65865-11020 |
URZ100 NO.1 |
4 | ||
| 65865-11030 |
URZ100 NO.2 |
2 | ||
| 65865-11040 |
URZ100 NO.3 |
2 | ||
| 65865A - PIN, COVER TOP GUIDE | ||||
| 65865-11020 |
URZ100 NO.1 |
4 | ||
| 65865-11030 |
URZ100 NO.2 |
2 | ||
| 65865-11040 |
URZ100 NO.3 |
2 | ||
| 65865A - PIN, COVER TOP GUIDE | ||||
| 65865-11020 |
URZ100 NO.1 |
4 | ||
| 65865-11030 |
URZ100 NO.2 |
2 | ||
| 65865-11040 |
URZ100 NO.3 |
2 | ||
| 65865A - PIN, COVER TOP GUIDE | ||||
| 65865-11020 |
URZ100 NO.1 |
4 | ||
| 65865-11030 |
URZ100 NO.2 |
2 | ||
| 65865-11040 |
URZ100 NO.3 |
2 | ||
| 65865A - PIN, COVER TOP GUIDE | ||||
| 65865-11020 |
URZ100 NO.1 |
4 | ||
| 65865-11030 |
URZ100 NO.2 |
2 | ||
| 65865-11040 |
URZ100 NO.3 |
2 | ||
| 65865A - PIN, COVER TOP GUIDE | ||||
| 65865-11020 |
URZ100 NO.1 |
4 | ||
| 65865-11030 |
URZ100 NO.2 |
2 | ||
| 65865-11040 |
URZ100 NO.3 |
2 | ||
| 82751A - HOLDER, CLAMP | ||||
| 82751-11010 |
URZ100 |
15 | ||
| 85668 - PACKING, MOTOR COVER | ||||
| 85668-11010 |
URZ100 |
1 | ||
| 85730A - MOTOR ASSY, CONVERTIBLE ROOF | ||||
| 85730-11010 |
URZ100 |
1 | ||
