URZ100R-AKUBHW (2020)
Toyota Lexus Lc500 (Cv)
Production
Jul 2020
-
Sep 9999
Engine
2URGSE
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 4(2007- )
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-31030 |
2URGSE..URZ100 |
1 | ||
| 23070A - RING, O, NO.1(FOR FUEL MAIN VALVE) | ||||
| 90301-15024 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 90301-04013 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 23070A - RING, O, NO.1(FOR FUEL MAIN VALVE) | ||||
| 90301-15024 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 90301-04013 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31080 |
2URGSE..URZ100 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31130 |
2URGSE..URZ100 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31010 |
2URGSE..URZ100 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-38020 |
2URGSE..URZ100 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2URGSE..URZ100 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
2URGSE..URZ100 NO.2:REFER ILLUST. |
1 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
2URGSE..URZ100 |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
2URGSE..URZ100 |
2 | ||
| 77012A - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 | ||||
| 77012-11050 |
URZ100..EUR,GEN |
1 | ||
| 77019J - TUBE SUB-ASSY, FUEL TANK TO CANISTER | ||||
| 77019-11010 |
URZ100..EUR,GEN |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-11010 |
URZ100..EUR,GEN |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-11010 |
URZ100 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-11130 |
URZ100 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-11010 |
URZ100 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
URZ100 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-53010 |
URZ100..EUR,GEN |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-48040 |
URZ100 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-20040 |
URZ100 |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-52010 |
URZ100 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-11140 |
URZ100 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-11060 |
URZ100..EUR,GEN |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-11090 |
URZ100..EUR,GEN |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-11020 |
URZ100 |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-11060 |
URZ100 |
1 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-11030 |
URZ100 |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-11070 |
URZ100 |
1 | ||
| 77227B - TUBE, FUEL TANK BREATHER, NO.7 | ||||
| 77227-11030 |
URZ100 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-11080 |
URZ100 |
1 | ||
| 77229E - CLAMP, BREATHER TUBE | ||||
| 77229-11110 |
URZ100 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
URZ100 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-11020 |
URZ100..EUR,GEN |
1 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-11040 |
URZ100 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77229-11120 |
URZ100 |
1 | ||
| 77286S - CUSHION, FUEL TANK PROTECTOR | ||||
| 77286-12110 |
URZ100 |
4 | ||
| 77288 - CLAMP, BREATHER HOSE | ||||
| 77229-50080 |
URZ100 |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77289-11030 |
URZ100 |
1 | ||
| 77289C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77289-52090 |
URZ100 |
1 | ||
| 77289E - CLAMP, FUEL TANK, NO.1 | ||||
| 77289-11040 |
URZ100 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-11010 |
URZ100 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-48020 |
URZ100..EUR,GEN |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-75020 |
URZ100..EUR,GEN |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-11040 |
URZ100..EUR |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-11040 |
URZ100..EUR |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-11020 |
URZ100 |
1 | ||
| 77607C - PROTECTOR SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77607-11010 |
URZ100 |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
URZ100 |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10A05 |
URZ100 |
4 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
URZ100 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
URZ100 |
3 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-20090 |
URZ100 |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-36130 |
URZ100 |
2 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-36130 |
URZ100 |
2 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-35050 |
URZ100 |
1 | ||
| 77654A - CUSHION, FUEL TANK, NO.4 | ||||
| 77652-22090 |
URZ100 |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-21020 |
URZ100 |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-21020 |
URZ100 |
2 | ||
| 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77754-11060 |
URZ100 |
1 | ||
| 77754C - HOSE, FUEL TANK BREATHER | ||||
| 77754-11050 |
URZ100 |
1 | ||
| 77777 - BRACKET, FUEL TUBE CLAMP | ||||
| 77778-50020 |
URZ100 |
2 | ||
| 77777 - BRACKET, FUEL TUBE CLAMP | ||||
| 77778-50020 |
URZ100 |
2 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-30050 |
URZ100 |
1 | ||
| Common parts | ||||
| 90119-06A14 | ||||
| 90119-08D17 | ||||
| 90159-50343 | ||||
| 90301-08019 | ||||
| 90301-11025 | ||||
| 90386-01004 | ||||
| 90460-22002 | ||||
| 90460-37003 | ||||
| 90460-40007 | ||||
| 90466-17002 | ||||
| 90467-15018 | ||||
| 90959-04001 | ||||
| 91626-B0614 | ||||
| 96132-51300 | ||||
| 96134-41900 | ||||
| 96137-41901 | ||||
| Linked diagrams | ||||
| 8401 | ||||

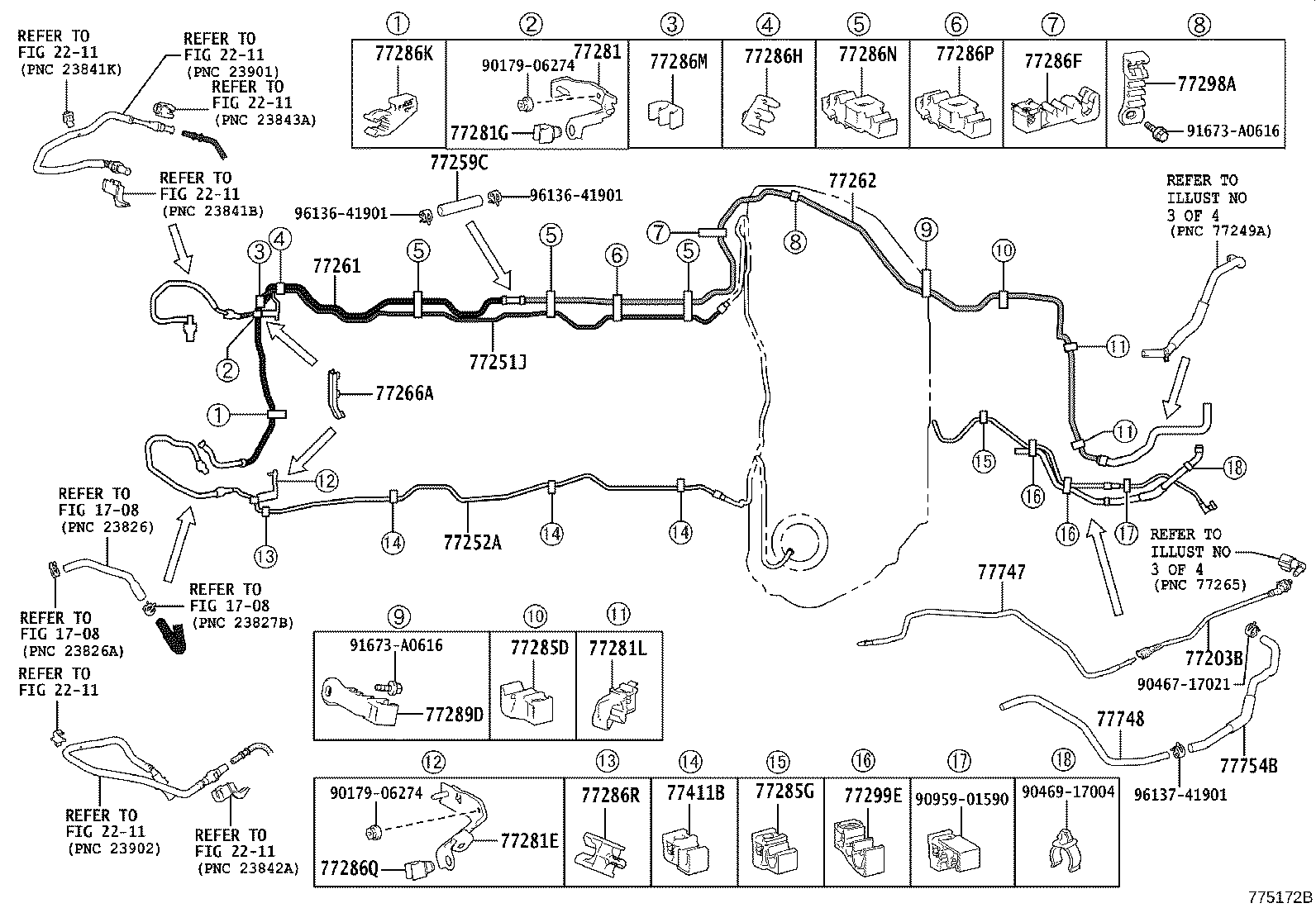

ILLUST NO. 2 OF 4(2007- )RHD
Click highlighted areas on diagram
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77203B - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-11070 |
URZ100..EUR,GEN |
1 | ||
| 77251J - TUBE, FUEL MAIN, NO.1 | ||||
| 77252-11020 |
URZ100..RHD |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77251-11100 |
URZ100..RHD |
1 | ||
| 77259C - HOSE, FUEL | ||||
| 77259-11010 |
URZ100 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-11030 |
URZ100..RHD |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77262-11050 |
URZ100 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-11020 |
URZ100..RHD |
2 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-11040 |
URZ100..RHD |
1 | ||
| 77281E - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-11060 |
URZ100..RHD |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77286-11061 |
URZ100..RHD |
1 | ||
| 77281L - CLAMP, FUEL HOSE | ||||
| 89639-28130 |
URZ100 |
2 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-11010 |
URZ100 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-50030 |
URZ100 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-11010 |
URZ100 |
1 | ||
| 77286H - CLAMP, FUEL TUBE, NO.3 | ||||
| 77286-11020 |
URZ100 |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-11080 |
URZ100..RHD |
1 | ||
| 77286M - CLAMP, FUEL TUBE, NO.6 | ||||
| 77286-11070 |
URZ100..RHD |
1 | ||
| 77286N - CLAMP, FUEL TUBE, NO.7 | ||||
| 77289-11050 |
URZ100 |
3 | ||
| 77286P - CLAMP, FUEL TUBE, NO.8 | ||||
| 77289-11060 |
URZ100 |
1 | ||
| 77286Q - CLAMP, FUEL TUBE, NO.9 | ||||
| 77286-11061 |
URZ100 |
1 | ||
| 77286R - CLAMP, FUEL TUBE, NO.10 | ||||
| 77286-11050 |
URZ100 |
1 | ||
| 77289D - CLAMP, FUEL TUBE, NO.5 | ||||
| 77298-11020 |
URZ100 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-11010 |
URZ100 |
1 | ||
| 77299E - CLAMP (FOR CHARCOAL CANISTER PIPE) | ||||
| 77285-11020 |
URZ100 |
2 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48050 |
URZ100 |
3 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-11020 |
URZ100 |
1 | ||
| 77748 - PIPE, CHARCOAL CANISTER, NO.2 | ||||
| 77748-11020 |
URZ100 |
1 | ||
| 77754B - HOSE, CHARCOAL CANISTER OUTLET | ||||
| 77754-11010 |
URZ100 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90467-17021 | ||||
| 90469-17004 | ||||
| 90959-01590 | ||||
| 91673-A0616 | ||||
| 96136-41901 | ||||
| 96137-41901 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

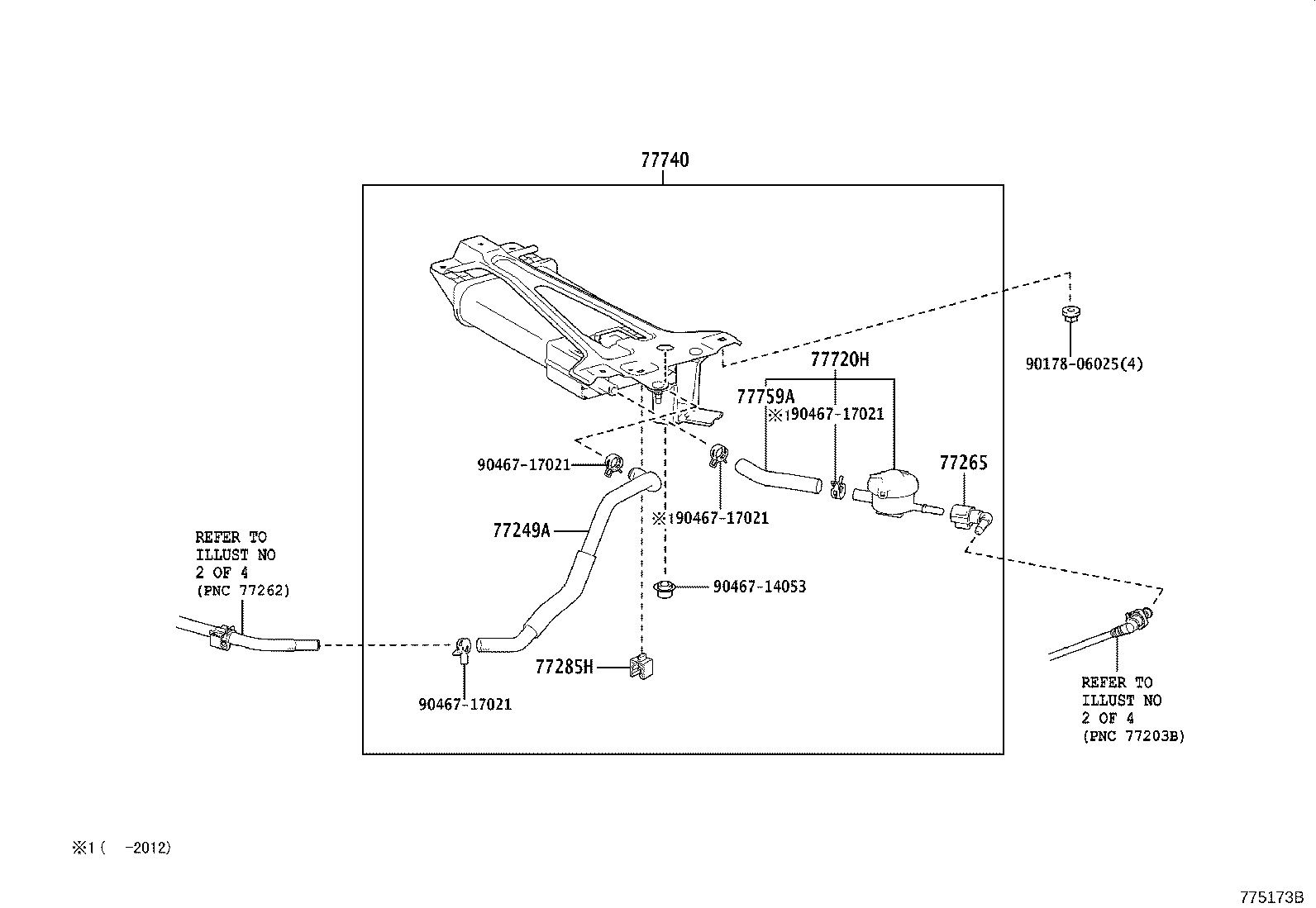

ILLUST NO. 3 OF 4(2007- )
Click highlighted areas on diagram
CHARCOAL CANISTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77249A - HOSE, FUEL EMISSION | ||||
| 77249-11060 |
URZ100 |
1 | ||
| 77265 - CONNECTOR, FUEL MAIN TUBE | ||||
| 77265-30030 |
URZ100 |
1 | ||
| 77285H - CLAMP, FUEL TUBE, NO.1 | ||||
| 77286-47060 |
URZ100 |
1 | ||
| 77720H - VALVE ASSY, FUEL OUTLET | ||||
| 77720-11030 |
URZ100 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-11120 |
URZ100 |
1 | ||
| 77759A - HOSE, CHARCOAL CANISTER | ||||
| 77759-11030 |
URZ100 |
1 | ||
| Common parts | ||||
| 90178-06025 | ||||
| 90467-14053 | ||||
| 90467-17021 | ||||

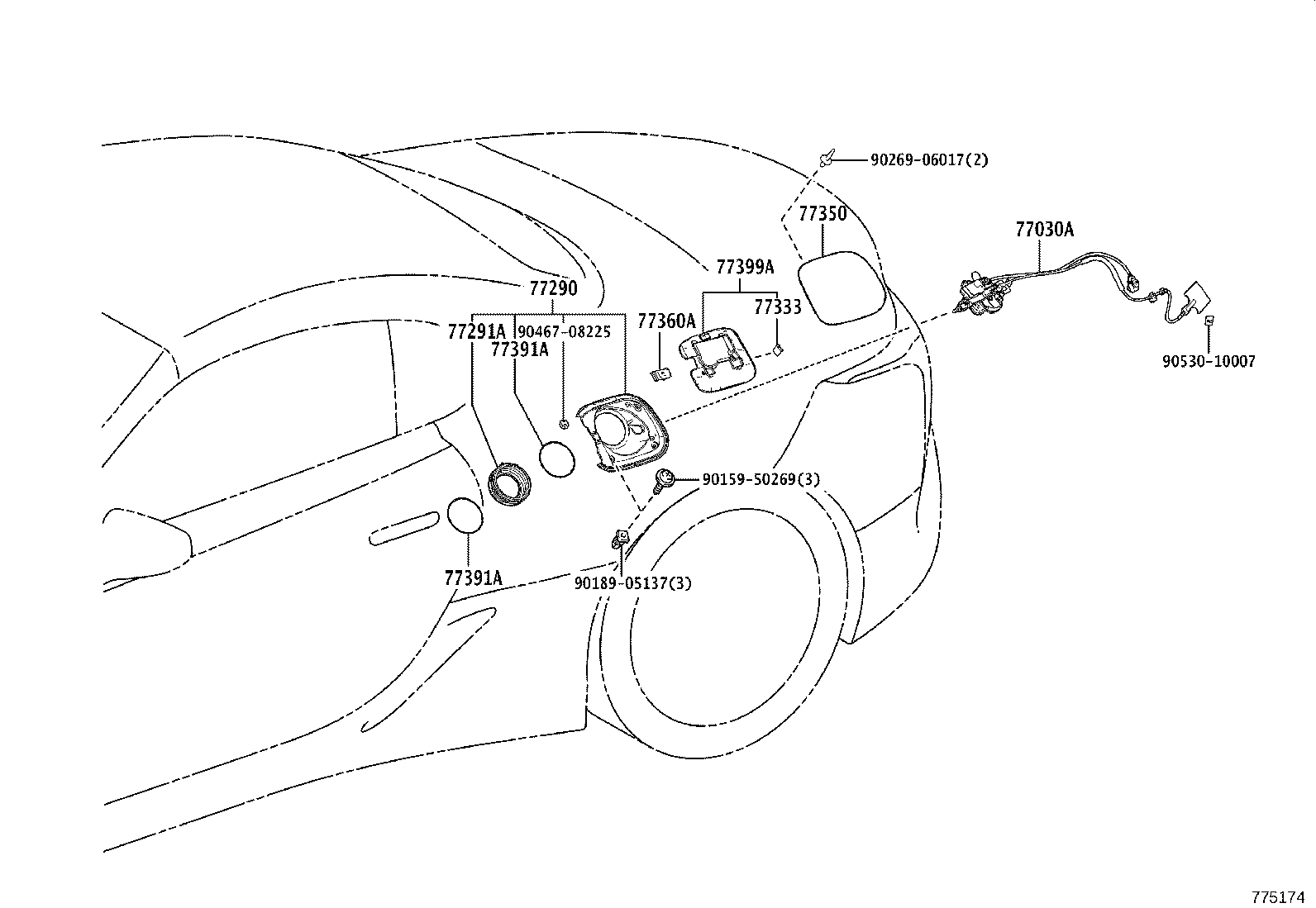

ILLUST NO. 4 OF 4(2007- )
Click highlighted areas on diagram
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-11020 |
URZ100 |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-11010 |
URZ100 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-50040 |
URZ100 |
1 | ||
| 77333 - CLIP, FUEL LID SWITCH | ||||
| 77333-50010 |
URZ100 |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-11060 |
URZ100 |
1 | ||
| 77360A - SPRING ASSY, FUEL FILLER OPENING LID | ||||
| 77360-35040 |
URZ100 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
URZ100 |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
URZ100 |
2 | ||
| 77399A - COVER, FUEL FILLER OPENING LID | ||||
| 77399-11020 |
URZ100 |
1 | ||
| Common parts | ||||
| 90159-50269 | ||||
| 90189-05137 | ||||
| 90269-06017 | ||||
| 90467-08225 | ||||
| 90530-10007 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
