URZ100R-AKUBHW (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

Click highlighted areas on diagram

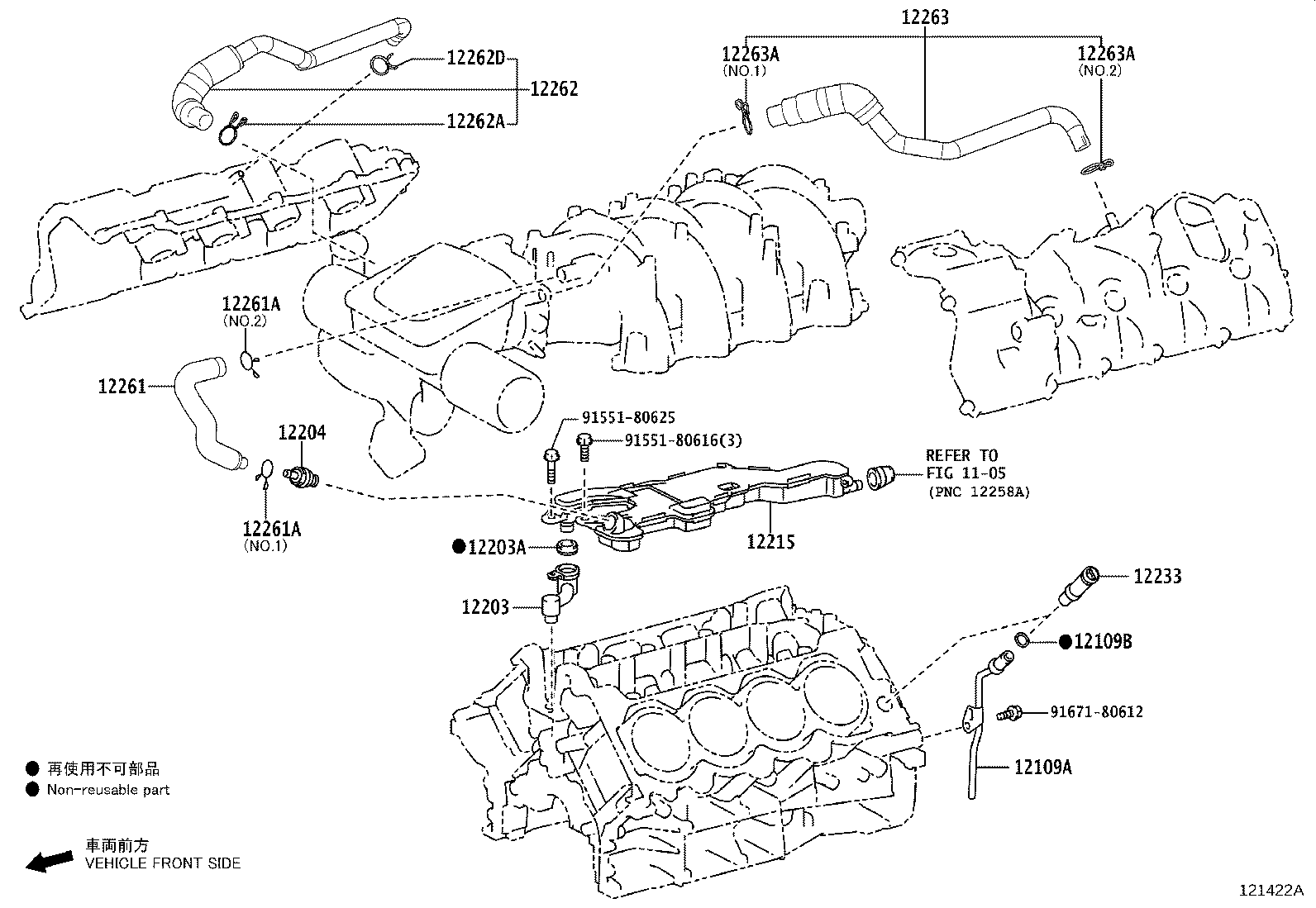

diagram 1105 12109A 12109B 12203 12203A 12204 12215 12233 12261 12261A 12261A 12262 12262A 12262D 12263 12263A 12263A 9155180616 9155180625 9167180612
Part # Description Qty Price
12109A - PIPE SUB-ASSY, OIL DRAIN
12109-38031

2URGSE..URZ100

 1
12109B - RING, O(FOR OIL DRAIN PIPE)
96723-19010

2URGSE..URZ100

 1
12203 - PIPE SUB-ASSY, VENTILATION
12203-38010

2URGSE..URZ100

 1
12203A - GASKET(FOR VENTILATION PIPE)
12273-38020

2URGSE..URZ100

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-38020

2URGSE..URZ100

 1
12215 - SEPARATOR, CASE
12215-38020

2URGSE..URZ100

 1
12233 - CONNECTOR, VENTILATION NO.1
12233-38040

2URGSE..URZ100

 1
12261 - HOSE, VENTILATION
12261-38130

2URGSE..URZ100

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

2URGSE..URZ100

NO.1:REFER ILLUST.

 1
90467-24038

2URGSE..URZ100

NO.2:REFER ILLUST.

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

2URGSE..URZ100

NO.1:REFER ILLUST.

 1
90467-24038

2URGSE..URZ100

NO.2:REFER ILLUST.

 1
12262 - HOSE, VENTILATION, NO.2
12262-38100

2URGSE..URZ100

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21004

2URGSE..URZ100

 1
12262D - CLIP(FOR VENTILATION HOSE NO.2)
90467-17126

2URGSE..URZ100

 1
12263 - HOSE, VENTILATION, NO.3
12263-38060

2URGSE..URZ100

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-17126

2URGSE..URZ100

NO.2:REFER ILLUST.

 1
90467-21004

2URGSE..URZ100

NO.1:REFER ILLUST.

 1
12263A - CLIP(FOR VENTILATION HOSE)
90467-17126

2URGSE..URZ100

NO.2:REFER ILLUST.

 1
90467-21004

2URGSE..URZ100

NO.1:REFER ILLUST.

 1
Common parts
91551-80616
91551-80625
91671-80612
Linked diagrams
1105
