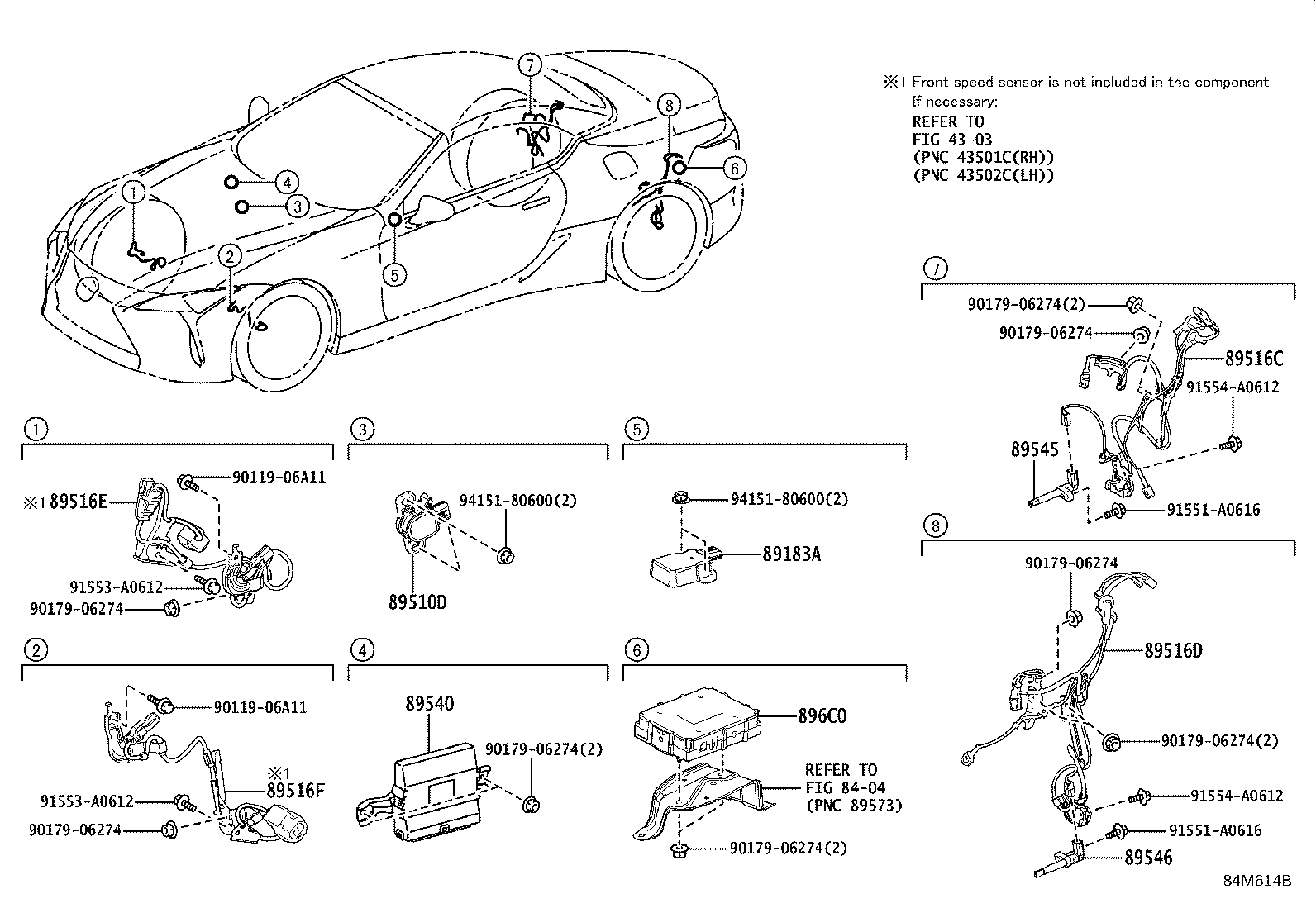

Toyota Lexus lc500 (cv) URZ100 ABS & VSC

Part #	Description	Period	Qty
89183A - SENSOR, YAWRATE
89183-48020	URZ100	07/2020 - 12/2999	1
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-33030	URZ100..RHD	07/2020 - 12/2999	1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-11030	URZ100	07/2020 - 12/2999	1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-11040	URZ100	07/2020 - 12/2999	1
89516E - WIRE, SKID CONTROL SENSOR, FRONT RH
89516-11010	URZ100	07/2020 - 12/2999	1
89516F - WIRE, SKID CONTROL SENSOR, FRONT LH
89516-11020	URZ100	07/2020 - 12/2999	1
89540 - COMPUTER ASSY, SKID CONTROL
895B0-11700	URZ100..ARL	07/2020 - 12/2999	1
895B0-11740	URZ100..ARL REAR DIFFERENTIAL-FINAL GEAR RATIO=2.937,WITH(LSD)&TIRE & DISC WHEEL-245/40RF21 &275/35RF21	07/2020 - 10/2021	1
895B0-11740	URZ100..ARL REAR DIFFERENTIAL-FINAL GEAR RATIO=2.937,WITH(LSD)&TIRE & DISC WHEEL-245/45RF20 &275/40RF20	07/2020 - 10/2021	1
89545 - SENSOR, SPEED, REAR RH
89545-30090	URZ100	07/2020 - 12/2999	1
89546 - SENSOR, SPEED, REAR LH
89546-30090	URZ100	07/2020 - 12/2999	1
896C0 - SUPPLY ASSY, BRAKE CONTROL POWER W/BRACKET
896C0-11010	URZ100	07/2020 - 12/2999	1
Common parts
90119-06A11
90179-06274
91551-A0616
91553-A0612
91554-A0612
94151-80600
Linked diagrams
4303
8404

URZ100R-AKUBHQ (2020)
