URZ100R-AKUBHQ (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

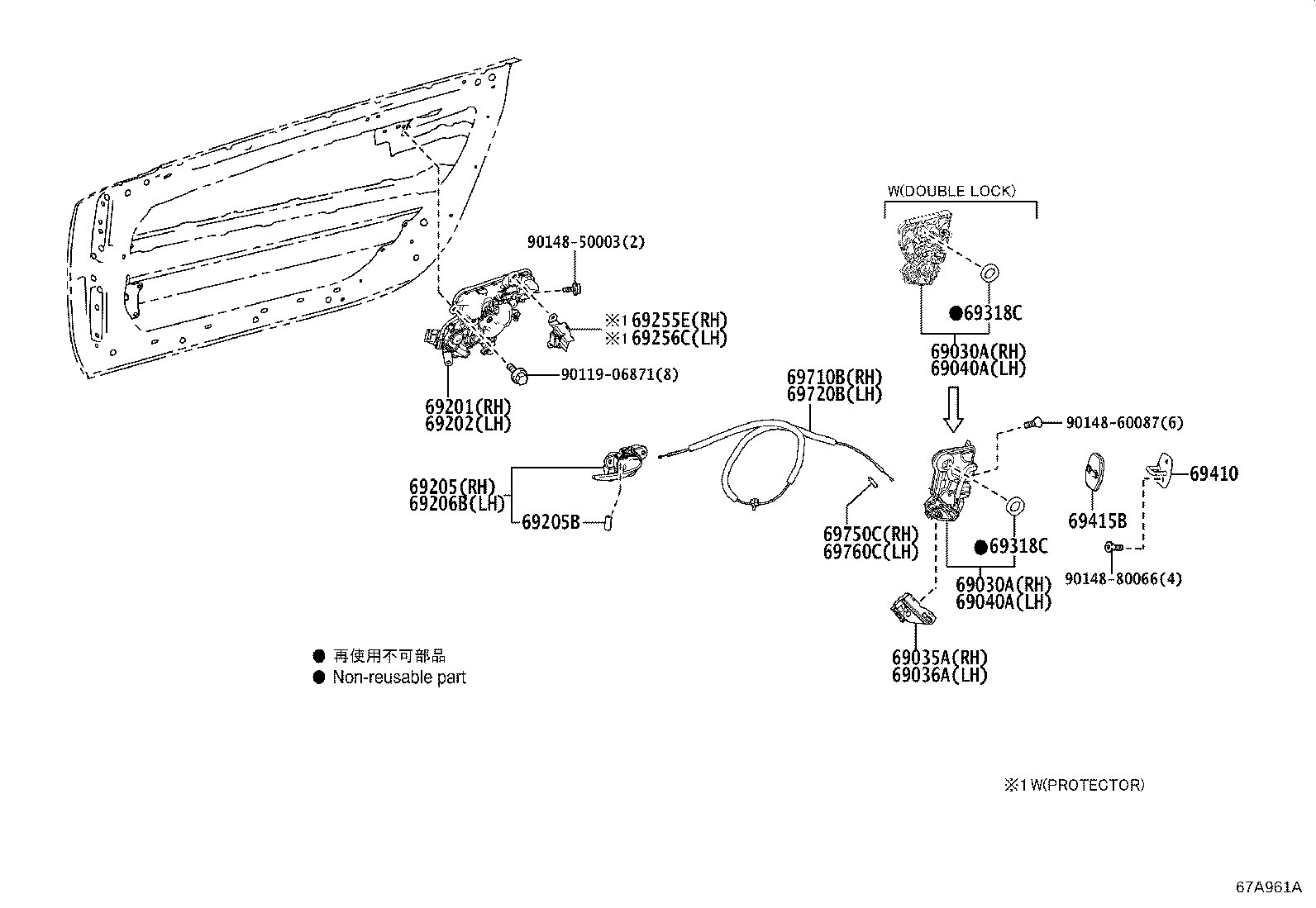

Click highlighted areas on diagram

diagram 69030A 69030A 69035A 69036A 69040A 69040A 69201 69202 69205 69205B 69206B 69255E 69256C 69318C 69318C 69410 69415B 69710B 69720B 69750C 69760C 9011906871 9014850003 9014860087 9014880066
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-11010

URZ100..ARL

BRUNEI SPEC

 1
69030-11010

URZ100..ARL

MALAYSIA SPEC

 1
69030-11010

URZ100..ARL

INDONESIA SPEC

 1
69030-11010

URZ100..ARL

SINGAPORE SPEC

 1
69030-11030

URZ100..ARL,EUR,GEN

 1
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-11010

URZ100..ARL

BRUNEI SPEC

 1
69030-11010

URZ100..ARL

MALAYSIA SPEC

 1
69030-11010

URZ100..ARL

INDONESIA SPEC

 1
69030-11010

URZ100..ARL

SINGAPORE SPEC

 1
69030-11030

URZ100..ARL,EUR,GEN

 1
69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH
69035-30010

URZ100

 1
69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH
69036-30010

URZ100

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-11020

URZ100..ARL

SINGAPORE SPEC

 1
69040-11020

URZ100..ARL

BRUNEI SPEC

 1
69040-11030

URZ100..ARL,EUR,GEN

 1
69040-11020

URZ100..ARL

MALAYSIA SPEC

 1
69040-11020

URZ100..ARL

INDONESIA SPEC

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-11020

URZ100..ARL

SINGAPORE SPEC

 1
69040-11020

URZ100..ARL

BRUNEI SPEC

 1
69040-11030

URZ100..ARL,EUR,GEN

 1
69040-11020

URZ100..ARL

MALAYSIA SPEC

 1
69040-11020

URZ100..ARL

INDONESIA SPEC

 1
69201 - HANDLE SUB-ASSY, DOOR OUTSIDE, RH
69201-11011B1

URZ100

SONIC SILVER,1J2

 1
69201-11011D1

URZ100

RADIANT RED CONTRAST LAYE,3T5

 1
69201-11011B0

URZ100

DK.GRAY MC.,1G0

 1
69201-11011C0

URZ100

BLACK,212

 1
69201-11011A0

URZ100

WHITE NOVA GF.,083

 1
69201-11011C1

URZ100

GRAPHITE BLACK GF.,223

 1
69201-11011E1

URZ100

BLAZING CARNELIAN CONTRAS,4Y1

 1
69201-11011F0

URZ100

NAPLES YELLOW CONTRAST LA,5C1

 1
69201-11011B2

URZ100

SONIC TITANIUM,1J7

 1
69201-11011J0

URZ100

DEEP BLUE MC.,8X5

 1
69201-11011J1

URZ100

STRUCTURAL BLUE,8Y0

 1
69201-11011G0

URZ100

TERRANE KHAKI M.M.,6X4

 1
69202 - HANDLE SUB-ASSY, DOOR OUTSIDE, LH
69202-11011B1

URZ100

SONIC SILVER,1J2

 1
69202-11011C0

URZ100

BLACK,212

 1
69202-11011D1

URZ100

RADIANT RED CONTRAST LAYE,3T5

 1
69202-11011B0

URZ100

DK.GRAY MC.,1G0

 1
69202-11011A0

URZ100

WHITE NOVA GF.,083

 1
69202-11011B2

URZ100

SONIC TITANIUM,1J7

 1
69202-11011J0

URZ100

DEEP BLUE MC.,8X5

 1
69202-11011J1

URZ100

STRUCTURAL BLUE,8Y0

 1
69202-11011G0

URZ100

TERRANE KHAKI M.M.,6X4

 1
69202-11011C1

URZ100

GRAPHITE BLACK GF.,223

 1
69202-11011F0

URZ100

NAPLES YELLOW CONTRAST LA,5C1

 1
69202-11011E1

URZ100

BLAZING CARNELIAN CONTRAS,4Y1

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69270-11010

URZ100

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
69275-30070

URZ100

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69280-11010

URZ100

 1
69255E - PROTECTOR, DOOR OUTSIDE HANDLE, RH
69255-11010

URZ100

 1
69256C - PROTECTOR, DOOR OUTSIDE HANDLE, LH
69256-11010

URZ100

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

URZ100

 2
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

URZ100

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-30060

URZ100

 2
69415B - COVER, DOOR LOCK STRIKER, FRONT
69415-60020

URZ100

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-11020

URZ100

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-11020

URZ100

 1
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-11040

URZ100

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-11040

URZ100

 1
Common parts
90119-06871
90148-50003
90148-60087
90148-80066
