Toyota Lexus lc500 (cv) URZ100 FRONT DOOR PANEL & GLASS

URZ100L-AKUBHW (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999

Engine 2URGSE

Transmission 10FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

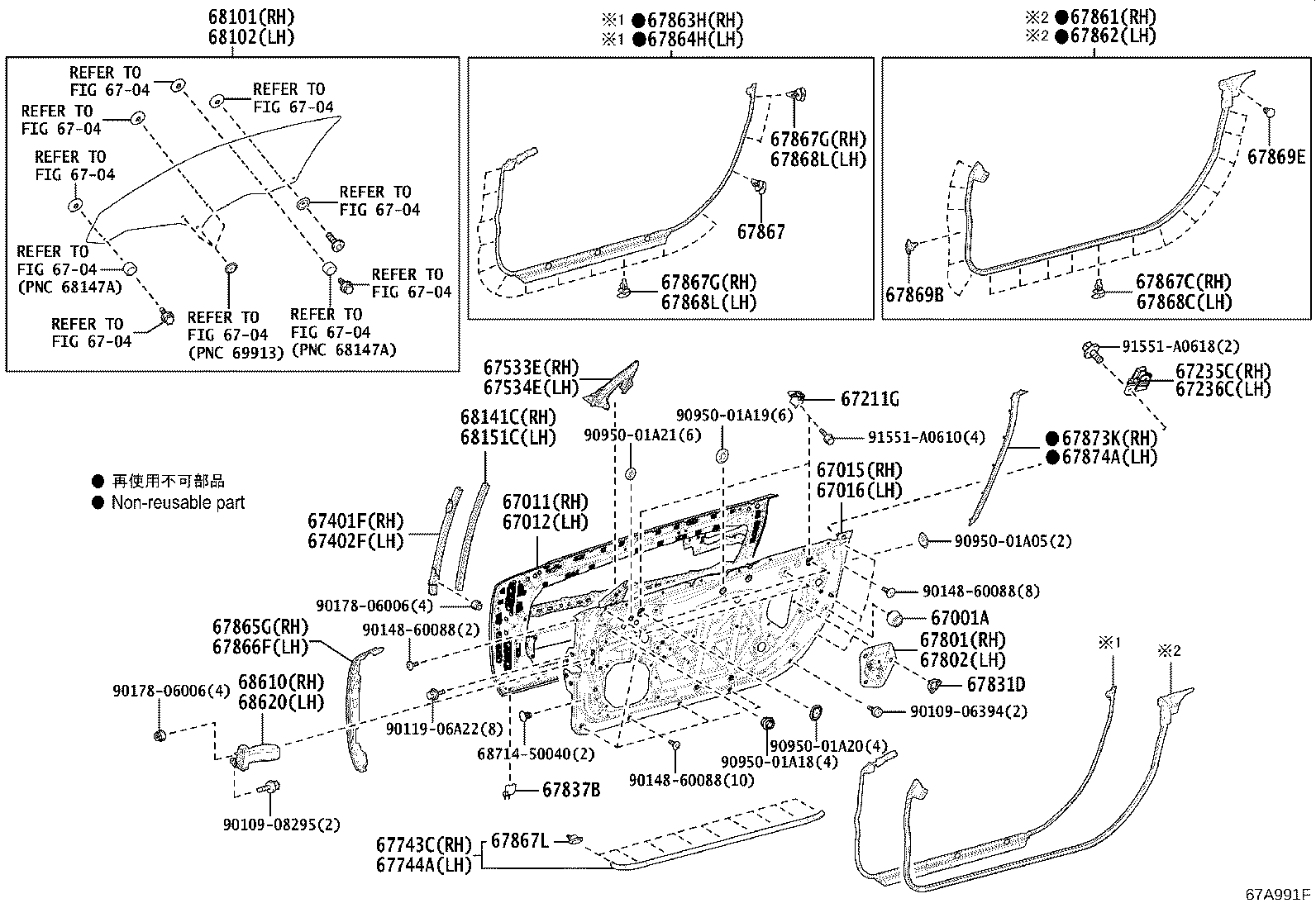

ILLUST NO. 1 OF 3(2007- )

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
67001A - CUSHION, FRONT DOOR PANEL
90541-09150	URZ100	07/2020 - 12/2999	2
67011 - PANEL SUB-ASSY, FRONT DOOR, OUTSIDE RH
67011-11010	URZ100	07/2020 - 12/2999	1
67012 - PANEL SUB-ASSY, FRONT DOOR, OUTSIDE LH
67012-11010	URZ100	07/2020 - 12/2999	1
67015 - PANEL SUB-ASSY, FRONT DOOR, INSIDE RH
67015-11020	URZ100	07/2020 - 12/2999	1
67016 - PANEL SUB-ASSY, FRONT DOOR, INSIDE LH
67016-11020	URZ100	07/2020 - 12/2999	1
67211G - STOP, FRONT DOOR WINDOW, UPPER
67211-11020	URZ100	07/2020 - 12/2999	4
67235C - STABILIZER, DOOR GLASS FEMALE, RH
67236-11020	URZ100	07/2020 - 12/2999	1
67236C - STABILIZER, DOOR GLASS FEMALE, LH
67235-11020	URZ100	07/2020 - 12/2999	1
67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67401-11010	URZ100	07/2020 - 12/2999	1
67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67402-11010	URZ100	07/2020 - 12/2999	1
67533E - SEAL, FRONT DOOR DIVISION BAR, RH
67533-11010	URZ100	07/2020 - 12/2999	1
67534E - SEAL, FRONT DOOR DIVISION BAR, LH
67534-11010	URZ100	07/2020 - 12/2999	1
67743C - SEAL, FRONT DOOR TRIM
67743-11010	URZ100	07/2020 - 12/2999	1
67744A - SEAL, FRONT DOOR TRIM, LH
67744-11020	URZ100	07/2020 - 12/2999	1
67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH
67801-11010	URZ100	07/2020 - 12/2999	1
67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH
67802-11010	URZ100	07/2020 - 12/2999	1
67831D - CLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67869-11020	URZ100	07/2020 - 12/2999	6
67837B - SEAL, FRONT DOOR DUST PROOF
67837-04010	URZ100	07/2020 - 12/2999	2
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-11020	URZ100	07/2020 - 12/2999	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-11020	URZ100	07/2020 - 12/2999	1
67863H - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-11010	URZ100	07/2020 - 12/2999	1
67864H - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67864-11010	URZ100	07/2020 - 12/2999	1
67865G - WEATHERSTRIP, FRONT DOOR, NO.3 RH
67865-11010	URZ100	07/2020 - 12/2999	1
67866F - WEATHERSTRIP, FRONT DOOR, NO.3 LH
67866-11010	URZ100	07/2020 - 12/2999	1
67867 - CLIP, DOOR WEATHERSTRIP
90467-04034	URZ100	07/2020 - 12/2999	2
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-50050	URZ100	07/2020 - 12/2999	12
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-52040	URZ100	07/2020 - 12/2999	14
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-52040	URZ100	07/2020 - 12/2999	14
67867L - RETAINER, FRONT DOOR TRIM SEAL
67867-50050	URZ100	07/2020 - 12/2999	18
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-50050	URZ100	07/2020 - 12/2999	12
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52030	URZ100	07/2020 - 12/2999	14
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52030	URZ100	07/2020 - 12/2999	14
67869B - CLIP, FRONT DOOR WEATHERSTRIP
67869-11010	URZ100	07/2020 - 12/2999	12
67869E - CLIP, FRONT DOOR WEATHERSTRIP
90467-05162C0	URZ100 BLACK	07/2020 - 12/2999	2
67873K - WEATHERSTRIP, ACCESS PANEL, REAR RH
67873-11010	URZ100	07/2020 - 12/2999	1
67874A - WEATHERSTRIP, ACCESS PANEL, REAR LH
67874-11010	URZ100	07/2020 - 12/2999	1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-11020	URZ100	07/2020 - 12/2999	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-11020	URZ100	07/2020 - 12/2999	1
68141C - RUN, FRONT DOOR GLASS, RH
68141-11010	URZ100	07/2020 - 12/2999	1
68151C - RUN, FRONT DOOR GLASS, LH
68141-11010	URZ100	07/2020 - 12/2999	1
68610 - CHECK ASSY, FRONT DOOR
68610-11010	URZ100	07/2020 - 12/2999	1
68620 - CHECK ASSY, FRONT DOOR, LH
68620-11010	URZ100	07/2020 - 12/2999	1
Common parts
68714-50040
90109-06394
90109-08295
90119-06A22
90148-60088
90178-06006
90950-01A05
90950-01A18
90950-01A19
90950-01A20
90950-01A21
91551-A0610
91551-A0618
Linked diagrams
6704

ILLUST NO. 2 OF 3(2007- )LHD

Click highlighted areas on diagram

DOOR TRIM,LH SIDE

Part #	Description	Period	Qty
62775E - CLIP, FRONT SIDE WINDOW, LH
62707-48010	URZ100	07/2020 - 12/2999	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-11010	URZ100	07/2020 - 12/2999	1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09233	URZ100	07/2020 - 12/2999	19
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-11040C7	URZ100..LHD BLACK,TRIM2#	07/2020 - 12/2020	1
67620-11040E4	URZ100..LHD OCHER,TRIM4#	07/2020 - 12/2020	1
67620-11040C8	URZ100..LHD BLACK/RED,TRIM3#	07/2020 - 12/2020	1
67620-11060A4	URZ100..LHD BRIGHT COLOR PACKAGE,WHITE/BLUE,TRIM0#	07/2020 - 12/2020	1
67620-11040C9	URZ100..LHD BLACK,TRIM2#	12/2020 - 10/2021	1
67620-1104020	URZ100..LHD BLACK/RED,TRIM3#	12/2020 - 10/2021	1
67620-11040E5	URZ100..LHD OCHER,TRIM4#	12/2020 - 10/2021	1
67620-11060A5	URZ100..LHD BRIGHT COLOR PACKAGE,WHITE/BLUE,TRIM0#	12/2020 - 10/2021	1
67652C - GRILLE, SPEAKER DOOR, LH
67652-11010A0	URZ100 BRIGHT COLOR PACKAGE,WHITE,TRIM0#	07/2020 - 10/2021	1
67652-11010C0	URZ100 BLACK,TRIM2#,3#	07/2020 - 12/2999	1
67652-11010E0	URZ100 OCHER,TRIM4#	07/2020 - 12/2999	1
67702 - COVER SUB-ASSY, FRONT DOOR TRIM, LH
67702-11010E1	URZ100..LHD OCHRE,TRIM4#	07/2020 - 12/2999	1
67702-11010C3	URZ100..LHD BLACK,TRIM2#,3#	07/2020 - 10/2021	1
67702-11020A0	URZ100..LHD BRIGHT COLOR PACKAGE,WHITE/BLUE,TRIM0#	07/2020 - 12/2999	1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-11010	URZ100	07/2020 - 12/2999	1
Common parts
62217-13010
62475-48060
90159-60370
90189-06246
90467-05172
90467-09233
90467-12080
Linked diagrams
6703
8121
8202
8401

ILLUST NO. 3 OF 3(2007- )LHD

Click highlighted areas on diagram

DOOR TRIM,RH SIDE

Part #	Description	Period	Qty
62775D - CLIP, FRONT SIDE WINDOW, RH
62707-48010	URZ100	07/2020 - 12/2999	2
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-11010	URZ100	07/2020 - 12/2999	1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-11040C7	URZ100..LHD BLACK,TRIM2#	07/2020 - 12/2020	1
67610-11040E5	URZ100..LHD OCHER,TRIM4#	12/2020 - 10/2021	1
67610-11040C8	URZ100..LHD BLACK/RED,TRIM3#	07/2020 - 12/2020	1
67610-11040E4	URZ100..LHD OCHER,TRIM4#	07/2020 - 12/2020	1
67610-11060A4	URZ100..LHD BRIGHT COLOR PACKAGE,WHITE/BLUE,TRIM0#	12/2020 - 10/2021	1
67610-11060A3	URZ100..LHD BRIGHT COLOR PACKAGE,WHITE/BLUE,TRIM0#	07/2020 - 12/2020	1
67610-1104020	URZ100..LHD BLACK/RED,TRIM3#	12/2020 - 10/2021	1
67610-11040C9	URZ100..LHD BLACK,TRIM2#	12/2020 - 10/2021	1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09233	URZ100	07/2020 - 12/2999	19
67651H - GRILLE, SPEAKER DOOR, RH
67651-11010C0	URZ100 BLACK,TRIM2#,3#	07/2020 - 12/2999	1
67651-11010A0	URZ100 BRIGHT COLOR PACKAGE,WHITE,TRIM0#	07/2020 - 10/2021	1
67651-11010E0	URZ100 OCHER,TRIM4#	07/2020 - 12/2999	1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-11010	URZ100	07/2020 - 12/2999	1
74630H - GRIP ASSY, FRONT DOOR ASSIST, RH
74630-11010C7	URZ100..LHD BLACK,TRIM2#,3#	12/2020 - 10/2021	1
74630-11020A0	URZ100..LHD BRIGHT COLOR PACKAGE,WHITE/BLUE,TRIM0#	07/2020 - 12/2020	1
74630-11010C5	URZ100..LHD BLACK,TRIM2#,3#	07/2020 - 12/2020	1
74630-11010E8	URZ100..LHD OCHER,TRIM4#	12/2020 - 12/2999	1
74630-11020A1	URZ100..LHD BRIGHT COLOR PACKAGE,WHITE/BLUE,TRIM0#	12/2020 - 12/2999	1
74630-11010E3	URZ100..LHD OCHRE,TRIM4#	07/2020 - 12/2020	1
Common parts
62217-13010
62475-48060
90159-60370
90189-06246
90467-05172
90467-09233
90467-12080
Linked diagrams
6703
8121
8202
8401
