URZ100L-AKUBHW (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

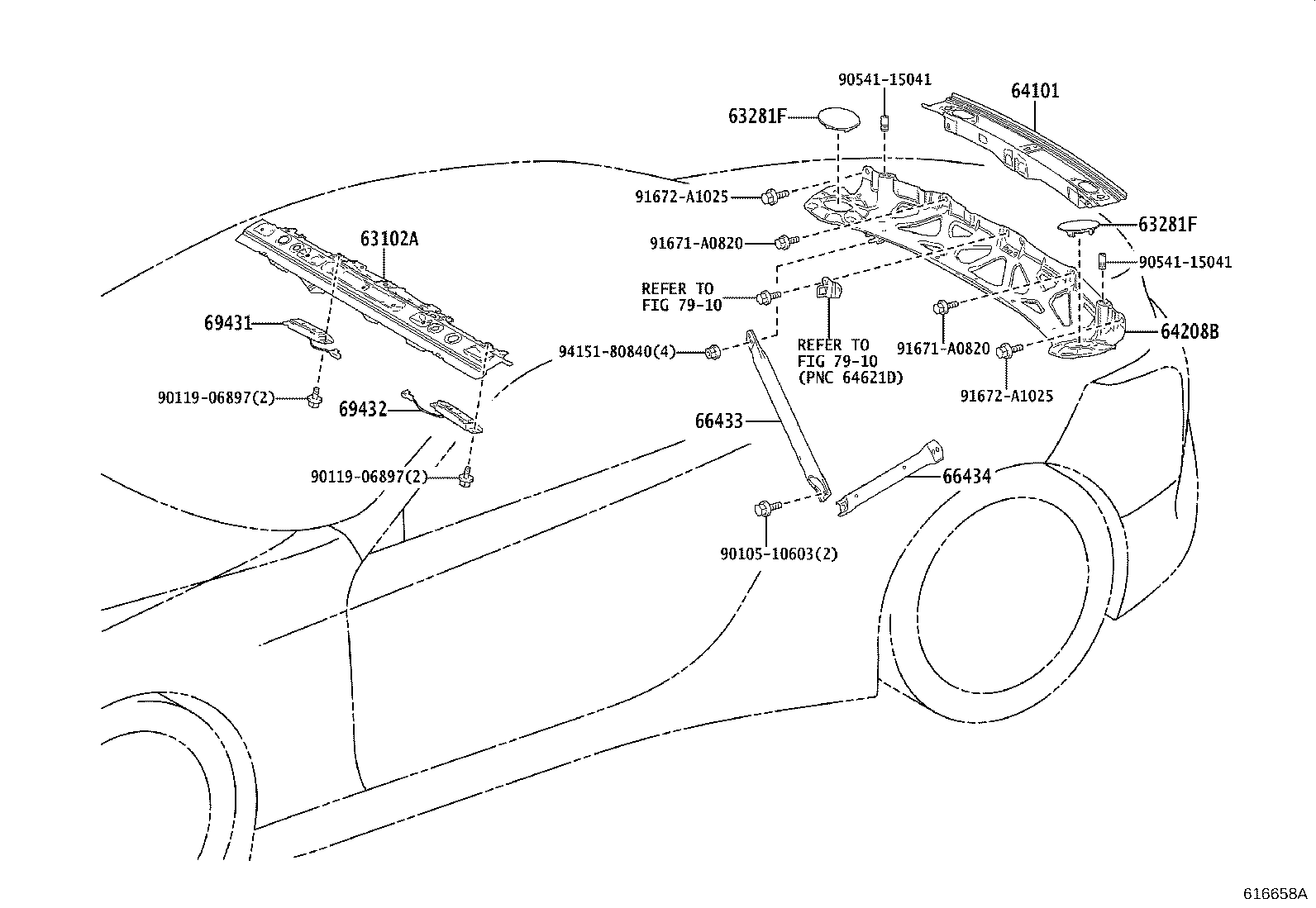

Click highlighted areas on diagram

diagram 63102A 63281F 63281F 64101 64208B 66433 66434 69431 69432 7910 7910 9010510603 9011906897 9011906897 9054115041 9054115041 91671A0820 91671A0820 91672A1025 91672A1025 9415180840
Part # Description Qty Price
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-11030

URZ100

 1
63102-11031

URZ100

 1
63281F - STOPPER, REMOVABLE ROOF LOCK
63281-11010

URZ100

 2
63281F - STOPPER, REMOVABLE ROOF LOCK
63281-11010

URZ100

 2
64101 - PANEL SUB-ASSY, UPPER BACK
64101-11050

URZ100

 1
64208B - MEMBER SUB-ASSY, ROOM PARTITION CROSS
64208-11010

URZ100

 1
66433 - BRACE, SIDE REAR STEP, RH
66433-11010

URZ100

 1
66434 - BRACE, SIDE REAR STEP, LH
66434-11010

URZ100

 1
69431 - STRIKER, TOP COVER LOCK, NO.1 RH
69431-11020

URZ100

 1
69432 - STRIKER, TOP COVER LOCK, NO.1 LH
69432-11010

URZ100

 1
Common parts
90105-10603
90119-06897
90541-15041
91671-A0820
91672-A1025
94151-80840
Linked diagrams
7910
