URZ100L-AKUBHW (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

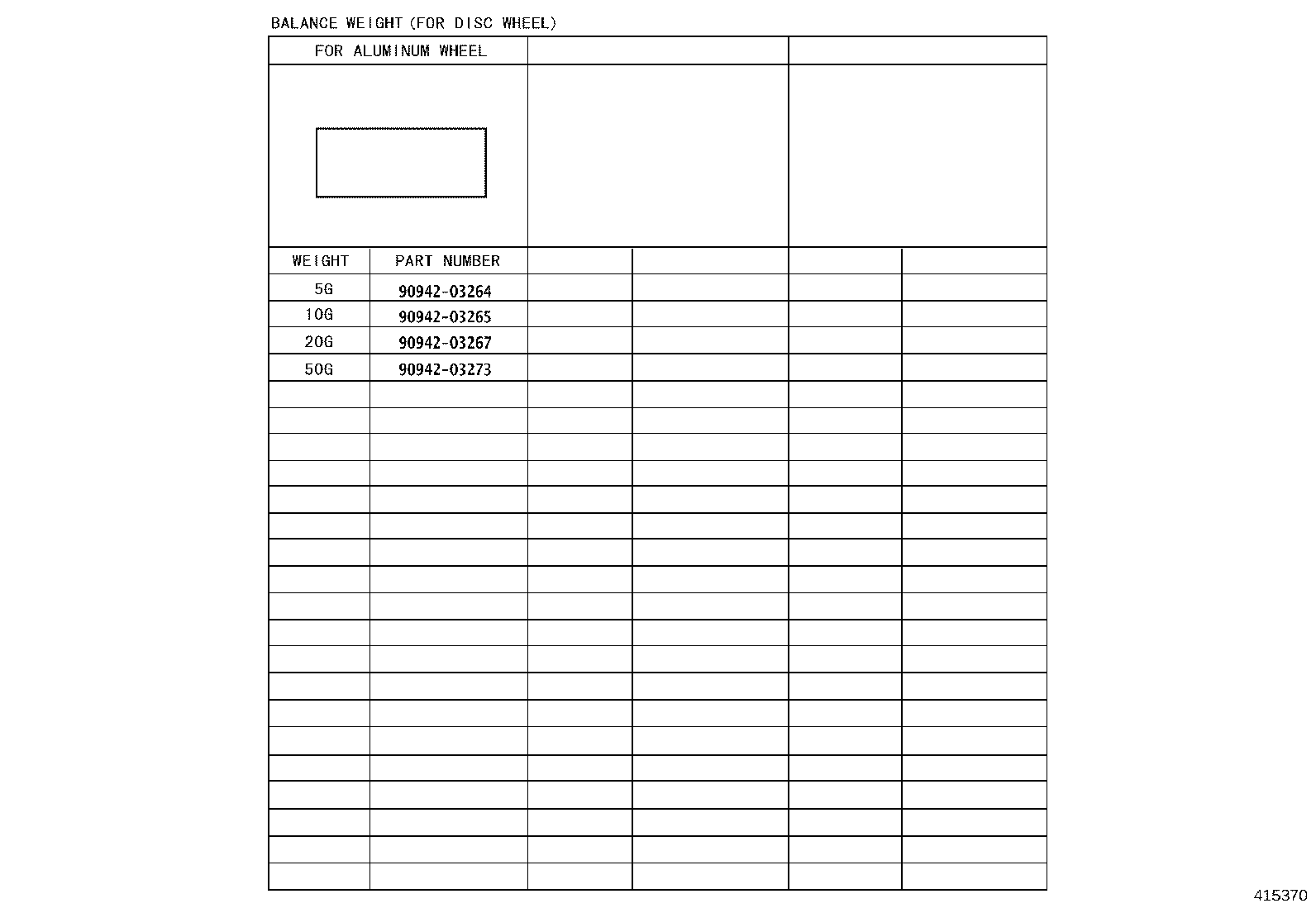

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

diagram 9094203264 9094203265 9094203267 9094203273
Part # Description Qty Price
Common parts
90942-03264
90942-03265
90942-03267
90942-03273

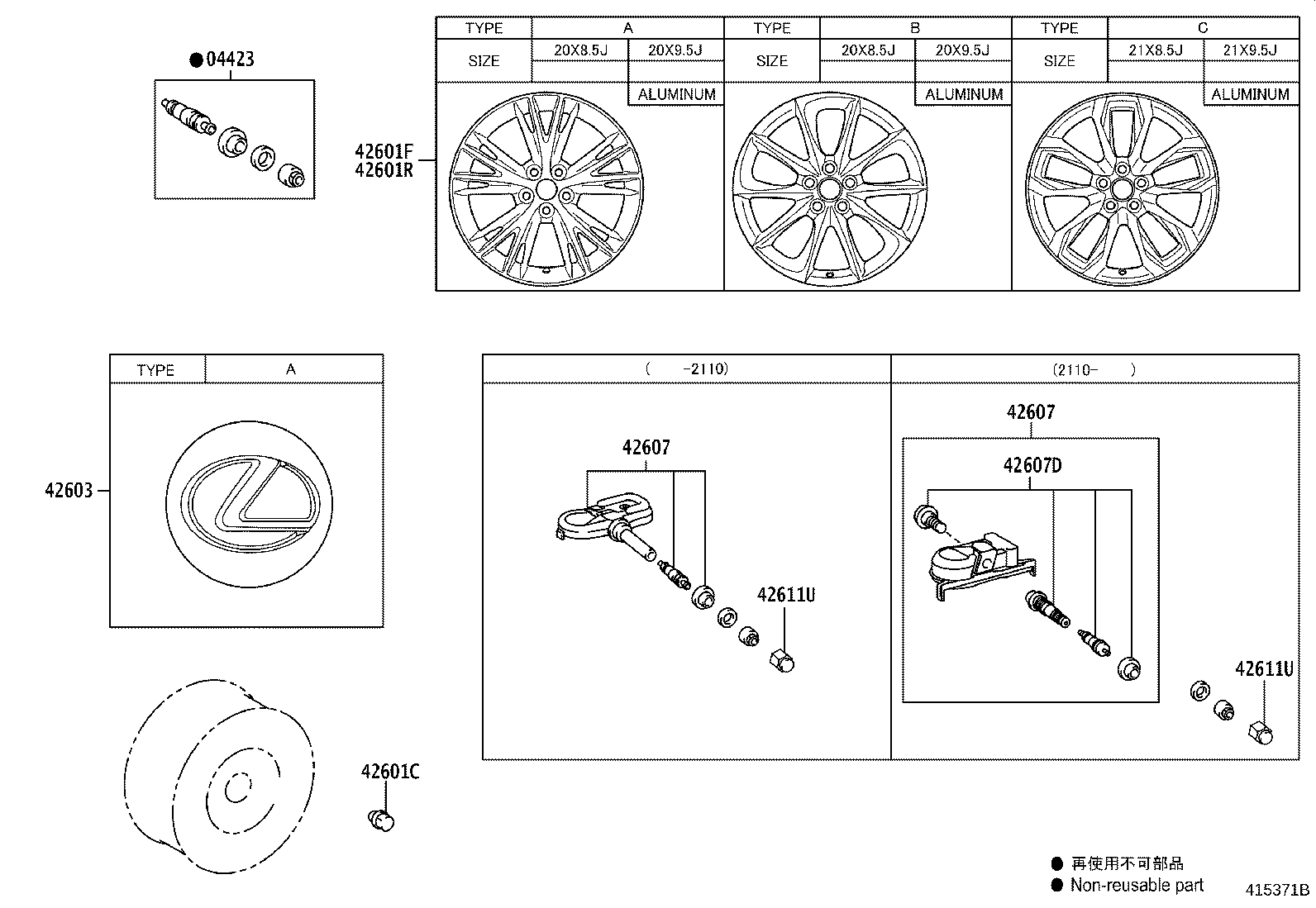

ILLUST NO. 1 OF 2(2007- )

Click highlighted areas on diagram

diagram 04423 42601C 42601F 42601R 42603 42607 42607 42607D 42611U 42611U
Part # Description Qty Price
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33060

URZ100

 4
42601C - NUT, HUB (FOR AXLE)
90942-01118

URZ100

 20
42601F - WHEEL, DISC (FOR FRONT)
42611-11090

URZ100

21X8.5J,BLACK PAINT,TIRE & DISC WHEEL-245/40RF21 & 275/35RF21,TYPE C:REFER ILLUST.

 2
42611-11050

URZ100..EUR

20X8.5J,#,TYPE A:REFER ILLUST.

 2
4261A-11010

URZ100

20X8.5J,#,TIRE & DISC WHEEL-245/45RF20 & 275/40RF20,TYPE B:REFER ILLUST.

 2
42601R - WHEEL, DISC (FOR REAR)
42611-11050

URZ100..EUR

20X8.5J,#,TIRE & DISC WHEEL-245/45RF20 & 245/45RF20, MACHINING,TYPE A:REFER ILLUST.

 2
4261A-11020

URZ100

20X9.5J,#,TIRE & DISC WHEEL-245/45RF20 & 275/40RF20,TYPE B:REFER ILLUST.

 2
42611-11070

URZ100..EUR

20X9.5J,#,TYPE A:REFER ILLUST.

 2
42611-11160

URZ100

21X9.5J,#,TIRE & DISC WHEEL-245/40RF21 & 275/35RF21,TYPE C:REFER ILLUST.

 2
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-53110

URZ100

*ALU,TYPE A:REFER ILLUST.

 4
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-48020

URZ100..ARL,EUR,GCC

 4
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-48020

URZ100..ARL,EUR,GCC

 4
42611U - CAP, TIRE VALVE
90942-05042

URZ100

 4
42611U - CAP, TIRE VALVE
90942-05042

URZ100

 4
