URZ100L-AKUBHW (2020)

Toyota Lexus Lc500 (Cv)

Production Jul 2020 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

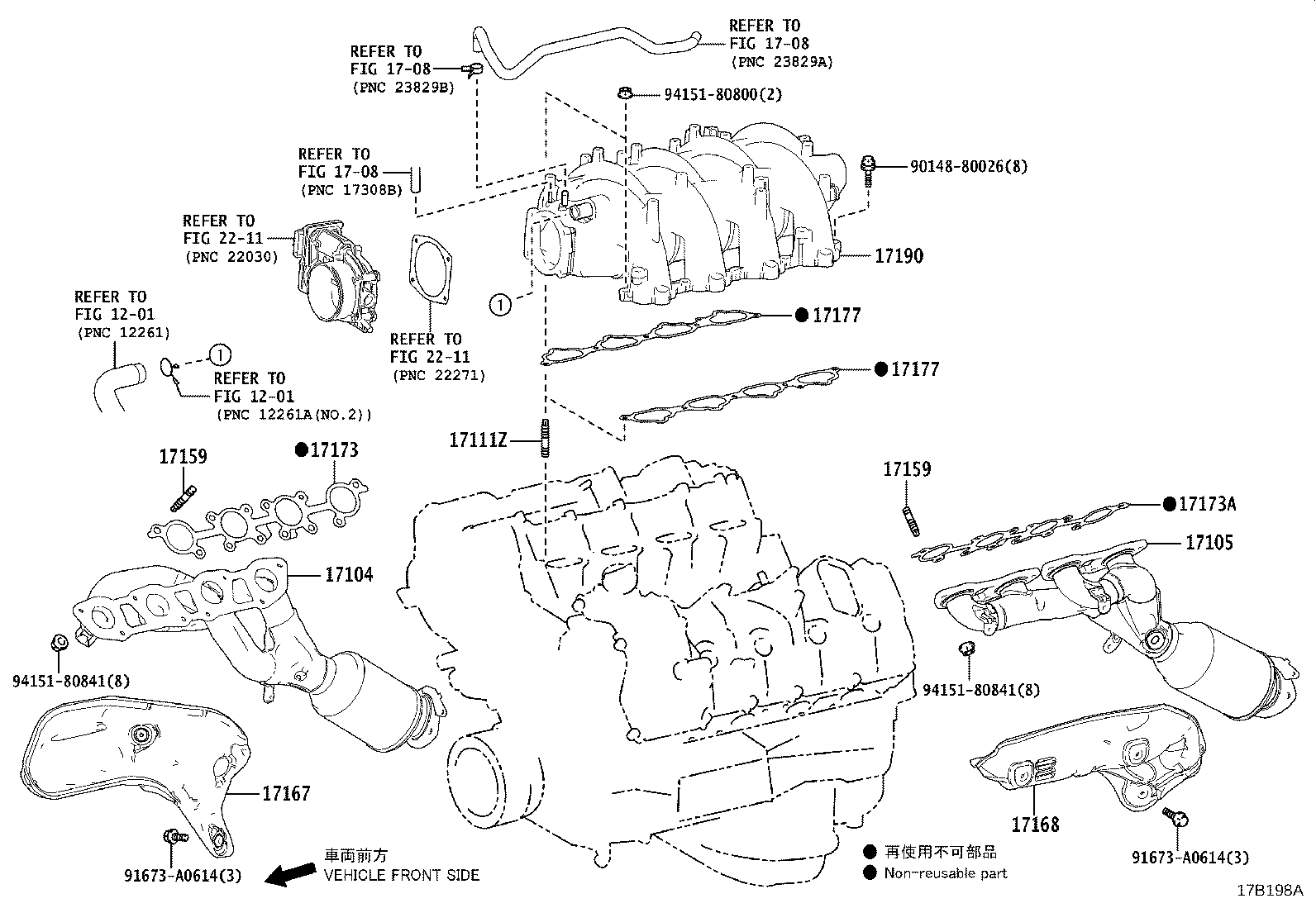

Click highlighted areas on diagram

diagram 1201 1201 1708 1708 1708 17104 17105 17111Z 17159 17159 17167 17168 17173 17173A 17177 17177 17190 2211 2211 9014880026 91673A0614 91673A0614 9415180800 9415180841 9415180841
Part # Description Qty Price
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17104-38100

2URGSE..URZ100..LHD..EUR

*114=TOYOTA/R38100/Y,UKRAINE SPEC

 1
17104-38120

2URGSE..URZ100..EUR,GEN

*114=TOYOTA/R38120/Y

 1
17104-38100

2URGSE..URZ100..LHD..EUR

*114=TOYOTA/R38100/Y,AZERBAIJAN SPEC

 1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17105-38100

2URGSE..URZ100..LHD..EUR

*114=TOYOTA/L38100/Y,UKRAINE SPEC

 1
17105-38100

2URGSE..URZ100..LHD..EUR

*114=TOYOTA/L38100/Y,AZERBAIJAN SPEC

 1
17105-38120

2URGSE..URZ100..EUR,GEN

*114=TOYOTA/L38120/Y

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08026

2URGSE..URZ100

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

2URGSE..URZ100

 16
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-08052

2URGSE..URZ100

 16
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-38150

2URGSE..URZ100

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-38120

2URGSE..URZ100

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-38050

2URGSE..URZ100

 1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-38050

2URGSE..URZ100

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-38030

2URGSE..URZ100

 2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-38030

2URGSE..URZ100

 2
17190 - TANK ASSY, INTAKE AIR SURGE
17190-38030

2URGSE..URZ100

 1
Common parts
90148-80026
91673-A0614
94151-80800
94151-80841
Linked diagrams
1201
1708
2211
