URZ100L-ACUBHV (2017)
Toyota Lexus Lc500/500h(Cp)
Production
Mar 2017
-
Sep 9999
Engine
2URGSE
Transmission
10FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1703- )URZ100..LHD

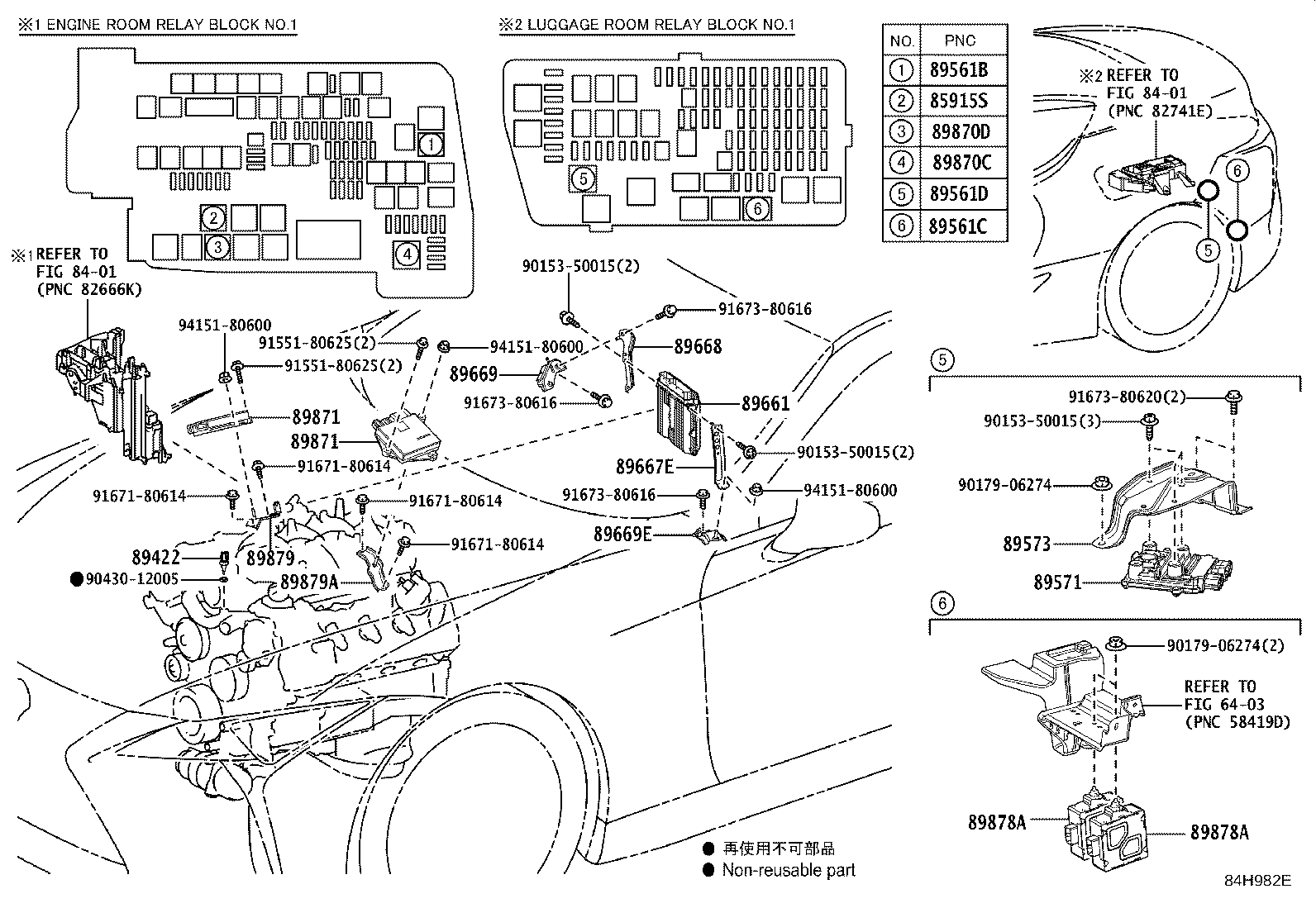

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR) | ||||
| 90987-02027 |
GWZ100,URZ100 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
URZ100 |
1 | ||
| 89561B - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02027 |
GWZ100,URZ100 |
1 | ||
| 89561C - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | ||||
| 90987-02027 |
GWZ100,URZ100 |
1 | ||
| 89561D - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.5 | ||||
| 90987-02027 |
URZ100 |
1 | ||
| 89571 - COMPUTER, FUEL PUMP CONTROL | ||||
| 89571-58010 |
GWZ100,URZ100 |
1 | ||
| 89573 - BRACKET, FUEL PUMP CONTROL COMPUTER | ||||
| 89573-11010 |
GWZ100,URZ100 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-11170 |
URZ100 |
1 | ||
| 89661-11090 |
URZ100..GCC LEBANON SPEC |
1 | ||
| 89661-11220 |
URZ100 DENSO |
1 | ||
| 89661-11090 |
URZ100..GCC JORDAN SPEC |
1 | ||
| 89661-11230 |
URZ100..GCC DENSO,LEBANON SPEC |
1 | ||
| 89661-11230 |
URZ100..GCC DENSO,JORDAN SPEC |
1 | ||
| 89661-11470 |
URZ100..GCC DENSO,JORDAN SPEC |
1 | ||
| 89661-11470 |
URZ100..GCC DENSO,LEBANON SPEC |
1 | ||
| 89661-11460 |
URZ100 DENSO |
1 | ||
| 89661-11540 |
URZ100..GCC DENSO,JORDAN SPEC |
1 | ||
| 89661-11530 |
URZ100..GCC DENSO |
1 | ||
| 89661-11540 |
URZ100..GCC DENSO,LEBANON SPEC |
1 | ||
| 89661-11540 |
URZ100..GCC DENSO |
1 | ||
| 89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-11010 |
URZ100..LHD |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-11010 |
URZ100..LHD |
1 | ||
| 89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3 | ||||
| 89669-11010 |
URZ100..LHD |
1 | ||
| 89669E - BRACKET, ENGINE CONTROL COMPUTER, NO.4 | ||||
| 89669-11040 |
URZ100..LHD |
1 | ||
| 89870C - RELAY, ELECTRONIC DRIVER UNIT, NO.1 | ||||
| 90987-02025 |
URZ100 |
1 | ||
| 89870D - RELAY, ELECTRONIC DRIVER UNIT, NO.2 | ||||
| 90987-02025 |
URZ100 |
1 | ||
| 89871 - DRIVER, INJECTOR | ||||
| 89871-30040 |
URZ100 |
2 | ||
| 89871 - DRIVER, INJECTOR | ||||
| 89871-30040 |
URZ100 |
2 | ||
| 89878A - DRIVER, EXHAUST CHANGE VALVE | ||||
| 89878-11020 |
URZ100..ARL,GCC |
2 | ||
| 89878-11040 |
URZ100..ARL,GCC |
2 | ||
| 89878A - DRIVER, EXHAUST CHANGE VALVE | ||||
| 89878-11020 |
URZ100..ARL,GCC |
2 | ||
| 89878-11040 |
URZ100..ARL,GCC |
2 | ||
| 89879 - BRACKET, INJECTOR DRIVER | ||||
| 89879-24010 |
URZ100 |
1 | ||
| 89879A - BRACKET, INJECTOR DRIVER | ||||
| 89879-24020 |
URZ100 |
1 | ||
| Common parts | ||||
| 90153-50015 | ||||
| 90179-06274 | ||||
| 90430-12005 | ||||
| 91551-80625 | ||||
| 91671-80614 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 6403 | ||||
| 8401 | ||||
