URZ100L-ACUBHV (2017)

Toyota Lexus Lc500/500h(Cp)

Production Mar 2017 - Sep 9999
Engine 2URGSE
Transmission 10FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 5(1703- )GWZ100 ; (1703- )URZ100..LHD

Click highlighted areas on diagram

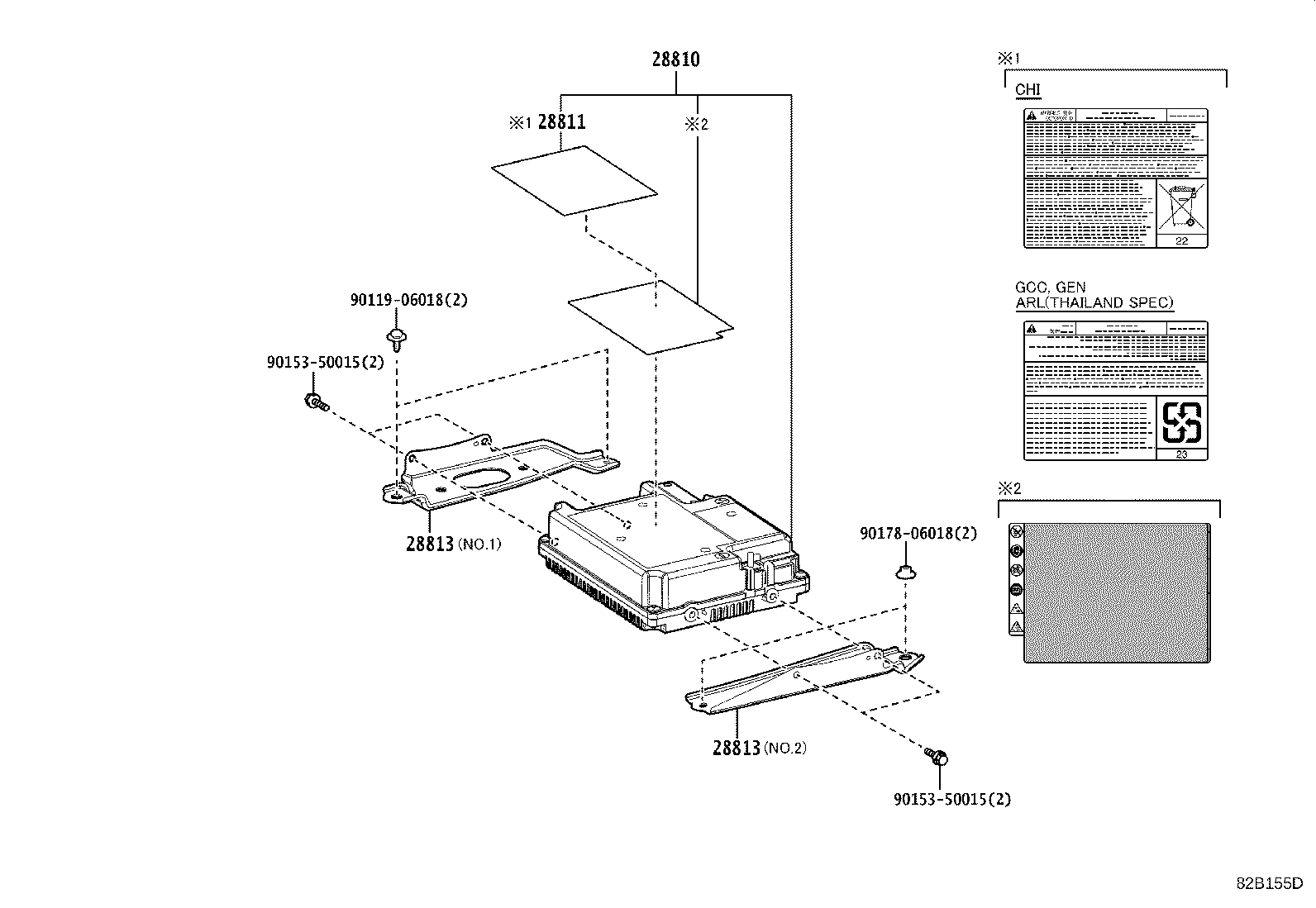

SUB-BATTERY

diagram 28810 28811 28813 28813 9011906018 9015350015 9015350015 9017806018
Part # Description Qty Price
28810 - SUB-BATTERY ASSY, W/CONTROL
28810-38030

8GRFXS,2URGSE..GWZ100,URZ100..GCC,GEN

 1
28811 - LABEL, SUB-BATTERY CAUTION
28811-38030

8GRFXS,2URGSE..GWZ100,URZ100..GCC,GEN

 1
28813 - BRACKET, SUB-BATTERY
28813-38010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 1
28813-38020

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 1
28813 - BRACKET, SUB-BATTERY
28813-38010

8GRFXS,2URGSE..GWZ100,URZ100

NO.1

 1
28813-38020

8GRFXS,2URGSE..GWZ100,URZ100

NO.2

 1
Common parts
90119-06018
90153-50015
90178-06018

ILLUST NO. 1 OF 5(1703- )URZ100

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28885B 28897 8202 8202 8202 8202 8401 8401 8401 8401 9415180801 9415180801 9415180801
Part # Description Qty Price

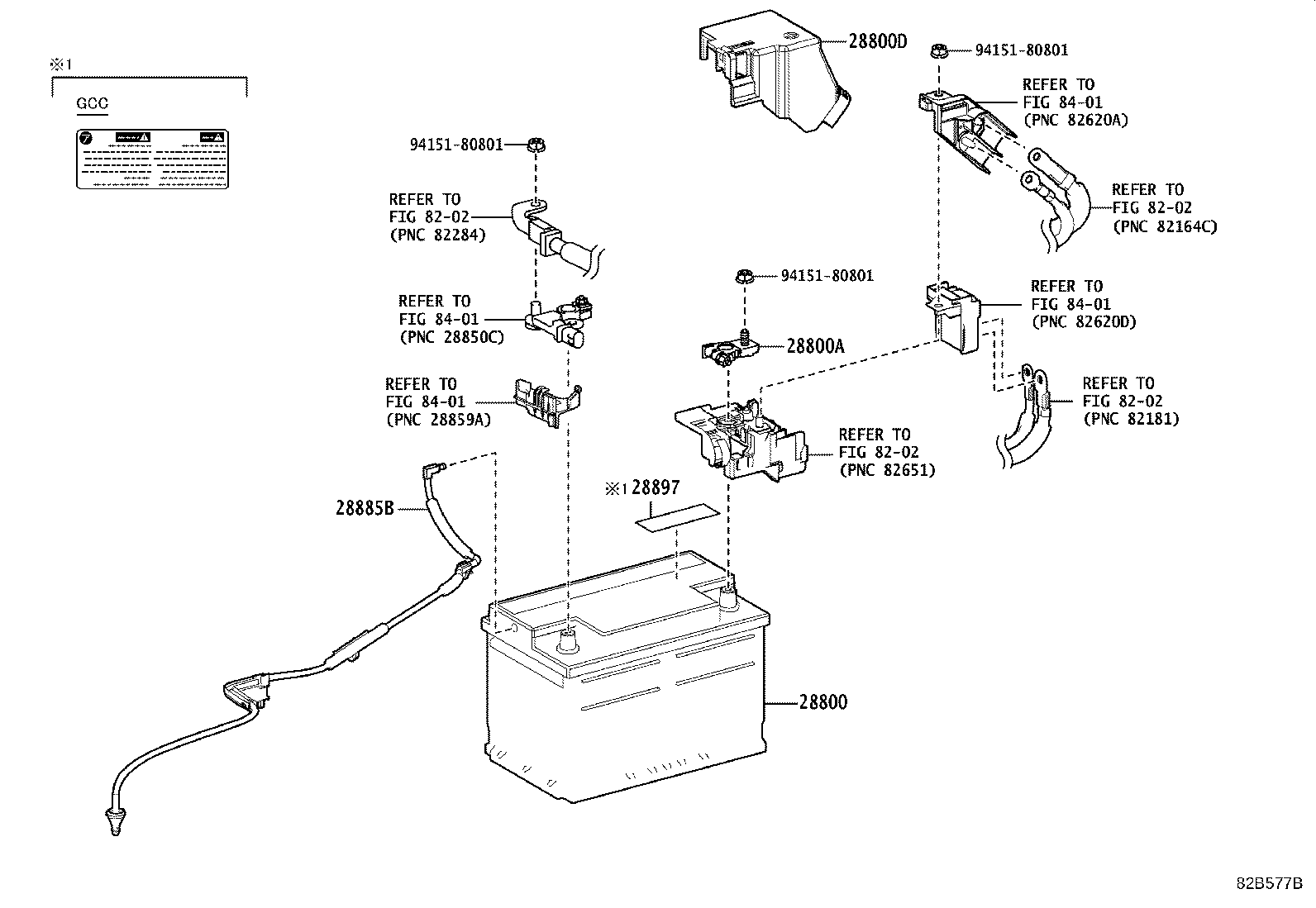

28800 - BATTERY
28800-38190

2URGSE..URZ100

LN4

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05062

8GRFXS,2URGSE..GWZ100,URZ100

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-50730

8GRFXS,2URGSE..GWZ100,URZ100

 1
28885B - HOSE, BATTERY
28885-38020

8GRFXS,2URGSE..GWZ100,URZ100

 1
28897 - PLATE, BATTERY CAUTION
28897-38030

8GRFXS,2URGSE..GWZ100,URZ100..GCC

 1
Common parts
94151-80801
Linked diagrams
8202
8401
